Power Steering Pump Drive Belt Replacement

WARNING: This page is about a different car, the 2007 Saturn Sky. However, it is still accessible from the selected car via links, so may be relevant.

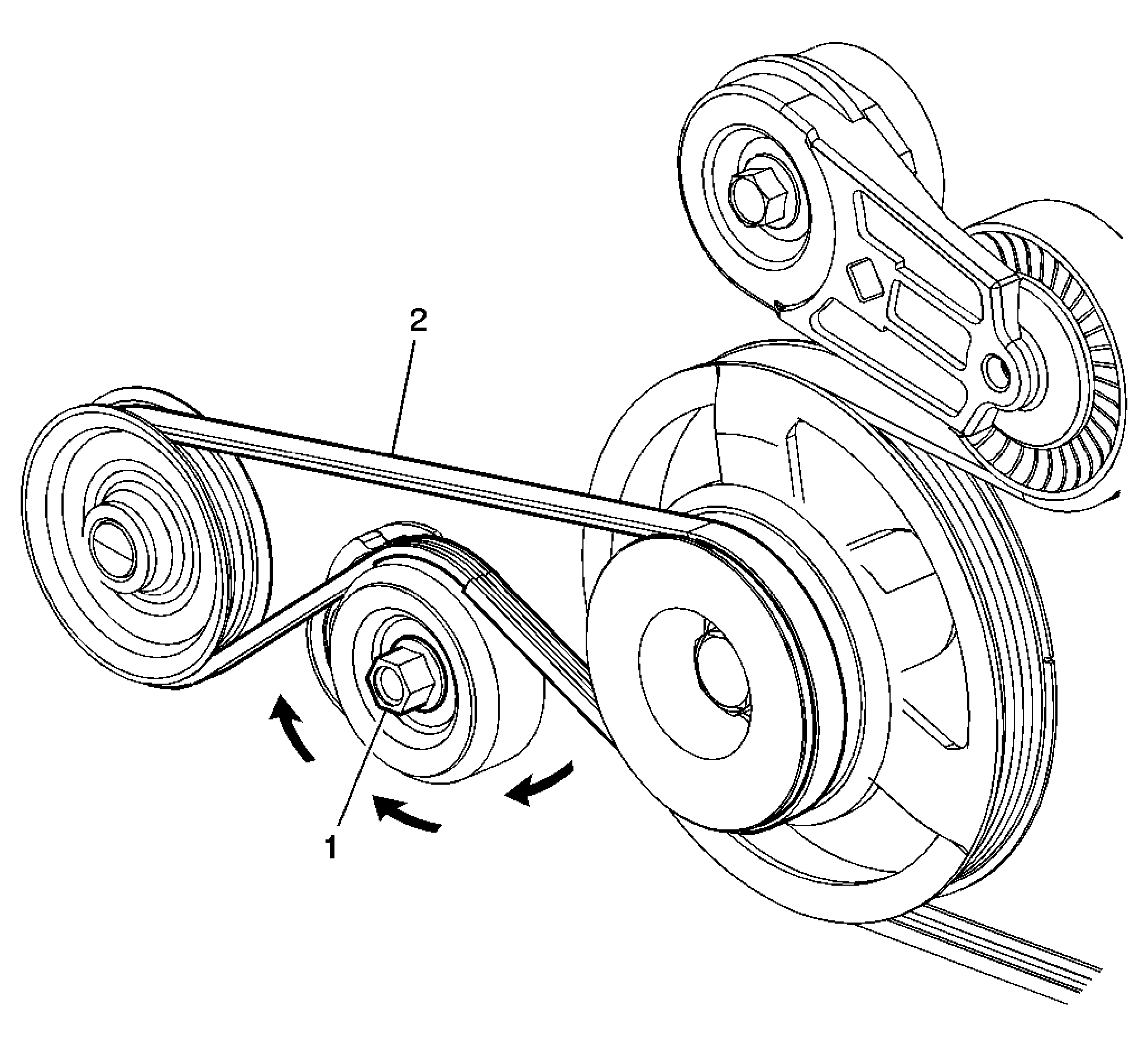

Fig 1: Power Steering Pump Drive Belt
GM1717023Courtesy of GENERAL MOTORS CORP.
Power Steering Pump Drive Belt Replacement

Callout Component Name
Preliminary Procedure:
Raise the vehicle. Refer to Lifting and Jacking the Vehicle .
1 Power Steering Pump Belt Tensioner Pulley
Procedure:
Rotate the power steering pump belt tensioner pulley clockwise to release the tension on the power steering pump belt.
2 Power Steering Pump Drive Belt
