Automatic Transmission Controls Schematics

WARNING: This page is about a different car, the 2007 Saturn Sky. However, it is still accessible from the selected car via links, so may be relevant.

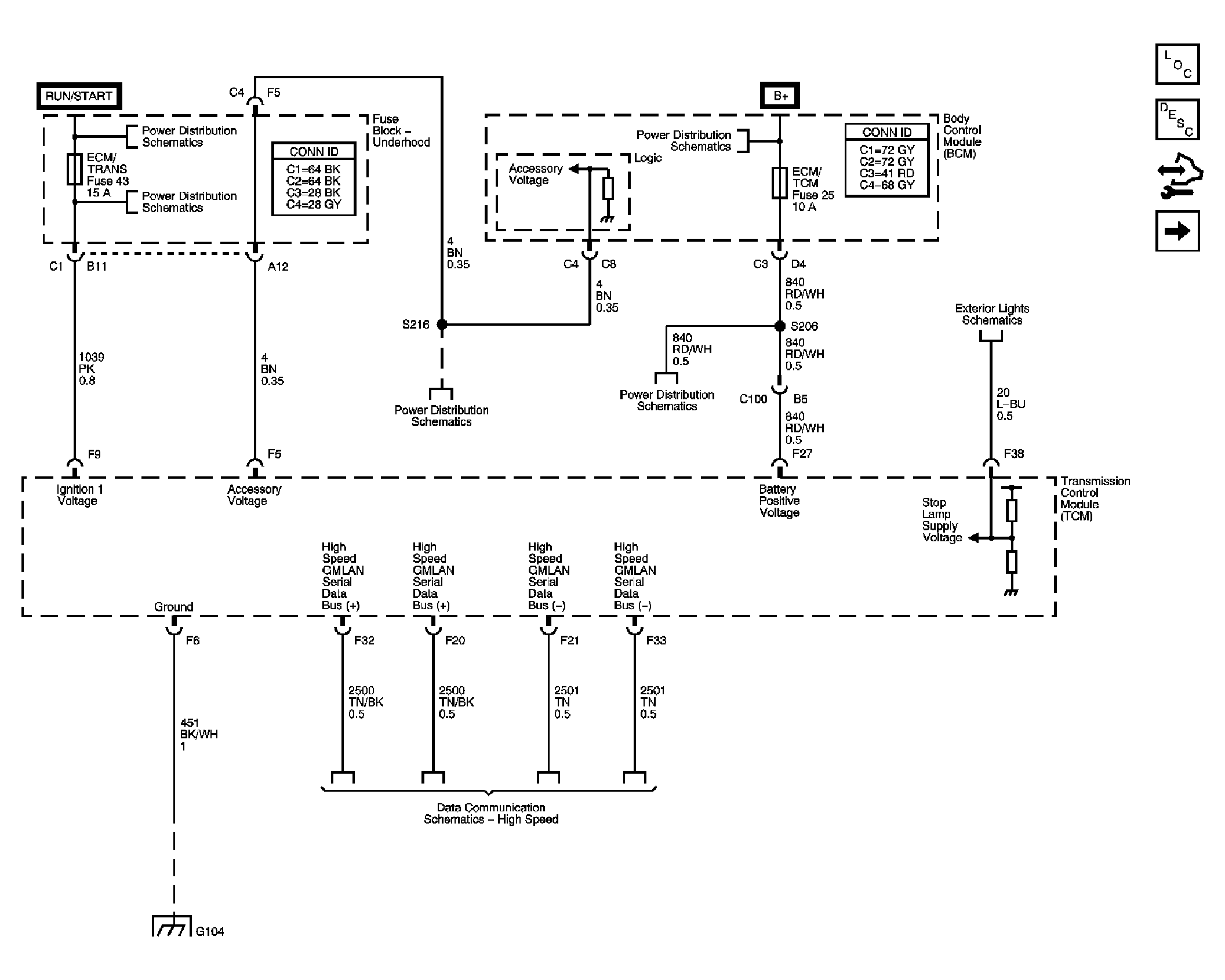

Fig 1: DLC, Ground, and Power
GM1742844Courtesy of GENERAL MOTORS CORP.

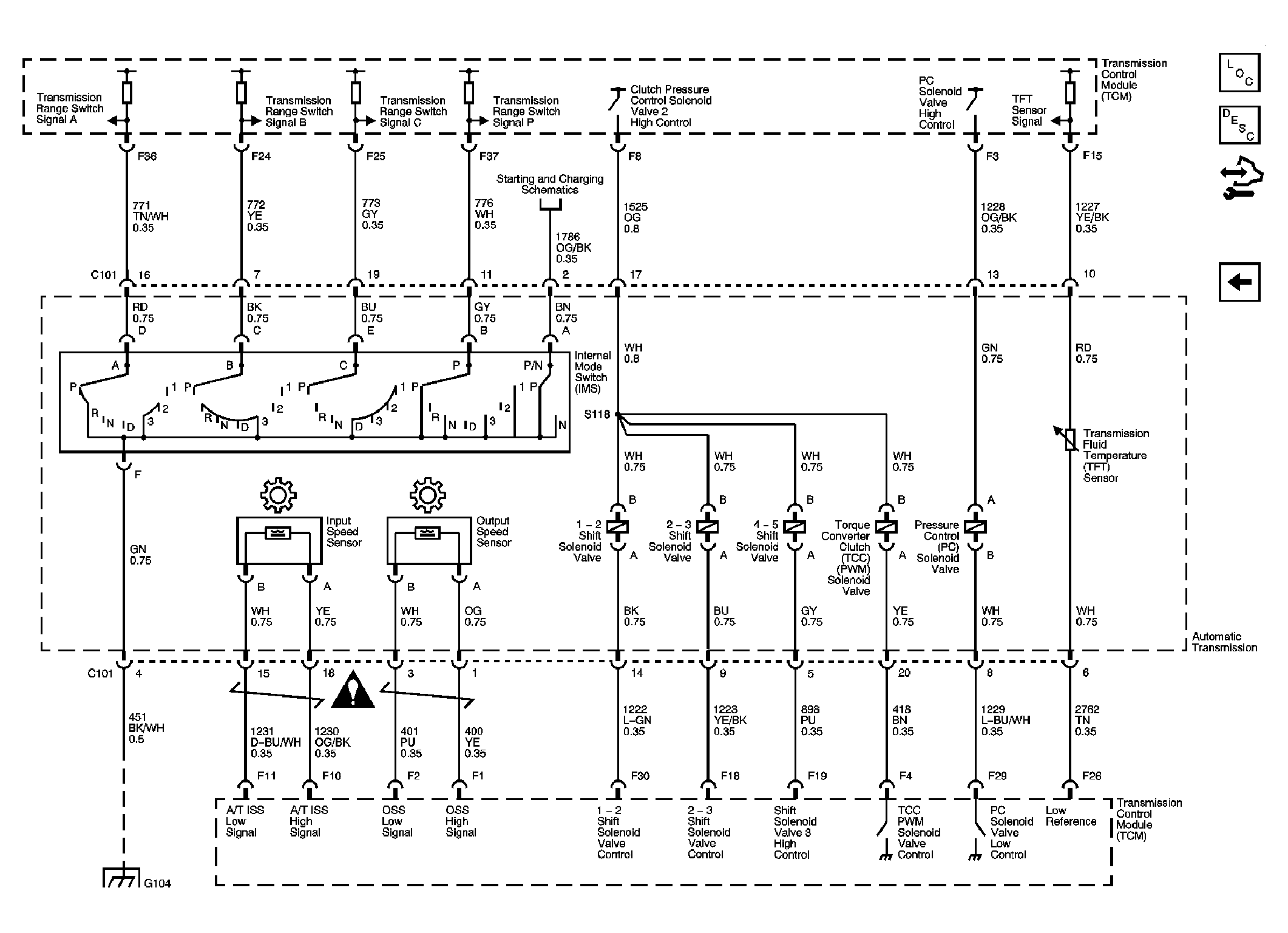

Fig 2: Shift Solenoids, TFT, and VSS
GM1742848Courtesy of GENERAL MOTORS CORP.
