Steering Column Trim Covers Replacement

WARNING: This page is about a different car, the 2007 Saturn Sky. However, it is still accessible from the selected car via links, so may be relevant.

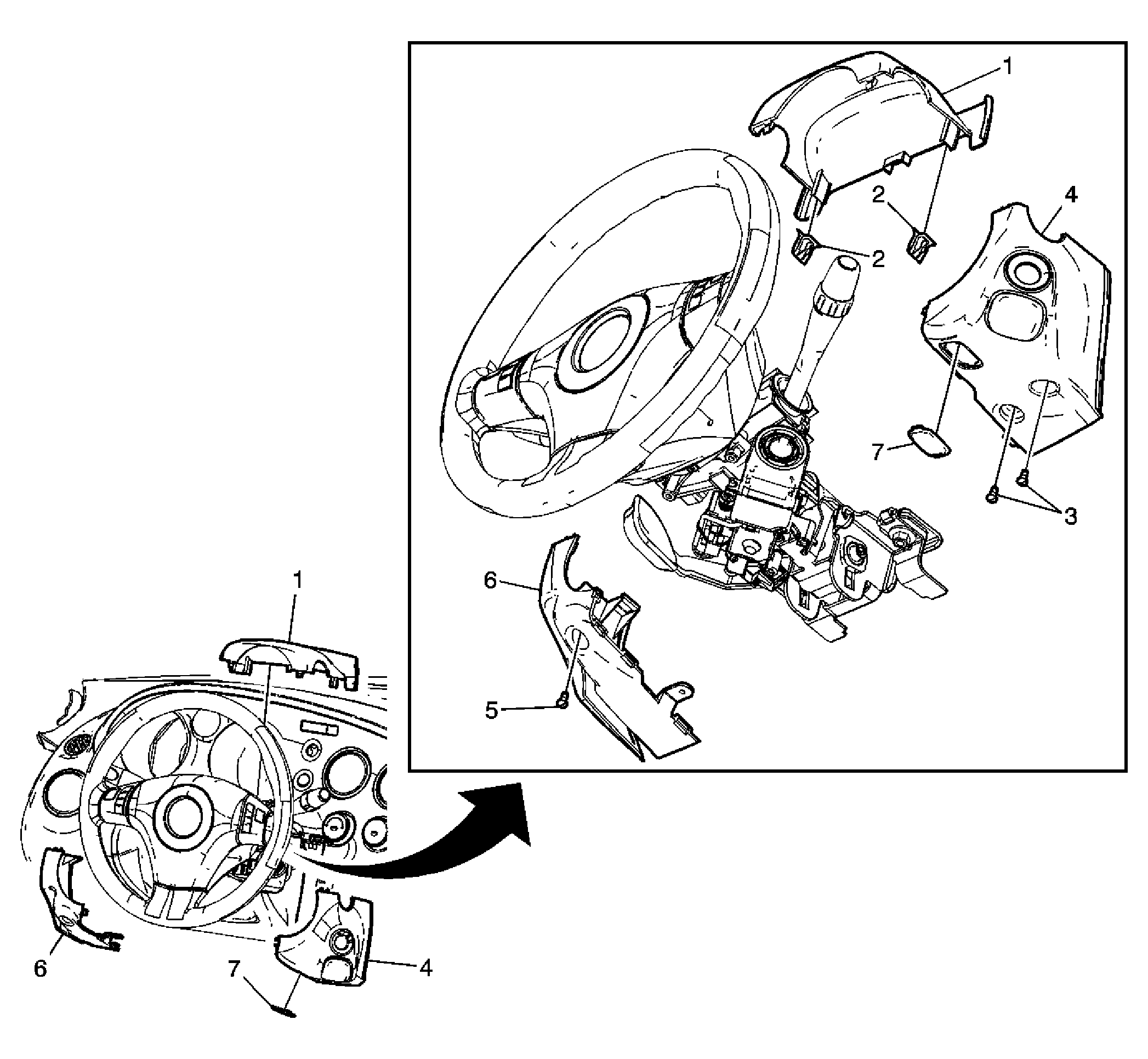

Fig 1: Steering Column Trim Covers

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the driver knee bolster bracket. Refer to Driver Knee Bolster Bracket Replacement . Lower the steering column as necessary. Refer to Steering Column Replacement .
1	Steering Column Upper Trim Cover
2	Steering Column Upper Trim Cover Retainer (Qty: 2)
3	Steering Column Lower Trim Cover Bolt (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 2.5 N.m (22 lb in)
4	Steering Column Lower Trim Cover
5	Steering Column Lower Trim Cover Bolt Tighten: 2.5 N.m (22 lb in)
6	Steering Column Lower Trim Cover
7	Steering Column Lower Trim Cover Plug
