Instrument Cluster Housing Replacement
WARNING: This page is about a different car, the 2007 Saturn Sky. However, it is still accessible from the selected car via links, so may be relevant.

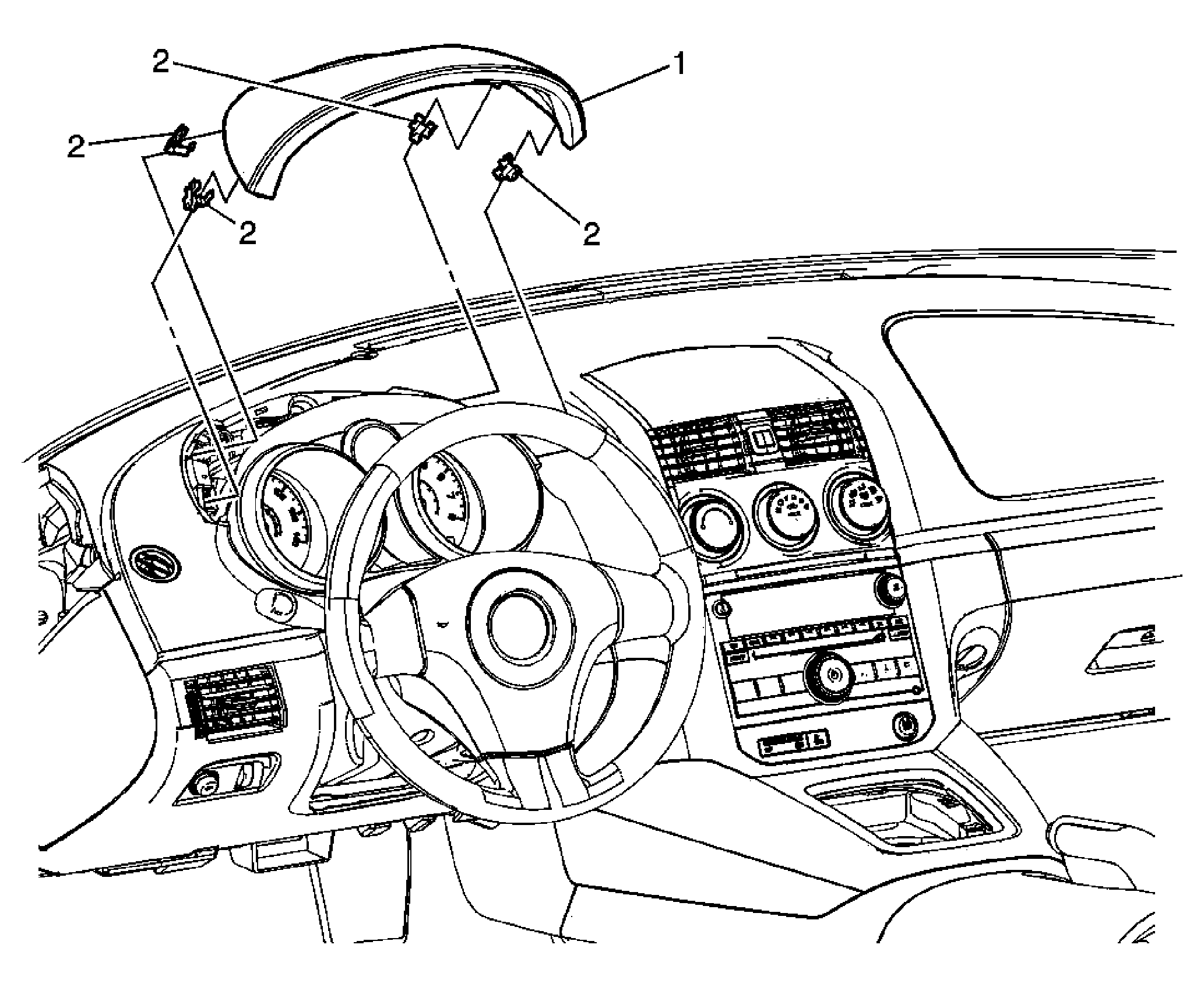

Courtesy of GENERAL MOTORS CORP. Instrument Cluster Housing Replacement
| Callout |
Component Name |
| 1 |
Instrument Panel Cluster Housing
Procedure:
Grasp the cluster housing and pull outward releasing it from the instrument panel. |
| 2 |
Retainer Clips (Qty: 4) |
