Sunshade Replacement

WARNING: This page is about a different car, the 2007 Saturn Sky. However, it is still accessible from the selected car via links, so may be relevant.

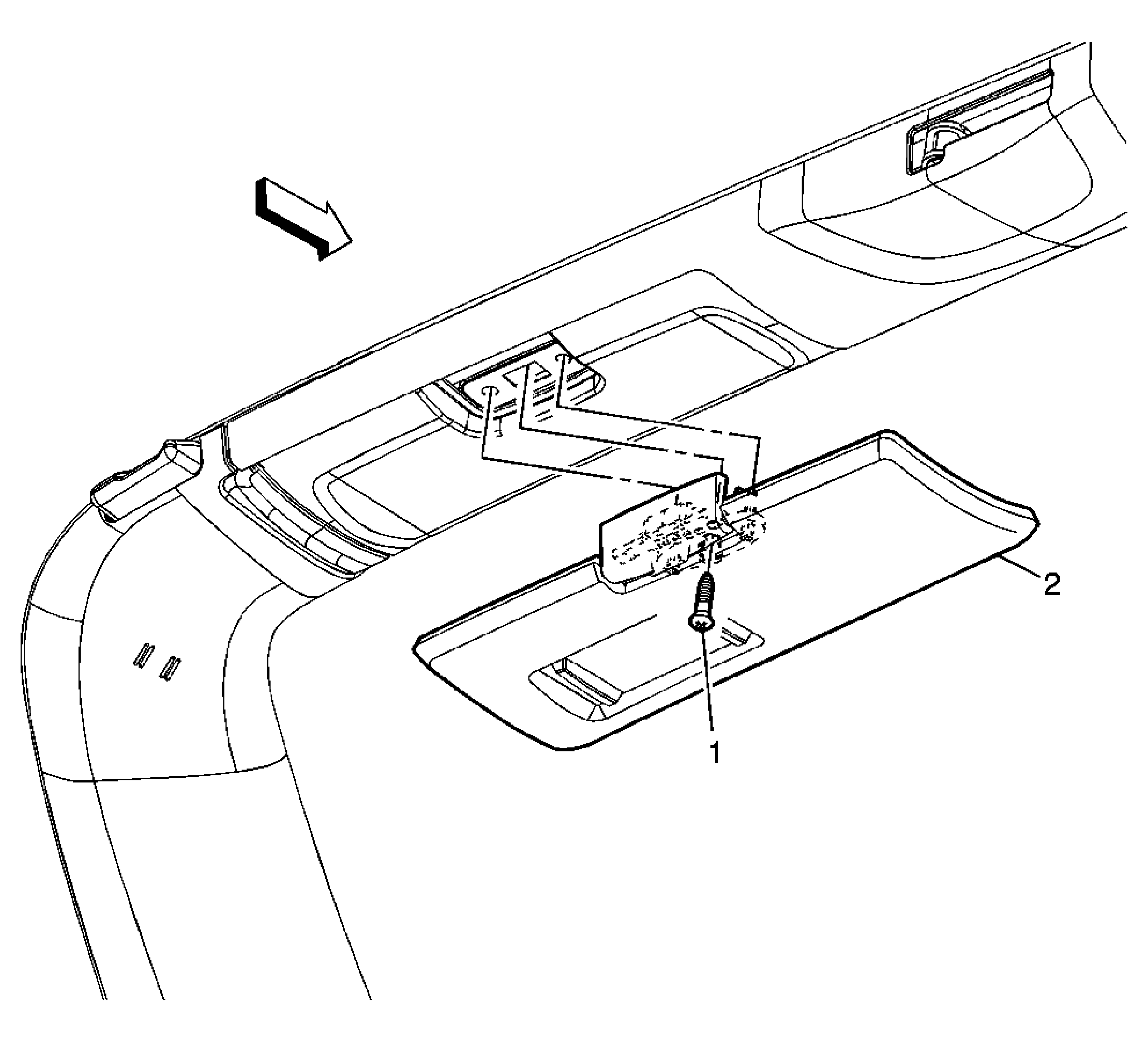

Fig 1: Sunshade

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Sunshade Assembly Bolt (Qty: 1) NOTE: Refer to Fastener Notice . Tighten: 6 N.m (53 lb in)
2	Sunshade Assembly
