Installation Procedure

WARNING: This page is about a different car, the 2006 Buick LaCrosse and 2006 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the right engine mount strut bracket to the vehicle.

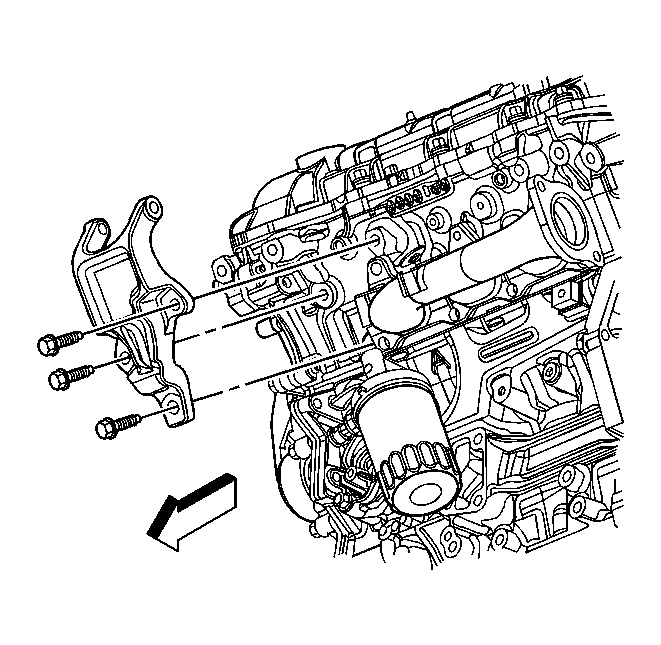

    2. Fig 1: Locating Engine Mount Strut Bracket Bolts
    GM1457532Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Connect the engine mount strut bracket bolts to the cylinder head.

    Tighten:  Tighten the engine mount strut bracket bolts to 50 N.m (37 lb ft).

  3. Install the generator into the proper position.
  4. Install the generator bolts.

    Tighten:  Tighten the generator bolts to 50 N.m (37 lb ft).

  5. Install the right engine mount strut and radiator support bracket to the right engine mount strut bracket. Refer to Engine Mount Strut Replacement - Right .
  6. Connect the pulley to the generator.
  7. Connect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure (LY7) in Engine Electrical.
