Exterior Lights Schematics

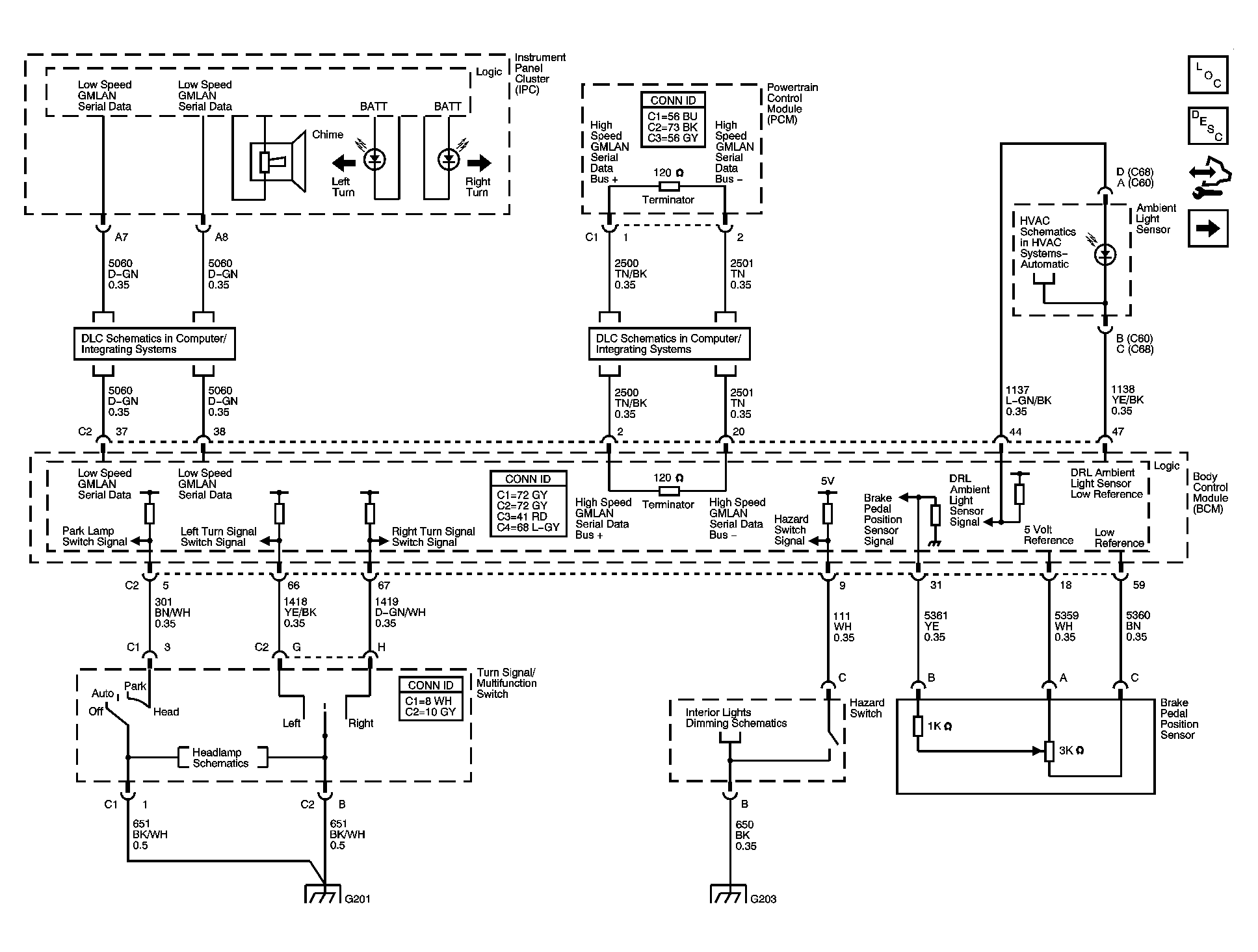

Fig 1: Park and Turn Signal Lamps
GM1501065Courtesy of GENERAL MOTORS CORP.

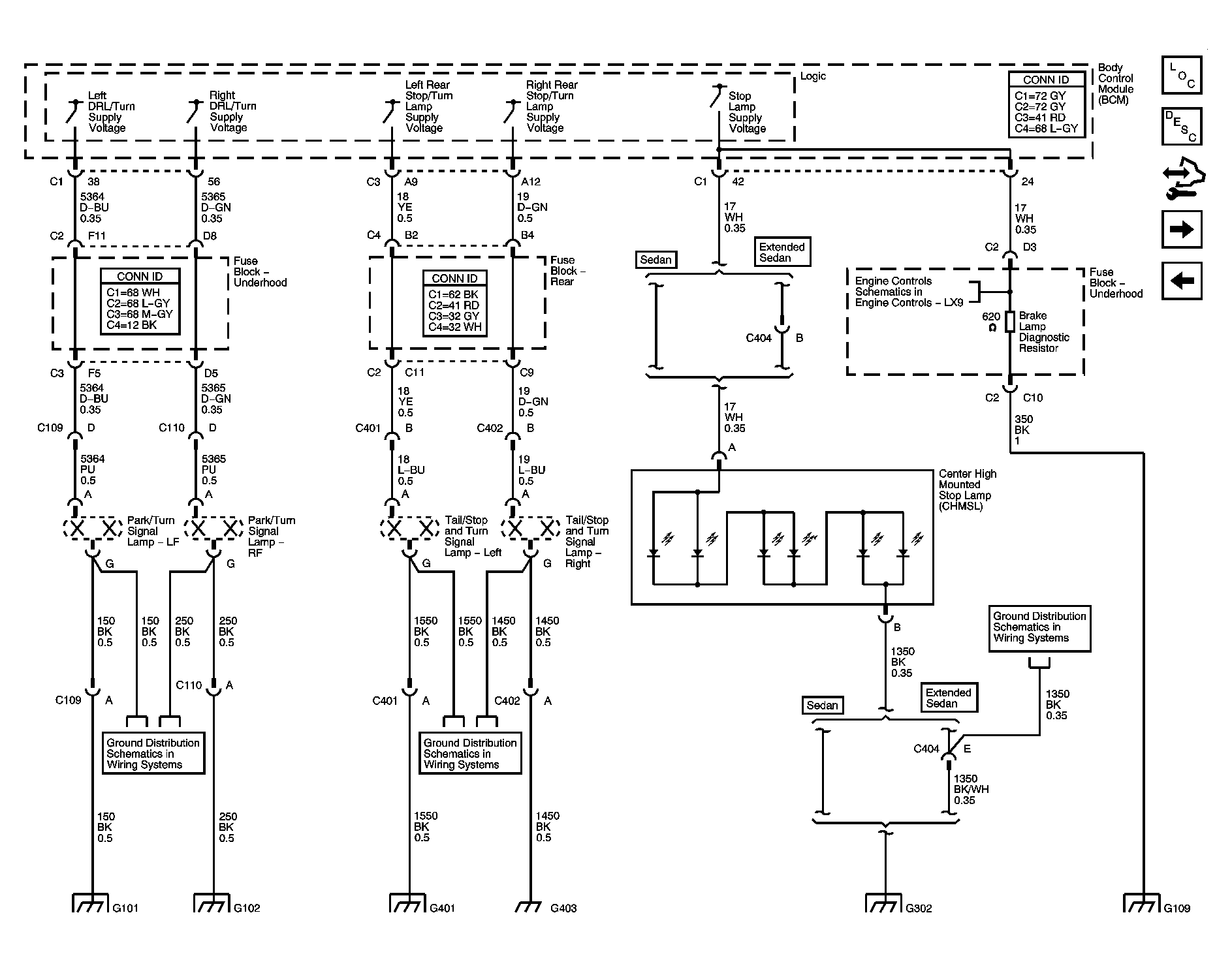

Fig 2: Park, Stop, and Turn Signals
GM1501067Courtesy of GENERAL MOTORS CORP.

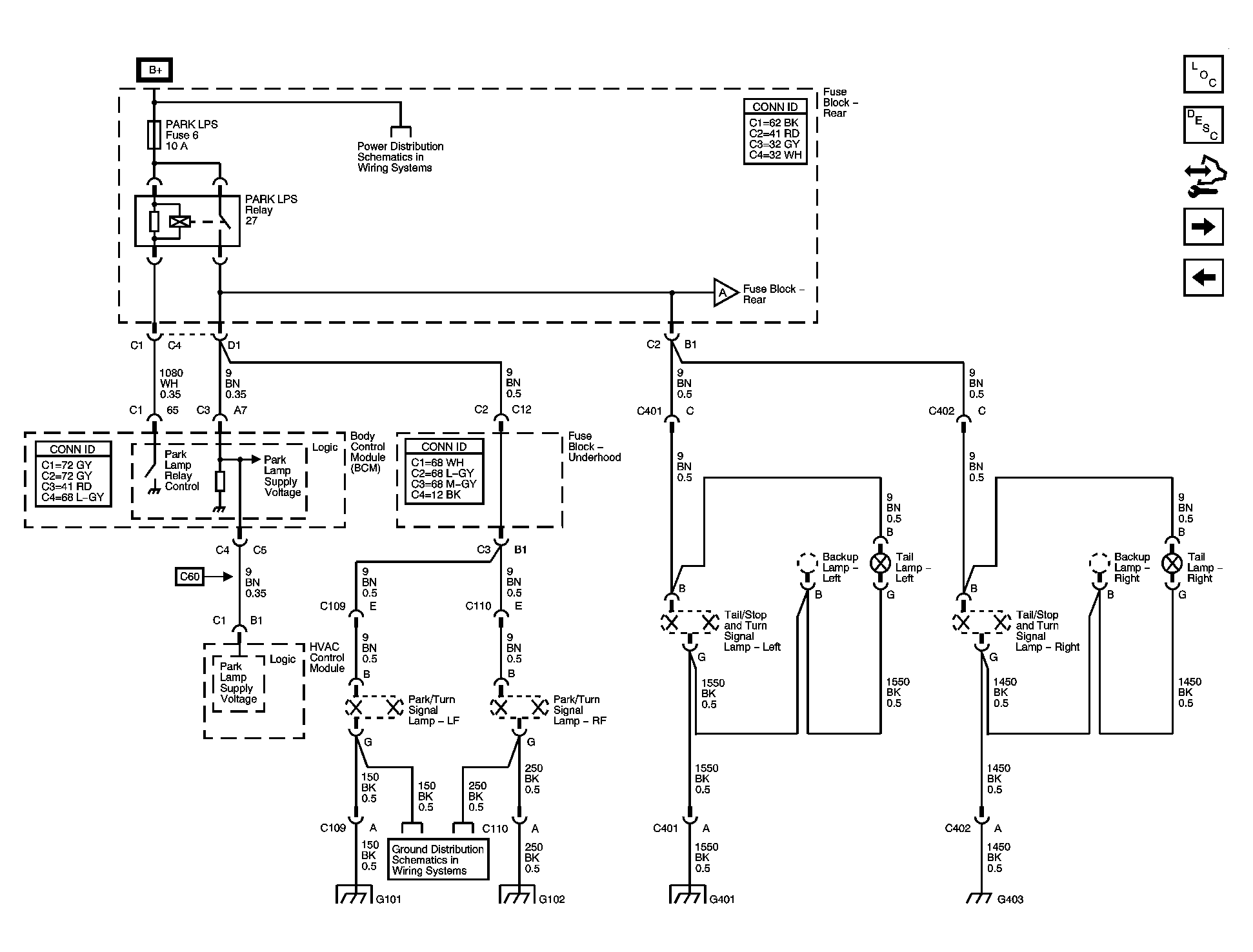

Fig 3: Backup Lamps and Hazard Switch
GM1501069Courtesy of GENERAL MOTORS CORP.

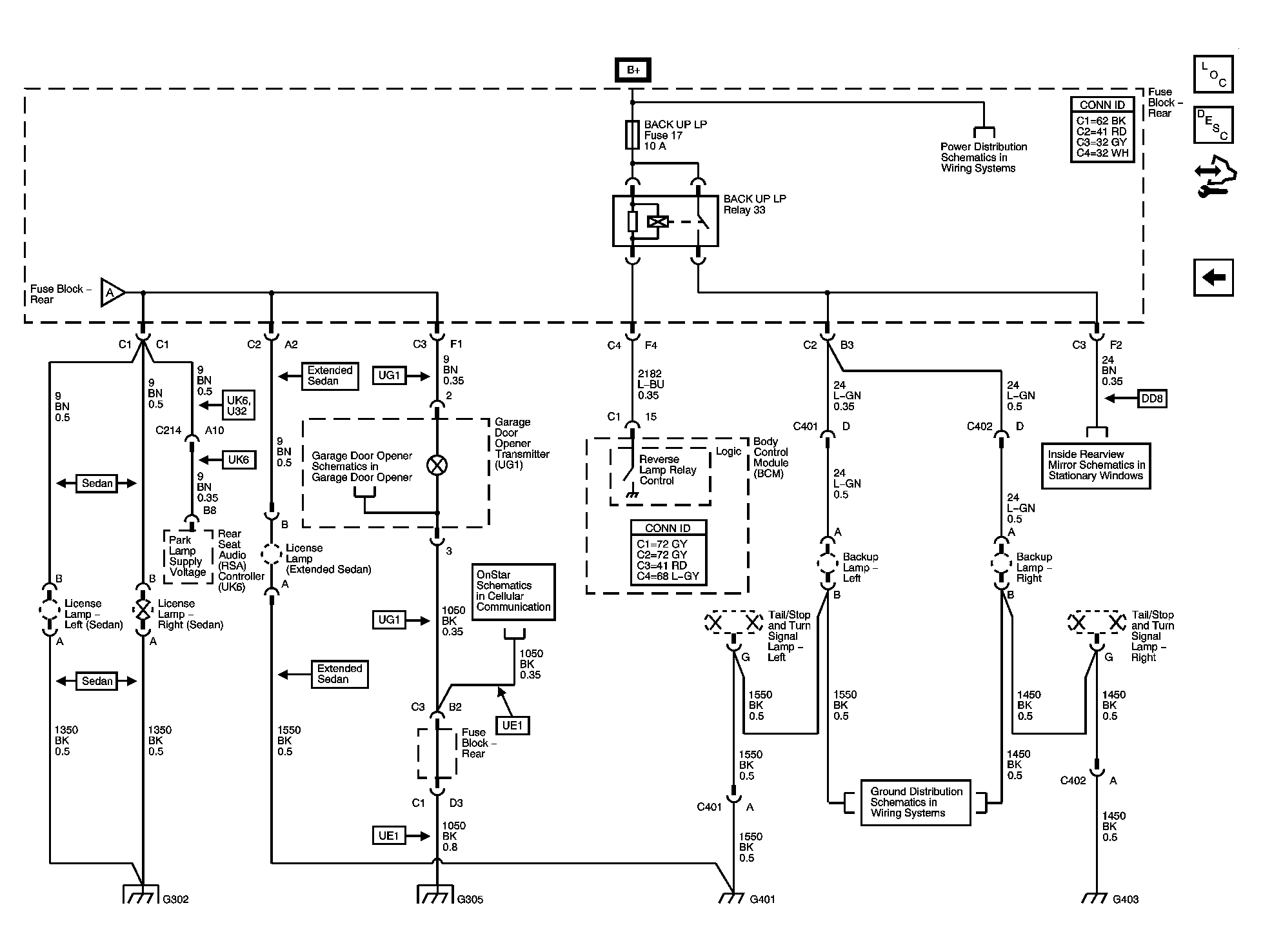

Fig 4: License Plate Lamps
GM1501072Courtesy of GENERAL MOTORS CORP.
