HVAC Component Views

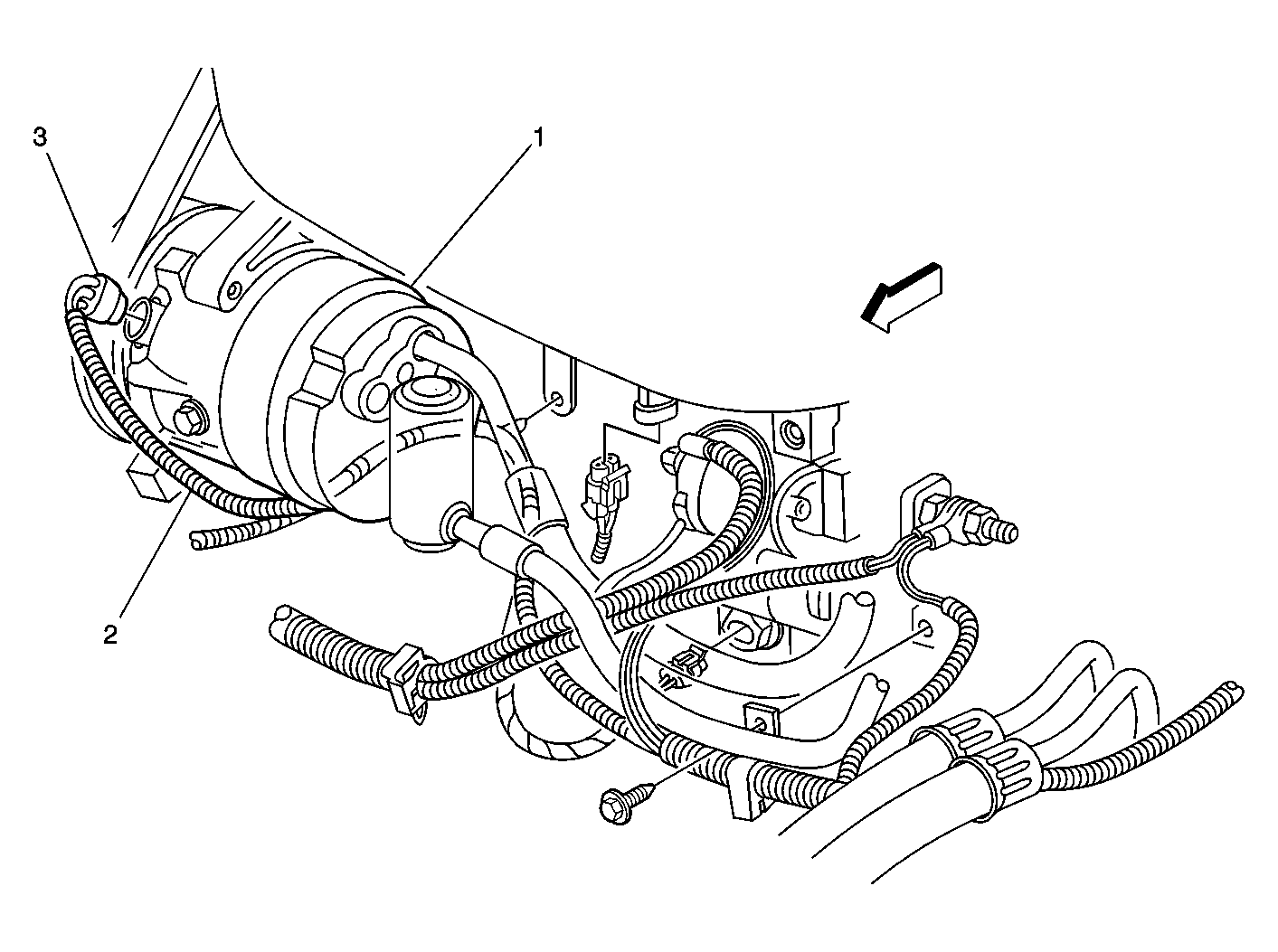

Fig 1: Lower Right Of Engine Component View (L36/L67 Shown; LA1 Similar)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	A/C Compressor
2	A/C Compressor Clutch Diode
3	A/C Compressor Clutch Connector

Fig 2: Cruise Control Module (CCM), Left Center Of Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C101
2	G151
3	A/C Refrigerant Pressure Sensor
4	C113
5	Electronic Brake Control Module (EBCM)
6	Cruise Control Module (CCM)

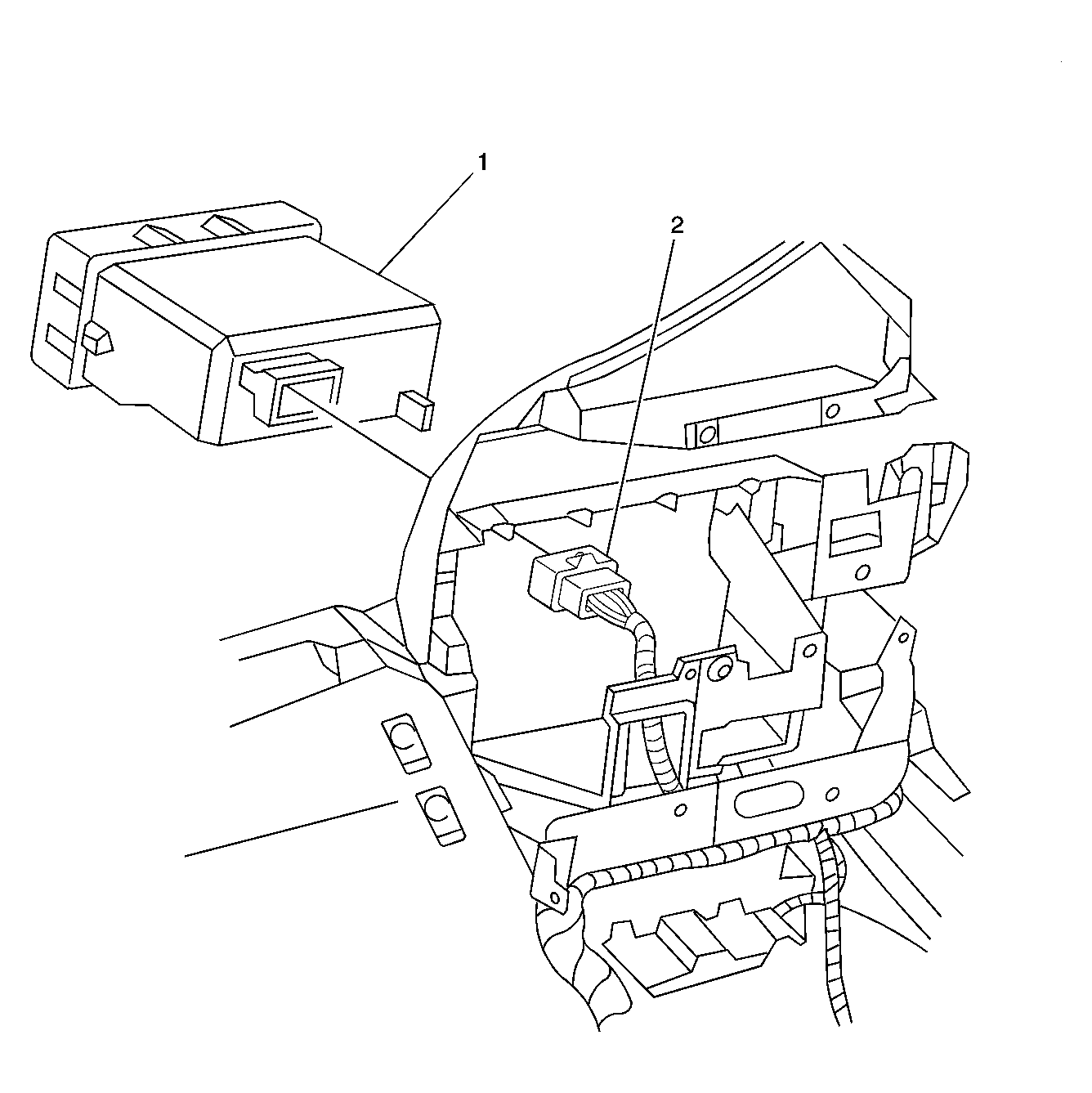

Fig 3: Middle Center Of Instrument Panel Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	HVAC Control Module
2	HVAC Control Module Connector

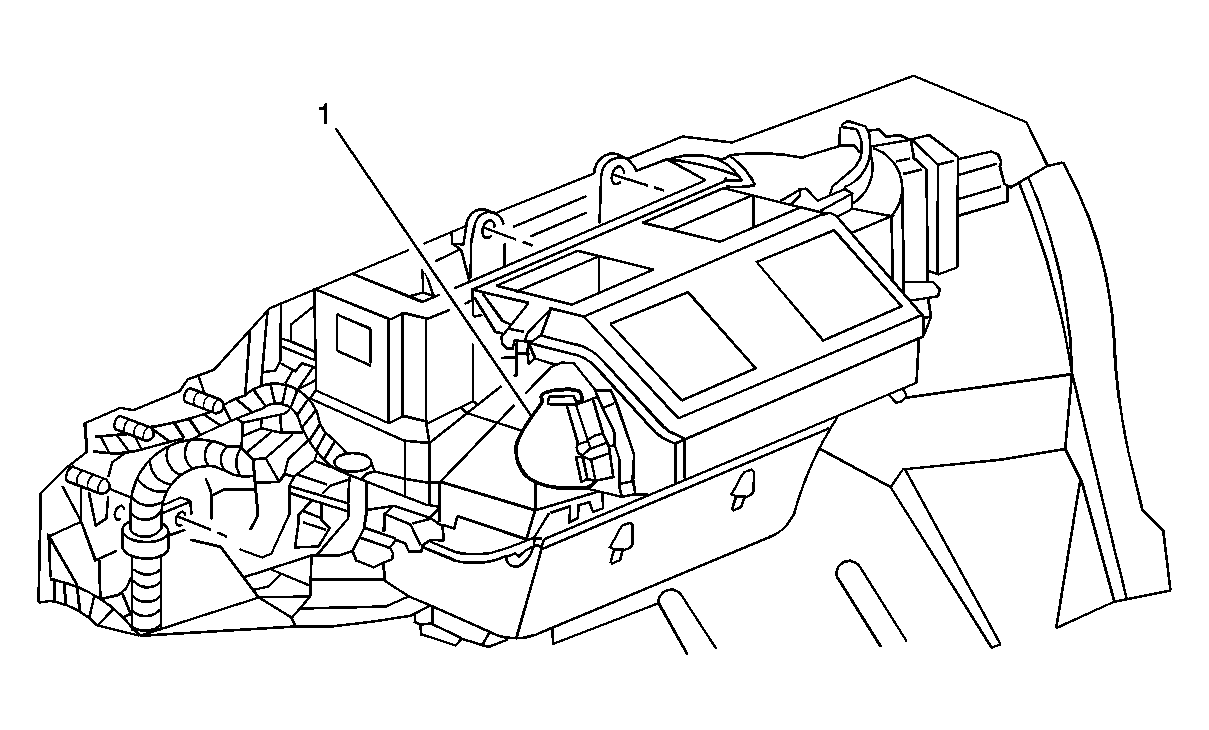

Fig 4: Left Side of HVAC Housing (C67) Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Air Temperature Actuator - Left

Fig 5: Lower Right Of Instrument Panel Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Mode Actuator
2	Blower Motor
3	Blower Motor Control Processor
4	Air Temperature Actuator - Right
