Installation Procedure

WARNING: This page is about a different car, the 2005 Buick LaCrosse and 2005 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place the engine flywheel in position on the crankshaft.
  2. Install 2 NEW bolts in location at the top and bottom of the engine flywheel bolt pattern allowing the engine flywheel to hang in position.

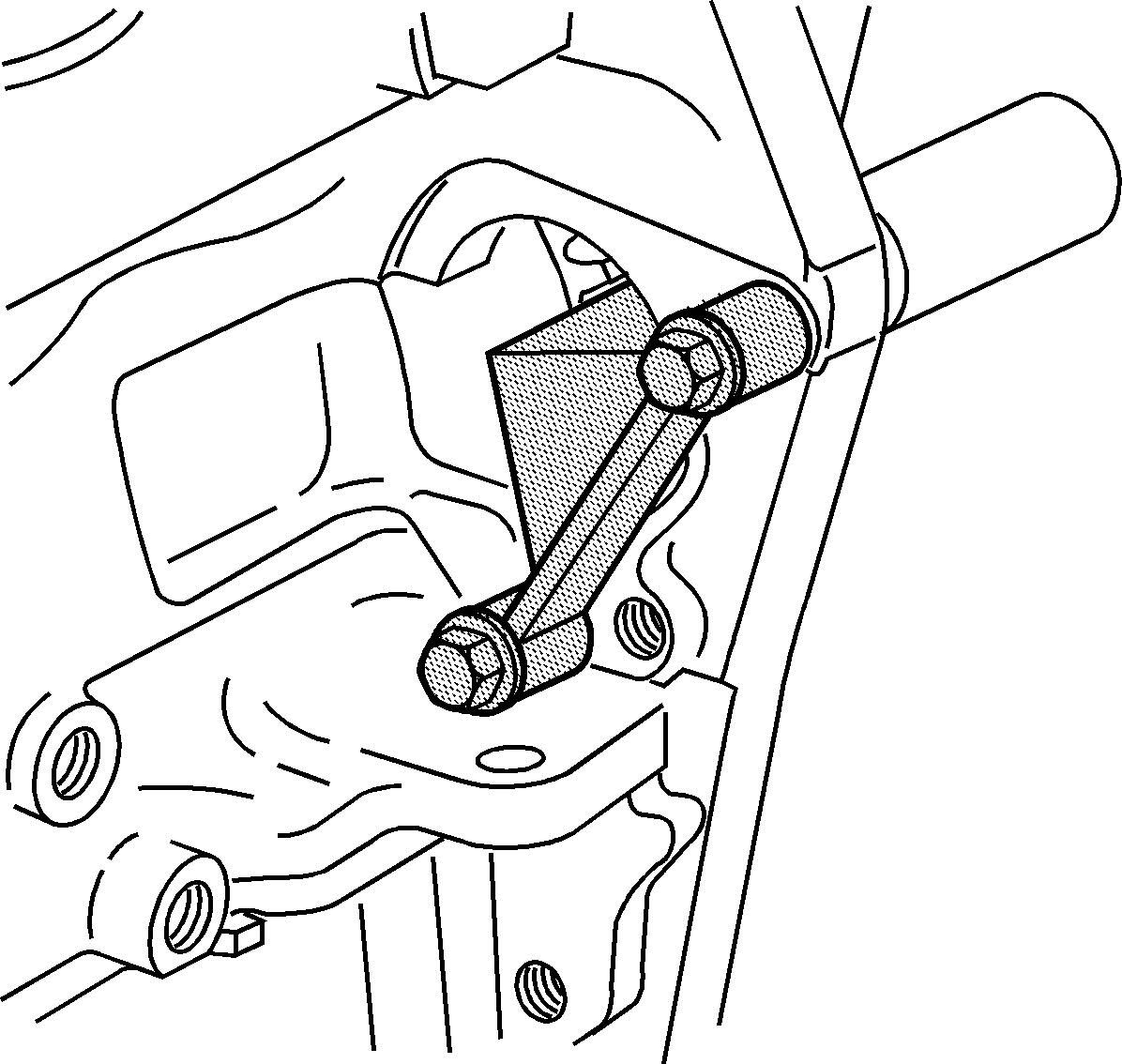

    3. Fig 1: View Of Tool EN 46106
    GM945978Courtesy of GENERAL MOTORS CORP.
  3. Install the EN 46106  .

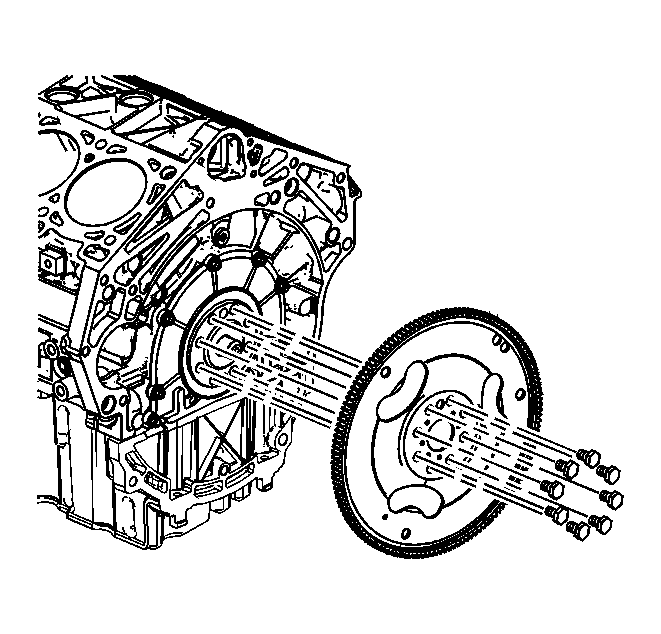

    4. Fig 2: Identifying Engine Flywheel Bolts
    GM1395957Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  4. Install the remaining NEW engine flywheel bolts.

    Tighten:

    1. Tighten the NEW engine flywheel bolts to 30 N.m (22 lb ft).
    2. Tighten the NEW engine flywheel bolts an additional 45 degrees using the J 45059  .
