Inline Harness Connectors

C101 (L36/L67)

GM68791Courtesy of GENERAL MOTORS CORP.
GM768083Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12160280
  • 20-Way F Micro-Pack 100W Series Sealed (GRY)
 Connector Part Information
  • 12160542
  • 20-Way M Micro-Pack 100W Series Sealed (GRY)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A WHT 85 Cruise Control Engaged Signal A WHT 85 Cruise Control Engaged Signal
B PNK 239 Ignition 1 Voltage (JL9) B PNK 239 Ignition 1 Voltage (JL9)
C PPL 420 TCC Brake Switch Signal C PPL 420 TCC Brake Switch Signal
D PPL 1500 Ignition 0 Voltage D PPL 1500 Ignition 0 Voltage
E WHT 17 Stop Lamp Switch Signal (JL9) E WHT 17 Stop Lamp Switch Signal (JL9)
F DK GRN 83 Cruise Control Inhibit Signal F DK GRN 83 Cruise Control Inhibit Signal
G DK GRN 389 Vehicle Speed Signal G DK GRN 389 Vehicle Speed Signal
H BLK 808 Low Reference H BLK 808 Low Reference
J DK GRN 890 Fuel Tank Pressure Sensor Signal J DK GRN 890 Fuel Tank Pressure Sensor Signal
K GRY 2709 5-Volt Reference K GRY 2709 5-Volt Reference
L BLK 884 Left Rear Wheel Speed Sensor Signal (JL9) L BLK 884 Left Rear Wheel Speed Sensor Signal (JL9)
M RED 885 Left Rear Wheel Speed Sensor Low Reference (JL9) M RED 885 Left Rear Wheel Speed Sensor Low Reference (JL9)
N BRN 882 Right Rear Wheel Speed Sensor Signal (JL9) N BRN 882 Right Rear Wheel Speed Sensor Signal (JL9)
P WHT 883 Right Rear Wheel Speed Sensor Low Reference (JL9) P WHT 883 Right Rear Wheel Speed Sensor Low Reference (JL9)
R LT BLU 1122 ABS/TCS Class 2 Serial Data (JL9) R LT BLU 1122 ABS/TCS Class 2 Serial Data (JL9)
S DK GRN 1049 PCM Class 2 Serial Data S DK GRN 1049 PCM Class 2 Serial Data
T BLK/WHT 451 Ground T BLK/WHT 451 Ground
U PPL 806 Crank Voltage U PPL 806 Crank Voltage
V BRN/WHT 419 MIL Control V BRN/WHT 419 MIL Control
W PPL 1589 Fuel Level Sensor Signal W PPL 1589 Fuel Level Sensor Signal
C101 (LA1)

GM68791Courtesy of GENERAL MOTORS CORP.
GM768083Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12160280
  • 20-Way F Micro-Pack 100W Series (GRY)
 Connector Part Information
  • 12160542
  • 20-Way M Micro-Pack 100W Series (GRY)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A WHT 85 Cruise Control Engaged Signal A WHT 85 Cruise Control Engaged Signal
B PNK 239 Ignition 1 Voltage B PNK 239 Ignition 1 Voltage
C PPL 420 TCC Brake Switch Signal C PPL 420 TCC Brake Switch Signal
D PPL 1500 Ignition 0 Voltage D PPL 1500 Ignition 0 Voltage
E WHT 17 Stop Lamp Switch Signal (JL9) E WHT 17 Stop Lamp Switch Signal (JL9)
F DK GRN 83 Cruise Control Inhibit Signal F DK GRN 83 Cruise Control Inhibit Signal
G DK GRN 389 Vehicle Speed Signal G DK GRN 389 Vehicle Speed Signal
H BLK 808 Low Reference H BLK 808 Low Reference
J DK GRN 890 Fuel Tank Pressure Sensor Signal J DK GRN 890 Fuel Tank Pressure Sensor Signal
K GRY 2709 5-Volt Reference K GRY 2709 5-Volt Reference
L BLK 884 Left Rear Wheel Speed Sensor Signal (JL9) L BLK 884 Left Rear Wheel Speed Sensor Signal (JL9)
M RED 885 Left Rear Wheel Speed Sensor Low Reference (JL9) M RED 885 Left Rear Wheel Speed Sensor Low Reference (JL9)
N BRN 882 Right Rear Wheel Speed Sensor Signal (JL9) N BRN 882 Right Rear Wheel Speed Sensor Signal (JL9)
P WHT 883 Right Rear Wheel Speed Sensor Low Reference (JL9) P WHT 883 Right Rear Wheel Speed Sensor Low Reference (JL9)
R LT BLU 1122 ABS/TCS Class 2 Serial Data (JL9) R LT BLU 1122 ABS/TCS Class 2 Serial Data (JL9)
S DK GRN 1049 PCM Class 2 Serial Data S DK GRN 1049 PCM Class 2 Serial Data
T BLK/WHT 451 Ground T BLK/WHT 451 Ground
U PPL 806 Crank Voltage U PPL 806 Crank Voltage
V BRN/WHT 419 MIL Control V BRN/WHT 419 MIL Control
W PPL 1589 Fuel Level Sensor Signal W PPL 1589 Fuel Level Sensor Signal
C102 (LA1)

GM655811Courtesy of GENERAL MOTORS CORP.
GM655813Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326084
  • 16-Way F GT 150, 280 Series Sealed (BLK)
 Connector Part Information
  • 15326085
  • 16-Way M GT 150, 280 Series Sealed (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A PNK 639 Ignition 1 Voltage A PNK 639 Ignition 1 Voltage
B YEL 410 ECT Sensor Signal B YEL 410 ECT Sensor Signal
C BLK 1744 Fuel Injector 1 Control C BLK 1744 Fuel Injector 1 Control
D LT GRN/BLK 1745 Fuel Injector 2 Control D LT GRN/BLK 1745 Fuel Injector 2 Control
E PNK/BLK 1746 Fuel Injection 3 Control E PNK/BLK 1746 Fuel Injection 3 Control
F LT BLU/BLK 844 Fuel Injection 4 Control F LT BLU/BLK
844		 Fuel Injection 4 Control
G BLK/WHT 845 Fuel Injection 5 Control G BLK/WHT 845 Fuel Injection 5 Control
H YEL/BLK 846 Fuel Injection 6 Control H YEL/BLK 846 Fuel Injection 6 Control
J - - Not Used J - - Not Used
K GRY 2704 5-Volt Reference K GRY 2704 5-Volt Reference
L ORN/BLK 469 Low Reference L ORN/BLK 469 Low Reference
M LT GRN 432 MAP Sensor Signal M LT GRN 432 MAP Sensor Signal
N RED 631 12-Volt Reference N RED/WHT 812 12-Volt Reference
P PNK/BLK 632 Low Reference P BLK 407 Low Reference
R BRN/WHT 633 CMP Sensor Signal R BRN/WHT 633 CMP Sensor Signal
S - - Not Used S - - Not Used
C106

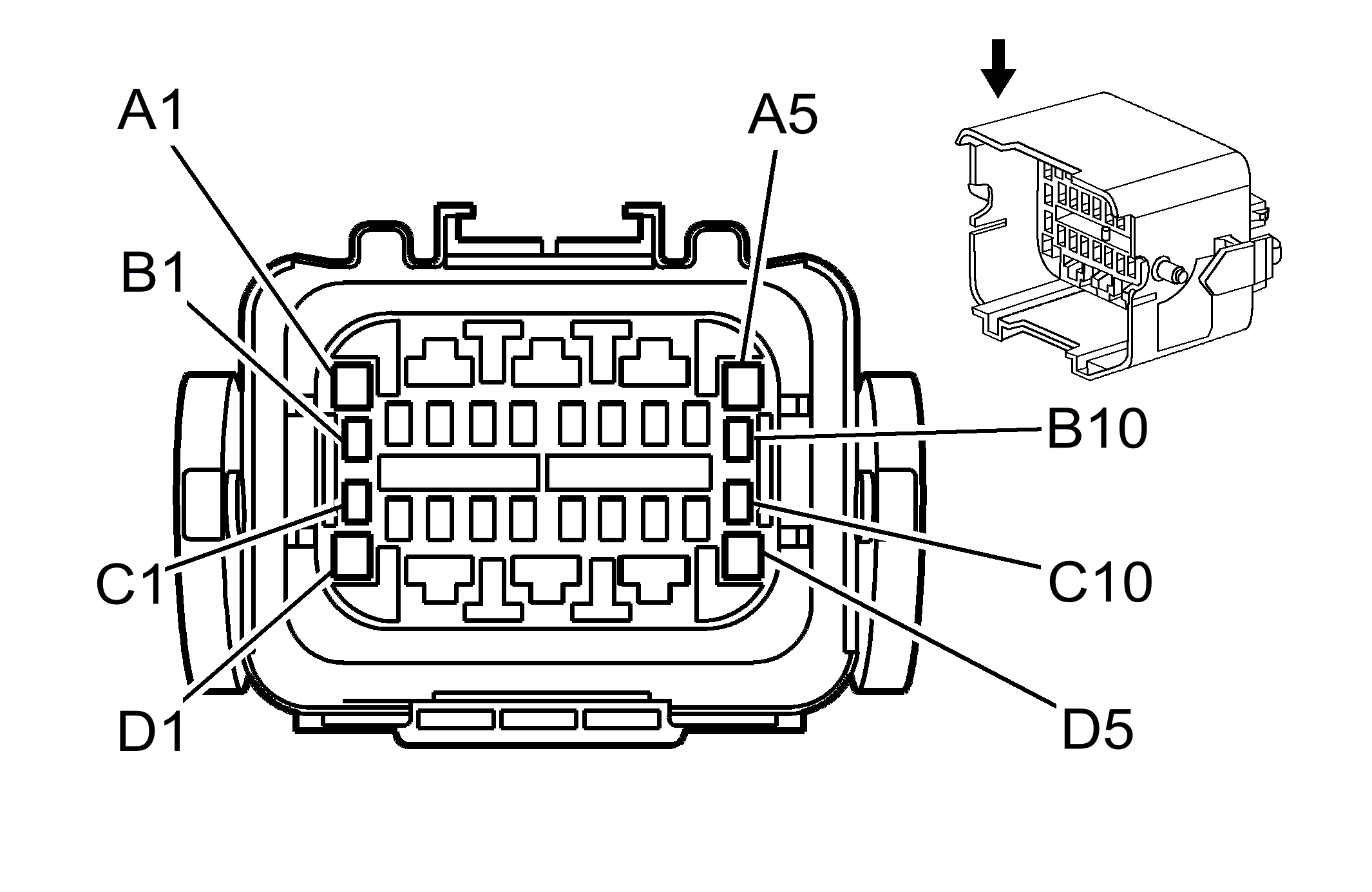

GM730856Courtesy of GENERAL MOTORS CORP.

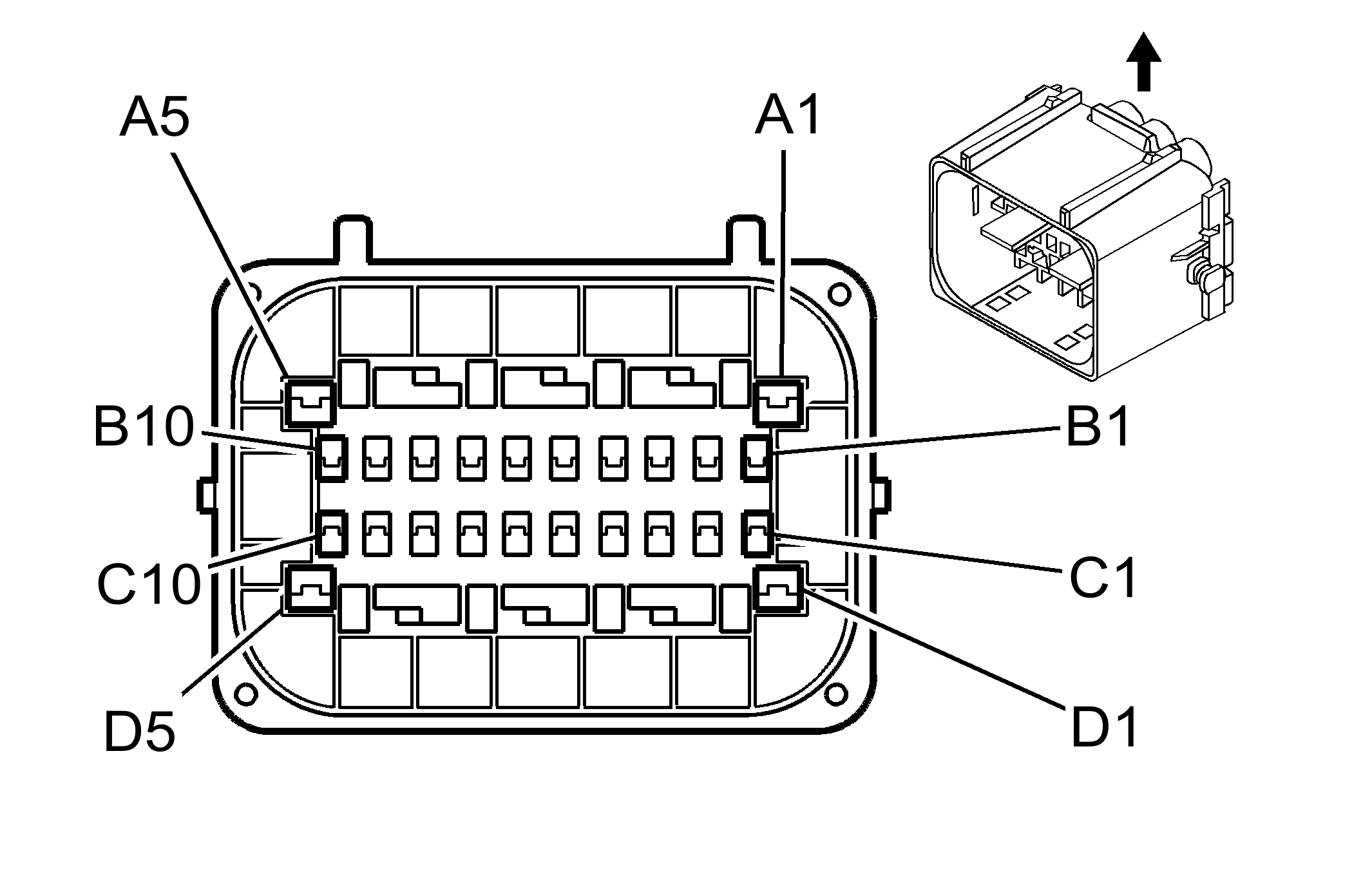

GM730855Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15355480
  • 30-Way F GT 150 Series (BLK)
 Connector Part Information
  • 15355479
  • 30-Way M GT 150 Series (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A1 PNK 1200 Headlamp High Beam Signal A1 PNK 1200 Headlamp High Beam Signal
A2 RED 42 Battery Positive Voltage A2 RED 42 Battery Positive Voltage
A3 RED 242 Battery Positive Voltage A3 RED 242 Battery Positive Voltage
A4 RED 342 Battery Positive Voltage A4 RED 342 Battery Positive Voltage
A5 BLK 28 Horn Relay Control A5 BLK 28 Horn Relay Control
B1 LT GRN/BLK 592 DRL Relay Control B1 LT GRN/BLK 592 DRL Relay Control
B2 YEL 32 Instrument Panel Lamp Fuse Supply Voltage - 1 B2 YEL 32 Instrument Panel Lamp Fuse Supply Voltage - 1
B3 DK BLU 1201 Headlamp Low Beam Signal B3 DK BLU 1201 Headlamp Low Beam Signal
B4 GRY 349 Discriminating Sensor - Left - Signal B4 GRY 349 Discriminating Sensor - Left - Signal
B5 YEL 354 Discriminating Sensor - Signal B5 YEL 354 Discriminating Sensor - Signal
B6 - - Not Used B6 - - Not Used
B7 BLK 2710 Battery Positive Voltage (9C1/9C3) B7 BLK 2710 Battery Positive Voltage (9C1/9C3)
B8 BLK/WHT 2711 Battery Positive Voltage (9C1/9C3) B8 BLK/WHT 2711 Battery Positive Voltage (9C1/9C3)
B8 DK GRN/WHT 1317 Fog Lamp Relay Control (T96) B8 DK GRN/WHT 1317 Fog Lamp Relay Control (Impala LS/Monte Carlo SS)
B9 PNK 239 Ignition 1 Voltage B9 PNK 239 Ignition 1 Voltage
B10 LT BLU 14 Left Turn Signal Lamps Supply Voltage B10 LT BLU 14 Left Turn Signal Lamps Supply Voltage (Impala)
B10 YEL 685 Left Turn Signal Lamps Supply Voltage (Monte Carlo)
C1 RED 228 Windshield Washer Pump Control C1 RED 228 Windshield Washer Pump Control
C2 - - Not Used C2 - - Not Used
C3 BLK/WHT 99 Windshield Washer Fluid Level Signal C3 BLK/WHT 99 Windshield Washer Fluid Level Signal
C4 LT GRN/BLK 735 Ambient Air Temperature Sensor Signal (w/o 9C1/9C3) C4 LT GRN/BLK 735 Ambient Air Temperature Sensor Signal (w/o 9C1/9C3)
C5 WHT 1310 EVAP Canister Vent Solenoid Control C5 WHT 1310 EVAP Canister Vent Solenoid Control
C6 PNK 2322 Emergency Vehicle Headlamps Flasher Supply Voltage (9C1/9C3) C6 PNK 2322 Emergency Vehicle Headlamps Flasher Supply Voltage (9C1/9C3)
C7 - - Not Used C7 - - Not Used
C8 BLK/WHT 1251 Ground C8 BLK/WHT 1251 Ground
C9 - - Not Used C9 - - Not Used
C10 DK BLU 15 Right Turn Signal Lamps Supply Voltage C10 DK BLU 15 Right Turn Signal Lamps Supply Voltage (Impala)
C10 TAN 686 Right Turn Signal Lamps Supply Voltage (Monte Carlo)
D1 GRY 120 Fuel Pump Supply Voltage D1 GRY 120 Fuel Pump Supply Voltage
D2 RED 742 Battery Positive Voltage D2 RED 742 Battery Positive Voltage
D3 RED 1042 Battery Positive Voltage D3 RED 1042 Battery Positive Voltage
D4 RED 442 Battery Positive Voltage D4 RED 442 Battery Positive Voltage
D5 PPL 34 Front Fog Lamps Supply Voltage (T96) D5 PPL 34 Front Fog Lamps Supply Voltage (T96)
C110 (L36/L67)

GM524196Courtesy of GENERAL MOTORS CORP.
GM365940Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047937
  • 8-Way F Metri-Pack 150 Series Sealed (BLK)
 Connector Part Information
  • 12047931
  • 8-Way M Metri-Pack 150 Series Sealed (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A WHT 423 IC Timing Control A WHT 423 IC Timing Control
B TAN/BLK 424 IC Timing Signal B TAN/BLK 424 IC Timing Signal
C LT BLU/BLK 647 Medium Resolution Engine Speed Signal C LT BLU/BLK 647 Medium Resolution Engine Speed Signal
D PPL/WHT 430 Low Resolution Engine Speed Signal D PPL/WHT 430 Low Resolution Engine Speed Signal
E - - Not Used E WHT 121 Engine Speed Signal
F BLK 630 Camshaft Position Signal F BLK 630 Camshaft Position Signal
G RED/BLK 453 Low Reference G RED/BLK 453 Low Reference
H PNK 539 Ignition 1 Voltage H PNK 239 Ignition 1 Voltage
C112

GM586340Courtesy of GENERAL MOTORS CORP.
GM586335Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15366099
  • 24-Way F GT 150, 280 Series Sealed (BLK)
 Connector Part Information
  • 15336173
  • 24-Way M GT 150, 280 Series Sealed (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A1 PNK 1039 Ignition 1 Voltage A1 PNK 1039 Ignition 1 Voltage
A2 ORN 140 Battery Positive Voltage A2 ORN 140 Battery Positive Voltage
A3 DK GRN 335 Low Speed Cooling Fan Relay Control A3 DK GRN 335 Low Speed Cooling Fan Relay Control
A4 PPL 6 Starter Solenoid Crank Voltage A4 PPL 6 Starter Solenoid Crank Voltage
A5 ORN 1740 Battery Positive Voltage A5 ORN 1740 Battery Positive Voltage
A6 PNK 839 Ignition 1 Voltage A6 PNK 839 Ignition 1 Voltage
A7 WHT 1310 EVAP Canister Vent Solenoid Control A7 WHT 1310 EVAP Canister Vent Solenoid Control
A8 - - Not Used A8 - - Not Used
B1 DK GRN/WHT 459 A/C Compressor Clutch Relay Control B1 DK GRN/WHT 459 A/C Compressor Clutch Relay Control
B2 DK GRN/WHT 465 Fuel Pump Relay Control B2 DK GRN/WHT 465 Fuel Pump Relay Control
B3 - - Not Used B3 - - Not Used
B4 YEL/BLK 625 Starter Enable Relay Control B4 YEL/BLK 625 Starter Enable Relay Control
B5 DK GRN 59 A/C Compressor Clutch Supply Voltage B5 DK GRN 59 A/C Compressor Clutch Supply Voltage
B6 DK BLU 473 High Speed Cooling Fan Relay Control B6 DK BLU 473 High Speed Cooling Fan Relay Control
B7-B8 - - Not Used B7-B8 - - Not Used
C1-C2 - - Not Used C1-C2 - - Not Used
C3 PNK 739 Ignition 1 Voltage (LA1) C3 PNK 739 Ignition 1 Voltage
C4 PNK 539 Ignition 1 Voltage C4 PNK 539 Ignition 1 Voltage
C5 PNK 639 Ignition 1 Voltage C5 PNK 639 Ignition 1 Voltage
C6-C7 - - Not Used C6-C7 - - Not Used
C8 PNK 739 Ignition 1 Voltage C8 PNK 739 Ignition 1 Voltage
C113

GM68791Courtesy of GENERAL MOTORS CORP.
GM768083Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15305235
  • 20-Way F Micro-Pack 100W Series Sealed (GRY)
 Connector Part Information
  • 15305234
  • 20-Way M Micro-Pack 100W Series Sealed (GRN)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A LT GRN 1222 1-2 Shift Solenoid Valve Control A LT GRN 1222 1-2 Shift Solenoid Valve Control
B YEL/BLK 1223 2-3 Shift Solenoid Valve Control B YEL 1223 2-3 Shift Solenoid Valve Control
C RED/BLK 1228 PC Solenoid Valve High Control C PPL 1228 PC Solenoid Valve High Control
D LT BLU/WHT 1229 PC Solenoid Valve Low Control D LT BLU 1229 PC Solenoid Valve Low Control
E PNK 839 Ignition 1 Voltage E RED 839 Ignition 1 Voltage
F BLK/WHT 771 Transmission Range Switch Signal A F RED/BLK 771 Transmission Range Switch Signal A
G YEL 772 Transmission Range Switch Signal B G DK GRN/WHT 772 Transmission Range Switch Signal B
H GRY 773 Transmission Range Switch Signal C H YEL/BLK 773 Transmission Range Switch Signal C
J WHT 776 Transmission Range Switch Signal P J GRY/WHT 776 Transmission Range Switch Signal P
K BLK/WHT 451 Ground K BLK/WHT 1050 Ground
L YEL/BLK 1227 TFT Sensor Signal L BRN 1227 TFT Sensor Signal
M BLK 2762 Low Reference M GRY 452 Low Reference
N-R - - Not Used N-R - - Not Used
S RED/BLK 1230 AT ISS High Signal S BLK 1230 AT ISS High Signal
T BRN 418 TCC PWM Solenoid Valve Control T TAN 418 TCC PWM Solenoid Valve Control
U YEL 657 TCC Release Switch Signal U WHT 1804 TCC Release Switch Signal
V DK BLU/WHT 1231 AT ISS Low Signal V DK/GRN 1231 AT ISS Low Signal
W - - Not Used W - - Not Used
C122 (9C1/9C3)

GM646169Courtesy of GENERAL MOTORS CORP.
GM684802Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12146045
  • 5-Way F Metri-Pack 150 Series Sealed (NAT)
 Connector Part Information
  • 12103974
  • 5-Way M Metri-Pack 150 Series Sealed (NAT)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A BLK 150 Ground A - - Not Used
B LT GRN/BLK 592 DRL Relay Control B LT GRN/BLK 592 DRL Relay Control
C ORN 1340 Battery Positive Voltage C - - Not Used
D PNK 1200 Headlamp High Beam Signal D PNK 1200 Headlamp High Beam Signal
E PNK 2322 Emergency Vehicle Headlamps Flasher Supply Voltage E - - Not Used
C123 (9C1/9C3)

GM684854Courtesy of GENERAL MOTORS CORP.
GM396241Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12162144
  • 4-Way F Metri-Pack 150 Series Sealed (BLK)
 Connector Part Information
  • 12162102
  • 4-Way M Metri-Pack 150 Series Sealed (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A LT BLU 2320 Siren/Speaker Circuit - Provisional A LT BLU 2320 Siren/Speaker Circuit - Provisional
B LT GRN 2321 Siren/Speaker Circuit - Provisional B LT GRN 2321 Siren/Speaker Circuit - Provisional
C GRY 2245 Emergency Vehicle Front Lamps Supply Voltage C GRY 2245 Emergency Vehicle Front Lamps Supply Voltage
D TAN 2246 Emergency Vehicle Front Lamps Supply Voltage D TAN 2246 Emergency Vehicle Front Lamps Supply Voltage
C125 (L36/L67)

GM696940Courtesy of GENERAL MOTORS CORP.
GM795617Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12065172
  • 1-Way F Metri-Pack 280 Series Sealed (BLK)
 Connector Part Information
  • 12146314
  • 1-Way M Metri-Pack 280 Series Sealed (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A LT BLU 1876 KS 2 Signal A DK BLU 1876 KS 2 Signal
C126 (L36/L67)

GM537107Courtesy of GENERAL MOTORS CORP.
GM605500Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052644
  • 2-Way F Metri-Pack 150 Series Sealed (GRY)
 Connector Part Information
  • 12162343
  • 2-Way M Metri-Pack 150 Series Sealed (GRY)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A BLK 470 Low Reference A ORN/BLK 469 Low Reference
B YEL 410 ECT Sensor Signal B YEL 410 ECT Sensor Signal
C201

GM655760Courtesy of GENERAL MOTORS CORP.
GM655855Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15304837
  • 40-Way F GT 150, 280 Series (BLK)
 Connector Part Information
  • 15336417
  • 40-Way M GT 150, 280 Series (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A1-A2 - - Not Used A1-A2 - - Not Used
A3 YEL 243 Accessory Voltage A3 YEL 243 Accessory Voltage
A4 RED 228 Windshield Washer Pump Control A4 RED 228 Windshield Washer Pump Control
A5 DK BLU 241 Ignition 3 Voltage A5 BRN 241 Ignition 3 Voltage
A6 BLK 28 Horn Relay Control A6 BLK 28 Horn Relay Control
BLK 28 Horn Relay Control
A7-A8 - - Not Used A7-A8 - - Not Used
B1 - - Not Used B1 - - Not Used
B2 GRY/BLK 1458 Instrument Panel Lamp Supply Voltage - 4 B2 GRY/BLK 1458 Instrument Panel Lamp Supply Voltage - 4
B3 YEL 18 Left Rear Stop/Turn Lamp Supply Voltage B3 YEL 18 Left Rear Stop/Turn Lamp Supply Voltage (Impala)
B4 DK GRN 19 Right Rear Stop/Turn Lamp Supply Voltage B4 DK GRN 19 Right Rear Stop/Turn Lamp Supply Voltage (Impala)
B5 WHT 27 Hazard Flasher Signal B5 BRN 27 Hazard Flasher Signal (Impala)
B6 DK GRN 113 Windshield Wiper Switch Signal 1 B6 DK GRN 113 Windshield Wiper Switch Signal 1
B7 LT BLU 14 Left Turn Signal Lamps Supply Voltage B7 LT BLU 14 Left Turn Signal Lamps Supply Voltage (Impala)
B7 LT BLU 685 Left Turn Signal Lamps Supply Voltage (Monte Carlo)
B8 TAN/WHT 816 A/T Shift Lock Solenoid Supply Voltage B8 TAN/WHT 816 A/T Shift Lock Solenoid Supply Voltage (w/o D55)
B9 GRY 112 Windshield Wiper Switch Signal 2 B9 GRY 112 Windshield Wiper Switch Signal 2
B10 DK BLU 84 Cruise Control Set/Coast Switch Signal B10 DK BLU 84 Cruise Control Set/Coast Switch Signal
B11 PNK 314 Radio On Signal B11 PNK 314 Radio On Signal (w/o 9C1/9C3)
B12 - - Not Used B12 - - Not Used
C1-C2 - - Not Used C1-C2 - - Not Used
C3 YEL 1346 Headlamp Supply Voltage C3 LT BLU 1346 Headlamp Supply Voltage
C4 BRN 1201 Headlamp Low Beam Signal C4 DK BLU 1201 Headlamp Low Beam Signal
C5 PPL 16 Turn Signal Flasher Signal C5 PPL 16 Turn Signal Flasher Signal (Monte Carlo)
C6 - - Not Used C6 - - Not Used
C7 DK BLU 15 Right Turn Signal Lamps Supply Voltage C7 DK BLU 15 Right Turn Signal Lamps Supply Voltage (Impala)
C7 DK BLU 686 Right Turn Signal Lamps Supply Voltage (Monte Carlo)
C8 DK GRN/WHT 1135 A/T Shift Lock Control Solenoid Supply Voltage C8 DK GRN/WHT 1135 A/T Shift Lock Control Solenoid Supply Voltage (w/o D55)
C9 BLK 1050 Ground C9 BLK 1050 Ground
C10 GRY/BLK 87 Cruise Control Resume/Accel Switch Signal C10 GRY/BLK 87 Cruise Control Resume/Accel Switch Signal
C11 DK BLU 1796 Steering Wheel Controls Signal C11 DK BLU 1796 Steering Wheel Controls Signal (w/o 9C1/9C3)
C12 - - Not Used C12 - - Not Used
D1-D2 - - Not Used D1-D2 - - Not Used
D3 PPL 92 Windshield Wiper Motor High Speed D3 PPL 92 Windshield Wiper Motor High Speed
D4 BLK 1050 Ground D4 BLK 1050 Ground
BLK 1050 Ground
D5 PNK 1200 Headlamp High Beam Signal D5 PNK 1200 Headlamp High Beam Signal
D5 PNK 1200 Headlamp High Beam Signal
D6 GRY 397 Cruise Control On Switch Signal D6 GRY 397 Cruise Control On Switch Signal
D7-D8 - - Not Used D7-D8 - - Not Used
C209 (9C1/9C3)

GM439818Courtesy of GENERAL MOTORS CORP.
GM611495Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047682
  • 1-Way F Metri-Pack 150 Series (BLK)
 Connector Part Information
  • 12047683
  • 1-Way M Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A BLK 28 Horn Relay Control A BLK 28 Horn Relay Control
C209A (9C1/9C3)

GM439818Courtesy of GENERAL MOTORS CORP.
GM611495Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047682
  • 1-Way F Metri-Pack 150 Series (BLK)
 Connector Part Information
  • 12047683
  • 1-Way M Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A BLK 28 Horn Relay Control A BLK 28 Horn Relay Control
C209B (9C1/9C3)

GM439818Courtesy of GENERAL MOTORS CORP.
GM611495Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047682
  • 1-Way F Metri-Pack 150 Series (BLK)
 Connector Part Information
  • 12047683
  • 1-Way M Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A BLK 28 Horn Relay Control A BLK 28 Horn Relay Control
C210

GM476149Courtesy of GENERAL MOTORS CORP.
GM847281Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326110
  • 12-Way F 280 GT Series (BLK)
 Connector Part Information
  • 15326942
  • 12-Way M 280 Series (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A BLK/WHT 1251 Ground A BLK/WHT 1251 Ground
B BLK 1250 Ground B BLK/WHT 1250 Ground
C PNK 141 Ignition 3 Voltage C BRN 141 Ignition 3 Voltage
D DK GRN/WHT 762 HVAC Class 2 Serial Data D DK GRN/WHT 762 HVAC Class 2 Serial Data
E WHT 193 Rear Defog Relay Control E WHT 193 Rear Defog Relay Control
F ORN 2440 Battery Positive Voltage F ORN 2440 Battery Positive Voltage
G GRY 8 Instrument Panel Lamps Supply Voltage G GRY 8 Instrument Panel Lamps Supply Voltage
H RED 442 Battery Positive Voltage H RED 442 Battery Positive Voltage
J BLK 1050 Ground J BLK 1050 Ground
K WHT 1038 HVAC Class 2 Serial Data K WHT 1038 HVAC Class 2 Serial Data
L-M - - Not Used L-M - - Not Used
C217

GM594473Courtesy of GENERAL MOTORS CORP.
GM684931Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15336479
  • 4-Way F Metri-Pack 280 Series (YEL)
 Connector Part Information
  • 15358874
  • 4-Way M Metri-Pack 280 Series (YEL)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A1 TAN 3021 Steering Wheel Module - Stage 1 - High Control A1 TAN 3021 Steering Wheel Module - Stage 1 - High Control
A2 BRN 3020 Steering Wheel Module - Stage 1 - Low Control A2 BRN 3020 Steering Wheel Module - Stage 1 - Low Control
B1 WHT 3023 Steering Wheel Module - Stage 2 - High Control B1 WHT 3023 Steering Wheel Module - Stage 2 - High Control
B2 PNK 3022 Steering Wheel Module - Stage 2 - Low Control B2 PNK 3022 Steering Wheel Module - Stage 2 - Low Control
C218

GM594473Courtesy of GENERAL MOTORS CORP.
GM684931Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15336479
  • 4-Way F Metri-Pack 280 Series (YEL)
 Connector Part Information
  • 15336476
  • 4-Way M Metri-Pack 280 Series (YEL)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A1 YEL 3025 I/P Module - Stage 1 - High Control A1 YEL 3025 I/P Module - Stage 1 - High Control
A2 ORN 3024 I/P Module - Stage 1 - Low Control A2 ORN 3024 I/P Module - Stage 1 - Low Control
B1 GRY 3027 I/P Module - Stage 2 - High Control B1 GRY 3027 I/P Module - Stage 2 - High Control
B2 PPL 3026 I/P Module - Stage 2 - Low Control B2 PPL 3026 I/P Module - Stage 2 - Low Control
C225 (U2K)

GM40422Courtesy of GENERAL MOTORS CORP.
GM40425Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064762
  • 6-Way F Metri-Pack 150 Series (GRY)
 Connector Part Information
  • 12064763
  • 6-Way M Metri-Pack 150 Series (GRY)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A PNK/BLK 5152 Audio Common A PNK/BLK 5152 Audio Common
B WHT 2058 Auxiliary Audio Right Signal B WHT 2058 Auxiliary Audio Right Signal
C YEL 2059 Auxiliary Audio Left Signal C YEL 2059 Auxiliary Audio Left Signal
D BARE 1705 Drain Wire D BARE 1705 Drain Wire
E DK BLU 2272 Amplifier Class 2 Serial Data E DK BLU 2272 Amplifier Class 2 Serial Data
F -- -- Not Used F -- -- Not Used
C240 (w/o D55)

GM556473Courtesy of GENERAL MOTORS CORP.
GM542307Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326924
  • 8-Way F GT 280 Series (BLK)
 Connector Part Information
  • 15354654
  • 8-Way M GT 280 Series (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A GRY 8 Instrument Panel Lamp Supply Voltage - 1 A GRY 8 Instrument Panel Lamp Supply Voltage - 1
B ORN 340
 		 Battery Positive Voltage B ORN 340 Battery Positive Voltage
C BLK 1050 Ground C BLK 1050 Ground
D ORN 1640 Battery Positive Voltage D ORN 1640 Battery Positive Voltage
E BLK 1050 Ground E BLK 1050 Ground
F BLK 1050 Ground F BLK 1050 Ground
G-H - - Not Used G-H - - Not Used
C255 (w/o 6J7)

GM82383Courtesy of GENERAL MOTORS CORP.
GM35441Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047662
  • 2-Way F Metri-Pack 150 Series (BLK)
 Connector Part Information
  • 12047663
  • 2-Way M Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A YEL 18 Left Rear Stop/Turn Lamp Supply Voltage A YEL 18 Left Rear Stop/Turn Lamp Supply Voltage
B DK GRN 19 Right Rear Stop/Turn Lamp Supply Voltage B DK GRN 19 Right Rear Stop/Turn Lamp Supply Voltage
C255A (6J7)

GM82383Courtesy of GENERAL MOTORS CORP.
GM35441Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047662
  • 2-Way F Metri-Pack 150 Series (BLK)
 Connector Part Information
  • 12047663
  • 2-Way M Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A YEL 18 Left Rear Stop/Turn Lamp Supply Voltage A YEL 18 Left Rear Stop/Turn Lamp Supply Voltage
B DK GRN 19 Right Rear Stop/Turn Lamp Supply Voltage B DK GRN 19 Right Rear Stop/Turn Lamp Supply Voltage
C255B (6J7)

GM82383Courtesy of GENERAL MOTORS CORP.
GM35441Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047662
  • 2-Way F Metri-Pack 150 Series (BLK)
 Connector Part Information
  • 12047663
  • 2-Way M Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A YEL 18 Left Rear Stop/Turn Lamp Supply Voltage A YEL 18 Left Rear Stop/Turn Lamp Supply Voltage
B DK GRN 19 Right Rear Stop/Turn Lamp Supply Voltage B DK GRN 19 Right Rear Stop/Turn Lamp Supply Voltage
C297 (9C1/9C3)

GM40422Courtesy of GENERAL MOTORS CORP.
GM40425Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064762
  • 6-Way F Metri-Pack 150 Series (GRY)
 Connector Part Information
  • 12064763
  • 6-Way M Metri-Pack 150 Series (GRY)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A PNK 2322 Emergency Vehicle Headlamps Flasher Supply Voltage A PNK 2322 Emergency Vehicle Headlamps Flasher Supply Voltage
B LT BLU 2320 Siren/Speaker Circuit - Provisional B LT BLU 2320 Siren/Speaker Circuit - Provisional (6J3)
C LT GRN 2321 Siren/Speaker Circuit - Provisional C LT GRN 2321 Siren/Speaker Circuit - Provisional (6J3)
D GRY 2245 Emergency Vehicle Front Lamps Supply Voltage D GRY 2245 Emergency Vehicle Front Lamps Supply Voltage (6J3)
E TAN 2246 Emergency Vehicle Front Lamps Supply Voltage E TAN 2246 Emergency Vehicle Front Lamps Supply Voltage (6J3)
F LT BLU 2624 Emergency Vehicle Rear Lamps Flasher Supply Voltage F LT BLU 2624 Emergency Vehicle Rear Lamps Flasher Supply Voltage
C299 (WX7)

GM62463Courtesy of GENERAL MOTORS CORP.
GM73217Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064766
  • 8-Way F Metri-Pack 150 Series (BLU)
 Connector Part Information
  • 12064767
  • 8-Way M Metri-Pack 150 Series (BLU)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A GRY 118 Left Front Speaker Output (-) A GRY 118 Left Front Speaker Output (-)
B TAN 201 Left Front Speaker Output (+) B TAN 201 Left Front Speaker Output (+)
C DK GRN 117 Right Front Speaker Output (-) C DK GRN 117 Right Front Speaker Output (-)
D LT GRN 200 Right Front Speaker Output (+) D LT GRN 200 Right Front Speaker Output (+)
E YEL 116 Left Rear Speaker Output (-) E YEL 116 Left Rear Speaker Output (-)
F BRN 199 Left Rear Speaker Output (+) F BRN 199 Left Rear Speaker Output (+)
G LT BLU 115 Right Rear Speaker Output (-) G LT BLU 115 Right Rear Speaker Output (-)
H DK BLU 46 Right Rear Speaker Output (+) H DK BLU 46 Right Rear Speaker Output (+)
C299A (WX7)

GM62463Courtesy of GENERAL MOTORS CORP.
GM73217Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064766
  • 8-Way F Metri-Pack 150 Series (BLU)
 Connector Part Information
  • 12064767
  • 8-Way M Metri-Pack 150 Series (BLU)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A GRY 118 Left Front Speaker Output (-) A YEL 116 Left Front Speaker Output (-)
B TAN 201 Left Front Speaker Output (+) B BRN 199 Left Front Speaker Output (+)
C DK GRN 117 Right Front Speaker Output (-) C LT BLU 115 Right Front Speaker Output (-)
D LT GRN 200 Right Front Speaker Output (+) D DK BLU 46 Right Front Speaker Output (+)
E YEL 116 Left Rear Speaker Output (-) E-H - - Not Used
F BRN 199 Left Rear Speaker Output (+)
G LT BLU 115 Right Rear Speaker Output (-)
H DK BLU 46 Right Rear Speaker Output (+)
C299B (WX7)

GM62463Courtesy of GENERAL MOTORS CORP.
GM73217Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064766
  • 8-Way F Metri-Pack 150 Series (BLU)
 Connector Part Information
  • 12064767
  • 8-Way M Metri-Pack 150 Series (BLU)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A GRY 118 Left Front Speaker Output (-) A GRY 118 Left Front Speaker Output (-)
B TAN 201 Left Front Speaker Output (+) B TAN 201 Left Front Speaker Output (+)
C DK GRN 117 Right Front Speaker Output (-) C DK GRN 117 Right Front Speaker Output (-)
D LT GRN 200 Right Front Speaker Output (+) D LT GRN 200 Right Front Speaker Output (+)
E YEL 116 Left Rear Speaker Output (-) E YEL 116 Left Rear Speaker Output (-)
F BRN 199 Left Rear Speaker Output (+) F BRN 199 Left Rear Speaker Output (+)
G LT BLU 115 Right Rear Speaker Output (-) G LT BLU 115 Right Rear Speaker Output (-)
H DK BLU 46 Right Rear Speaker Output (+) H DK BLU 46 Right Rear Speaker Output (+)
C301 Left Front Door Harness to Body Harness (Early Production)

GM768086Courtesy of GENERAL MOTORS CORP.
GM768088Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15359287
  • 40-Way F GT 150, 280 Series (BLK)
 Connector Part Information
  • 15359284
  • 40-Way M GT 150, 280 Series (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A1 - - Not Used A1 - - Not Used
A2 BLK 2050 Ground A2 BLK 2050 Ground
A3 YEL 343 Accessory Voltage (Impala) A3 YEL 343 Accessory Voltage (Impala)
A4 DK BLU 1307 Power Window Master Switch Lockout Signal (Impala) A4 DK BLU 1307 Power Window Master Switch Lockout Signal (Impala)
YEL 343 Accessory Voltage (Monte Carlo) YEL 343 Accessory Voltage (Monte Carlo)
A5 PPL 169 Power Window Master Switch Left Rear Down Signal (Impala) A5 PPL 169 Power Window Master Switch Left Rear Down Signal (Impala)
A6 DK GRN 168 Power Window Master Switch Left Rear Up Signal (Impala) A6 DK GRN 168 Power Window Master Switch Left Rear Up Signal (Impala)
A7 BLK 1856 Left Front Tweeter Speaker Output (+) A7 BLK 1856 Left Front Tweeter Speaker Output (+) (UQ3)
A8 YEL 1956 Left Front Tweeter Speaker Output (-) (UQ3) A8 YEL 1956 Left Front Tweeter Speaker Output (-) (UQ3)
B1 - - Not Used B1 - - Not Used
B2 GRY 118 Left Front Speaker Output (-) B2 GRY 118 Left Front Speaker Output (-) (U62/UW6)
GRY 1794 Left Subwoofer Speaker Output (-) (UQ3)
B3-B4 - - Not Used B3-B4 - - Not Used
B5 BLK/WHT 1251 Ground (UA6) B5 BLK/WHT 1251 Ground
B6 ORN 267 Heated Mirror/Rear Defog Relay Coil Supply Voltage B6 ORN 267 Heated Mirror/Rear Defog Relay Coil Supply Voltage (Monte Carlo, Impala w/o 9C1/9C3)
B7 - - Not Used B7 - - Not Used
B8 ORN 2040 Battery Positive Voltage B8 ORN 2040 Battery Positive Voltage
B9 RED/WHT 881 Right Mirror Motor Right Control B9 RED/WHT 881 Right Mirror Motor Right Control
B10 GRY 8 Instrument Panel Lamp Supply Voltage - 1 B10 GRY 8 Instrument Panel Lamp Supply Voltage - 1
B11 TAN 694 Driver Door Lock Actuator Unlock Control B11 TAN 694 Driver Door Lock Actuator Unlock Control
B12 - - Not Used B12 - - Not Used
C1 - - Not Used C1 - - Not Used
C2 TAN 201 Left Front Speaker Output (+) C2 TAN 201 Left Front Speaker Output (+) (U62/UW6)
TAN 346 Left Subwoofer Speaker Output (+) (UQ3)
C3 ORN/BLK 781 Door Lock Switch Signal C3 ORN/BLK 781 Door Lock Switch Signal
C4 DK BLU 49 Driver Door Open Switch Signal C4 DK BLU 49 Driver Door Open Switch Signal
C5 LT GRN 262 Driver Door Key Switch Signal (UA6) C5 LT GRN 262 Driver Door Key Switch Signal (Monte Carlo, Impala w/o 9C1/9C3)
C6 GRY 8 Instrument Panel Lamp Supply Voltage - 1 C6 GRY 8 Instrument Panel Lamp Supply Voltage - 1
C7 - - Not Used C7 - - Not Used
C8 BLK/WHT 1251 Ground C8 BLK/WHT 1251 Ground
C9 GRY 90 Right Mirror Motor Left Control C9 GRY 90 Right Mirror Motor Left Control
C10 PPL/WHT 889 Right Mirror Motor Down Control C10 PPL/WHT 889 Right Mirror Motor Down Control
C11 GRY 295 Door Lock Actuator Lock Control C11 GRY 295 Door Lock Actuator Lock Control
C12 - - Not Used C12 - - Not Used
D1 YEL 2131 Side Impact Sensing Module - Left - Voltage (Monte Carlo w/AW6) D1 YEL 2131 Side Impact Sensing Module - Left - Voltage (Monte Carlo w/AW6)
D2 WHT 2132 Side Impact Sensing Module - Left - Signal (Monte Carlo w/AW6) D2 WHT 2132 Side Impact Sensing Module - Left - Signal (Monte Carlo w/AW6)
D3 LT GRN 170 Power Window Master Switch Right Rear Up Signal (Impala) D3 LT GRN 170 Power Window Master Switch Right Rear Up Signal (Impala)
D4 PPL 171 Power Window Master Switch Right Rear Down Signal (Impala) D4 PPL 171 Power Window Master Switch Right Rear Down Signal (Impala)
D5 LT BLU 166 Power Window Master Switch Right Front Up Signal D5 LT BLU 166 Power Window Master Switch Right Front Up Signal
D6 TAN 167 Power Window Master Switch Right Front Down Signal D6 TAN 167 Power Window Master Switch Right Front Down Signal
D7-D8 - - Not Used D7-D8 - - Not Used
C301 Left Front Door Harness to Body Harness (Late Production)

GM1538788Courtesy of GENERAL MOTORS CORP.
GM768088Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15448129
  • 40-Way F GT 150, 280 Series (BLK)
 Connector Part Information
  • 15359284
  • 40-Way M GT 150, 280 Series (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A1 - - Not Used A1 - - Not Used
A2 BLK 2050 Ground A2 BLK 2050 Ground
A3 YEL 343 Accessory Voltage (Impala) A3 YEL 343 Accessory Voltage (Impala)
A4 DK BLU 1307 Power Window Master Switch Lockout Signal (Impala) A4 DK BLU 1307 Power Window Master Switch Lockout Signal (Impala)
YEL 343 Accessory Voltage (Monte Carlo) YEL 343 Accessory Voltage (Monte Carlo)
A5 PPL 169 Power Window Master Switch Left Rear Down Signal (Impala) A5 PPL 169 Power Window Master Switch Left Rear Down Signal (Impala)
A6 DK GRN 168 Power Window Master Switch Left Rear Up Signal (Impala) A6 DK GRN 168 Power Window Master Switch Left Rear Up Signal (Impala)
A7 BLK 1856 Left Front Tweeter Speaker Output (+) A7 BLK 1856 Left Front Tweeter Speaker Output (+) (UQ3)
A8 YEL 1956 Left Front Tweeter Speaker Output (-) (UQ3) A8 YEL 1956 Left Front Tweeter Speaker Output (-) (UQ3)
B1 - - Not Used B1 - - Not Used
B2 GRY 118 Left Front Speaker Output (-) B2 GRY 118 Left Front Speaker Output (-) (U62/UW6)
GRY 1794 Left Subwoofer Speaker Output (-) (UQ3)
B3-B4 - - Not Used B3-B4 - - Not Used
B5 BLK/WHT 1251 Ground (UA6) B5 BLK/WHT 1251 Ground
B6 ORN 267 Heated Mirror/Rear Defog Relay Coil Supply Voltage B6 ORN 267 Heated Mirror/Rear Defog Relay Coil Supply Voltage (Monte Carlo, Impala w/o 9C1/9C3)
B7 - - Not Used B7 - - Not Used
B8 ORN 2040 Battery Positive Voltage B8 ORN 2040 Battery Positive Voltage
B9 RED/WHT 881 Right Mirror Motor Right Control B9 RED/WHT 881 Right Mirror Motor Right Control
B10 GRY 8 Instrument Panel Lamp Supply Voltage - 1 B10 GRY 8 Instrument Panel Lamp Supply Voltage - 1
B11 TAN 694 Driver Door Lock Actuator Unlock Control B11 TAN 694 Driver Door Lock Actuator Unlock Control
B12 - - Not Used B12 - - Not Used
C1 - - Not Used C1 - - Not Used
C2 TAN 201 Left Front Speaker Output (+) C2 TAN 201 Left Front Speaker Output (+) (U62/UW6)
TAN 346 Left Subwoofer Speaker Output (+) (UQ3)
C3 ORN/BLK 781 Door Lock Switch Signal C3 ORN/BLK 781 Door Lock Switch Signal
C4 DK BLU 49 Driver Door Open Switch Signal C4 DK BLU 49 Driver Door Open Switch Signal
C5 LT GRN 262 Driver Door Key Switch Signal (UA6) C5 LT GRN 262 Driver Door Key Switch Signal (Monte Carlo, Impala w/o 9C1/9C3)
C6 GRY 8 Instrument Panel Lamp Supply Voltage - 1 C6 GRY 8 Instrument Panel Lamp Supply Voltage - 1
C7 - - Not Used C7 - - Not Used
C8 BLK/WHT 1251 Ground C8 BLK/WHT 1251 Ground
C9 GRY 90 Right Mirror Motor Left Control C9 GRY 90 Right Mirror Motor Left Control
C10 PPL/WHT 889 Right Mirror Motor Down Control C10 PPL/WHT 889 Right Mirror Motor Down Control
C11 GRY 295 Door Lock Actuator Lock Control C11 GRY 295 Door Lock Actuator Lock Control
C12 - - Not Used C12 - - Not Used
D1 YEL 2131 Side Impact Sensing Module - Left - Voltage (Monte Carlo w/AW6) D1 YEL 2131 Side Impact Sensing Module - Left - Voltage (Monte Carlo w/AW6)
D2 WHT 2132 Side Impact Sensing Module - Left - Signal (Monte Carlo w/AW6) D2 WHT 2132 Side Impact Sensing Module - Left - Signal (Monte Carlo w/AW6)
D3 LT GRN 170 Power Window Master Switch Right Rear Up Signal (Impala) D3 LT GRN 170 Power Window Master Switch Right Rear Up Signal (Impala)
D4 PPL 171 Power Window Master Switch Right Rear Down Signal (Impala) D4 PPL 171 Power Window Master Switch Right Rear Down Signal (Impala)
D5 LT BLU 166 Power Window Master Switch Right Front Up Signal D5 LT BLU 166 Power Window Master Switch Right Front Up Signal
D6 TAN 167 Power Window Master Switch Right Front Down Signal D6 TAN 167 Power Window Master Switch Right Front Down Signal
D7-D8 - - Not Used D7-D8 - - Not Used
C302 Front Passenger Door Harness to Body Harness (Early Production)

GM768086Courtesy of GENERAL MOTORS CORP.
GM768088Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15359287
  • 40-Way F GT 150, 280 Series (BLK)
 Connector Part Information
  • 15359284
  • 40-Way M GT 150, 280 Series (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A1 - - Not Used A1 - - Not Used
A2 BLK 1750 Ground A2 BLK 1750 Ground
A3 - - Not Used A3 - - Not Used
A4 DK BLU 1307 Power Window Master Switch Lockout Signal (Impala) A4 DK BLU 1307 Power Window Master Switch Lockout Signal (Impala)
YEL 343 Accessory Voltage (Monte Carlo) YEL 343 Accessory Voltage (Monte Carlo)
A5-A6 - - Not Used A5-A6 - - Not Used
A7 LT GRN 1852 Right Front Tweeter Speaker Output (+) A7 LT GRN 1852 Right Front Tweeter Speaker Output (+) (UQ3)
A8 PPL 1952 Right Front Tweeter Speaker Output (-) (UQ3) A8 PPL 1952 Right Front Tweeter Speaker Output (-) (UQ3)
B1 - - Not Used B1 - - Not Used
B2 DK GRN 117 Right Front Speaker Output (-) B2 DK GRN 117 Right Front Speaker Output (-) (U62/UW6/WX7)
LT BLU/BLK 315 Right Subwoofer Speaker Output (-) (UQ3)
B3 - - Not Used B3 - - Not Used
B4 DK BLU/WHT 727 Door Open Switch Signal B4 DK BLU/WHT 727 Door Open Switch Signal
B5 - - Not Used B5 BLK/WHT 1251 Ground (If Equipped)
B6 ORN 267 Heated Mirror/Rear Defog Relay Coil Supply Voltage B6 ORN 267 Heated Mirror/Rear Defog Relay Coil Supply Voltage (w/o 9C1/9C3)
B7-B8 - - Not Used B7-B8 - - Not Used
B9 RED/WHT 881 Right Mirror Motor Right Control B9 RED/WHT 881 Right Mirror Motor Right Control
B10 GRY 8 Instrument Panel Lamp Supply Voltage - 1 B10 GRY 8 Instrument Panel Lamp Supply Voltage - 1
B11 TAN 294 Door Lock Actuator Unlock Control B11 TAN 294 Door Lock Actuator Unlock Control
B12 - - Not Used B12 - - Not Used
C1 - - Not Used C1 - - Not Used
C2 LT GRN 200 Right Front Speaker Output (+) C2 LT GRN 200 Right Front Speaker Output (+) (U62/UW6/WX7)
C2 DK GRN/WHT 1795 Right Subwoofer Speaker Output (+) (UQ3)
C3 ORN/BLK 781 Door Lock Switch Signal C3 ORN/BLK 781 Door Lock Switch Signal
C4 - - Not Used C4 - - Not Used
C5 LT GRN 262 Door Key Switch Signal (If Equipped) C5 LT GRN 262 Door Key Switch Signal (If Equipped)
C6-C7 - - Not Used C6-C7 - - Not Used
C8 BLK/WHT 1251 Ground C8 BLK/WHT 1251 Ground
C9 GRY 90 Right Mirror Motor Left Control C9 GRY 90 Right Mirror Motor Left Control
C10 PPL/WHT 889 Right Mirror Motor Down Control C10 PPL/WHT 889 Right Mirror Motor Down Control
C11 GRY 295 Door Lock Actuator Lock Control C11 GRY 295 Door Lock Actuator Lock Control
C12 - - Not Used C12 - - Not Used
D1-D4 - - Not Used D1-D4 - - Not Used
D5 LT BLU 166 Power Window Master Switch Right Front Up Signal D5 LT BLU 166 Power Window Master Switch Right Front Up Signal
D6 TAN 167 Power Window Master Switch Right Front Down Signal D6 TAN 167 Power Window Master Switch Right Front Down Signal
D7-D8 - - Not Used D7-D8 - - Not Used
C302 Front Passenger Door Harness to Body Harness (Late Production)

GM1538788Courtesy of GENERAL MOTORS CORP.
GM768088Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15448129
  • 40-Way F GT 150, 280 Series (BLK)
 Connector Part Information
  • 15359284
  • 40-Way M GT 150, 280 Series (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A1 - - Not Used A1 - - Not Used
A2 BLK 1750 Ground A2 BLK 1750 Ground
A3 - - Not Used A3 - - Not Used
A4 DK BLU 1307 Power Window Master Switch Lockout Signal (Impala) A4 DK BLU 1307 Power Window Master Switch Lockout Signal (Impala)
YEL 343 Accessory Voltage (Monte Carlo) YEL 343 Accessory Voltage (Monte Carlo)
A5-A6 - - Not Used A5-A6 - - Not Used
A7 LT GRN 1852 Right Front Tweeter Speaker Output (+) A7 LT GRN 1852 Right Front Tweeter Speaker Output (+) (UQ3)
A8 PPL 1952 Right Front Tweeter Speaker Output (-) (UQ3) A8 PPL 1952 Right Front Tweeter Speaker Output (-) (UQ3)
B1 - - Not Used B1 - - Not Used
B2 DK GRN 117 Right Front Speaker Output (-) B2 DK GRN 117 Right Front Speaker Output (-) (U62/UW6/WX7)
LT BLU/BLK 315 Right Subwoofer Speaker Output (-) (UQ3)
B3 - - Not Used B3 - - Not Used
B4 DK BLU/WHT 727 Door Open Switch Signal B4 DK BLU/WHT 727 Door Open Switch Signal
B5 - - Not Used B5 BLK/WHT 1251 Ground (If Equipped)
B6 ORN 267 Heated Mirror/Rear Defog Relay Coil Supply Voltage B6 ORN 267 Heated Mirror/Rear Defog Relay Coil Supply Voltage (w/o 9C1/9C3)
B7-B8 - - Not Used B7-B8 - - Not Used
B9 RED/WHT 881 Right Mirror Motor Right Control B9 RED/WHT 881 Right Mirror Motor Right Control
B10 GRY 8 Instrument Panel Lamp Supply Voltage - 1 B10 GRY 8 Instrument Panel Lamp Supply Voltage - 1
B11 TAN 294 Door Lock Actuator Unlock Control B11 TAN 294 Door Lock Actuator Unlock Control
B12 - - Not Used B12 - - Not Used
C1 - - Not Used C1 - - Not Used
C2 LT GRN 200 Right Front Speaker Output (+) C2 LT GRN 200 Right Front Speaker Output (+) (U62/UW6/WX7)
C2 DK GRN/WHT 1795 Right Subwoofer Speaker Output (+) (UQ3)
C3 ORN/BLK 781 Door Lock Switch Signal C3 ORN/BLK 781 Door Lock Switch Signal
C4 - - Not Used C4 - - Not Used
C5 LT GRN 262 Door Key Switch Signal (If Equipped) C5 LT GRN 262 Door Key Switch Signal (If Equipped)
C6-C7 - - Not Used C6-C7 - - Not Used
C8 BLK/WHT 1251 Ground C8 BLK/WHT 1251 Ground
C9 GRY 90 Right Mirror Motor Left Control C9 GRY 90 Right Mirror Motor Left Control
C10 PPL/WHT 889 Right Mirror Motor Down Control C10 PPL/WHT 889 Right Mirror Motor Down Control
C11 GRY 295 Door Lock Actuator Lock Control C11 GRY 295 Door Lock Actuator Lock Control
C12 - - Not Used C12 - - Not Used
D1-D4 - - Not Used D1-D4 - - Not Used
D5 LT BLU 166 Power Window Master Switch Right Front Up Signal D5 LT BLU 166 Power Window Master Switch Right Front Up Signal
D6 TAN 167 Power Window Master Switch Right Front Down Signal D6 TAN 167 Power Window Master Switch Right Front Down Signal
D7-D8 - - Not Used D7-D8 - - Not Used
C306 (9C1/9C3)

GM333035Courtesy of GENERAL MOTORS CORP.
GM287973Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047781
  • 3-Way F Metri-Pack 150 Series (BLK)
 Connector Part Information
  • 12047782
  • 3-Way M Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A YEL 18 Left Rear Stop/Turn Lamp Supply Voltage A YEL 18 Left Rear Stop/Turn Lamp Supply Voltage
B DK GRN 19 Right Rear Stop/Turn Lamp Supply Voltage B DK GRN 19 Right Rear Stop/Turn Lamp Supply Voltage
C LT BLU 2624 Emergency Vehicle Rear Lamps Flasher Supply Voltage C LT BLU 2624 Emergency Vehicle Rear Lamps Flasher Supply Voltage
C308 (9C1/9C3)

GM493694Courtesy of GENERAL MOTORS CORP.

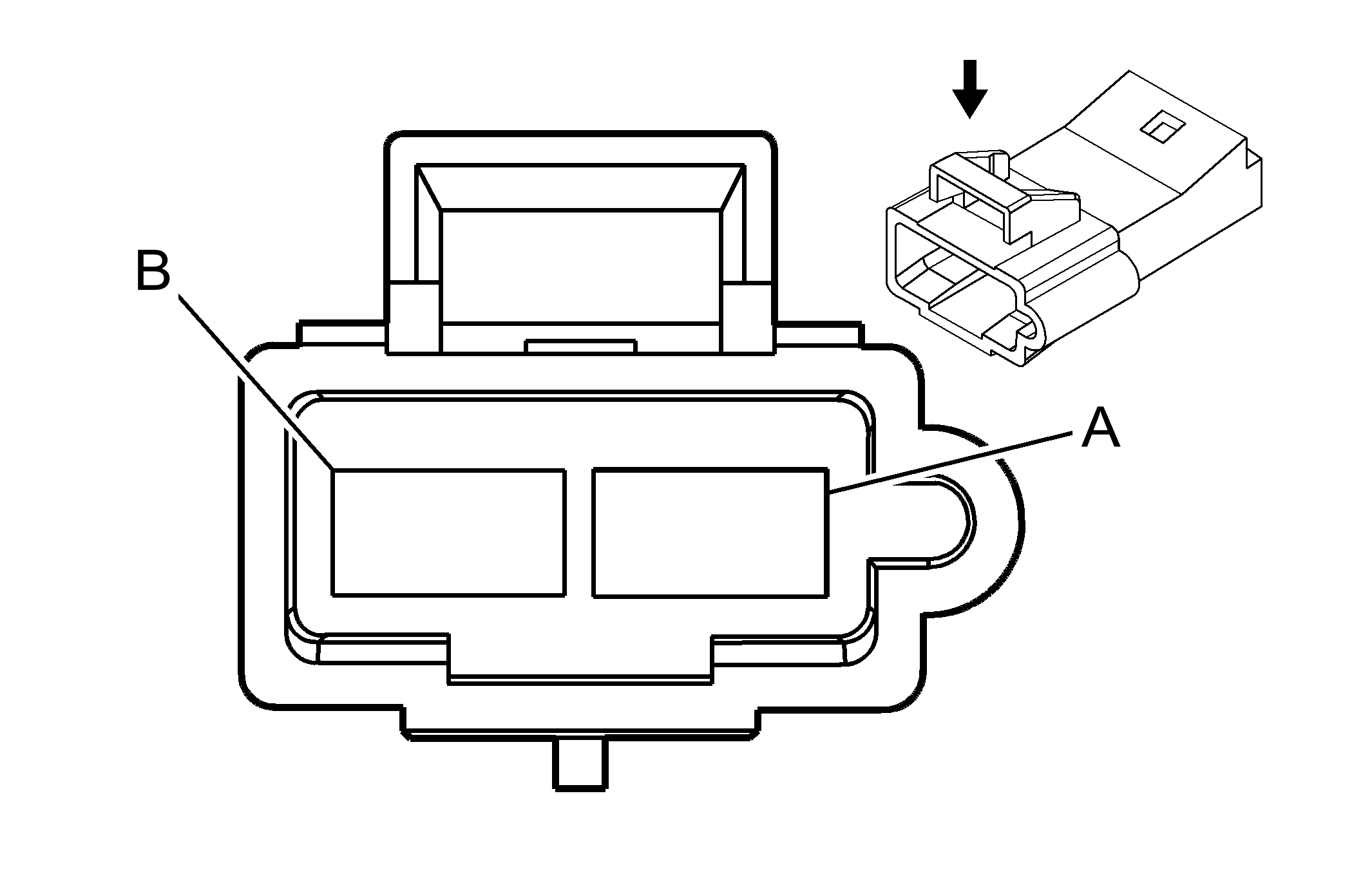

GM768090Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12129939
  • 2-Way F Metri-Pack 630 Series (BLK)
 Connector Part Information
  • 12129938
  • 2-Way M Metri-Pack 630 Series (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A RED 302 Battery Positive Voltage A RED 302 Battery Positive Voltage
B RED 702 Battery Positive Voltage B RED 702 Battery Positive Voltage
C311 (AG1)

GM556473Courtesy of GENERAL MOTORS CORP.
GM542307Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326924
  • 8-Way F GT 280 Series (BLK)
 Connector Part Information
  • 15326928
  • 8-Way M GT 280 Series (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A ORN/BLK 1840 Battery Positive Voltage (w/o 9C1/9C3/9C6) A ORN 1840 Battery Positive Voltage (KA1)
B - - Not Used B - - Not Used
C ORN 2340 Battery Positive Voltage C ORN 2340 Battery Positive Voltage (AG1)
D ORN 480 Load Management Control (Impala w/o 9C1/9C3/9C6) D ORN 911 Load Management Control (Impala w/KA1)
E BLK/WHT 238 Seat Belt Switch - Left - Signal E BLK/WHT 238 Seat Belt Switch - Left - Signal
F BLK 1550 Ground F BLK 1550 Ground
G PNK 1501 Driver Heated Seat High/Low Signal (Monte Carlo) G PNK 1501 Driver Heated Seat High/Low Signal (Monte Carlo w/KA1)
H LT BLU 1462 Heated Seat Switch Signal (Monte Carlo) H LT BLU 1462 Heated Seat Switch Signal (Monte Carlo w/KA1)
C312 (AG2)

GM556473Courtesy of GENERAL MOTORS CORP.
GM542307Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326924
  • 8-Way F GT 280 Series (BLK)
 Connector Part Information
  • 15326928
  • 8-Way M GT 280 Series (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A ORN/BLK 2840 Battery Positive Voltage (w/o 9C1/9C3) A ORN 1840 Battery Positive Voltage (KA1)
B - - Not Used B - - Not Used
C ORN 2340 Battery Positive Voltage C ORN 2340 Battery Positive Voltage (AG2)
D ORN 480 Load Management Control (Impala w/o 9C1/9C3) D ORN/BLK 911 Load Management Control (Impala w/KA1)
E - - Not Used E - - Not Used
F BLK 1750 Ground F BLK 1550 Ground (AG2)
G PNK/BLK 1503 Passenger Heated Seat High/Low Signal (Monte Carlo) G PNK 1501 Passenger Heated Seat High/Low Signal (Monte Carlo w/KA1)
H LT BLU/BLK 1505 Passenger Heated Seat Switch Signal (Monte Carlo) H LT BLU 1462 Heated Seat Switch Signal (Monte Carlo w/KA1)
C315

GM556473Courtesy of GENERAL MOTORS CORP.
GM542307Courtesy of GENERAL MOTORS CORP.
Connector Part information
  • 15326924
  • 8-Way F GT 280 Series (BLK)
 Connector Part Information
  • 15326928
  • 8-Way M GT 280 Series (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A - - Not Used A - - Not Used
B BLK/WHT 1251 Ground (Monte Carlo) B BLK/WHT 1251 Ground (Monte Carlo w/NW9)
C BLK 1550 Ground C BLK 1550 Ground
BLK 1550 Ground (Monte Carlo w/NW9, Impala)
D BRN/WHT 1571 Traction Control Switch Signal (Monte Carlo) D BRN/WHT 1571 Traction Control Switch Signal (Monte Carlo w/NW9)
E-F - - Not Used E-F - - Not Used
G GRY 8 Instrument Panel Lamp Supply Voltage - 1 G GRY 8 Instrument Panel Lamp Supply Voltage - 1 (Monte Carlo w/NW9, Impala)
H ORN 1640 Battery Positive Voltage H ORN 1640 Battery Positive Voltage
C317

GM153645Courtesy of GENERAL MOTORS CORP.
GM258179Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12129081
  • 2-Way F Metri-Pack 280 Series (BLK)
 Connector Part Information
  • 12129155
  • 2-Way M Metri-Pack 280 Series (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A ORN 340 Battery Positive Voltage A ORN 340 Battery Positive Voltage
B BLK 1550 Ground B BLK 1550 Ground
C355 (Impala)

GM768091Courtesy of GENERAL MOTORS CORP.
GM768094Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12191689
  • 7-Way F GT 150, 280 Series Sealed (WHT)
 Connector Part Information
  • 12191677
  • 7-Way M GT 150, 280 Series Sealed (WHT)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A TAN 294 Door Lock Actuator Unlock Control A TAN 294 Door Lock Actuator Unlock Control
B GRY 295 Door Lock Actuator Lock Control B GRY 295 Door Lock Actuator Lock Control
C DK BLU 1307 Power Window Master Switch Lockout Signal C DK BLU 1307 Power Window Master Switch Lockout Signal
D DK BLU/WHT 727 Door Open Switch Signal D DK BLU/WHT 727 Door Open Switch Signal
E BLK/WHT 1251 Ground E BLK/WHT 1251 Ground
G DK GRN 168 Power Window Master Switch Left Rear Up Signal G DK GRN 168 Power Window Master Switch Left Rear Up Signal
H PPL 169 Power Window Master Switch Left Rear Down Signal H PPL 169 Power Window Master Switch Left Rear Down Signal
C356 (Impala)

GM768091Courtesy of GENERAL MOTORS CORP.
GM768094Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12191689
  • 7-Way F GT 150, 280 Series Sealed (WHT)
 Connector Part Information
  • 12191677
  • 7-Way M GT 150, 280 Series Sealed (WHT)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A TAN 294 Door Lock Actuator Unlock Control A TAN 294 Door Lock Actuator Unlock Control
B GRY 295 Door Lock Actuator Lock Control B GRY 295 Door Lock Actuator Lock Control
C DK BLU 1307 Power Window Master Switch Lockout Signal C DK BLU 1307 Power Window Master Switch Lockout Signal
D DK BLU/WHT 727 Door Open Switch Signal D DK BLU/WHT 727 Door Open Switch Signal
E BLK/WHT 1251 Ground E BLK/WHT 1251 Ground
G LT GRN 170 Power Window Master Switch Right Rear Up Signal G LT GRN 170 Power Window Master Switch Right Rear Up Signal
H PPL 171 Power Window Master Switch Right Rear Down Signal H PPL 171 Power Window Master Switch Right Rear Down Signal
C373

GM655767Courtesy of GENERAL MOTORS CORP.
GM655765Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15305133
  • 16-Way F GT 150, 280 Series (BLK)
 Connector Part Information
  • 15305132
  • 16-Way M GT 150, 280 Series (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A DK BLU/WHT 149 Courtesy Lamp Supply Voltage A DK BLU/WHT 149 Courtesy Lamp Supply Voltage
B BLK 1750 Ground B BLK 1750 Ground
C LT GRN 24 Backup Lamp Supply Voltage C LT GRN 24 Backup Lamp Supply Voltage (w/o 9C1/9C3)
D ORN 2440 Battery Positive Voltage (U68) D ORN 2440 Battery Positive Voltage (w/o 9C1/9C3)
E BRN 100 Sunroof Switch Open Signal (CF5) E BRN 100 Sunroof Switch Open Signal (w/o 9C1/9C3)
F YEL 1127 Trip Computer Class 2 Serial Data (U68) F YEL 1127 Trip Computer Class 2 Serial Data (w/o 9C1/9C3)
G DK BLU 128 Sunroof Switch Low Reference (CF5) G DK BLU 128 Sunroof Switch Low Reference (w/o 9C1/9C3)
H LT GRN/BLK 735 Ambient Air Temperature Sensor Signal (U68) H LT GRN/BLK 735 Ambient Air Temperature Sensor Signal (w/o 9C1/9C3)
J BLK/WHT 1251 Ground (U68) J BLK/WHT 1251 Ground (w/o 9C1/9C3)
K ORN 110 Sunroof Switch Close Signal (CF5) K ORN 110 Sunroof Switch Close Signal (w/o 9C1/9C3)
L GRY 157 Interior Lamp Control L GRY 157 Interior Lamp Control
M-R - - Not Used M-R - - Not Used
S BRN 141 Ignition 3 Voltage S BRN 141 Ignition 3 Voltage (w/o 9C1/9C3)
BRN 141 Ignition 3 Voltage (U68)
C392

GM556473Courtesy of GENERAL MOTORS CORP.
GM655836Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326924
  • 8-Way F GT 280 Series (BLK)
 Connector Part Information
  • 15358634
  • 8-Way M GT 280 Series (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A BARE 1705 Drain Wire A BARE 1705 Drain Wire
B GRY 655 Cellular Microphone Signal B GRY 655 Cellular Microphone Signal
C DK GRN/WHT 2514 Keypad Signal C DK GRN/WHT 2514 Keypad Signal
D LT GRN/BLK 2515 Keypad Supply Voltage D LT GRN/BLK 2515 Keypad Supply Voltage
E YEL/BLK 2516 Keypad Green LED Signal E YEL/BLK 2516 Keypad Green LED Signal
F - - Not Used F - - Not Used
G BRN/WHT 2517 Keypad Red LED Signal G BRN/WHT 2517 Keypad Red LED Signal
H - - Not Used H - - Not Used
C400 (Impala)

GM556473Courtesy of GENERAL MOTORS CORP.
GM542307Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326924
  • 8-Way F GT 280 Series (BLK)
 Connector Part Information
  • 15358634
  • 8-Way M GT 280 Series (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A BLK 1750 Ground A BLK 1750 Ground
B YEL 18 Left Rear Stop/Turn Lamp Supply Voltage B YEL 18 Left Rear Stop/Turn Lamp Supply Voltage
C DK GRN 19 Right Rear Stop/Turn Lamp Supply Voltage C DK GRN 19 Right Rear Stop/Turn Lamp Supply Voltage
D BRN/WHT 301 Park Lamp Switch On Signal D BRN/WHT 301 Park Lamp Switch On Signal
E-H - - Not Used E-F - - Not Used
G ORN 340 Battery Positive Voltage (9C1/9C3)
H LT BLU 2624 Emergency Vehicle Rear Lamps Flasher Supply Voltage (9C1/9C3)
C400 (Monte Carlo)

GM556473Courtesy of GENERAL MOTORS CORP.
GM542307Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326924
  • 8-Way F GT 280 Series (BLK)
 Connector Part Information
  • 15358634
  • 8-Way M GT 280 Series (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A BLK 1750 Ground A BLK 1750 Ground
B YEL 685 Left Rear Turn Lamp Supply Voltage B YEL 685 Left Rear Turn Lamp Supply Voltage
C TAN 686 Right Rear Turn Lamp Supply Voltage C TAN 686 Right Rear Turn Lamp Supply Voltage
D BRN/WHT 301 Park Lamp Switch On Signal D BRN/WHT 301 Park Lamp Switch On Signal
E LT GRN 24 Backup Lamp Supply Voltage E LT GRN 24 Backup Lamp Supply Voltage
LT GRN 24 Backup Lamp Supply Voltage
F WHT 17 Stop Lamp Switch Signal F WHT 17 Stop Lamp Switch Signal
WHT 17 Stop Lamp Switch Signal WHT 17 Stop Lamp Switch Signal
G-H - - Not Used G-H - - Not Used
C405 (1A-1D)

GM623045Courtesy of GENERAL MOTORS CORP.
GM646171Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326714 (1A-1D)
  • 12-Way M Metri-Pack 150, 280 Series Sealed (GRY)
 Connector Part Information
  • 12146439
  • 4-Way F Metri-Pack 150 Series, Sealed (LT GRY)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1A BRN 882 Right Rear Wheel Speed Sensor Signal A BRN 882 Right Rear Wheel Speed Sensor Signal
1B WHT 883 Right Rear Wheel Speed Sensor Low Reference B WHT 883 Right Rear Wheel Speed Sensor Low Reference
1C BLK 884 Left Rear Wheel Speed Sensor Signal C BLK 884 Left Rear Wheel Speed Sensor Signal
1D RED 885 Left Rear Wheel Speed Sensor Low Reference D RED 885 Left Rear Wheel Speed Sensor Low Reference
C405 (3A-3H)

GM623045Courtesy of GENERAL MOTORS CORP.
GM795624Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326714 (3A-3H)
  • 12-Way M Metri-Pack 150, 280 Series Sealed (GRY)
 Connector Part Information
  • 12176335
  • 8-Way F Metri-Pack 280 Series Flexlock, Sealed (WHT)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
3A BLK 1850 Ground A BLK 150 Ground
3B BLK 808 Low Reference B BLK/WHT 651 Low Reference
3C GRY 120 Fuel Pump Supply Voltage C GRY 120 Fuel Pump Supply Voltage
3D PPL 1589 Fuel Level Sensor Signal D PPL 30 Fuel Level Sensor Signal
3E - - Not Used E - - Not Used
3F GRY/BLK 2709 5-Volt Reference F GRY/BLK 416 5-Volt Reference
3G DK GRN 890 Fuel Tank Pressure Sensor Signal G DK GRN 890 Fuel Tank Pressure Sensor Signal
3H BLK 808 Low Reference H ORN/BLK 469 Low Reference
C409 (T53)

GM280768Courtesy of GENERAL MOTORS CORP.
GM766913Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052832
  • 2-Way F Metri-Pack 150 Series (BLK)
 Connector Part Information
  • 12065651
  • 2-Way M Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A RED/BLK 744 Trunk Ajar Switch Signal A RED/BLK 744 Trunk Ajar Switch Signal
B ORN 2440 Battery Positive Voltage B ORN 2440 Battery Positive Voltage
C430

GM40422Courtesy of GENERAL MOTORS CORP.
GM40425Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064762
  • 6-Way F Metri-Pack 150 Series (GRY)
 Connector Part Information
  • 12065781
  • 6-Way M Metri-Pack 150 Series (GRY)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A BLK 1750 Ground A BLK 1750 Ground
B RED/BLK 744 Trunk Ajar Switch Signal B RED/BLK 744 Trunk Ajar Switch Signal
C LT BLU 1344 Trunk Release Relay Control C LT BLU 1344 Trunk Release Relay Control
D LT GRN 24 Backup Lamp Supply Voltage (Impala) D LT GRN 24 Backup Lamp Supply Voltage (Impala)
E - - Not Used E - - Not Used
F WHT 17 Stop Lamp Switch Signal F WHT 17 Stop Lamp Switch Signal
C435

GM655835Courtesy of GENERAL MOTORS CORP.
GM542307Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326923
  • 8-Way F GT 280 Series (BLK)
 Connector Part Information
  • 15326928
  • 8-Way M GT 280 Series (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A YEL 343 Accessory Voltage A YEL 343 Accessory Voltage
B BLK 1750 Ground B BLK 1750 Ground
C BRN 100 Sunroof Switch Open Signal C BRN 100 Sunroof Switch Open Signal
D DK BLU 128 Sunroof Switch Low Reference D DK BLU 128 Sunroof Switch Low Reference
E ORN 110 Sunroof Switch Close Signal E ORN 110 Sunroof Switch Close Signal
F-H - - Not Used F-H - - Not Used
C440 (9C1/9C3)

GM62439Courtesy of GENERAL MOTORS CORP.
GM62434Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047886
  • 8-Way F Metri-Pack 150 Series (BLK)
 Connector Part Information
  • 12045688
  • 8-Way M Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A WHT 17 Stop Lamp Switch Signal A WHT 17 Stop Lamp Switch Signal
B YEL 18 Left Rear Stop/Turn Lamp Supply Voltage B YEL 18 Left Rear Stop/Turn Lamp Supply Voltage
C DK GRN 19 Right Rear Stop/Turn Lamp Supply Voltage C DK GRN 19 Right Rear Stop/Turn Lamp Supply Voltage
D LT GRN 24 Backup Lamp Supply Voltage D LT GRN 24 Backup Lamp Supply Voltage
E BLK 1750 Ground E BLK 1750 Ground
F ORN 340 Battery Positive Voltage F ORN 340 Battery Positive Voltage
G LT BLU 2624 Emergency Vehicle Rear Lamps Flasher Supply Voltage G LT BLU 2624 Emergency Vehicle Rear Lamps Flasher Supply Voltage
H - - Not Used H - - Not Used
C901

GM39660Courtesy of GENERAL MOTORS CORP.
GM39661Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047785
  • 4-Way F Metri-Pack 150 Series (BLK)
 Connector Part Information
  • 12047786
  • 4-Way M Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A LT GRN 24 Backup Lamp Supply Voltage A LT GRN 24 Backup Lamp Supply Voltage
B BLK 1750 Ground B BLK 150 Ground
C-D - - Not Used C-D - - Not Used
scientia non olet · About LEMON Manuals
