Hydraulic Brakes Component Views

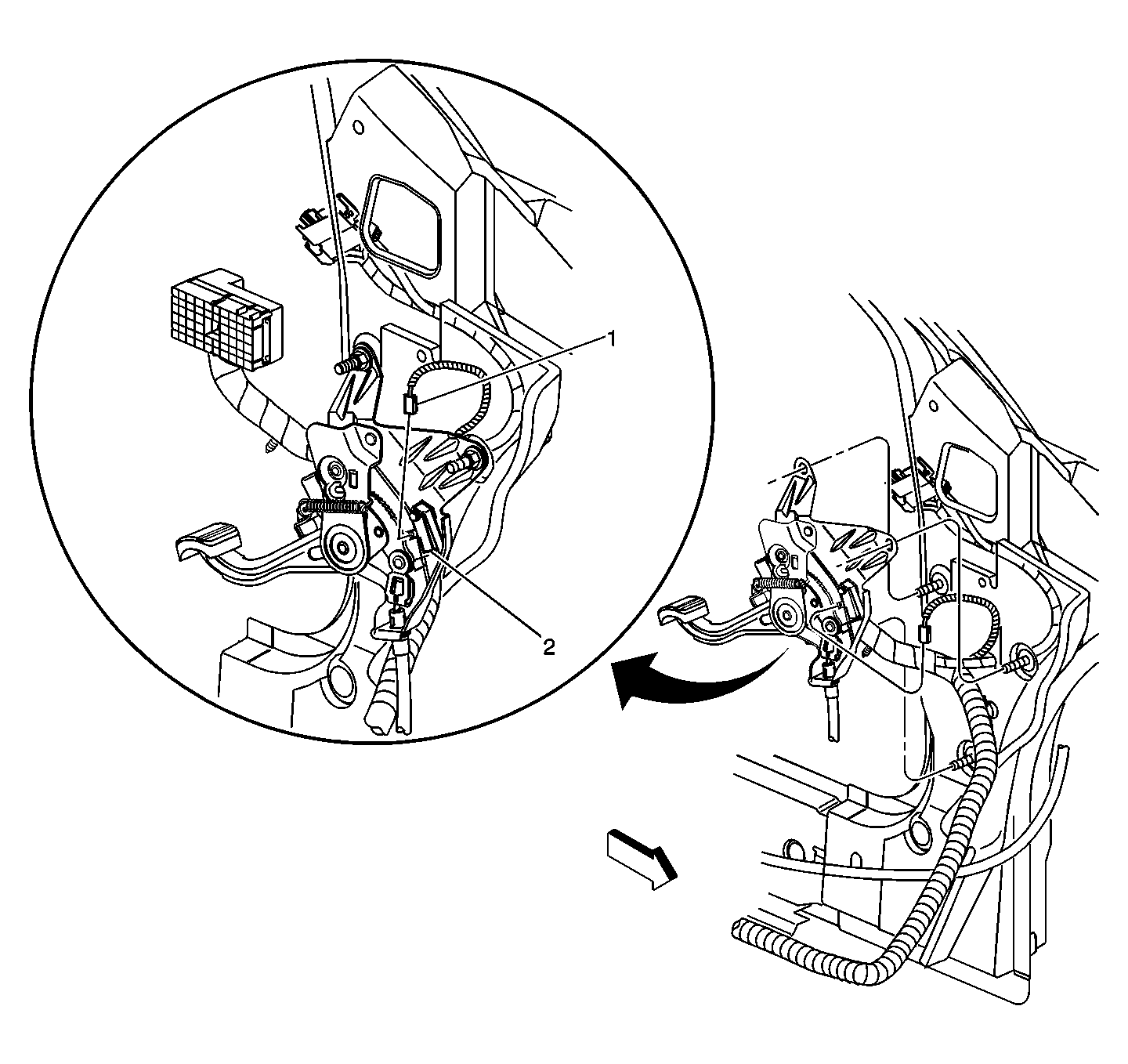

Fig 1: Lower Front Of Passenger Compartment Component View
GM571269Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Park Brake Switch Connector
2 Park Brake Switch

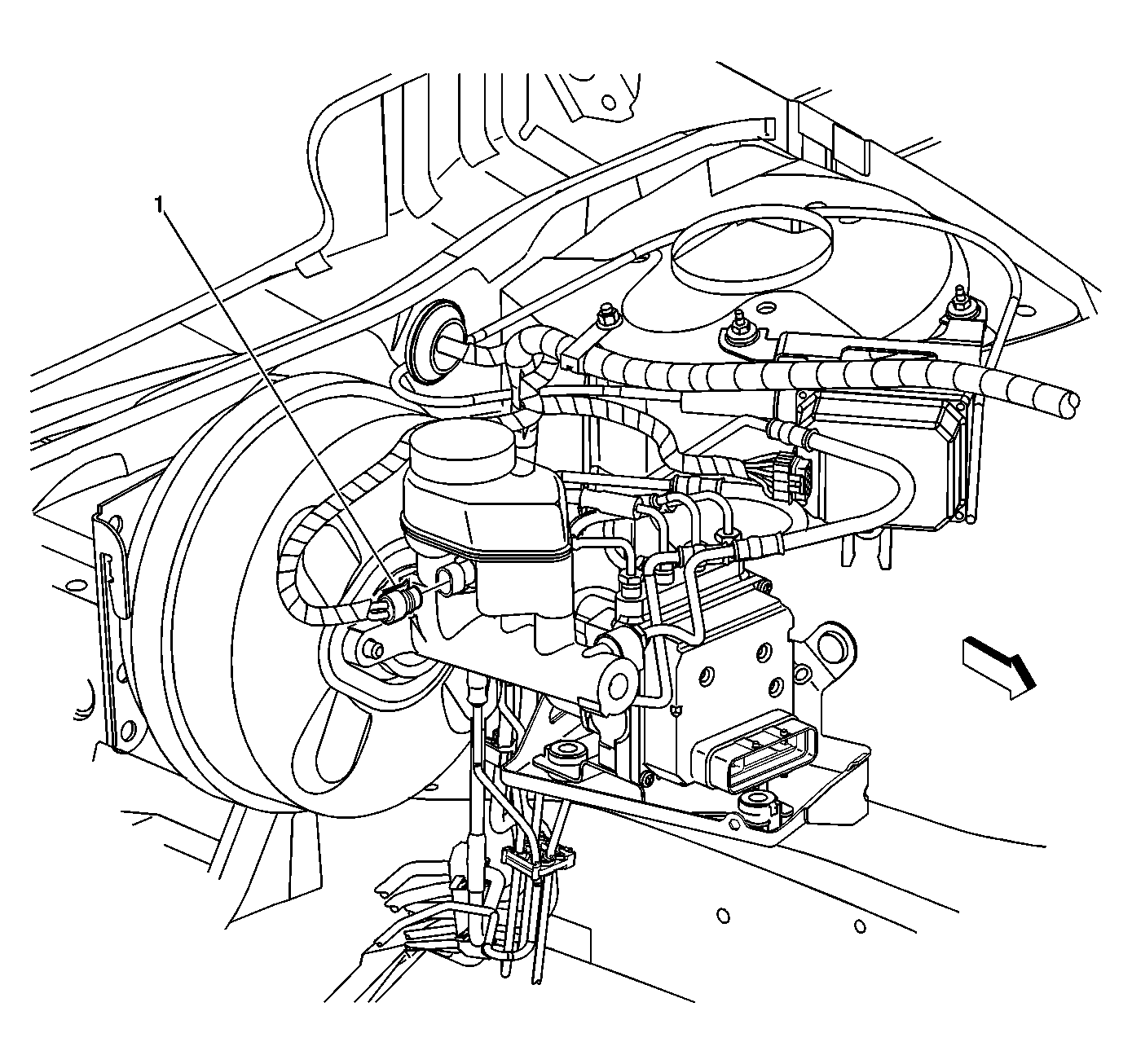

Fig 2: Left Rear Of Engine Compartment Component View
GM498219Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Brake Fluid Level Switch Connector
