Exterior Lights Schematics

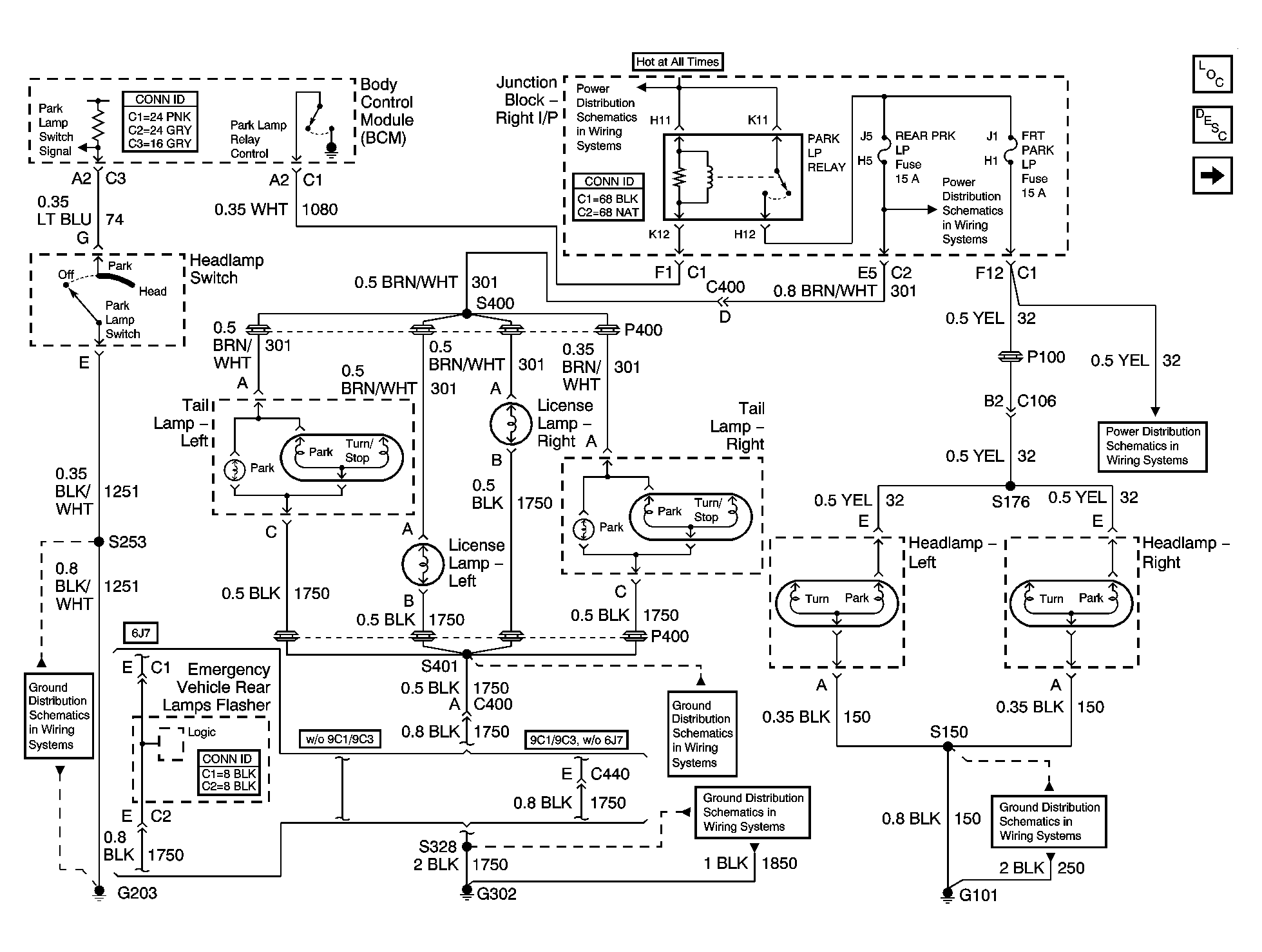

Fig 1: Park Lamps (Impala)

Courtesy of GENERAL MOTORS CORP.

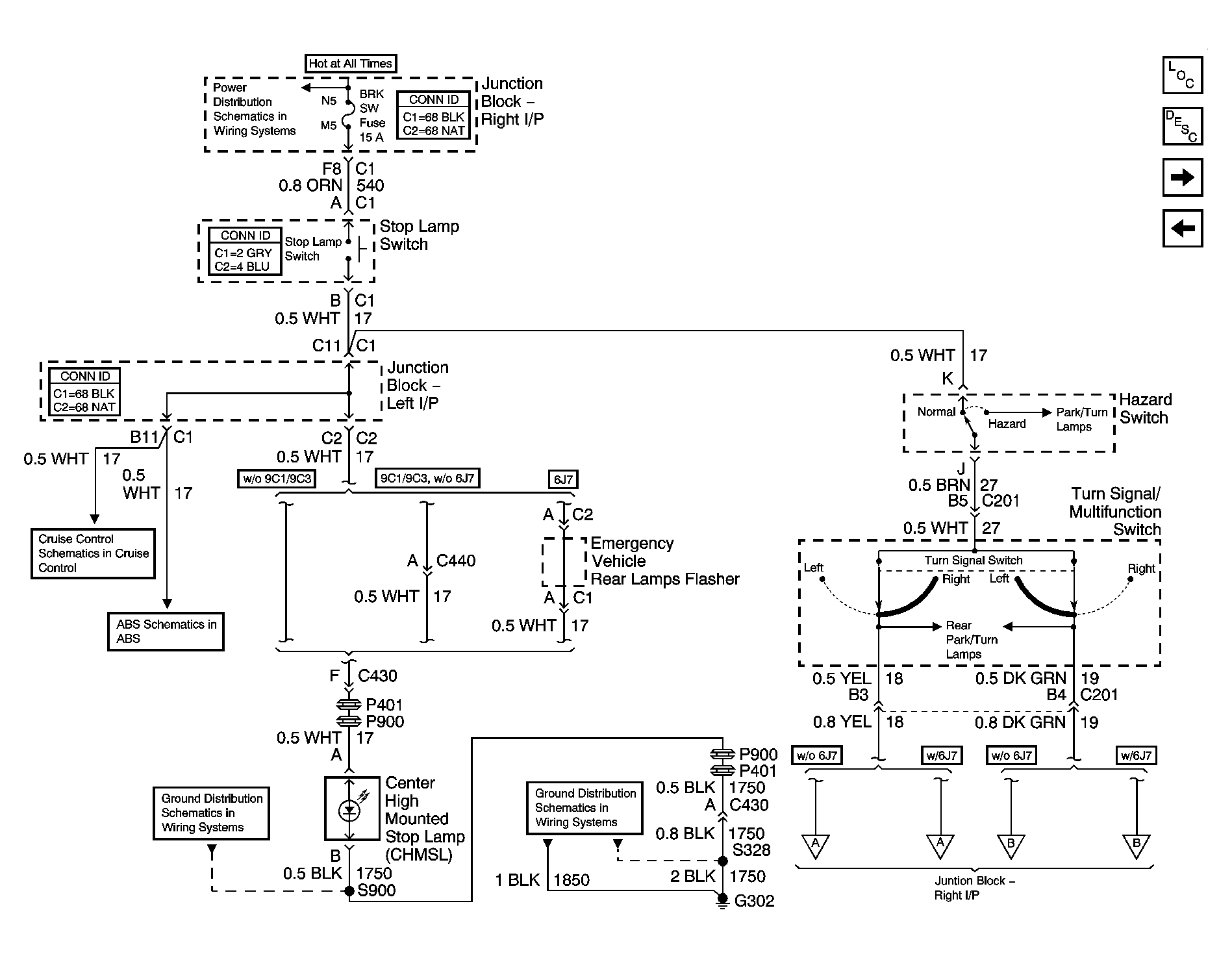

Fig 2: Stop Lamps Control And CHMSL (Impala)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Turn/Hazard Lamps Control (Impala)

Courtesy of GENERAL MOTORS CORP.

Fig 4: Front Park And Turn/Hazard Lamps (Impala)

Courtesy of GENERAL MOTORS CORP.

Fig 5: Rear Turn/Stop/Hazard Lamps (Impala W/O 6J7)

Courtesy of GENERAL MOTORS CORP.

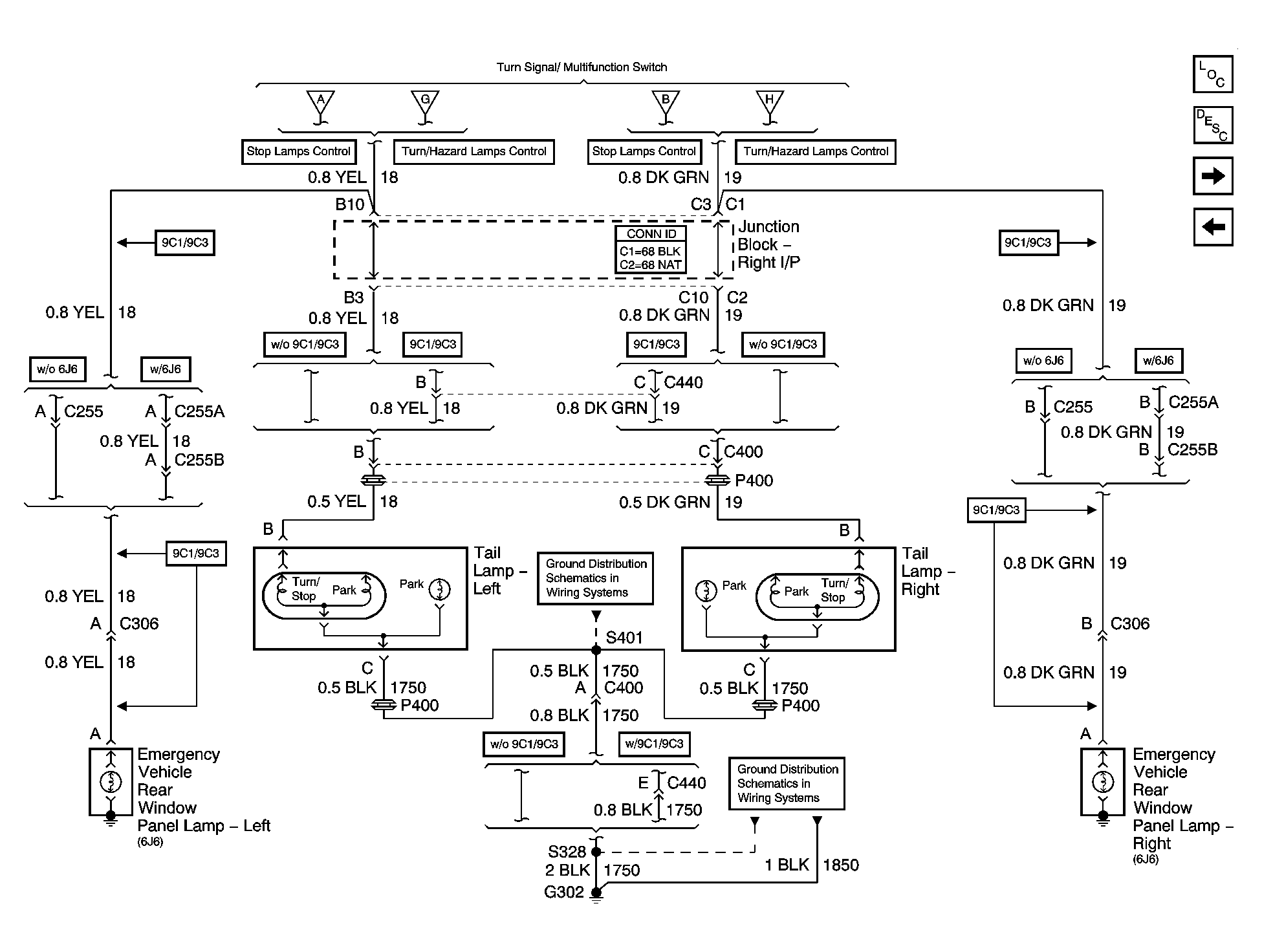

Fig 6: Rear Turn/Stop/Hazard Lamps (Impala W/6J7)

Courtesy of GENERAL MOTORS CORP.

Fig 7: Park Lamps (Monte Carlo)

Courtesy of GENERAL MOTORS CORP.

Fig 8: Stop Lamps (Monte Carlo)

Courtesy of GENERAL MOTORS CORP.

Fig 9: Turn/Hazard Lamps Control (Monte Carlo)

Courtesy of GENERAL MOTORS CORP.

Fig 10: Turn Lamps (Monte Carlo)

Courtesy of GENERAL MOTORS CORP.

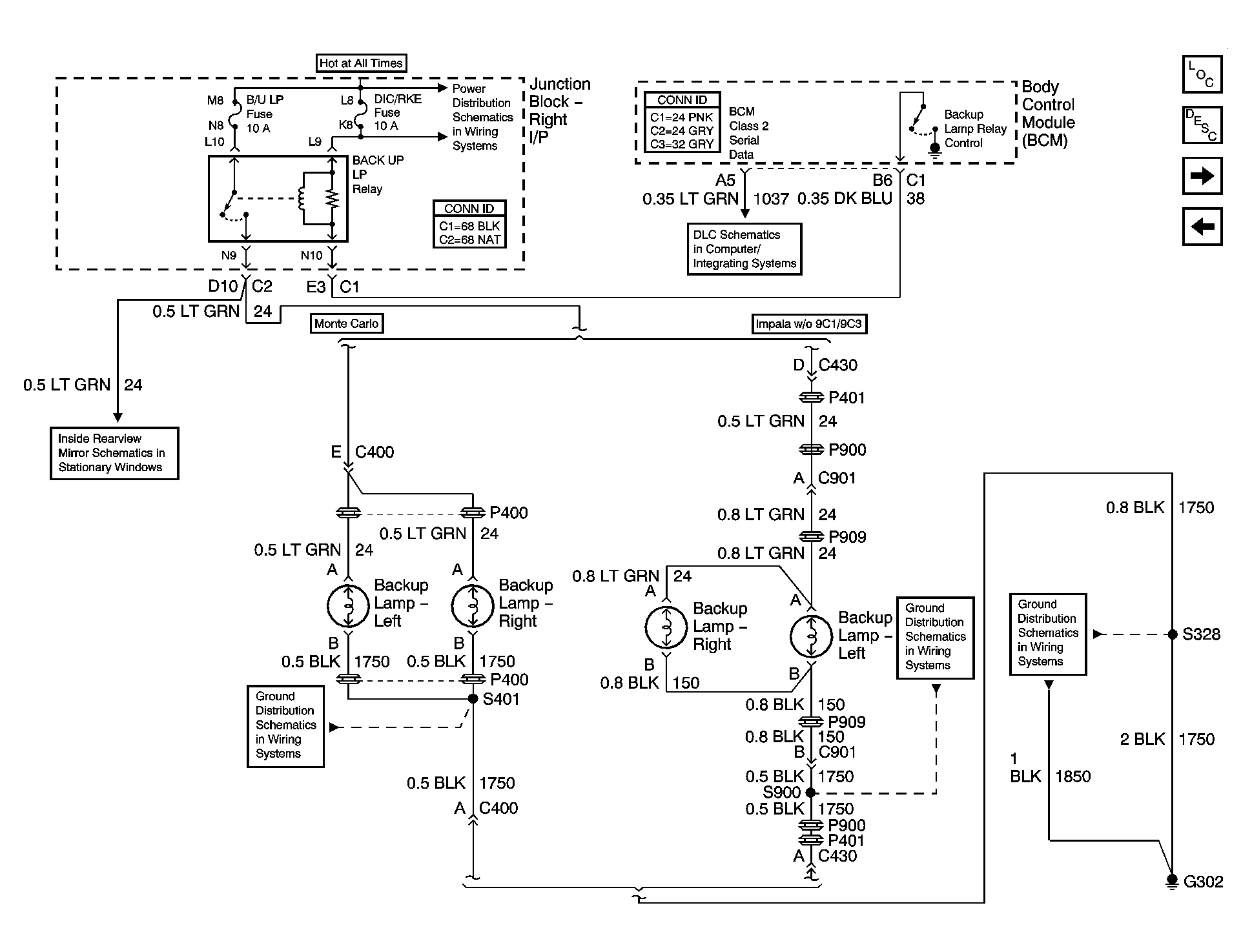

Fig 11: Backup Lamps (W/O 9C1/9C3)

Courtesy of GENERAL MOTORS CORP.

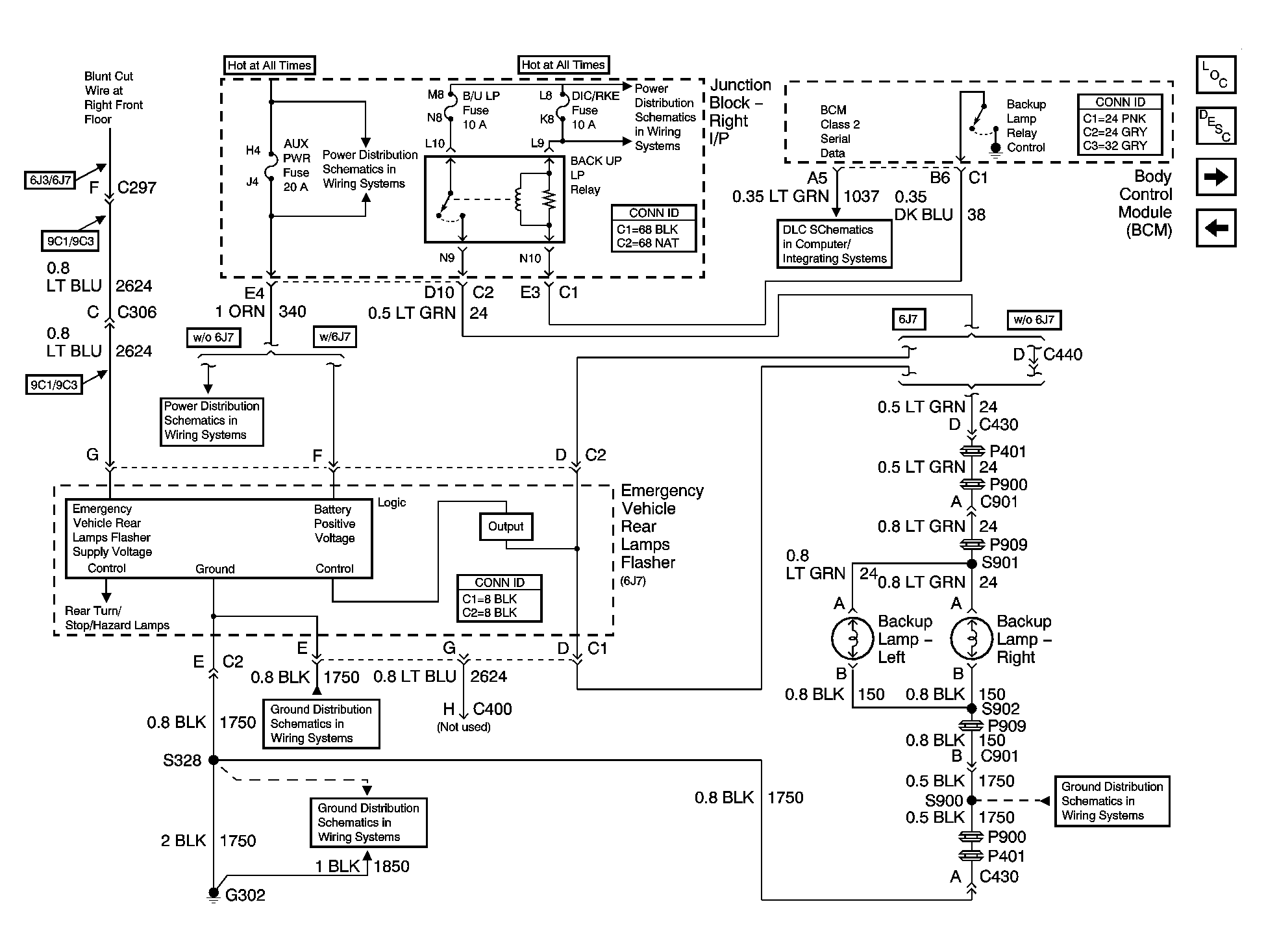

Fig 12: Backup Lamps (9C1/9C3)

Courtesy of GENERAL MOTORS CORP.

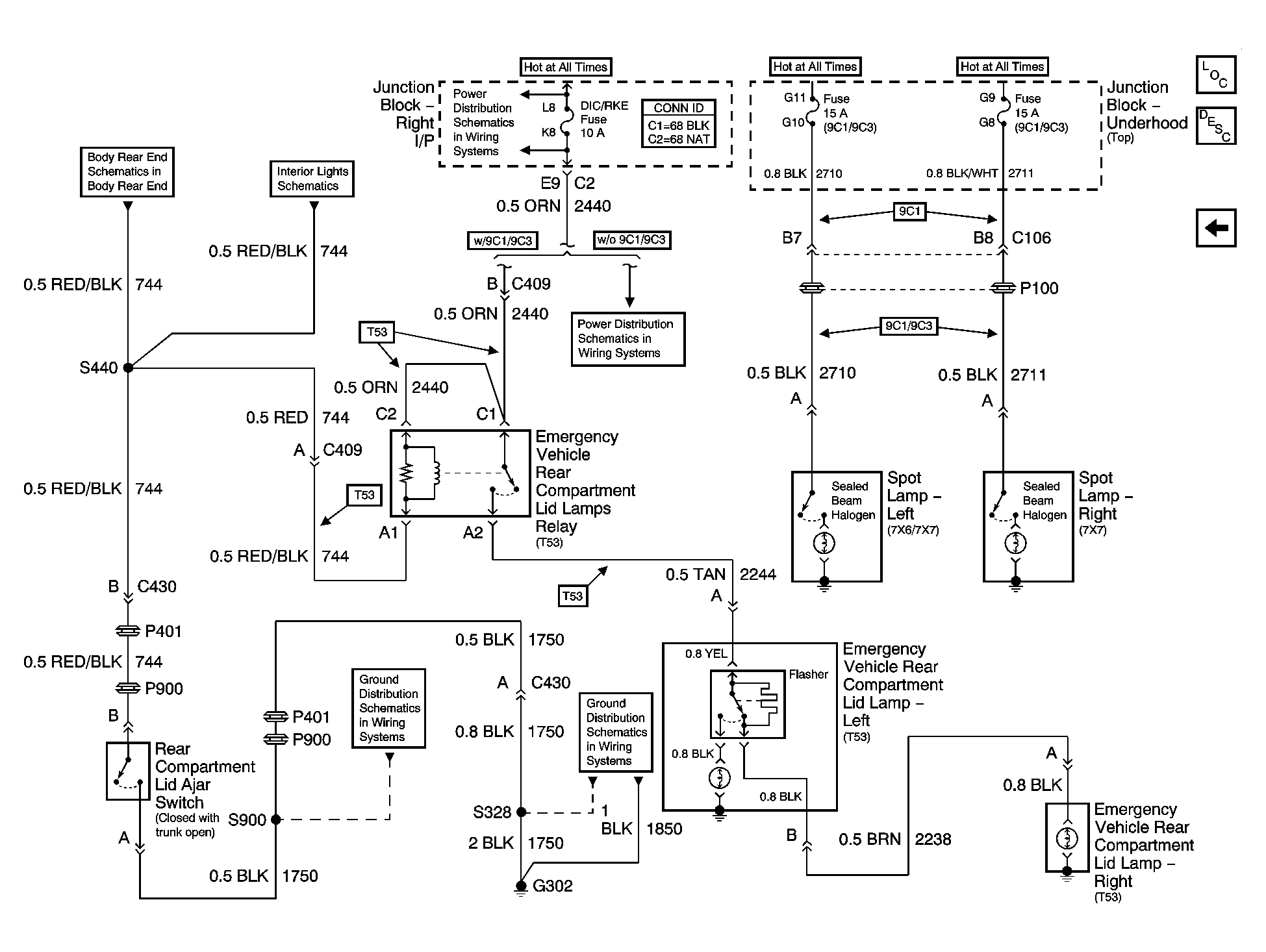

Fig 13: Emergency Vehicle Rear Compartment Lid Lamps And Spot Lamps (9C1/9C3)

Courtesy of GENERAL MOTORS CORP.
