Instrument Cluster Schematics

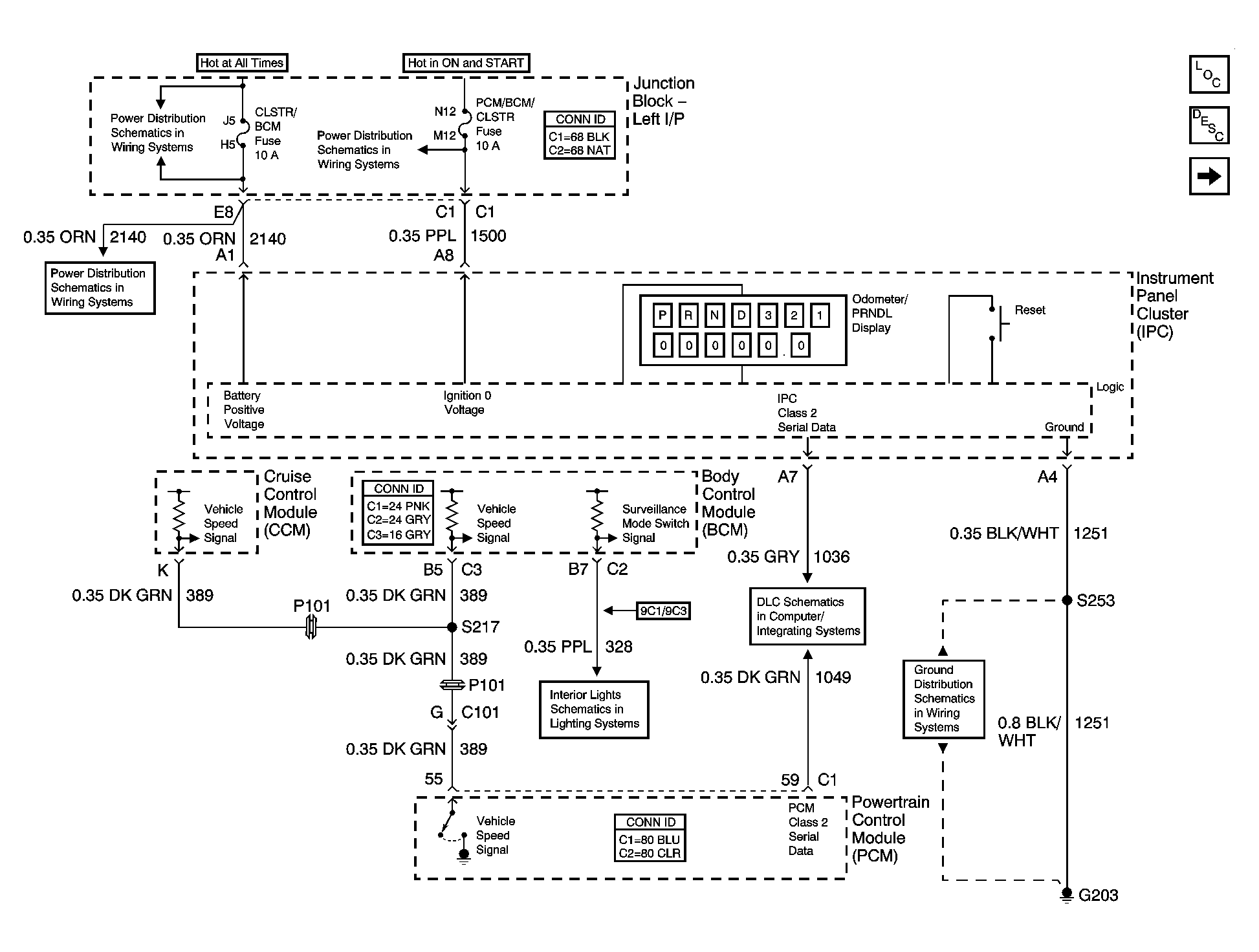

Fig 1: DLC, Ground, Odometer/PRNDL, Power & VSS Schematic
GM1551501Courtesy of GENERAL MOTORS CORP.

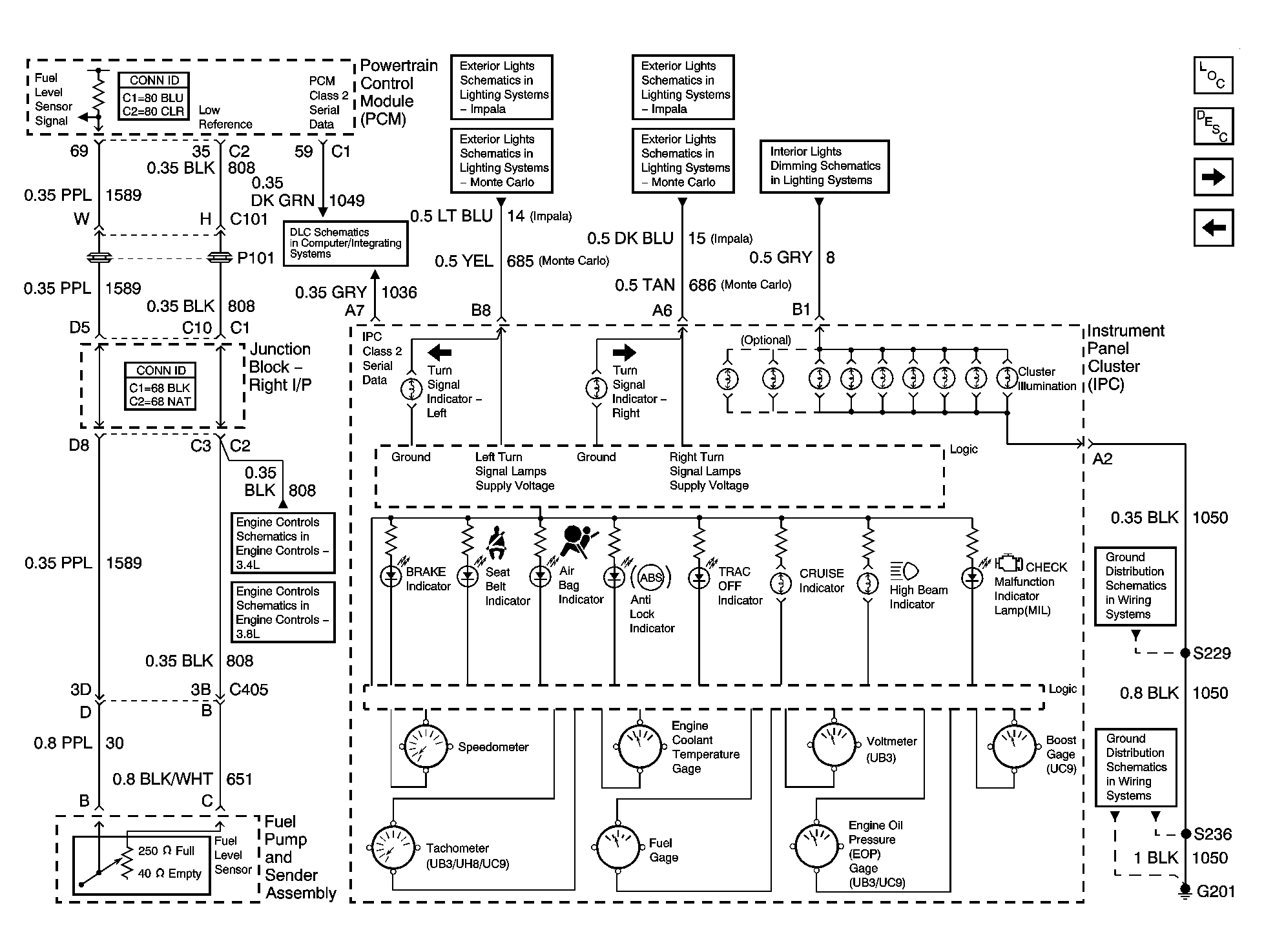

Fig 2: Gages, Illumination & Indicators Schematic
GM1551502Courtesy of GENERAL MOTORS CORP.

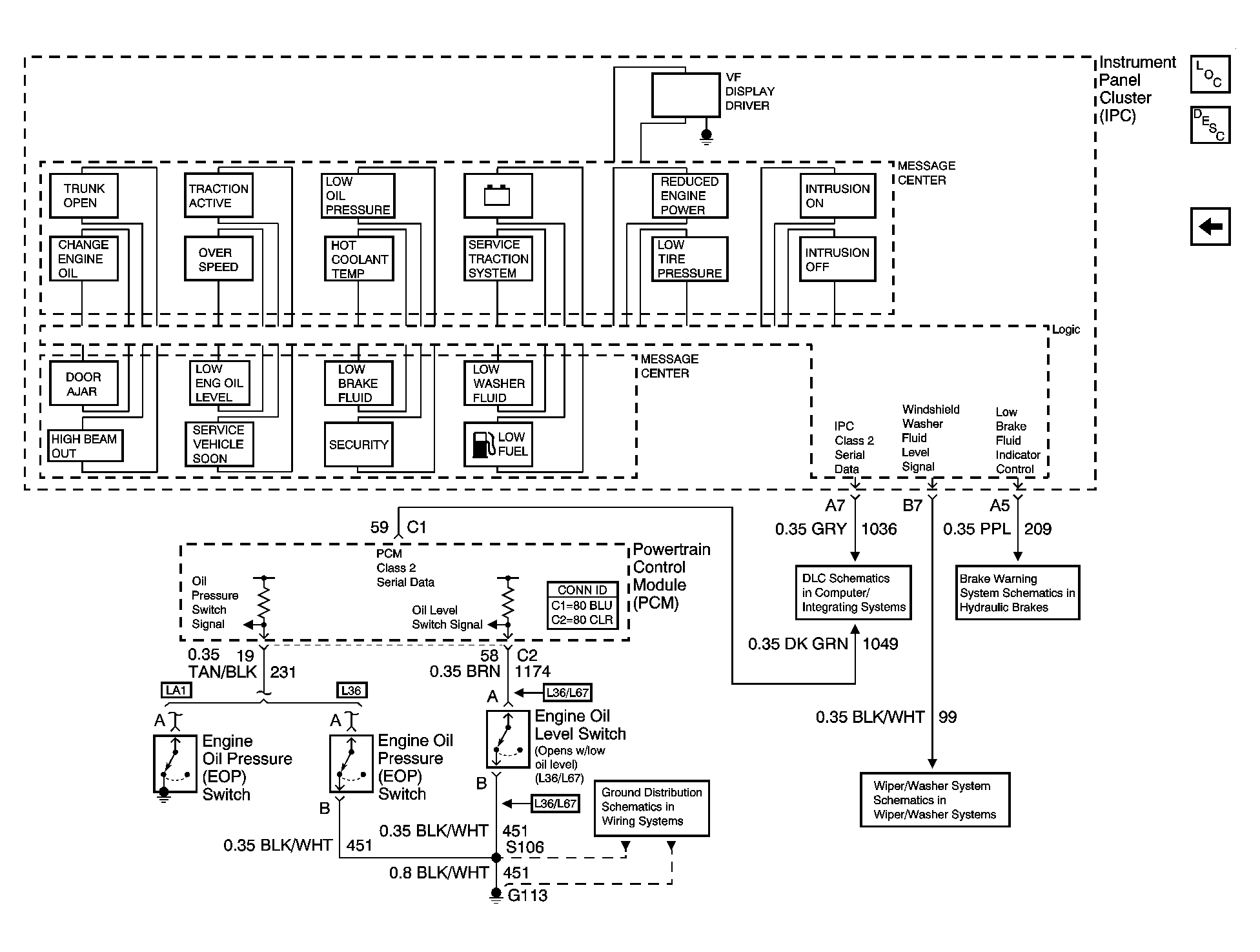

Fig 3: Message Center Schematic
GM1551503Courtesy of GENERAL MOTORS CORP.
