Automatic Transmission Controls Schematics

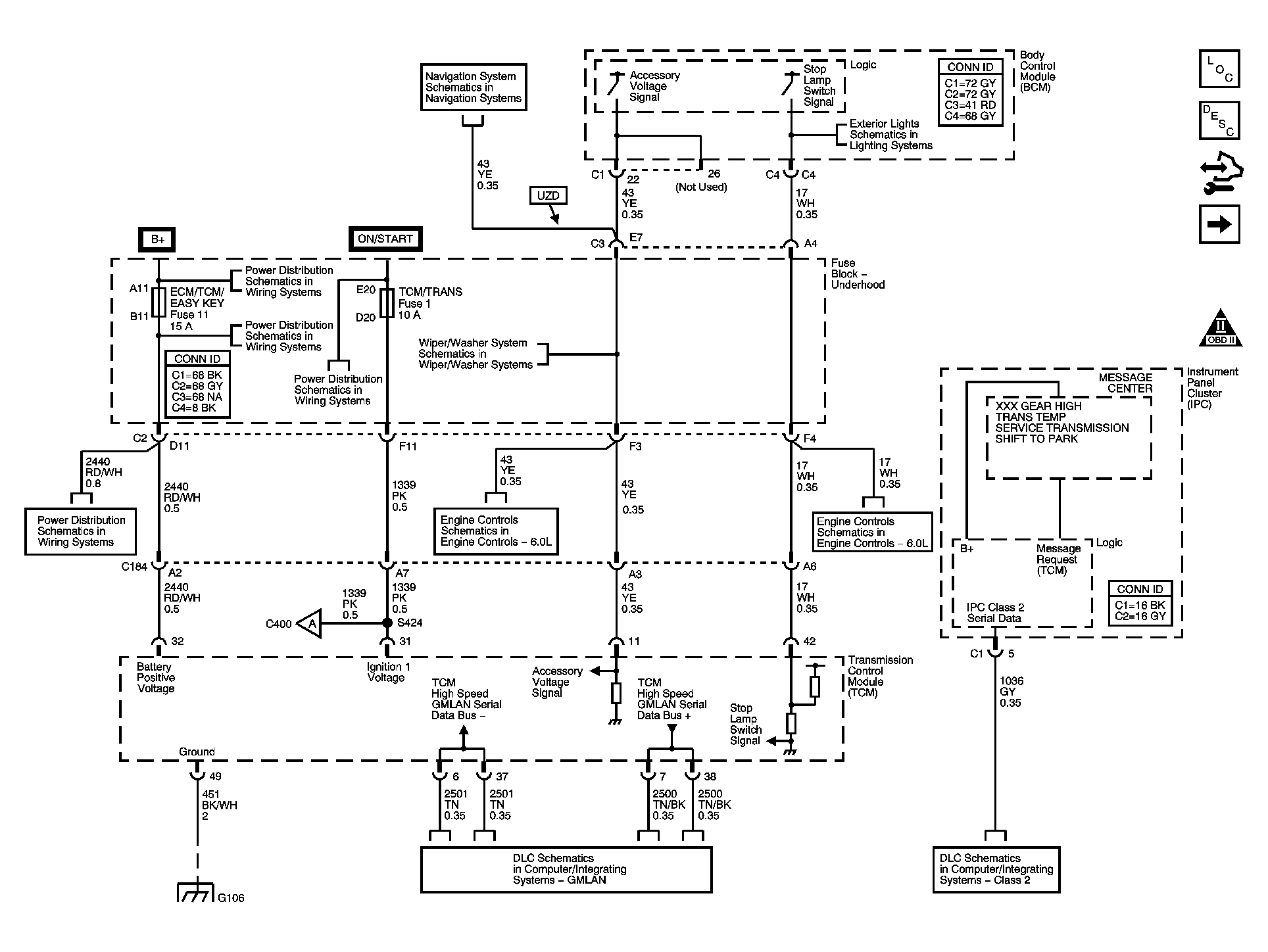

Fig 1: DLC, Ground, MIL and Power Schematics

GM1427506

Courtesy of GENERAL MOTORS CORP.

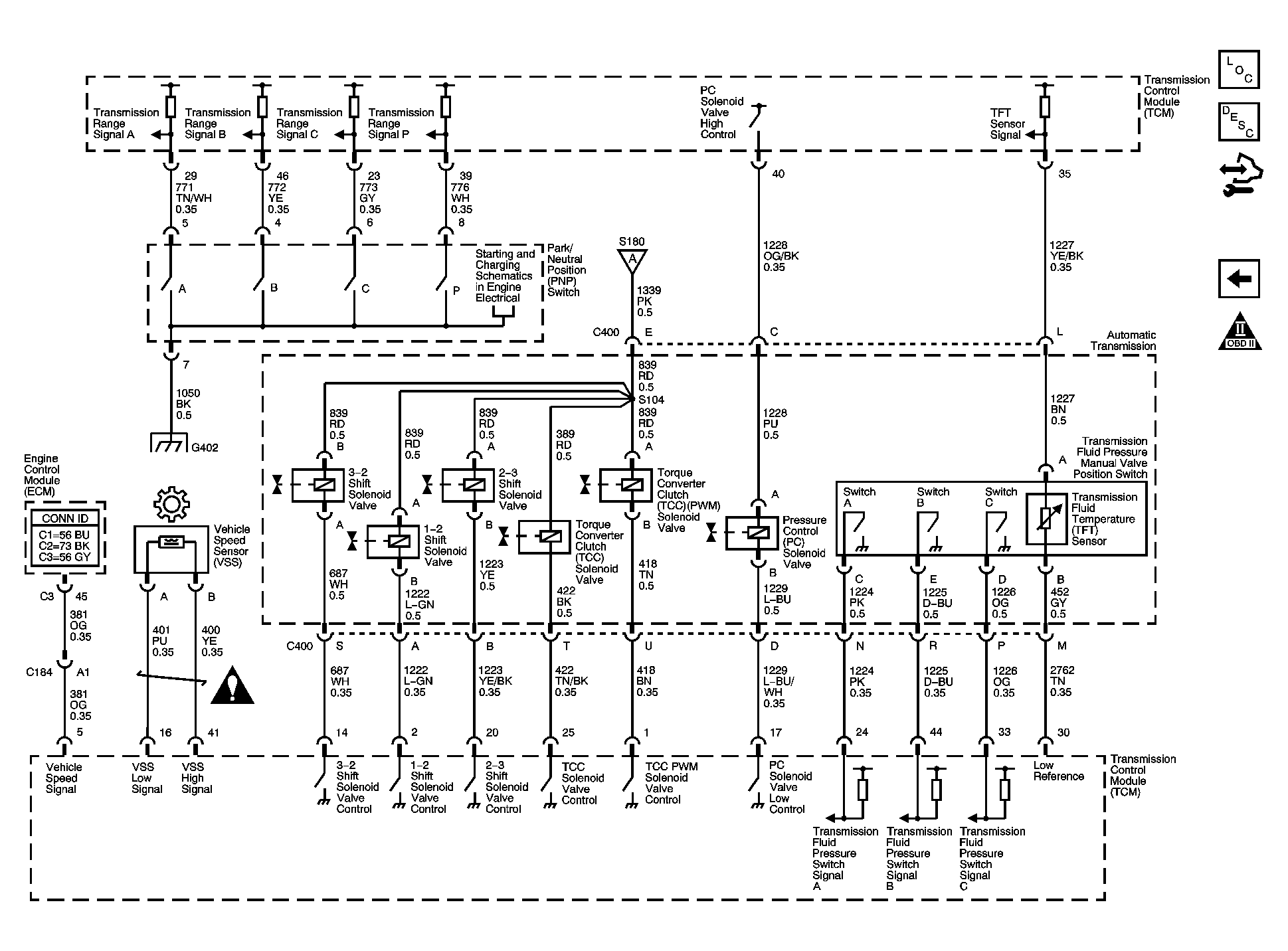

Fig 2: PNP, Solenoids, TFT and VSS Schematics

GM1427511

Courtesy of GENERAL MOTORS CORP.
