Suspension Controls Schematics

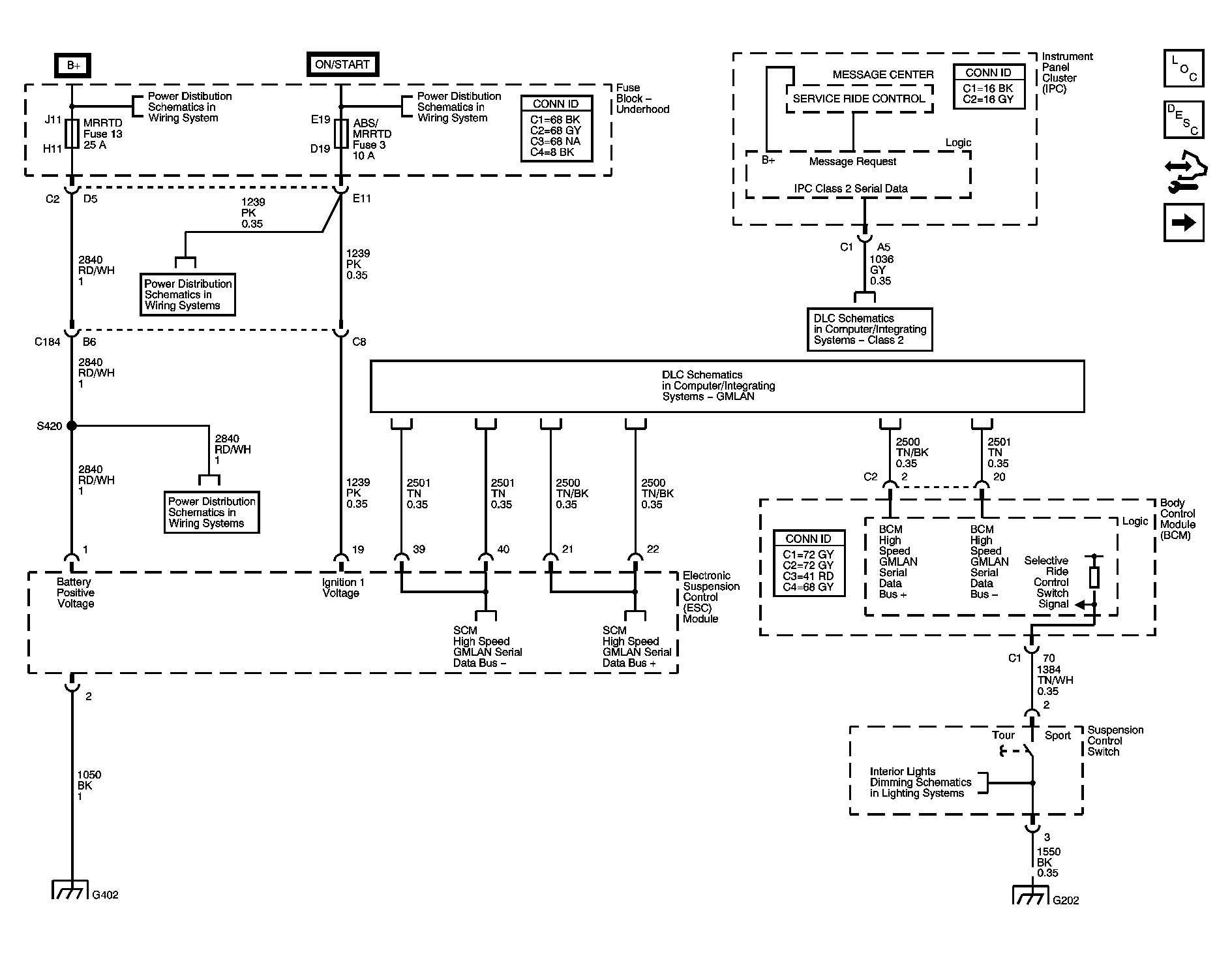

Fig 1: Power, Ground, DLC and Controls Schematics

GM1394489

Courtesy of GENERAL MOTORS CORP.

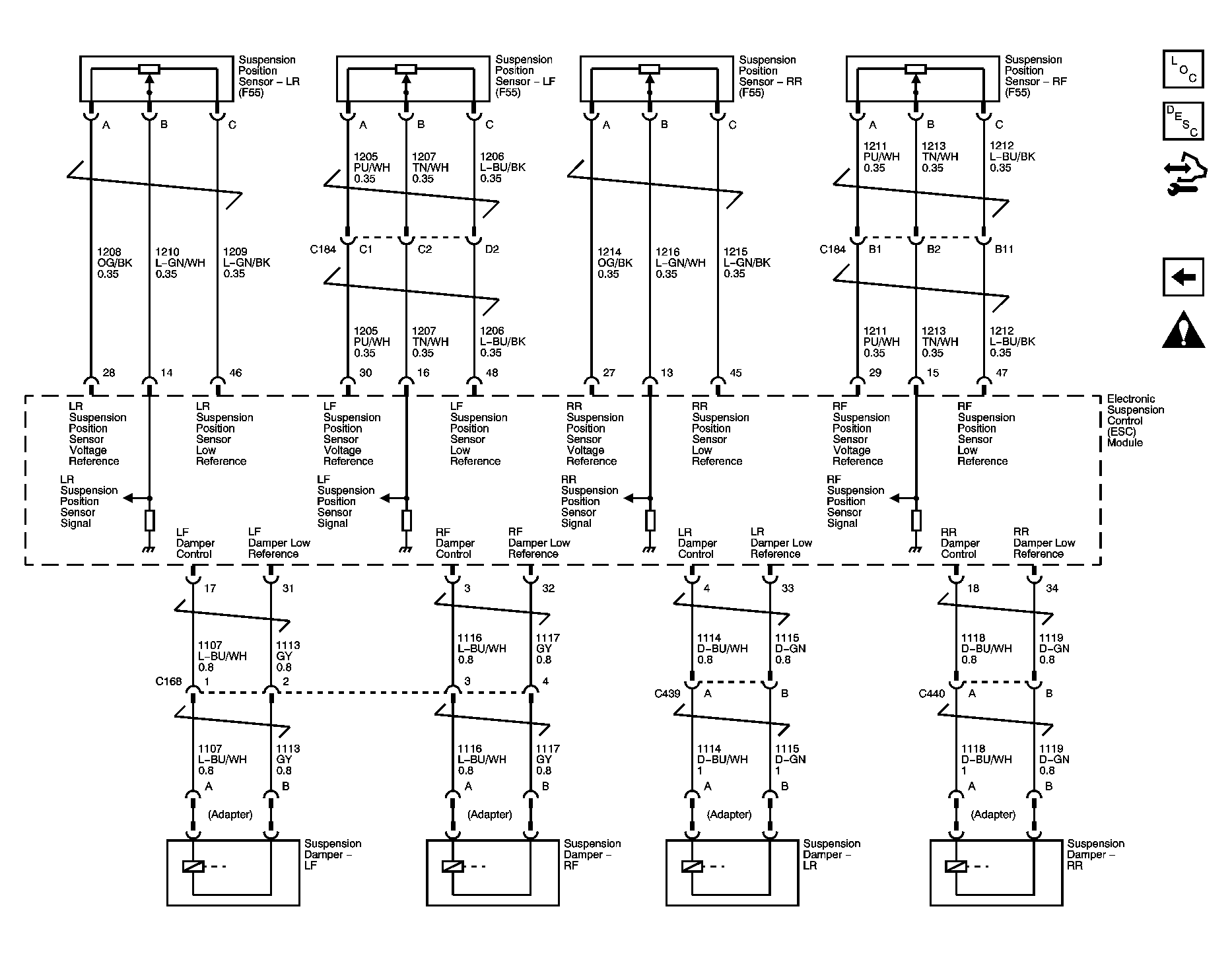

Fig 2: Sensors and Dampers Schematics

GM1394493

Courtesy of GENERAL MOTORS CORP.
