Column/Ignition Lock Schematics

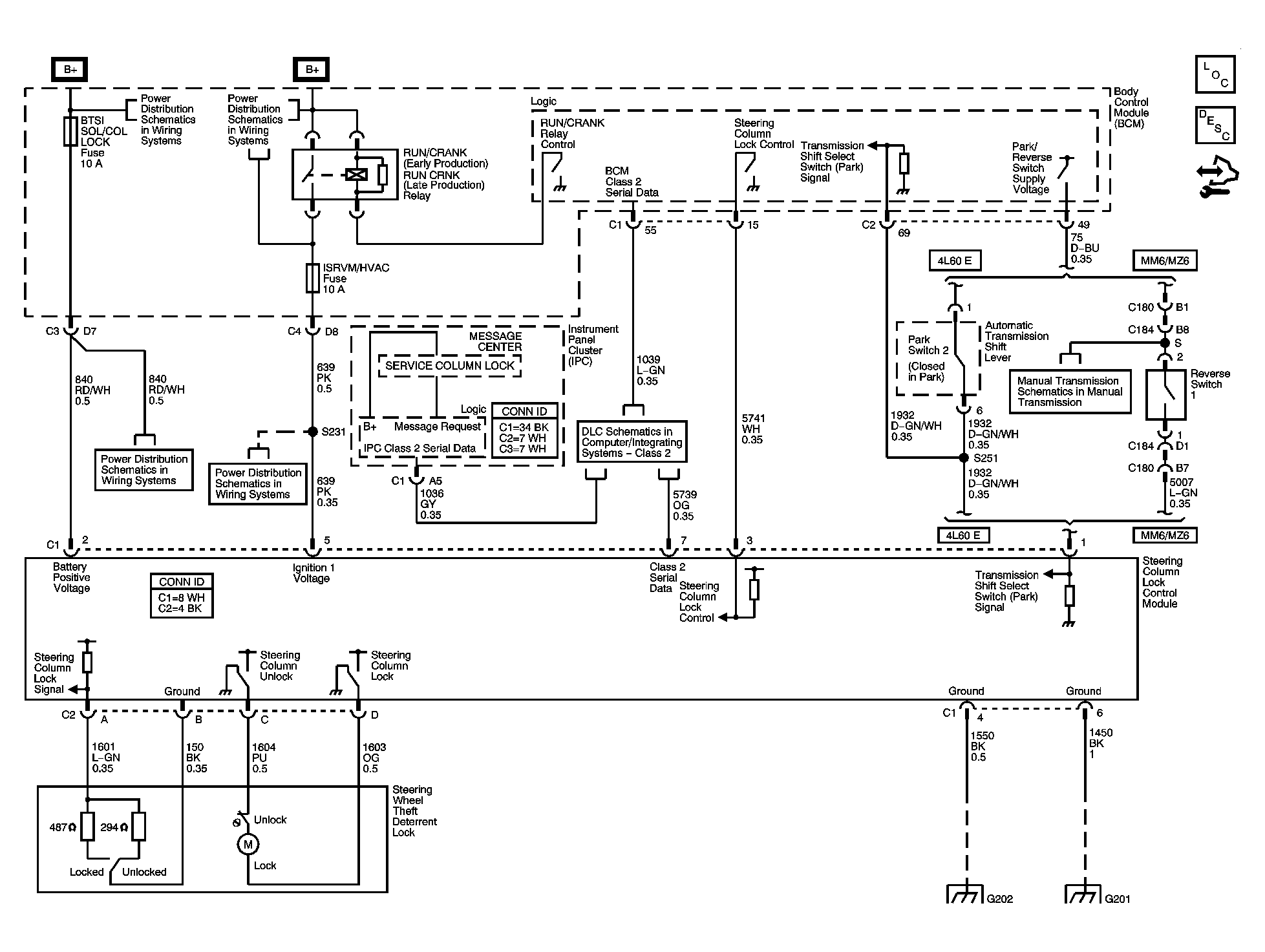

Fig 1: Column/Ignition Lock Schematics

GM1399820

Courtesy of GENERAL MOTORS CORP.
