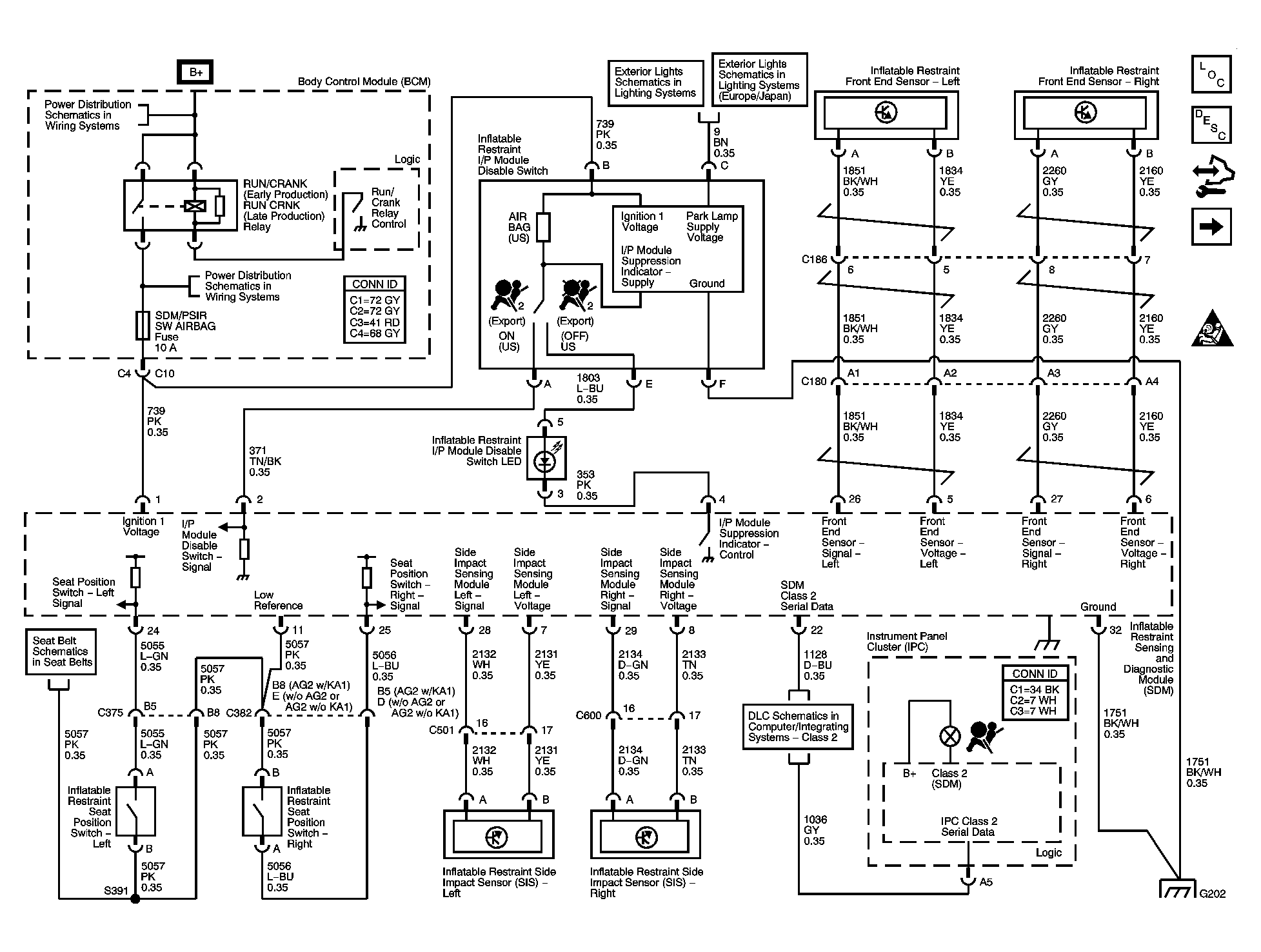

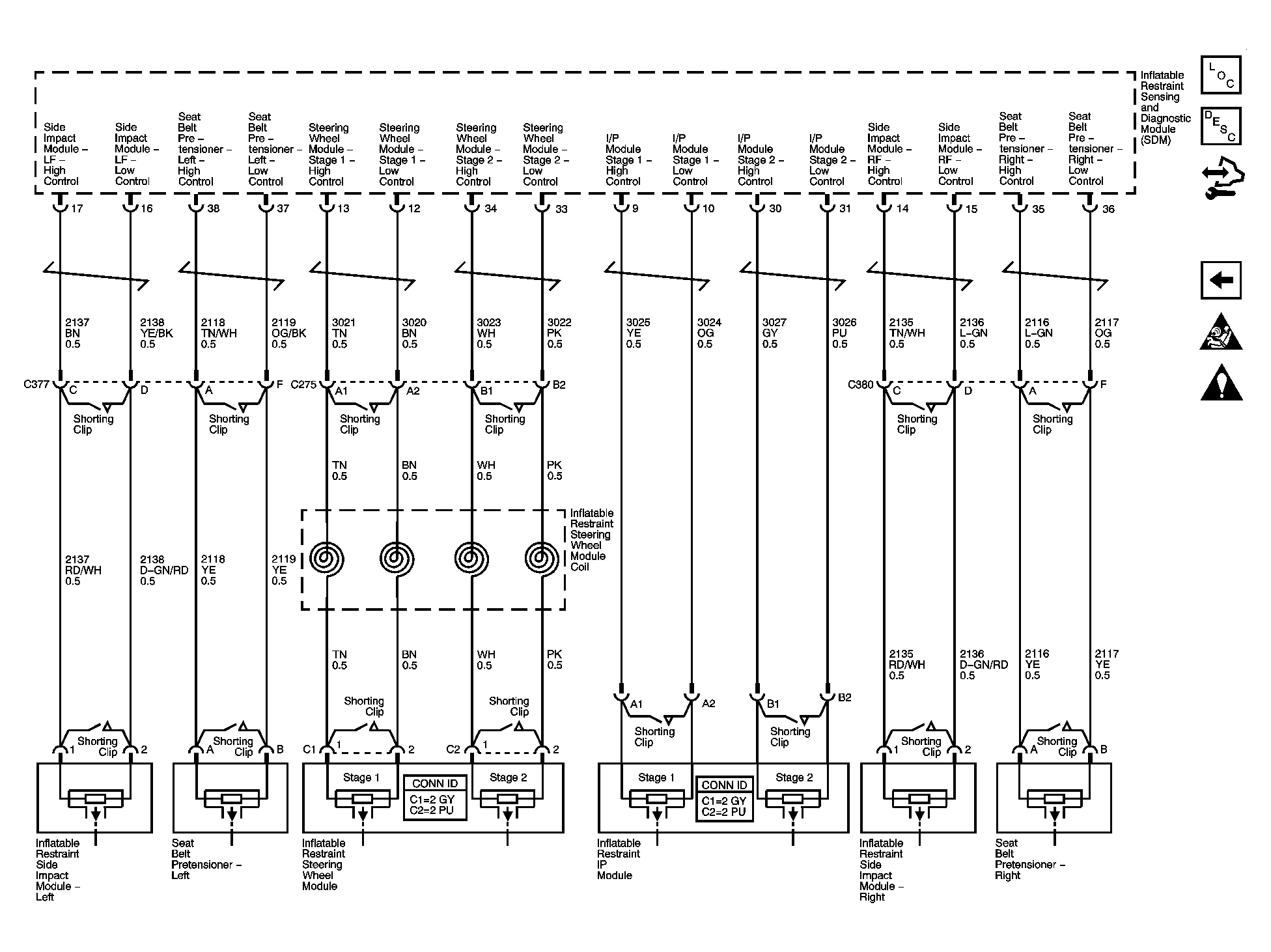

Home >> Chevrolet >> 2005 >> Corvette 2D Convertible, Automatic >> Repair and Diagnosis >> Restraints >> Air Bag, SRS >> Supplemental Inflatable Restraint System >> Schematic and Routing Diagrams >> SIR Schematics
