HVAC Schematics

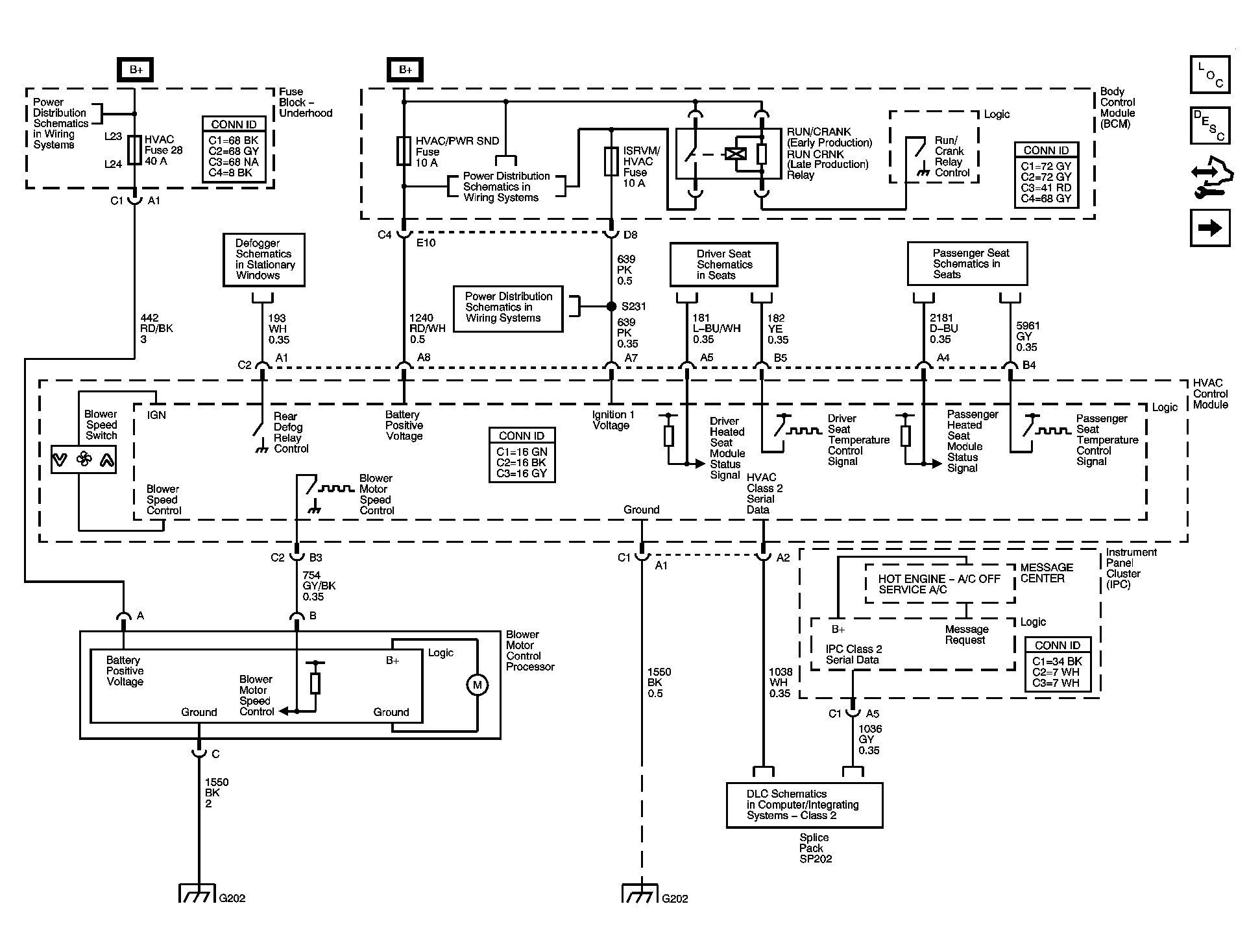

Fig 1: Blower Controls, DLC, Ground, MIL, Power, and Subsystem References Schematics
GM1407306Courtesy of GENERAL MOTORS CORP.

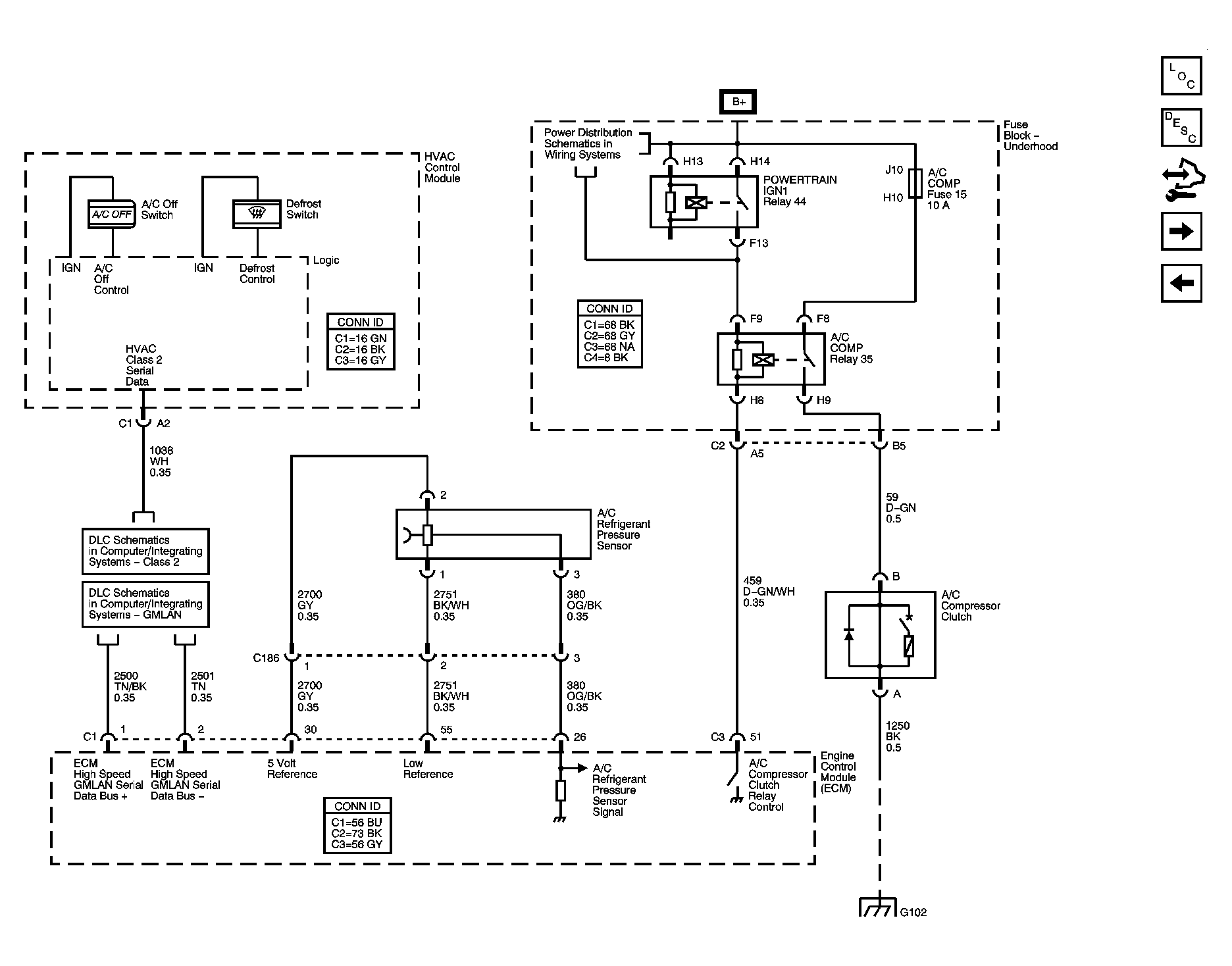

Fig 2: Compressor Controls Schematics
GM1407307Courtesy of GENERAL MOTORS CORP.

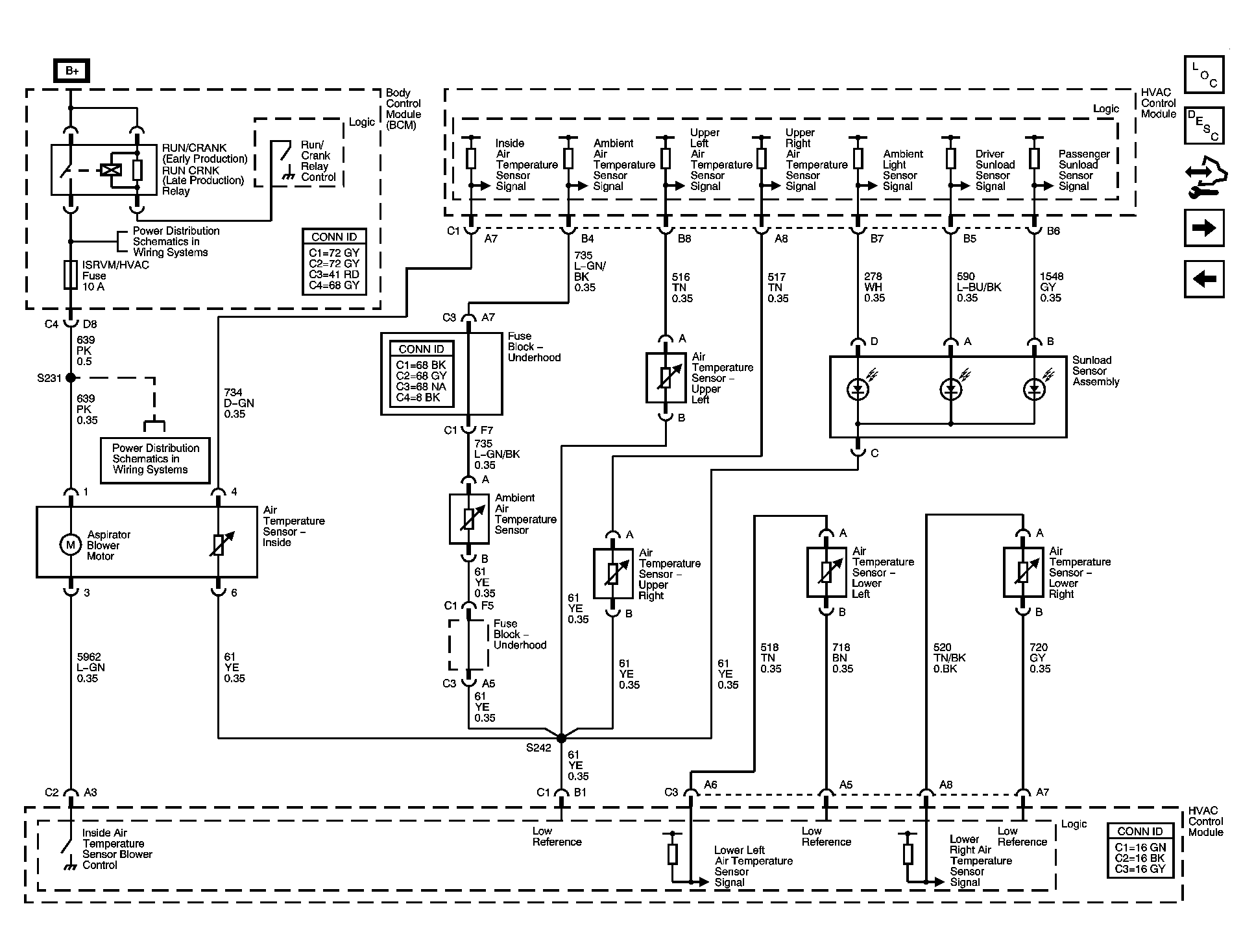

Fig 3: Temperature Sensors Schematics
GM1407308Courtesy of GENERAL MOTORS CORP.

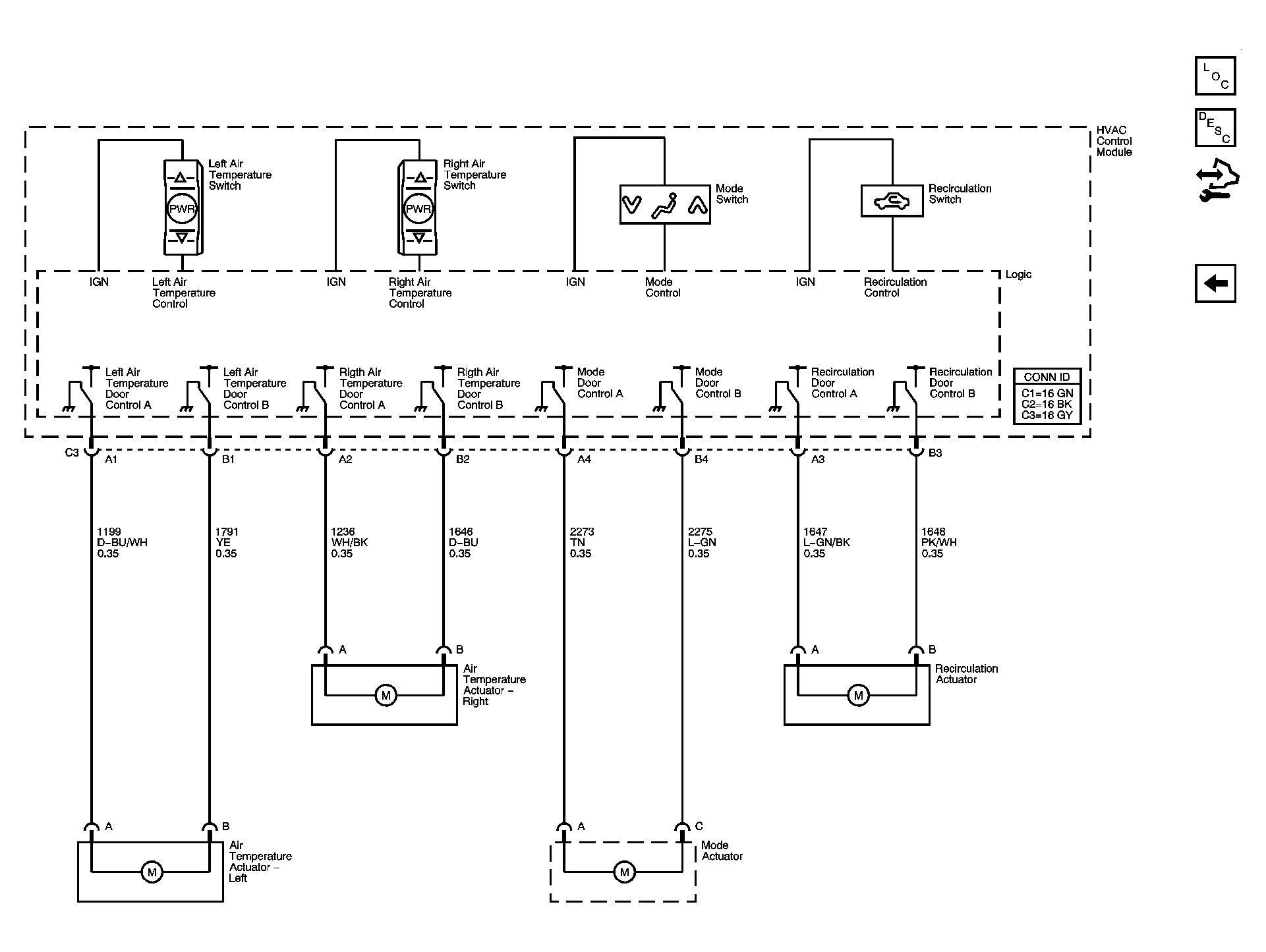

Fig 4: Actuators Schematics
GM1407309Courtesy of GENERAL MOTORS CORP.
