Closeout/Insulator Panel Replacement - Instrument Panel (I/P) Lower
Closeout/Insulator Panel Replacement - Instrument Panel (I/P) Lower

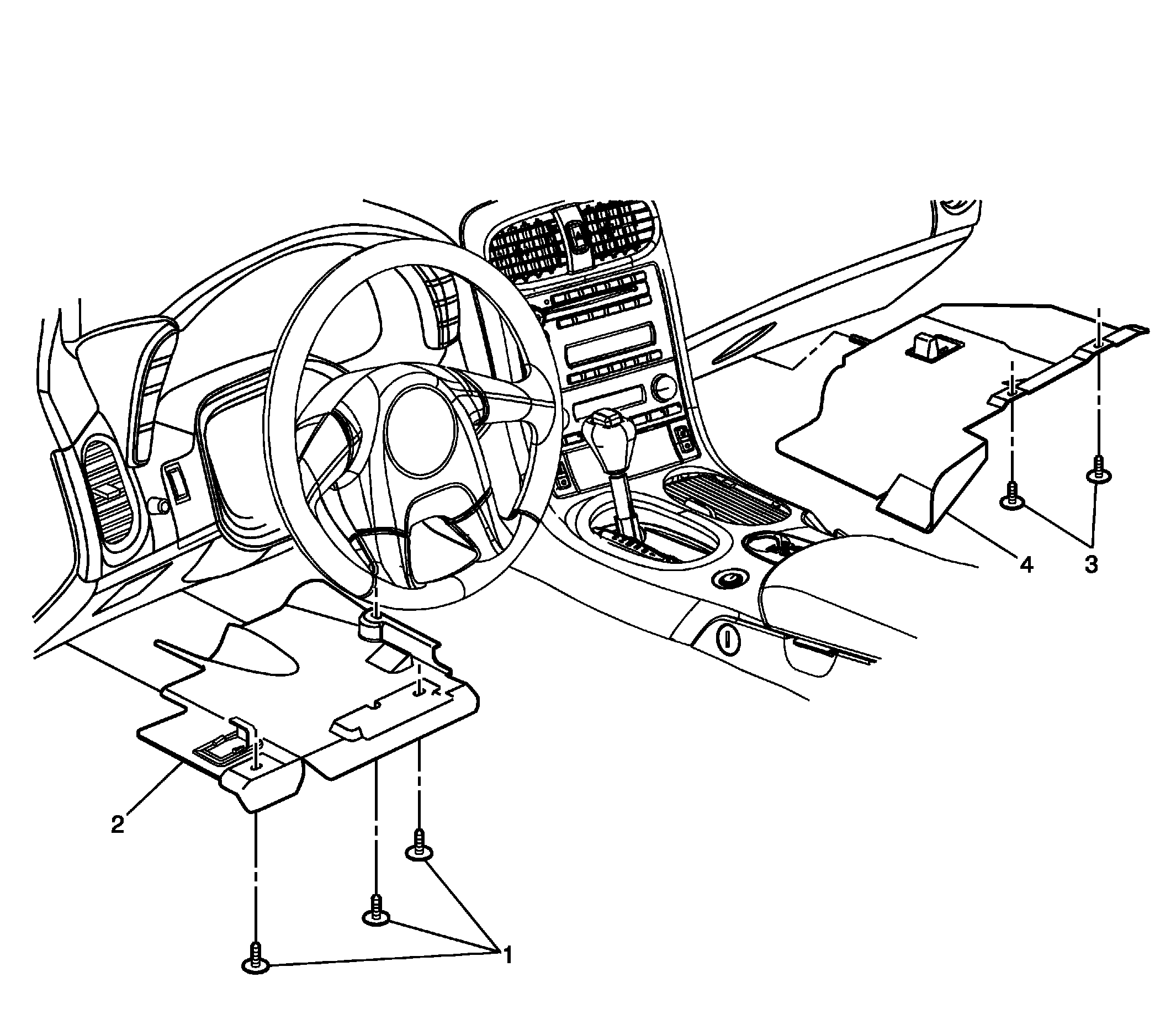

| Callout | Component Name |
|---|---|
| Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . | |
| Instrument Panel Insulator - Left | |
| 1 | Retainer, Panel Assembly - Instrument Panel Insulator (Qty: 3) |
| 2 | Panel Assembly, Instrument Panel Insulator - Left |
| Instrument Panel Insulator - Right | |
| 3 | Retainer, Panel Assembly - Instrument Panel Insulator (Qty: 2) |
| 4 | Panel Assembly, Instrument Panel Insulator - Right |
