Power Folding Top Schematics
Power Folding Top Schematics

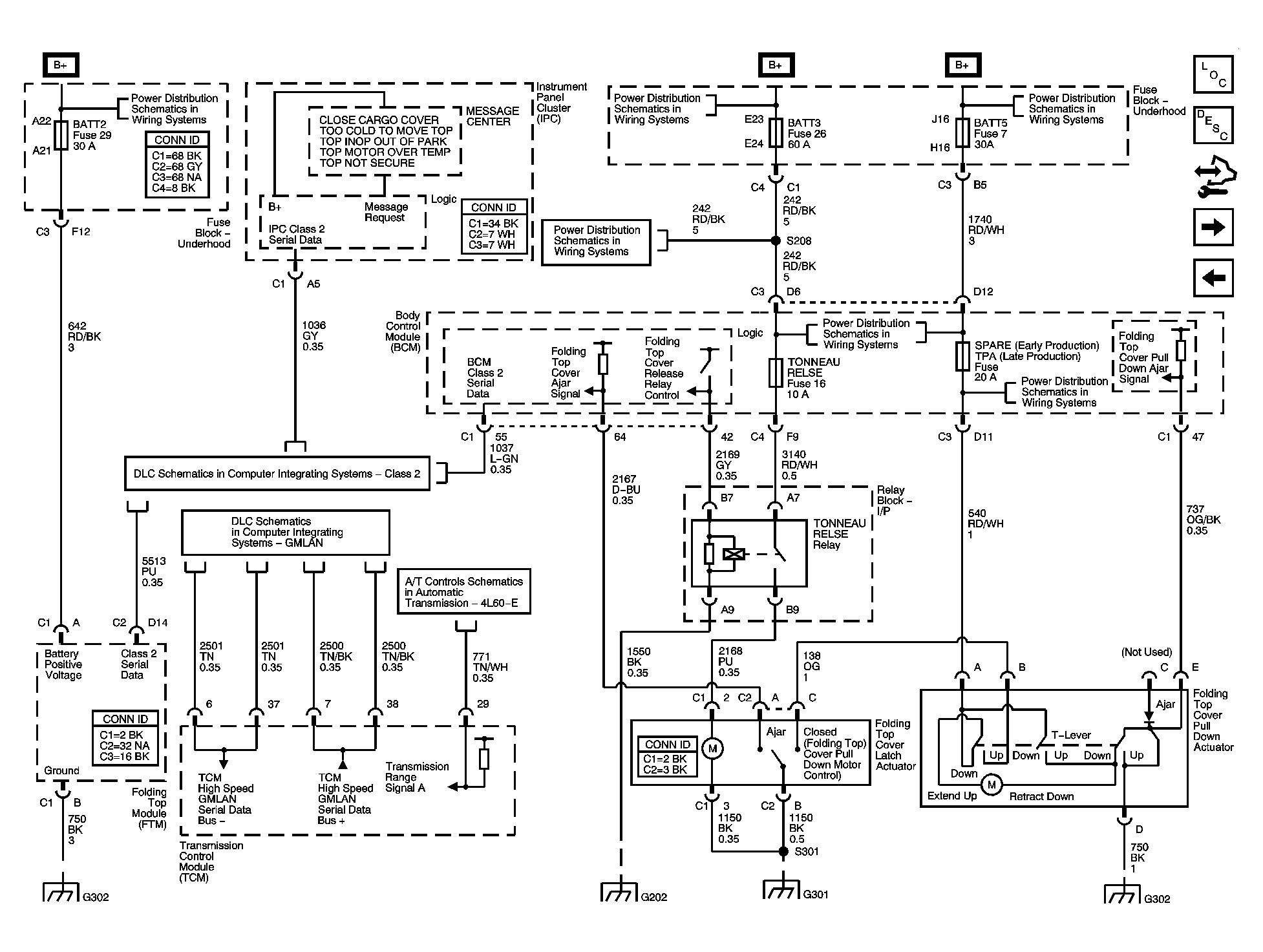

Fig 1: Power, Ground, DLC, and Folding Top Controls (w/o CM7) Schematics
Courtesy of GENERAL MOTORS CORP.

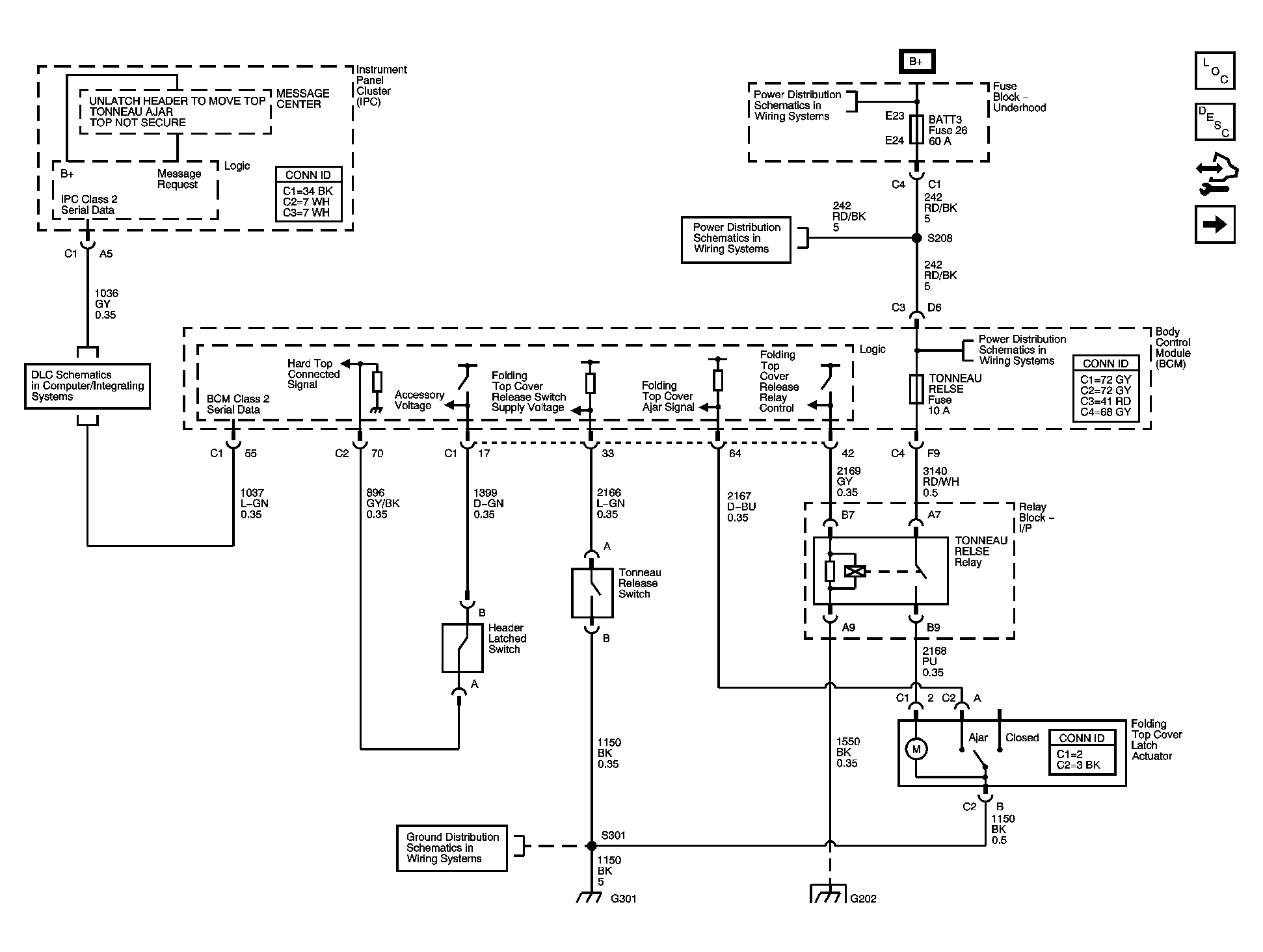

Fig 2: Power, Ground, DLC and Folding Top Lid Controls Schematics
Courtesy of GENERAL MOTORS CORP.
Fig 3: Switches (CM7) Schematics
Courtesy of GENERAL MOTORS CORP.
Fig 4: Valves and Pump (CM7) Schematics
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
