Passenger Seat Schematics

Fig 1: Power Seat Schematics
GM1437973Courtesy of GENERAL MOTORS CORP.
Fig 2: Lumbar Support Schematics
GM1437978Courtesy of GENERAL MOTORS CORP.

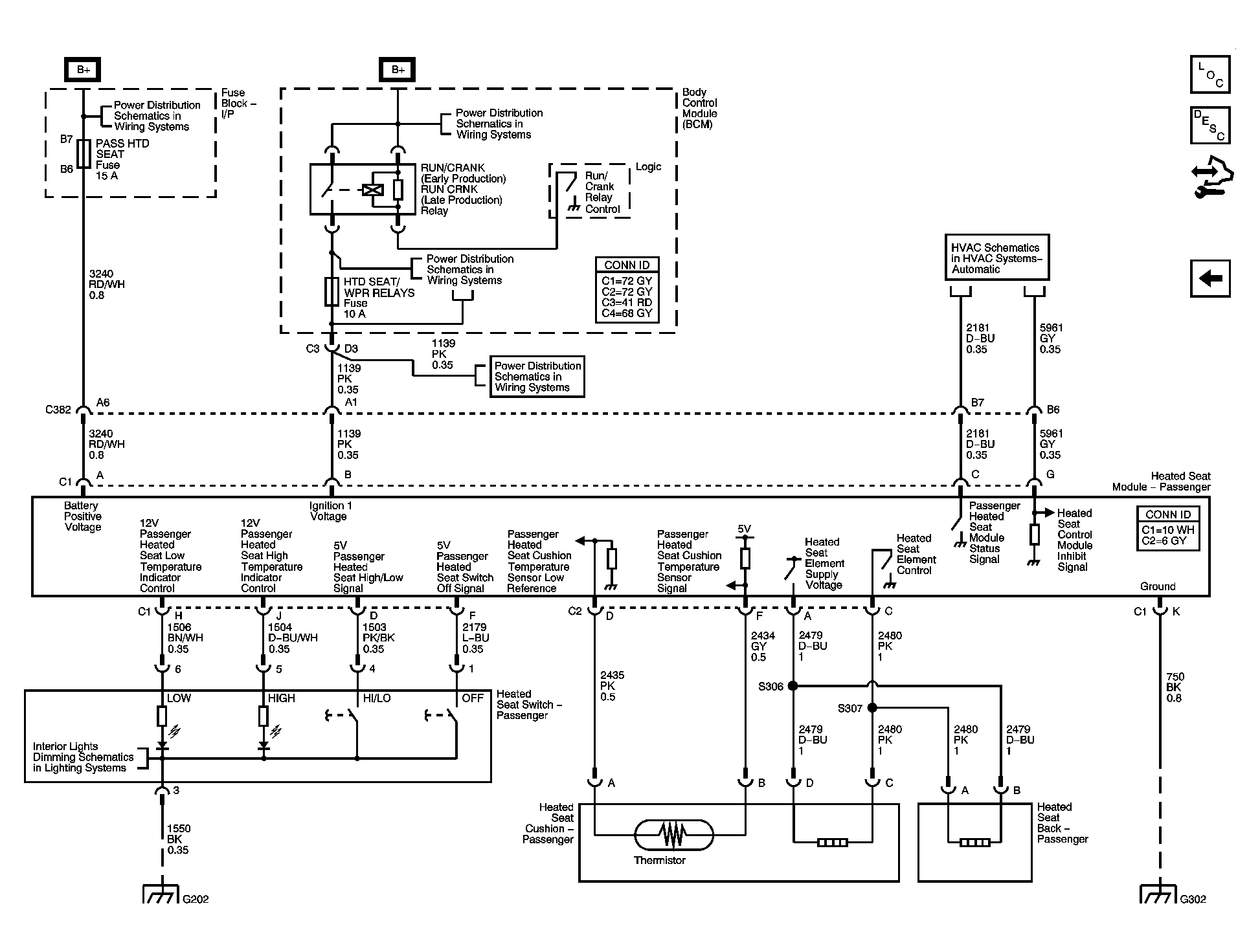

Fig 3: Heated Seat (KA1) Schematics
GM1437979Courtesy of GENERAL MOTORS CORP.
