Home >> Chevrolet >> 2005 >> Corvette 2D Convertible, Automatic >> Repair and Diagnosis >> Body & Frame >> Seats >> Seat System >> Schematic and Routing Diagrams >> Driver Seat Schematics

Driver Seat Schematics

Fig 1: Power Seat Schematics
GM1438735Courtesy of GENERAL MOTORS CORP.
Fig 2: Memory Seat Schematics 1 of 2
GM1438741Courtesy of GENERAL MOTORS CORP.
Fig 3: Memory Seat Schematics 2 of 2
GM1438747Courtesy of GENERAL MOTORS CORP.
Fig 4: Lumbar Support Schematics
GM1438749Courtesy of GENERAL MOTORS CORP.

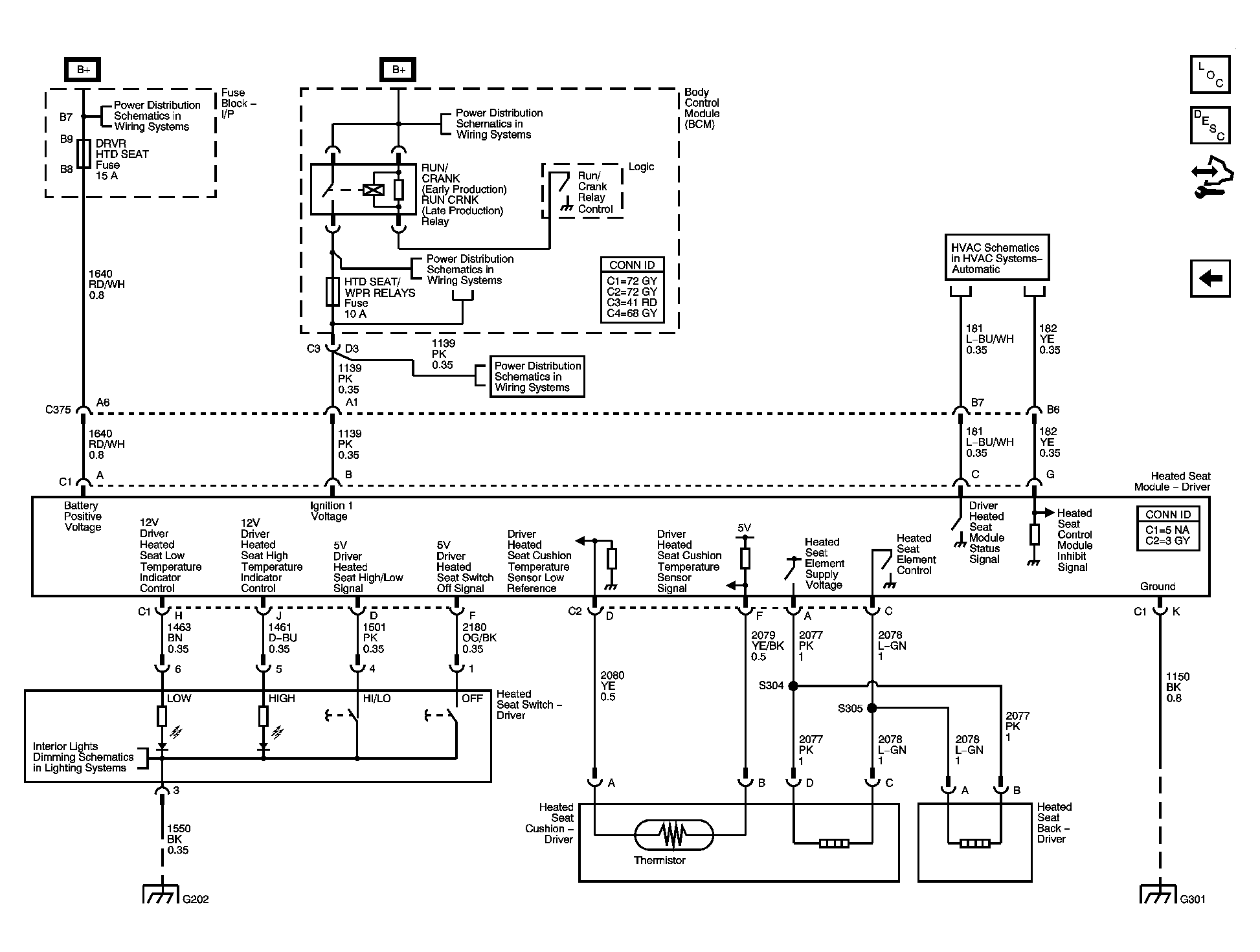

Fig 5: Heated Seat (KA1) Schematics
GM1438752Courtesy of GENERAL MOTORS CORP.
