Instrument Cluster Schematics

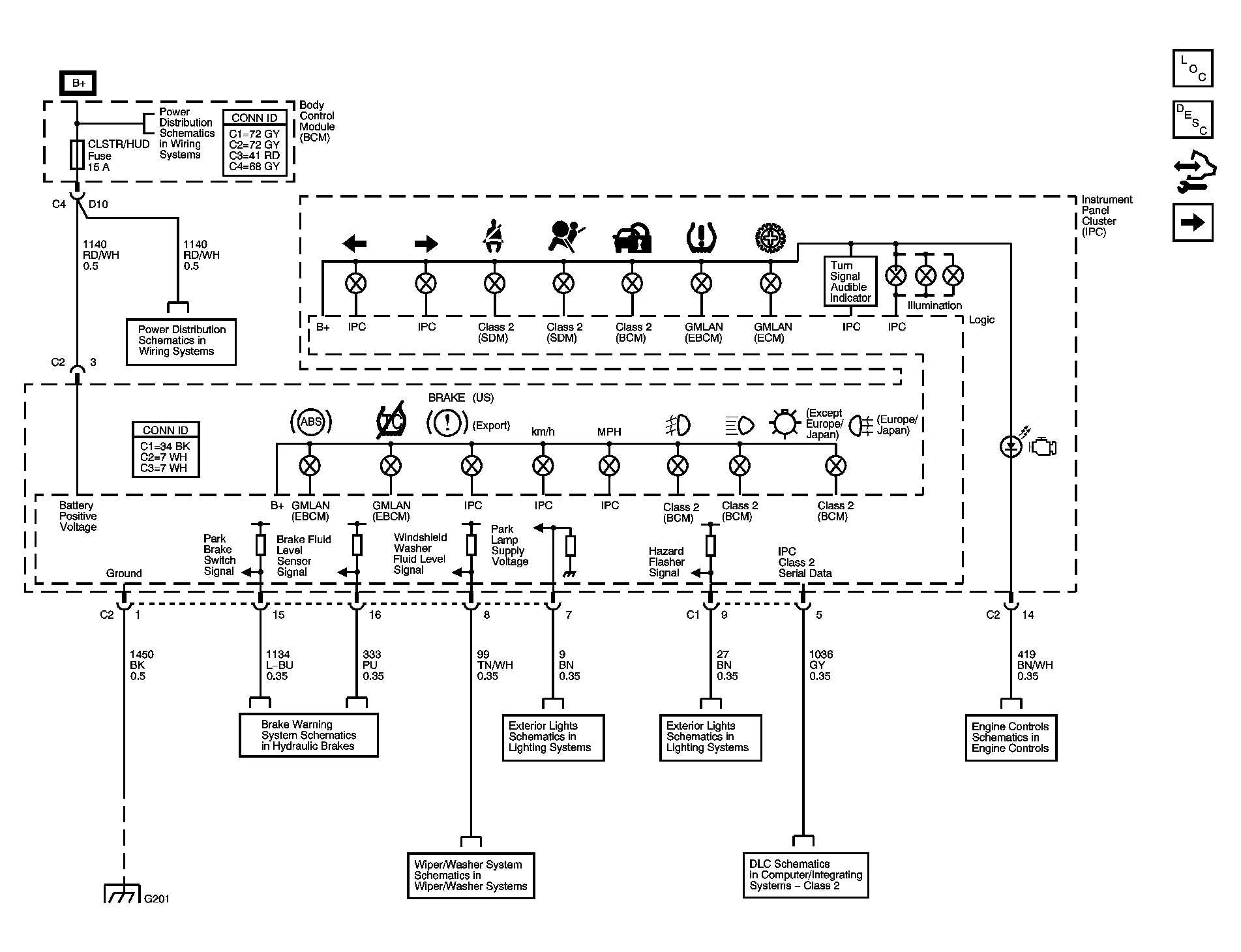

Fig 1: Power, Ground, DLC and Indicators Schematics
GM1444977Courtesy of GENERAL MOTORS CORP.

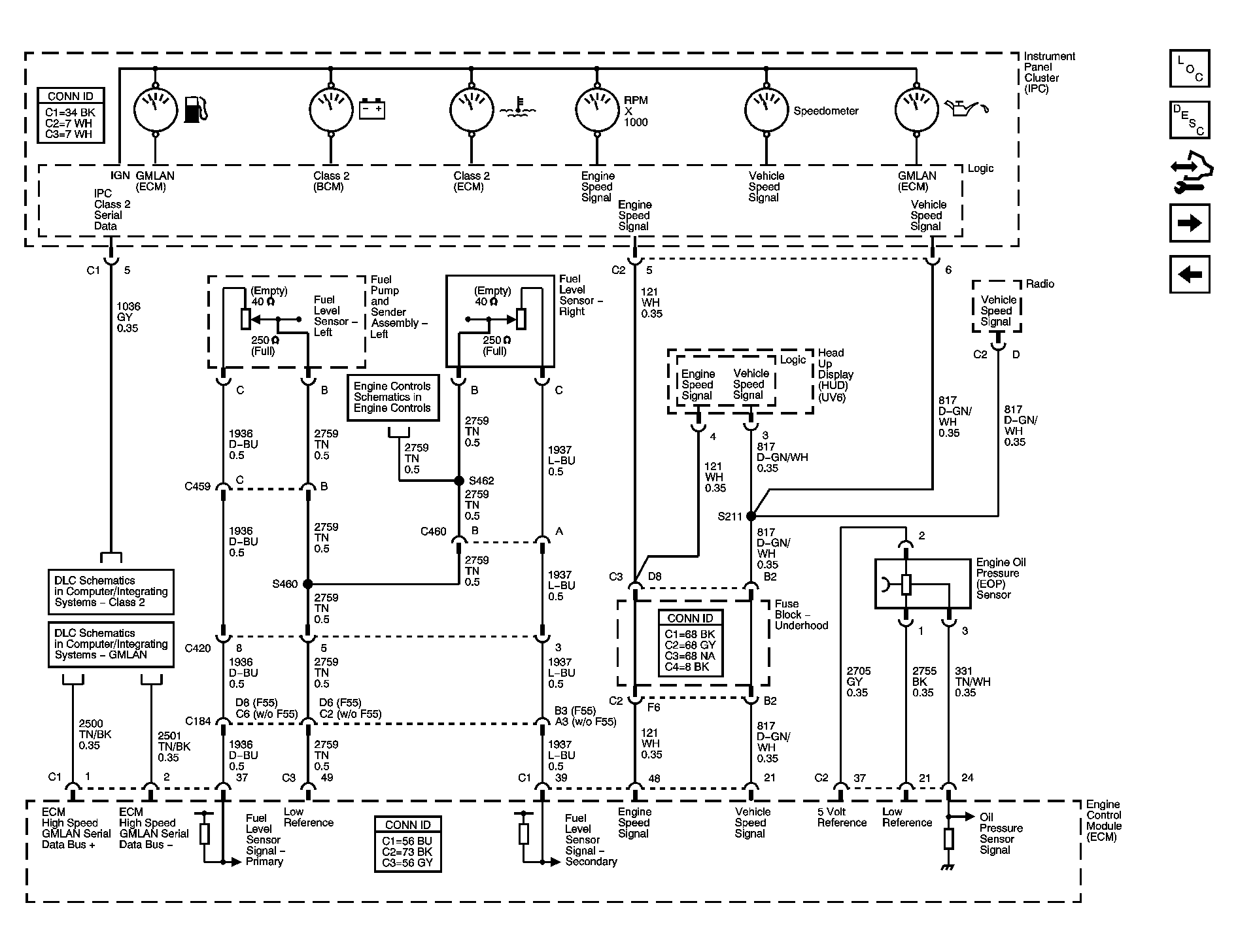

Fig 2: Gages Schematics
GM1444981Courtesy of GENERAL MOTORS CORP.

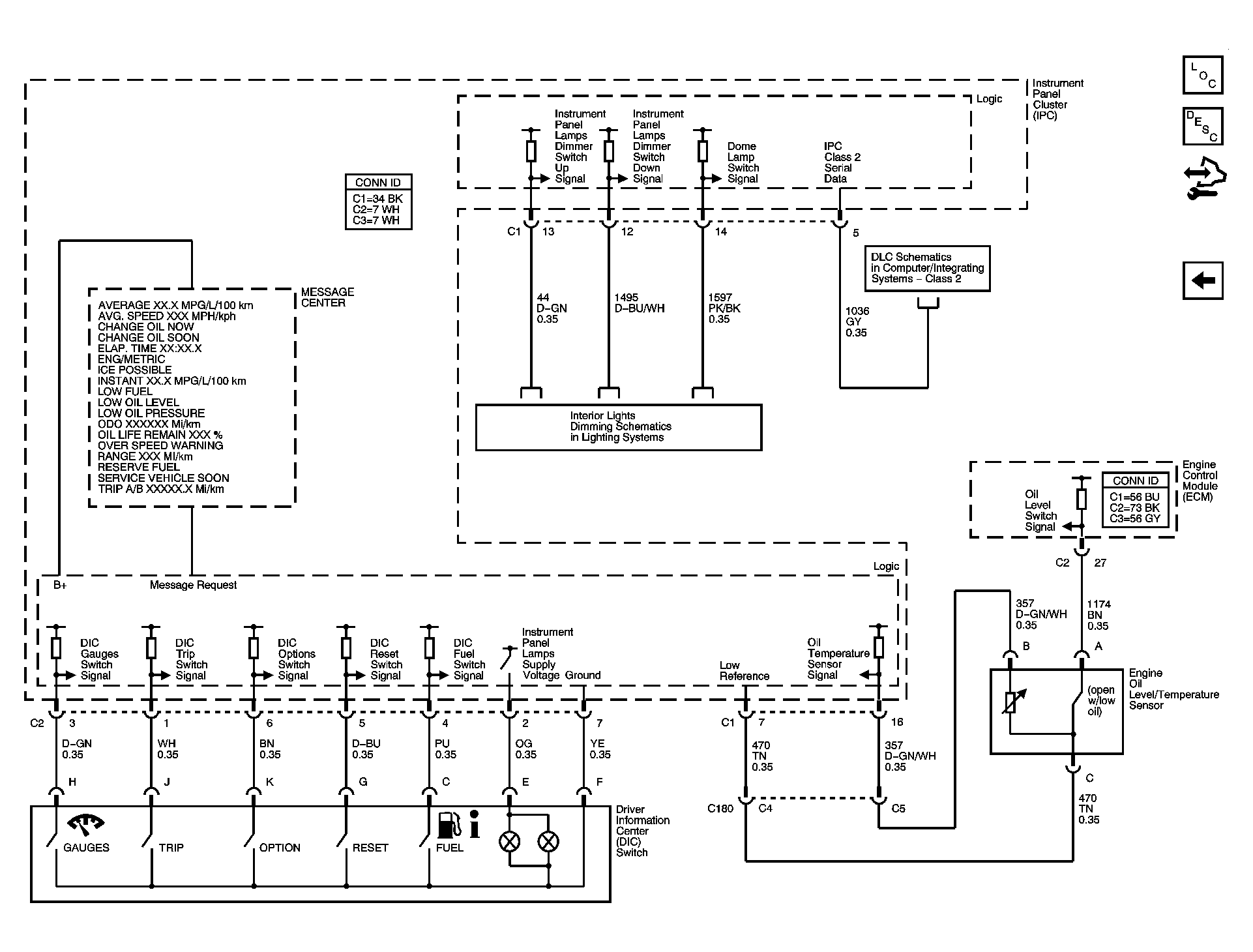

Fig 3: Messages Schematics
GM1444983Courtesy of GENERAL MOTORS CORP.
