Switch Replacement - Ignition and Start, DIC Display and HUD Dimmer
Switch Replacement - Ignition and Start, DIC Display and HUD Dimmer

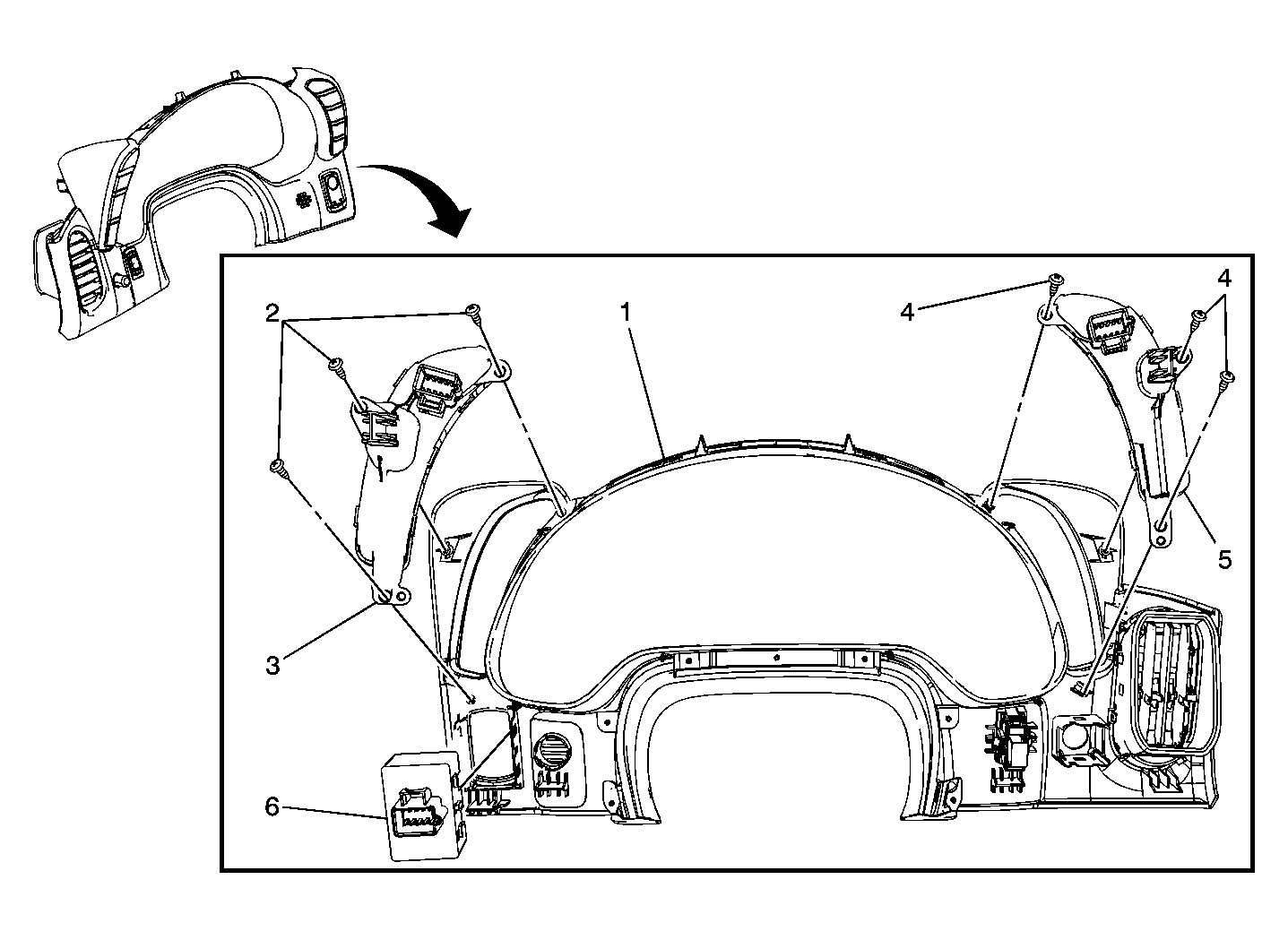

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
in Cautions and Notices. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications . |
|
| Ignition and Start Switch | |
| 1 | Instrument Panel Cluster Trim Plate Refer to Trim Panel Replacement - Instrument Panel (I/P) Cluster . |
| 6 | Ignition and Start Switch Tip: Use a flat-bladed tool in order to release the switch from the trim plate. |
| Driver Information Display Switch | |
| 1 | Instrument Panel Cluster Trim Plate Refer to Trim Panel Replacement - Instrument Panel (I/P) Cluster . |
| 2 | Driver Information Display Switch Screws (Qty: 3) Tighten: 2 N.m (18 lb in) |
| 3 | Driver Information Display Switch |
| Head Up Display and Dimmer Switch | |
| 1 | Instrument Panel Cluster Trim Plate Refer to Trim Panel Replacement - Instrument Panel (I/P) Cluster . |
| 4 | Head Up Display and Dimmer Switch Screws (Qty: 3) Tighten: 2 N.m (18 lb in) |
| 5 | Head Up Display and Dimmer Switch |
