Latch Replacement - Console Compartment Door
Latch Replacement - Console Compartment Door

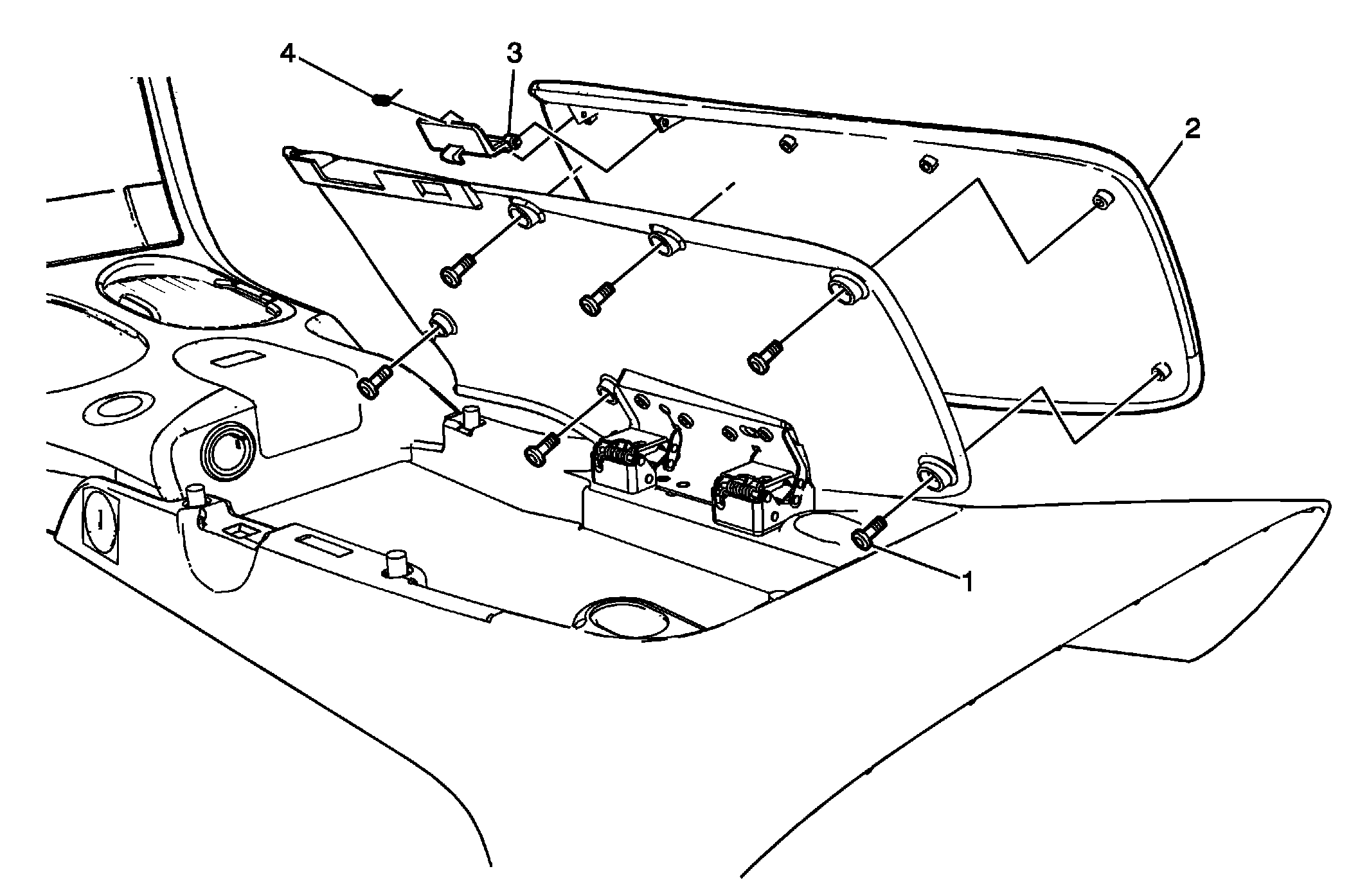

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
in Cautions and Notices. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications . |
|
| 1 | Console Door Screws (Qty: 7) Tighten: 2 N.m (18 lb in) |
| 2 | Console Door Outer Cover |
| 3 | Console Door Latch |
| 4 | Console Door Latch Spring |
