Door Replacement - Console Compartment
Door Replacement - Console Compartment

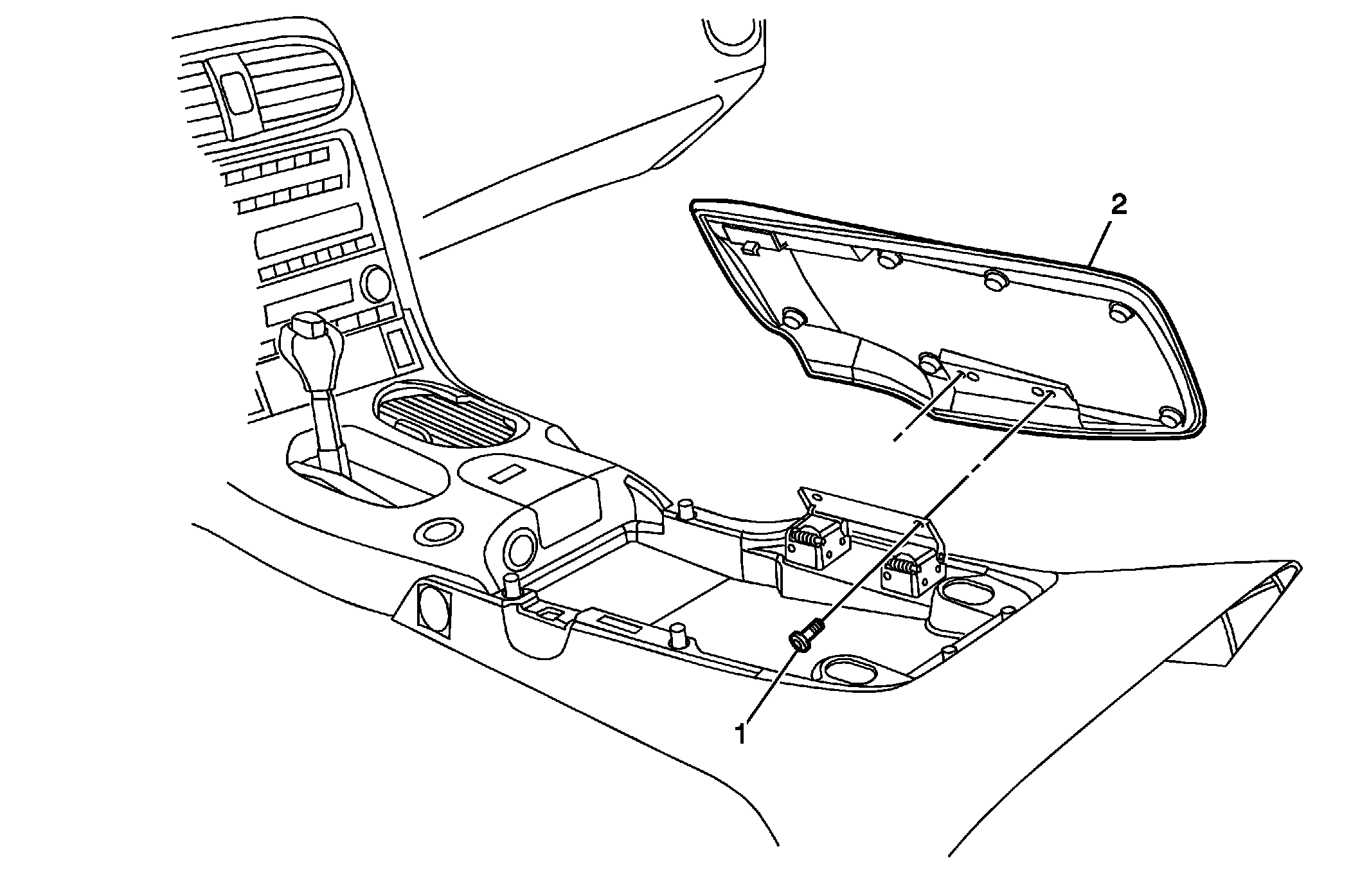

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
in Cautions and Notices. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications . |
|
| 1 | Screws, Console Door (Qty: 4) Tighten: 2 N.m (18 lb in) |
| 2 | Door Assembly, Floor Console |
