Instrument Panel, Gages, and Console Component Views

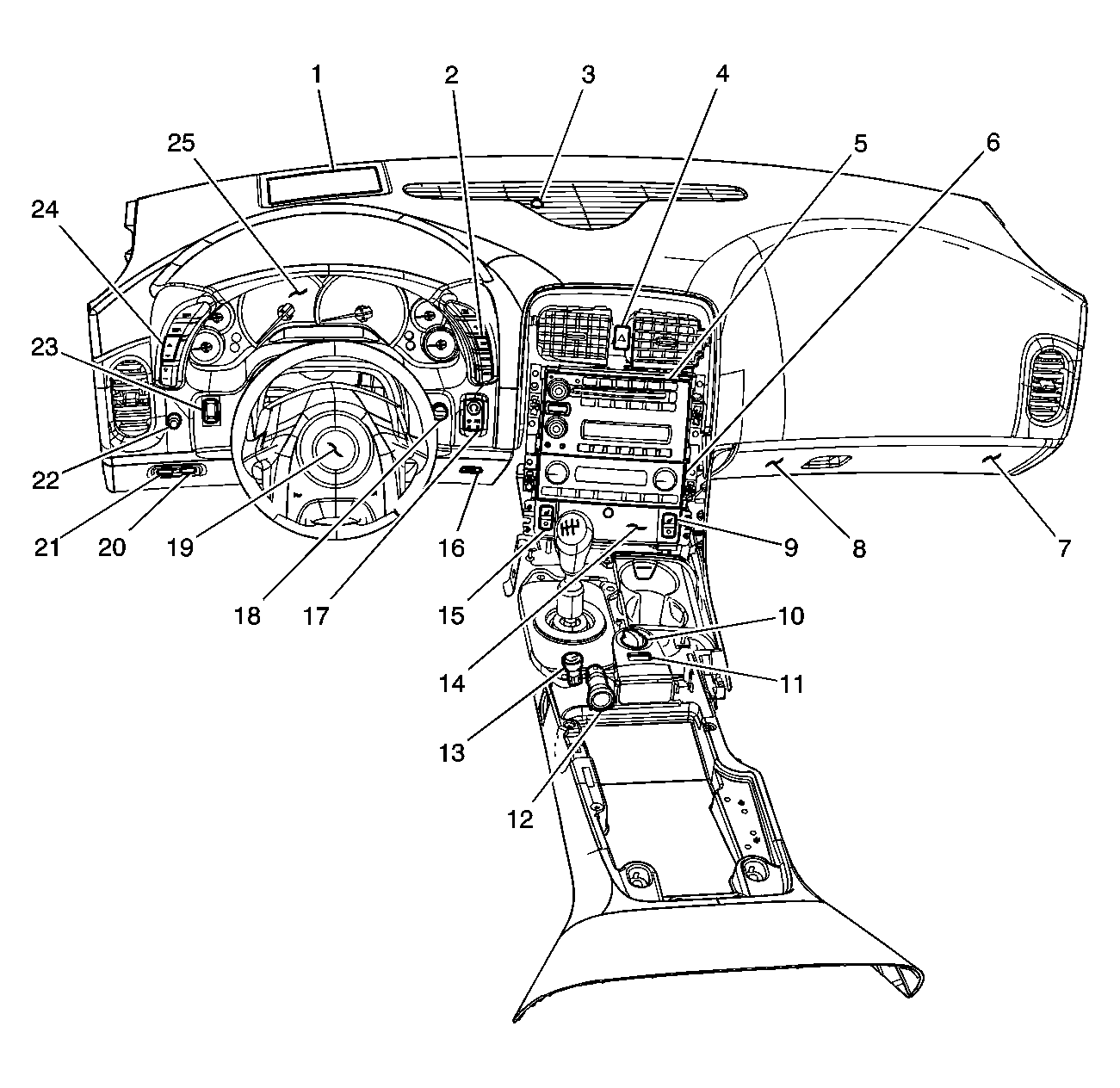

Fig 1: I/P Console Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Head Up Display (HUD) (UV6)
2	Driver Information Center (DIC) Switch
3	Sunload Sensor Assembly
4	Hazard Switch
5	Radio
6	HVAC Control Module
7	Inflatable Restraint I/P Module Disable Switch
8	I/P Compartment Lamp
9	Heated Seat Switch - Passenger
10	Suspension Control Switch
11	Inflatable Restraint I/P Module Disable Switch LED
12	Auxiliary Power Outlet
13	Traction Control Switch
14	Cigar Lighter
15	Heated Seat Switch - Driver
16	Footwell Courtesy Lamp - Left
17	Ignition Mode Switch
18	Air Temperature Sensor - Inside
19	Inflatable Restraint Steering Wheel Module
20	Rear Compartment Lid Release Switch - Interior
21	Fuel Door Release Switch
22	I/P Dimmer Switch
23	Folding Top Control Switch (CM7)
24	Head Up Display (HUD) Switch (UV6)
25	Instrument Panel Cluster (IPC)

Fig 2: Lower Left Side of Engine

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Engine Oil Level/Temperature Sensor

Fig 3: Engine Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuel Injector 7
2	Ignition Coil 7
3	Fuel Injector 5
4	Ignition Coil 5
5	Fuel Injector 3
6	Ignition Coil 3
7	Fuel Injector 1
8	Ignition Coil 1
9	Engine Coolant Temperature (ECT) Sensor
10	Fuel Injector 2
11	Ignition Coil 2
12	Ignition Coil 4
13	Fuel Injector 4
14	Ignition Coil 6
15	Fuel Injector 6
16	Ignition Coil 8
17	Fuel Injector 8
18	Engine Oil Pressure (EOP) Sensor

Fig 4: Fuel Tank

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuel Tank - Left
2	Fuel Tank - Right
3	Evaporative (EVAP) Canister Vent Solenoid
4	Fuel Tank Pressure (FTP) Sensor
5	Fuel Level Sensor - Right
6	Fuel Pump and Sender Assembly
7	Fuel Level Sensor - Left
