Passenger Seat Schematics

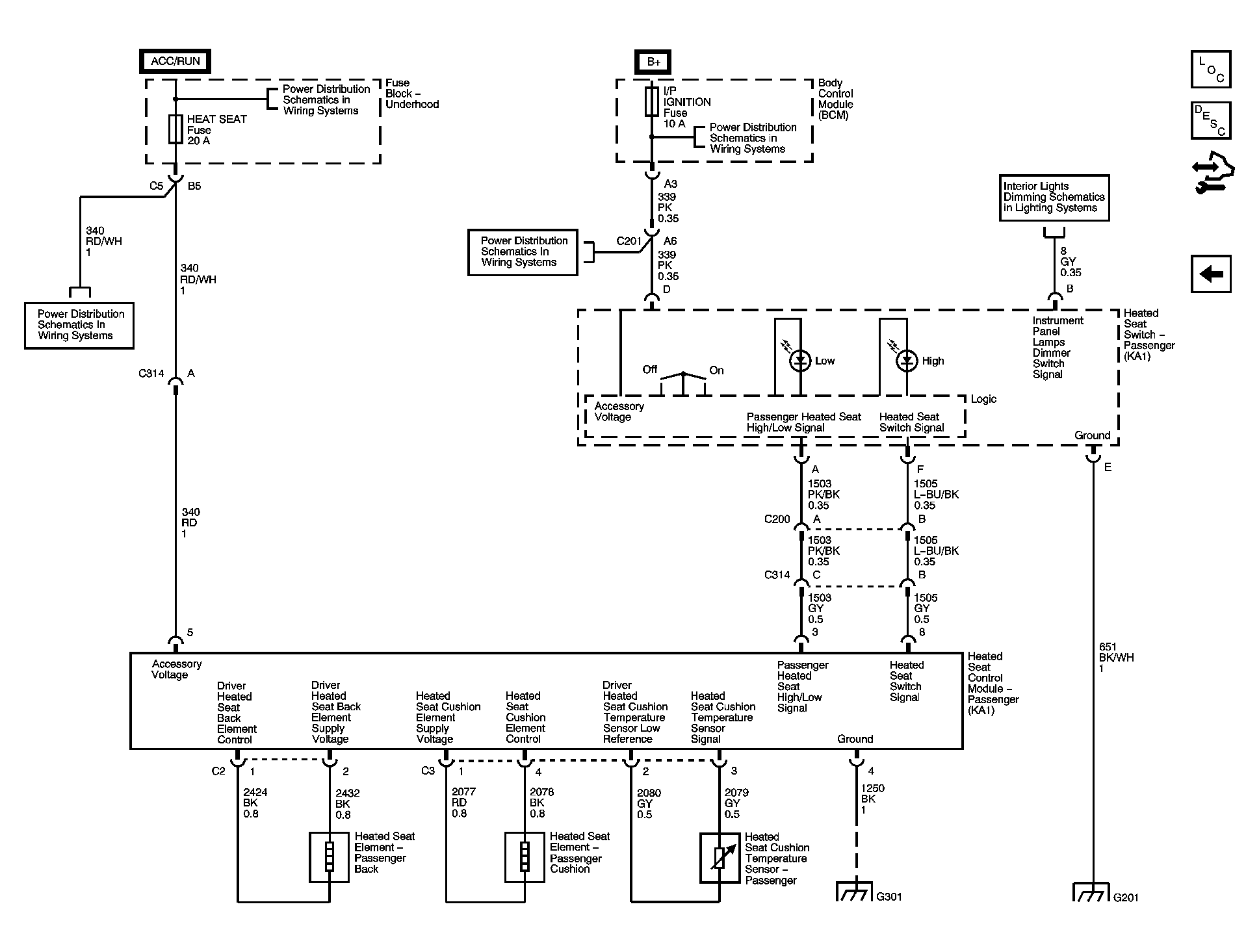

Fig 1: Heated Seat Schematic (Passenger Side)

GM1531104

Courtesy of GENERAL MOTORS CORP.
