Latch Replacement - Console Compartment Door

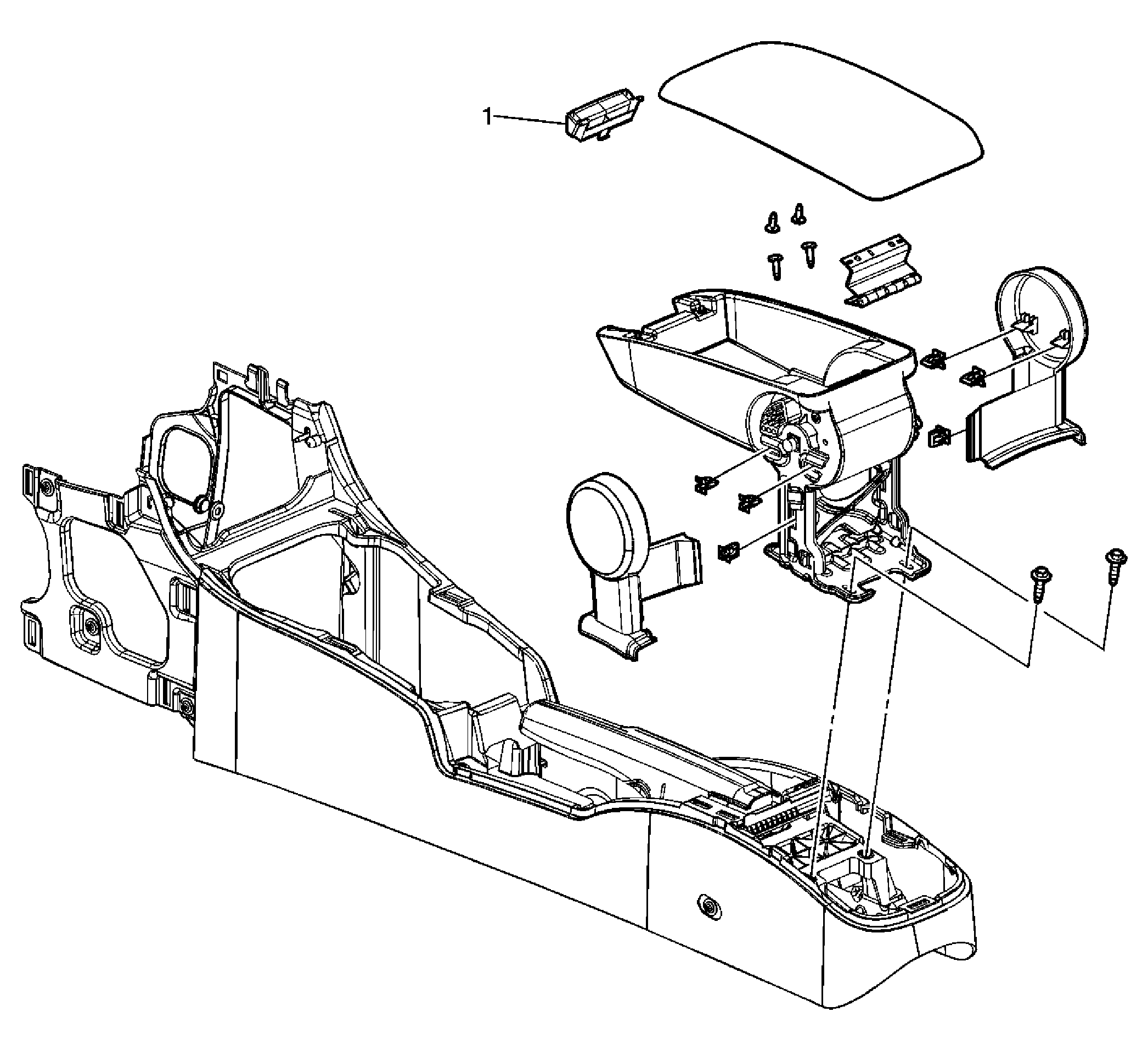

Fig 1: Latch Replacement - Console Compartment Door

Courtesy of GENERAL MOTORS CORP.

Latch Replacement - Console Compartment Door

Callout	Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1	Latch, Floor Console Arm Rest Door Tip:  Remove the console door substrate in order to remove the latch.
