Instrument Panel (I/P) Retainer Replacement

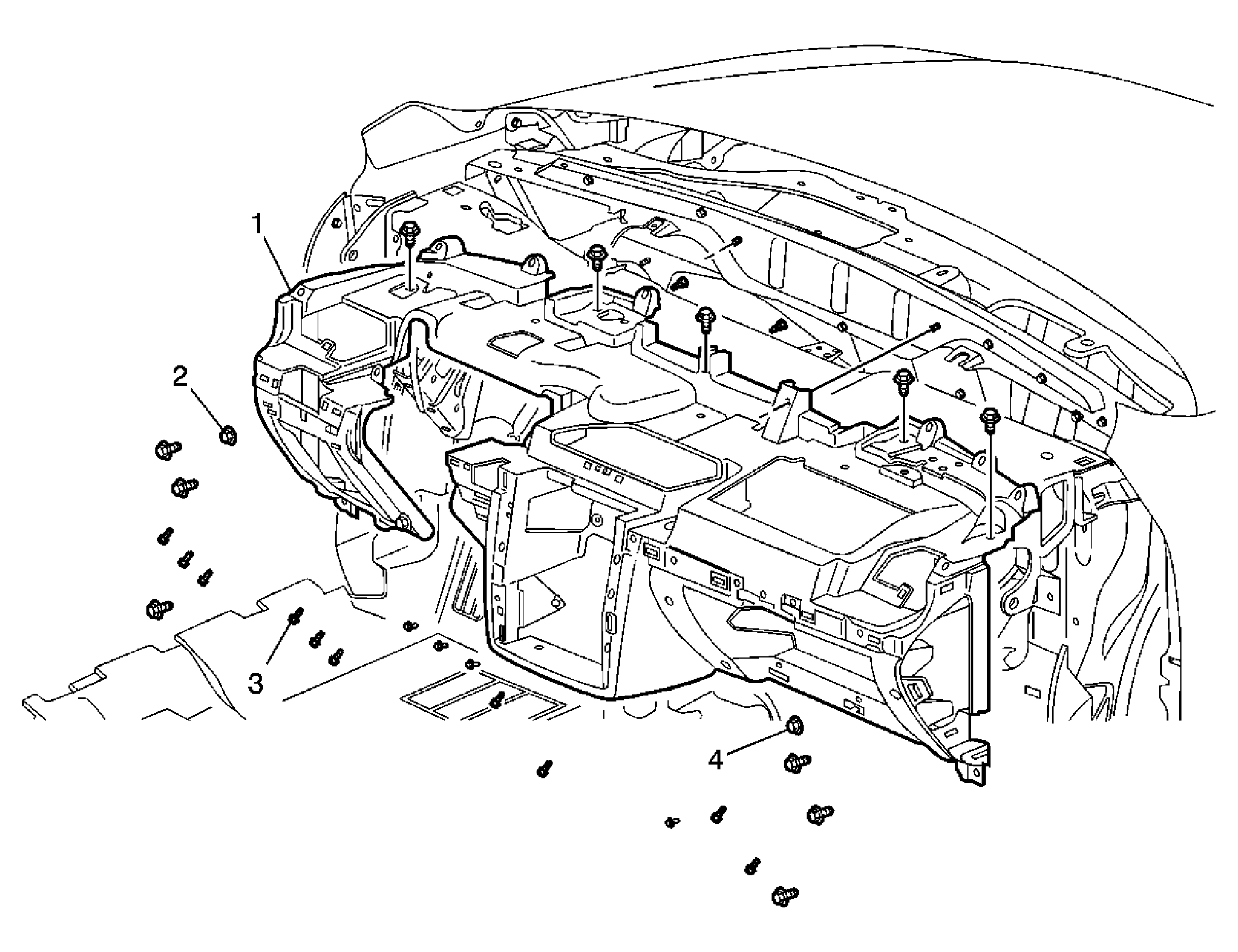

Fig 1: Instrument Panel (I/P) Retainer Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice in Cautions and Notices. Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Disable the SIR system. Refer to SIR Disabling and Enabling Zones . Remove the floor console. Refer to Console Replacement - Front Floor . Remove the I/P compartment. Refer to Compartment Replacement - Instrument Panel (I/P) . Remove the instrument panel (I/P) upper trim pad. Lower the steering column. Refer to Steering Column Replacement .
1	Retainer Assembly, Instrument Panel
2	Bolt, Instrument Panel Retainer (Qty: 4) Tighten: 9 N.m (80 lb in)
3	Screw, Instrument Panel Retainer (Qty: 17) Tighten: 2.2 N.m (20 lb in)
4	Nut, Instrument Panel Retainer (Qty: 8) Tighten: 25 N.m (18 lb ft)
