Installation Procedure

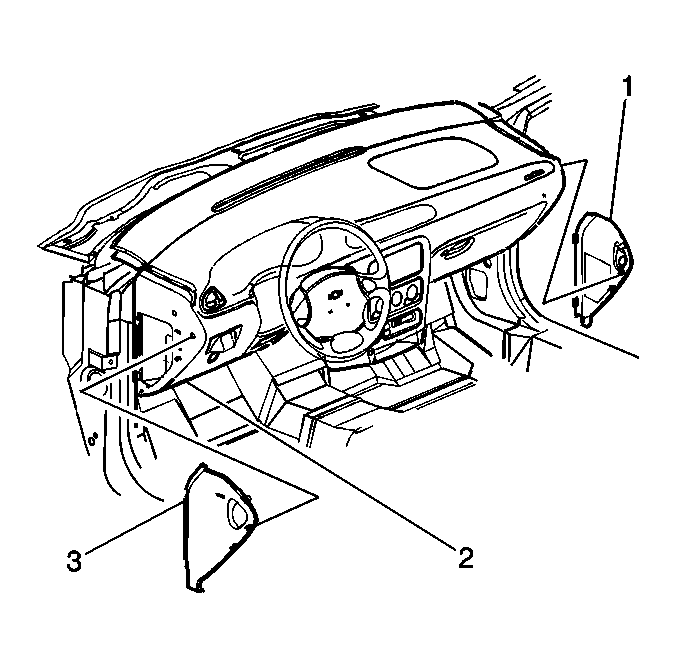

    Fig 1: View Of Instrument Panel & Outer Trim Cover
    GM291462Courtesy of GENERAL MOTORS CORP.
  1. On the passenger side, install the SIR connector.
  2. Align the outer trim cover locating tabs to the opening in the I/P.
  3. Push the outer trim cover locating tabs into the I/P until fully engaged.
  4. Press the outer trim cover into the I/P until fully secured.
