SIR Schematics

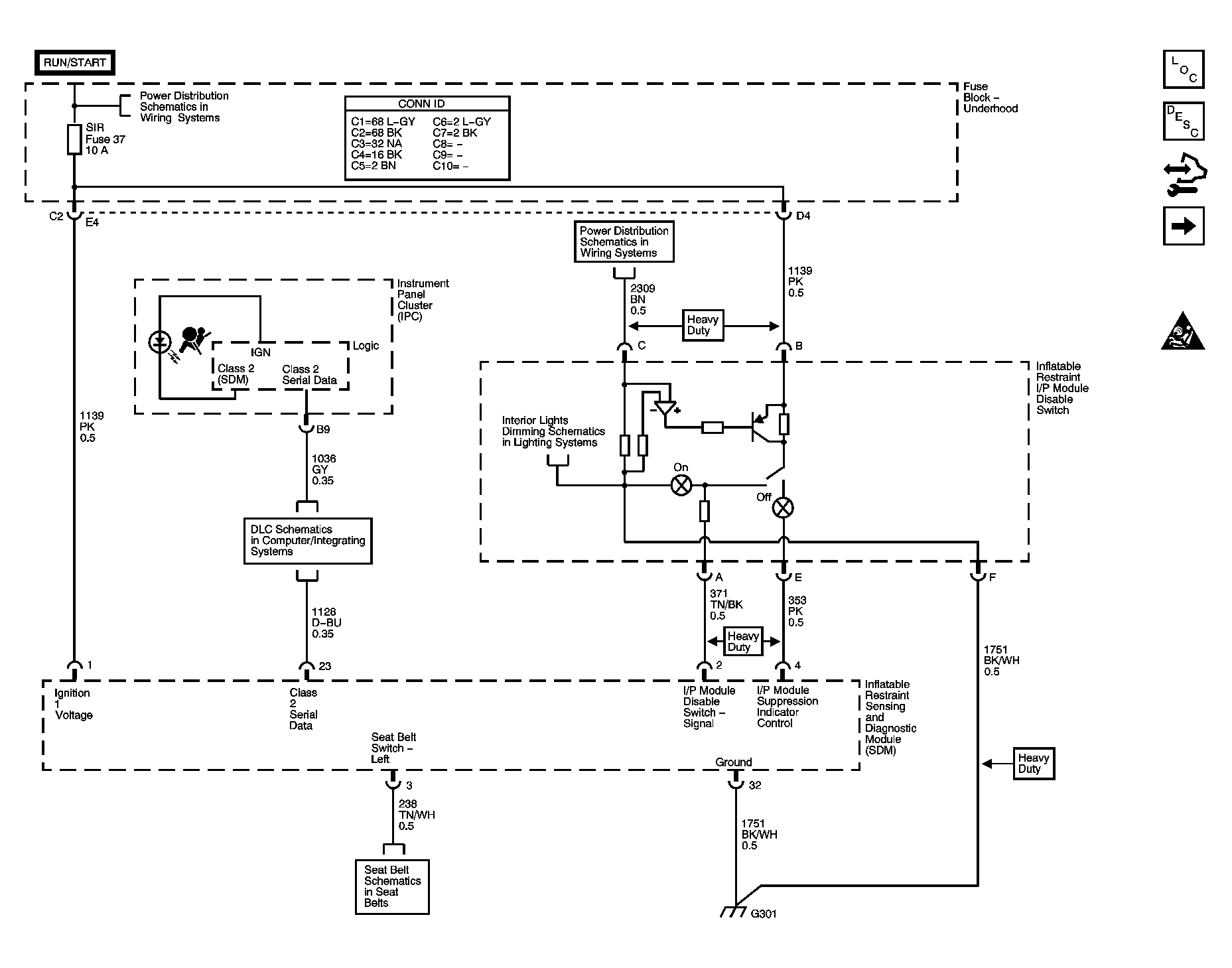

Fig 1: Module Power, Ground, Serial Data, Indicator and Disable Switch Schematics
GM1410612Courtesy of GENERAL MOTORS CORP.

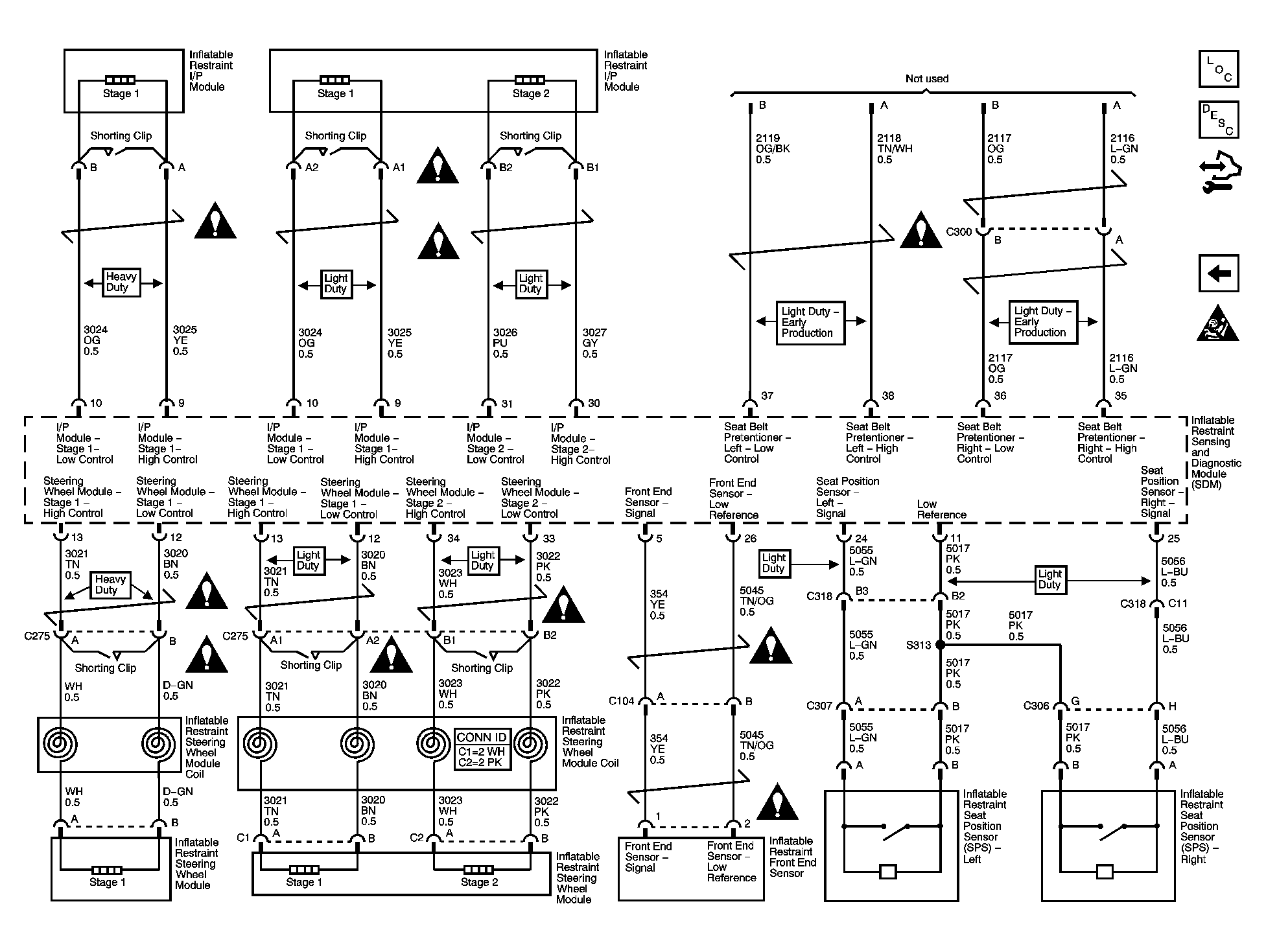

Fig 2: Air Bag Modules and Position Sensors Schematics
GM1410614Courtesy of GENERAL MOTORS CORP.
