Automatic Transmission Controls Schematics

WARNING: This page is about a different variant/trim than selected.

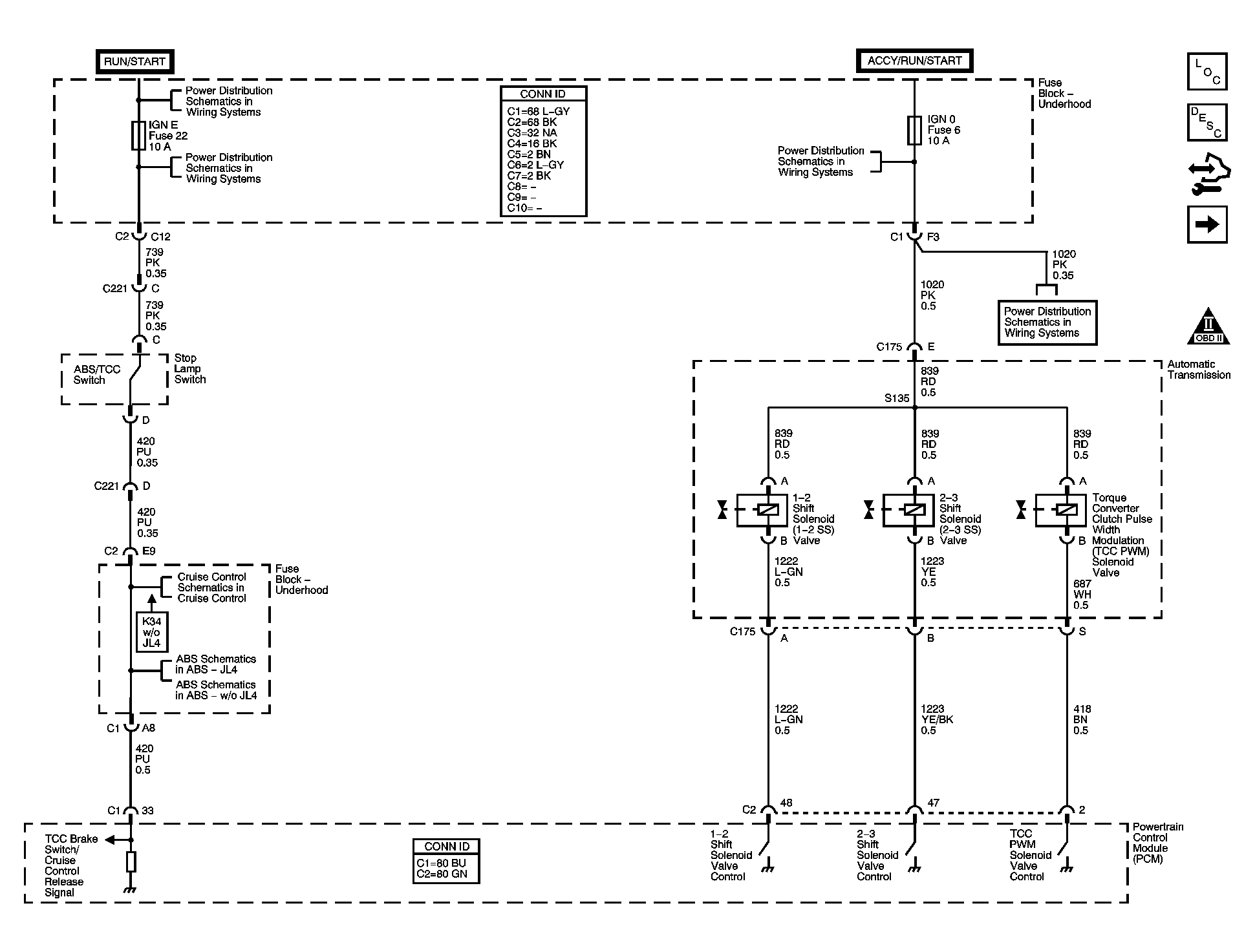

Fig 1: Shift Controls and Stop Lamp Switch Schematics
GM1399350Courtesy of GENERAL MOTORS CORP.

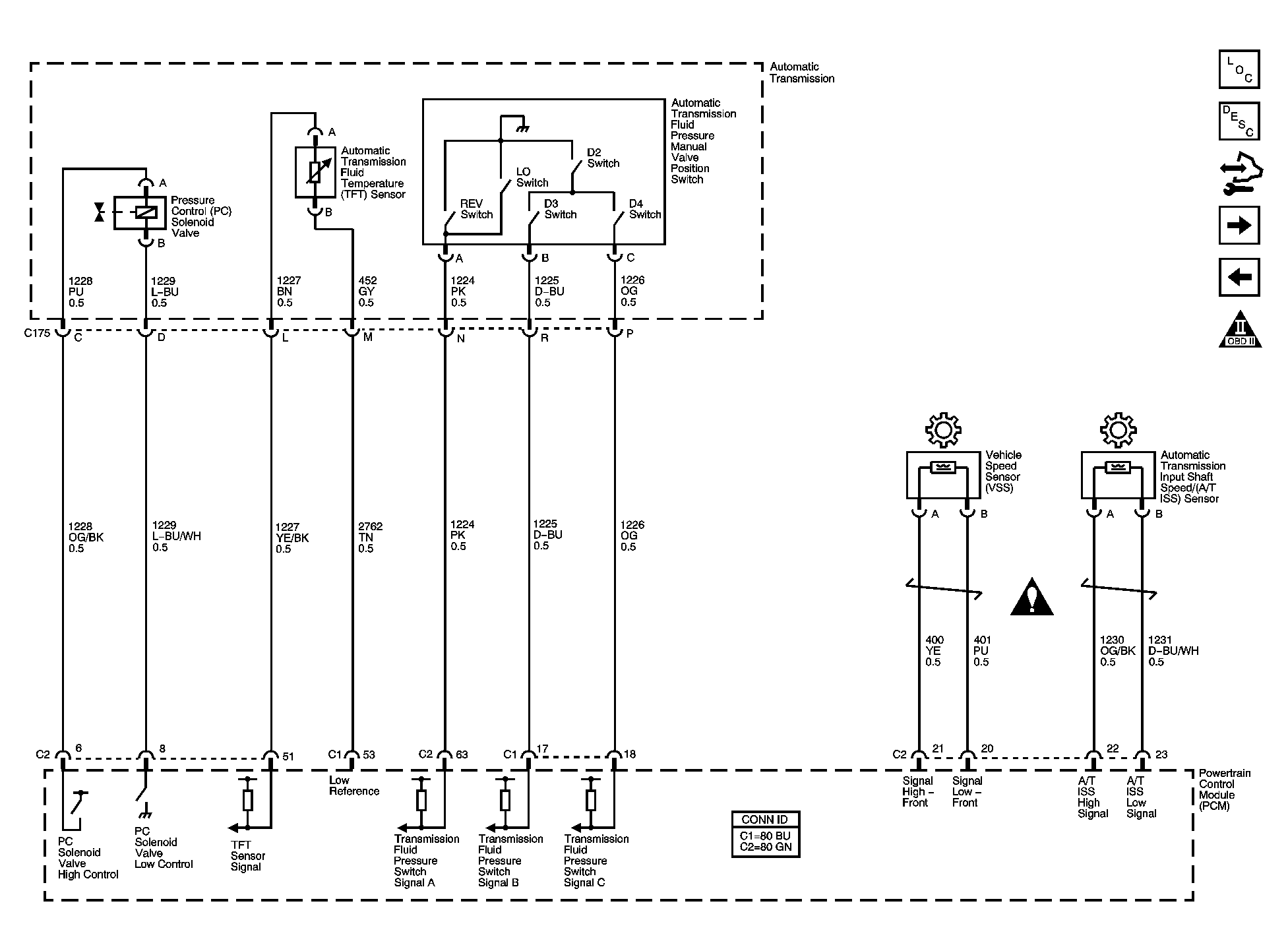

Fig 2: Pressure Controls, Temperature and VSS Schematics
GM1399352Courtesy of GENERAL MOTORS CORP.

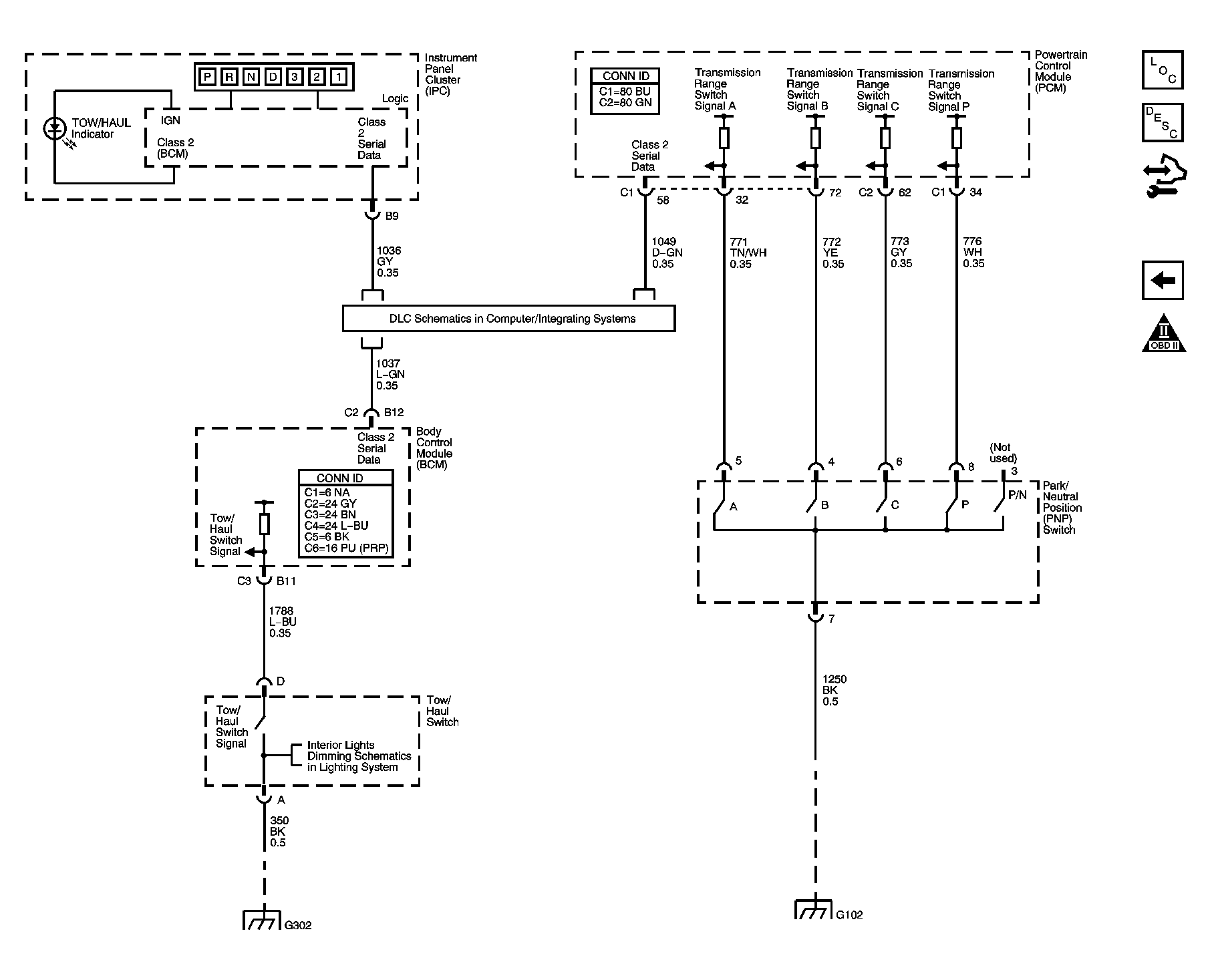

Fig 3: PNP Switch, Serial Data and Indicator Schematics
GM1530903Courtesy of GENERAL MOTORS CORP.
