Removal Procedure

WARNING: This page is about a different variant/trim than selected.

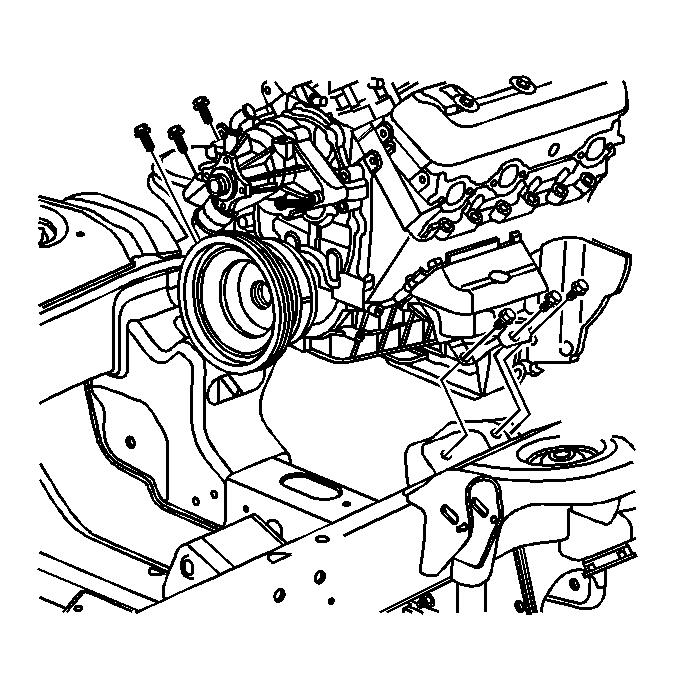

    Fig 1: Engine Mount To Frame Mounting Bolts
    GM829683Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Engine Mounting Notice in Cautions and Notices.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
  2. Remove the starter. Refer to Starter Motor Replacement (4.8L, 5.3L, and 6.0L) or Starter Motor Replacement (4.3L) in Engine Electrical.
  3. Remove the engine mount to frame mounting bolts.
    4. Fig 2: View Of Square Tab At Rear Of Engine Block
    GM374320Courtesy of GENERAL MOTORS CORP.
    NOTE: When raising or supporting the engine for any reason, do not use a jack under the oil pan, any sheet metal, or crankshaft balancer. Jacking against the oil pan may cause it to crack or break.
    IMPORTANT: Raise the engine only enough to permit removal of the engine mount.
  4. Use a jack on the square tab at the rear of the engine block, and raise the engine, left side shown.

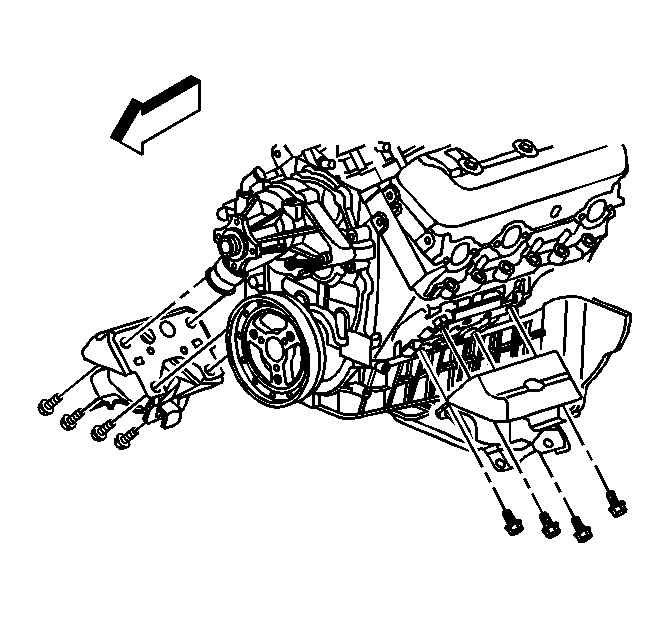

    5. Fig 3: Engine Mount To Engine Mounting Bolts
    GM829670Courtesy of GENERAL MOTORS CORP.
  5. Remove the engine mount to engine mounting bolts.
  6. Remove the engine mount from the vehicle.
