Engine Flywheel Installation

WARNING: This page is about a different variant/trim than selected.

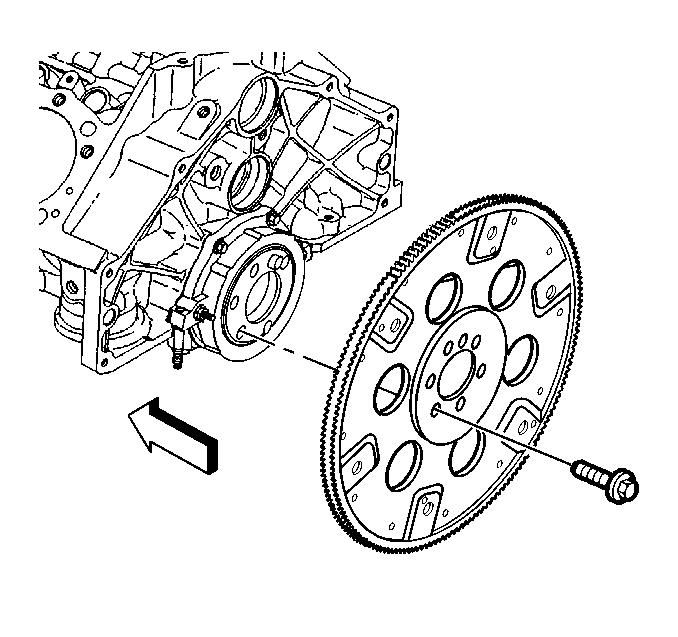

    Fig 1: Expanded View Of Engine Flywheel
    GM188130Courtesy of GENERAL MOTORS CORP.
  1. Install the engine flywheel to the crankshaft.
  2. Align the locator hole to the pin.
    3. Fig 2: Identifying Flywheel Bolt Tightening Sequence
    GM63174Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the engine flywheel bolts.

    Tighten:  Tighten the engine flywheel bolts in sequence to 100 N.m (74 lb ft).
