Power Distribution Schematics

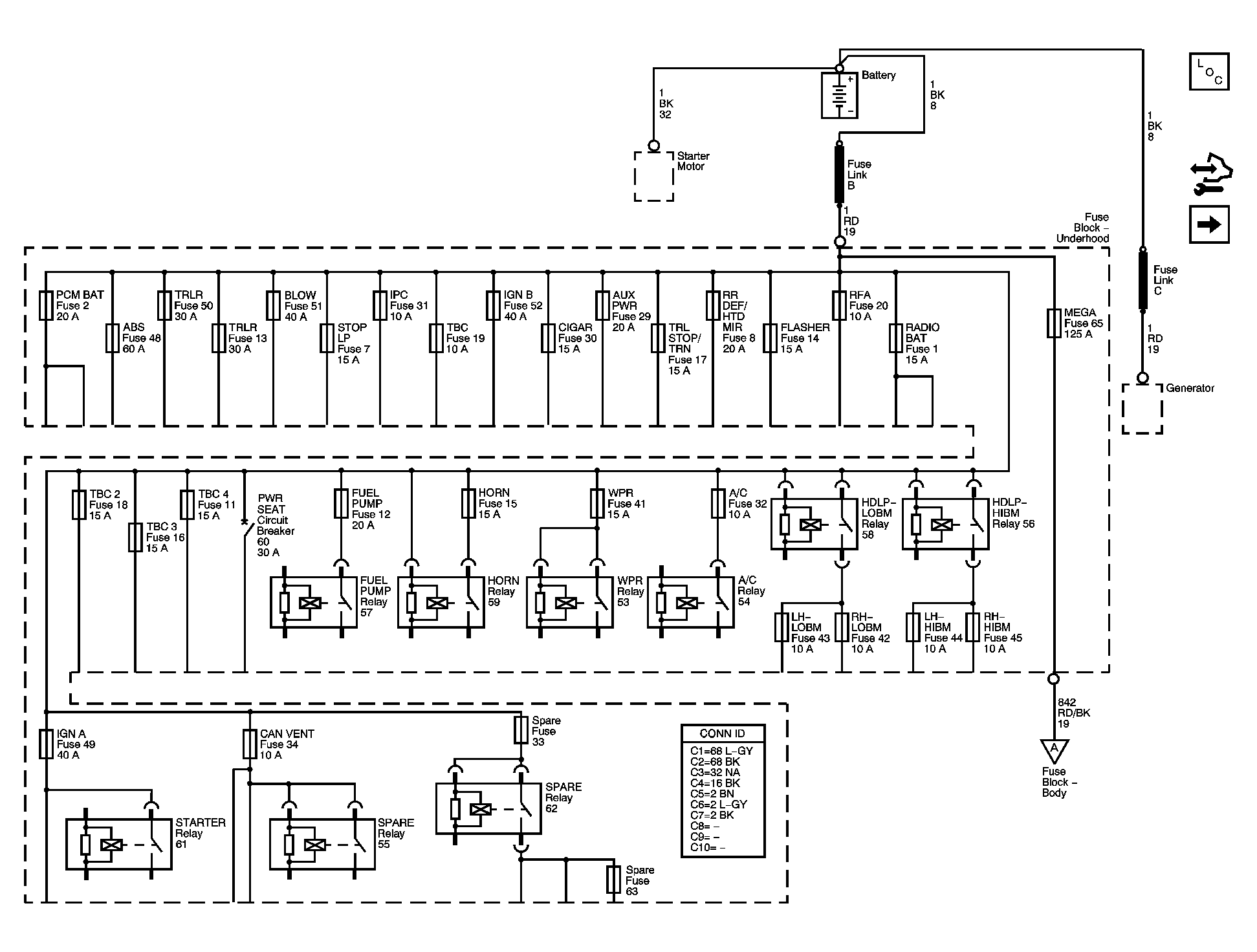

Fig 1: B+ Bus - Underhood Fuse Block Schematics

Courtesy of GENERAL MOTORS CORP.

Fig 2: B+ Bus - Body Fuse Block Schematics

Courtesy of GENERAL MOTORS CORP.

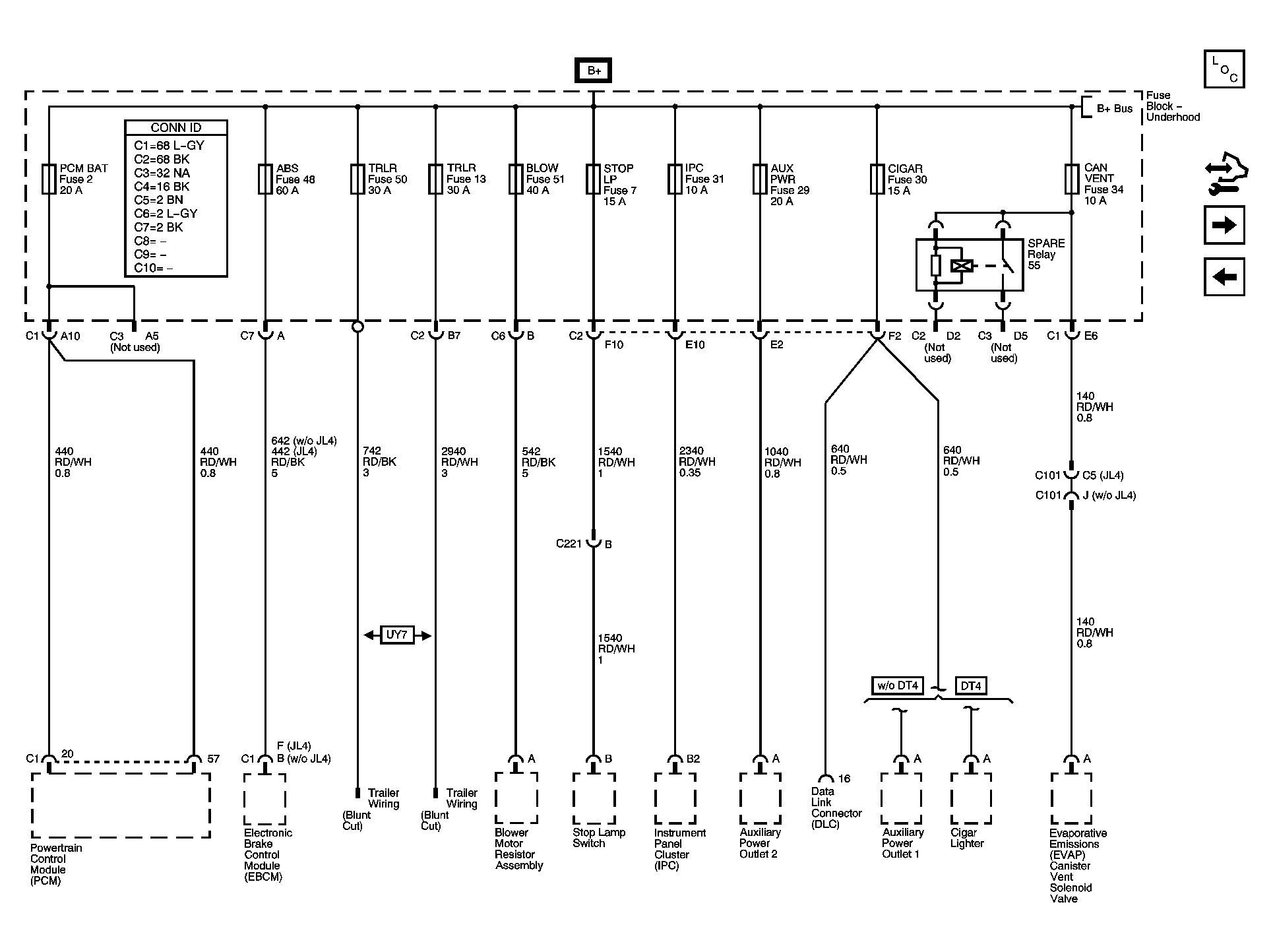

Fig 3: ABS, AUX PWR, BLOW, CAN VENT, CIGAR, IPC, PCM BAT, STOP LP and TRLR Fuses Schematics

Courtesy of GENERAL MOTORS CORP.

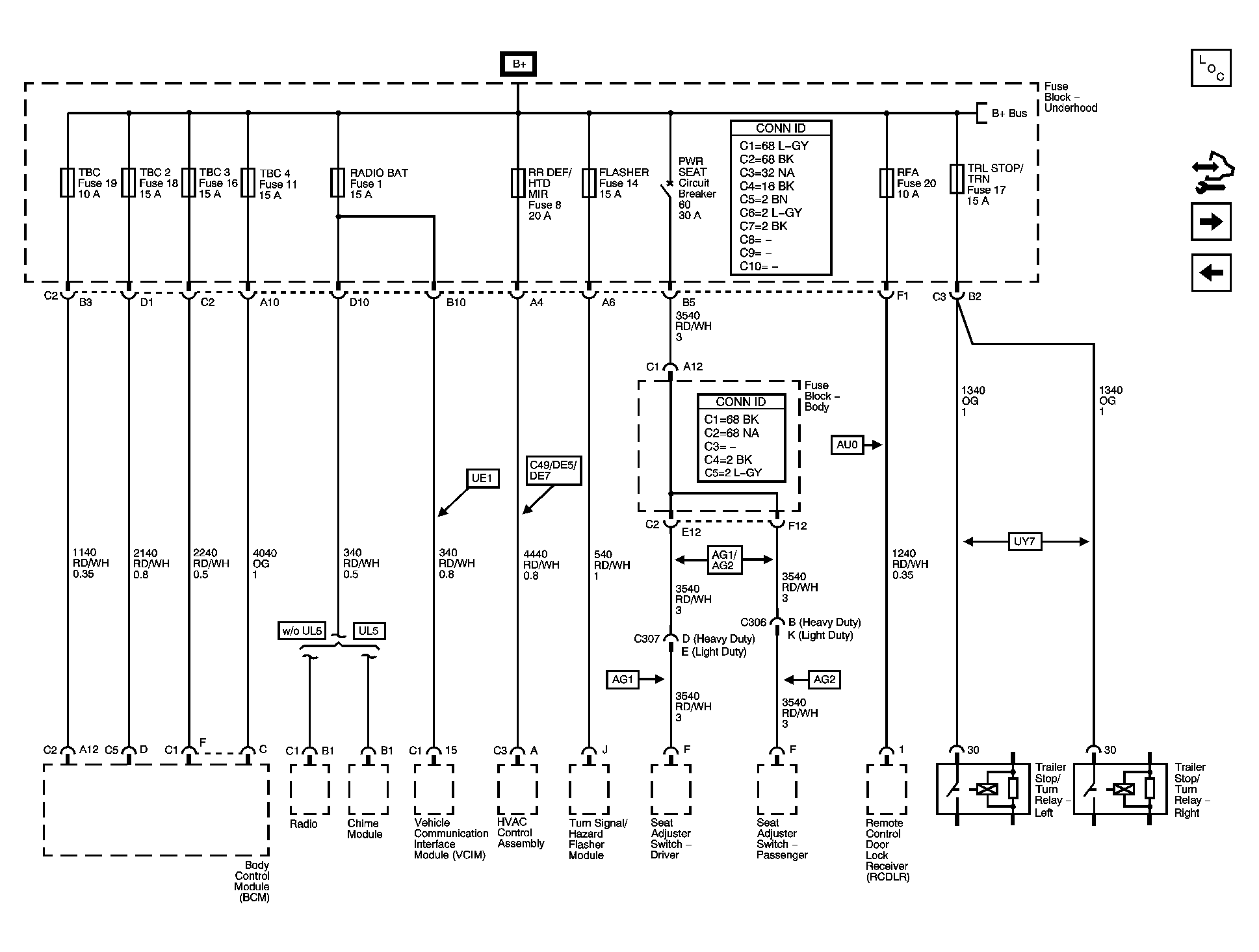

Fig 4: FLASHER, RADIO BAT, RFA, RR DEF/HTD MIR, TBC, TBC 2, TBC 3, TBC 4, TRL STOP/TRN Fuses and PWR SEAT Circuit Breaker Schematics

Courtesy of GENERAL MOTORS CORP.

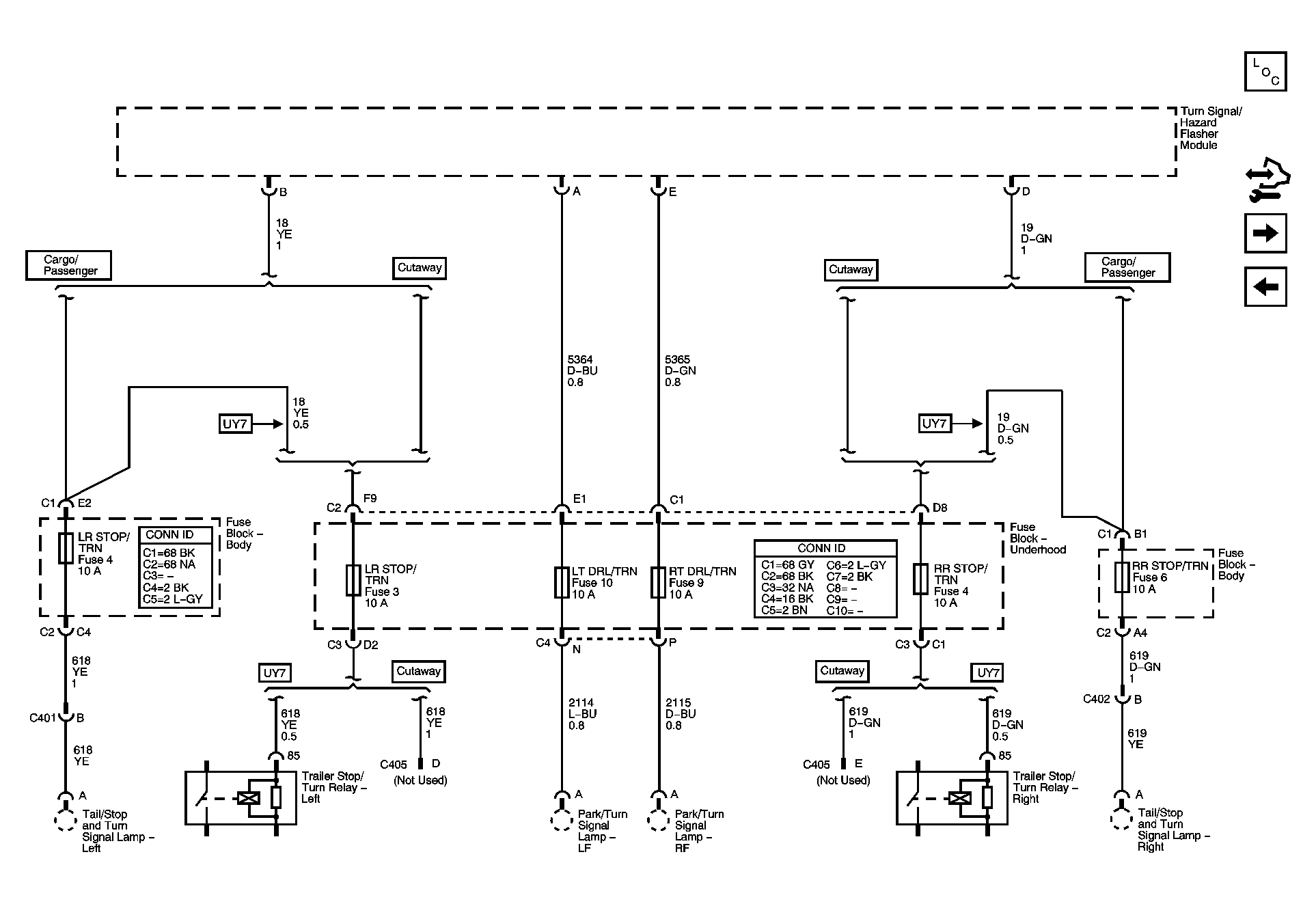

Fig 5: LR STOP/TRN, lt DRL/TRN, RR STOP/TRN and RT DRL/TRN Fuses Schematics

Courtesy of GENERAL MOTORS CORP.

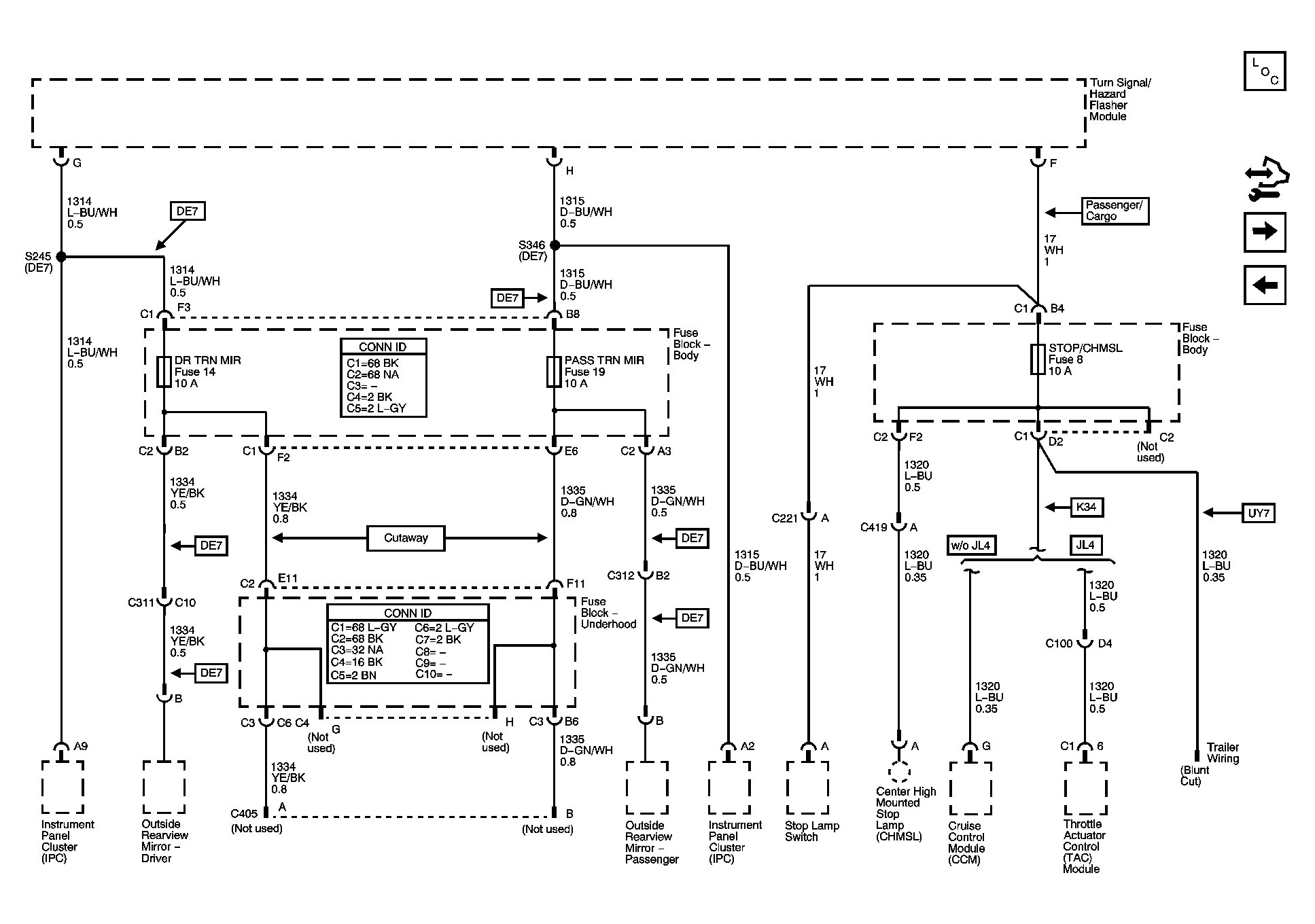

Fig 6: DR TRN MIR, PASS TRN MIR and STOP/CHMSL Fuses Schematics

Courtesy of GENERAL MOTORS CORP.

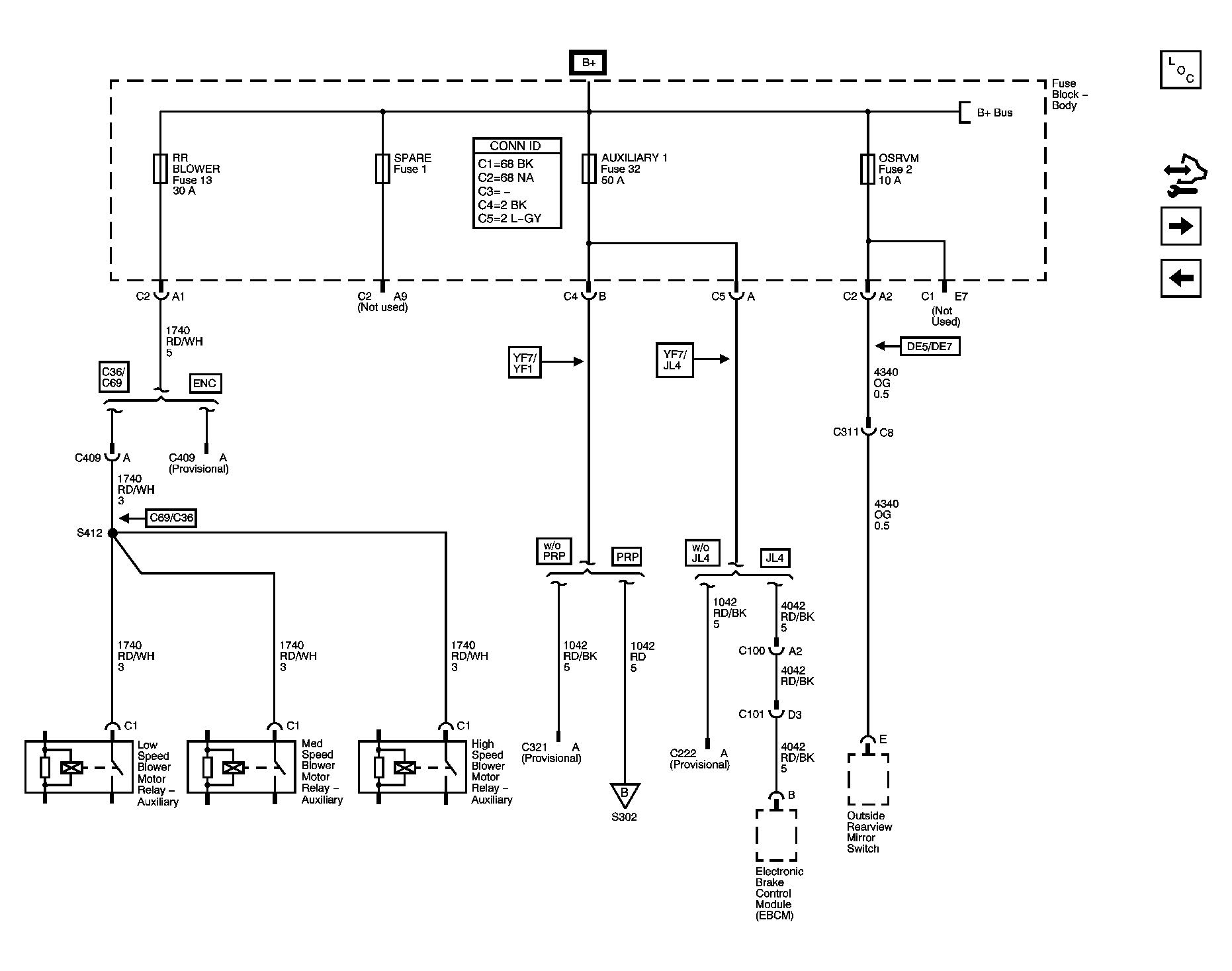

Fig 7: AUXILIARY 1, OSRVM, RR BLOWER and SPARE Fuses Schematics

Courtesy of GENERAL MOTORS CORP.

Fig 8: DOME FLUORESCENT WORK LAMPS and PANEL ACTUATOR Fuses Schematics

Courtesy of GENERAL MOTORS CORP.

Fig 9: Ignition Switch - ACCY/RUN, RUN/START Bus Bars and IGN B Fuse Schematics

Courtesy of GENERAL MOTORS CORP.

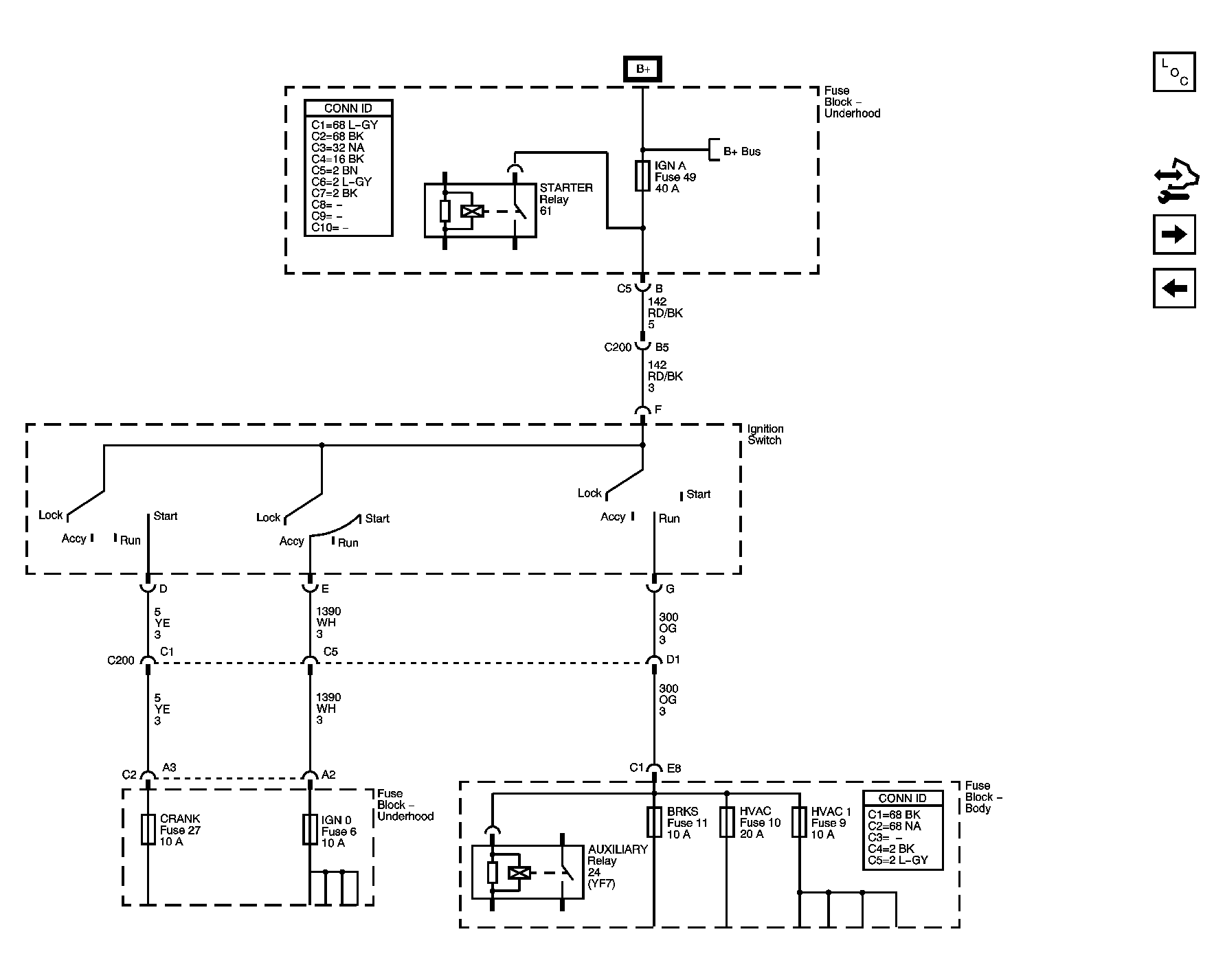

Fig 10: Ignition Switch - ACCY/RUN/START, RUN, START Bus Bars and IGN A Fuse Schematics

Courtesy of GENERAL MOTORS CORP.

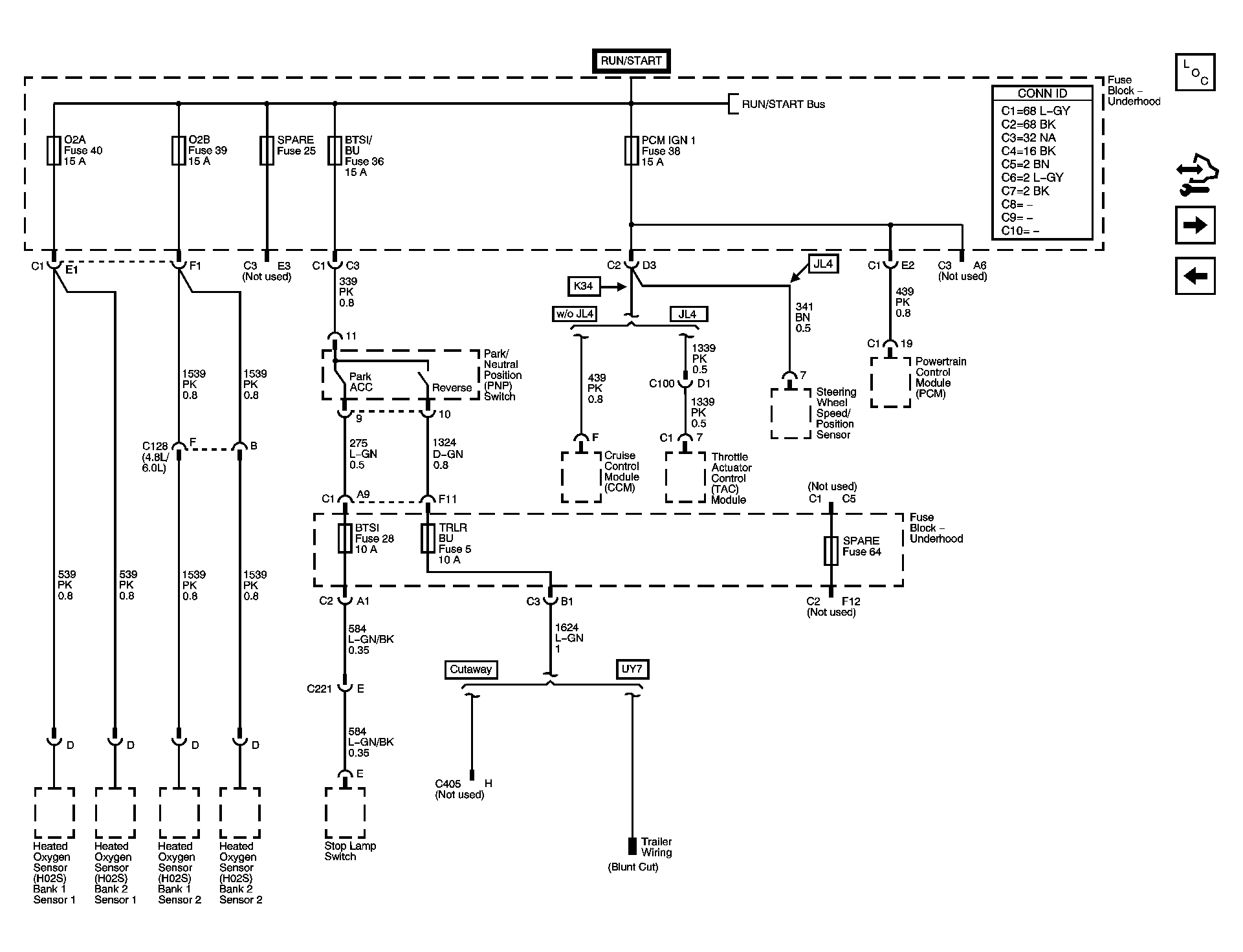

Fig 11: BTSI, BTSI/BU, O2A, O2B, PCM IGN 1, SPARE and TRLR BU Fuses Schematics

Courtesy of GENERAL MOTORS CORP.

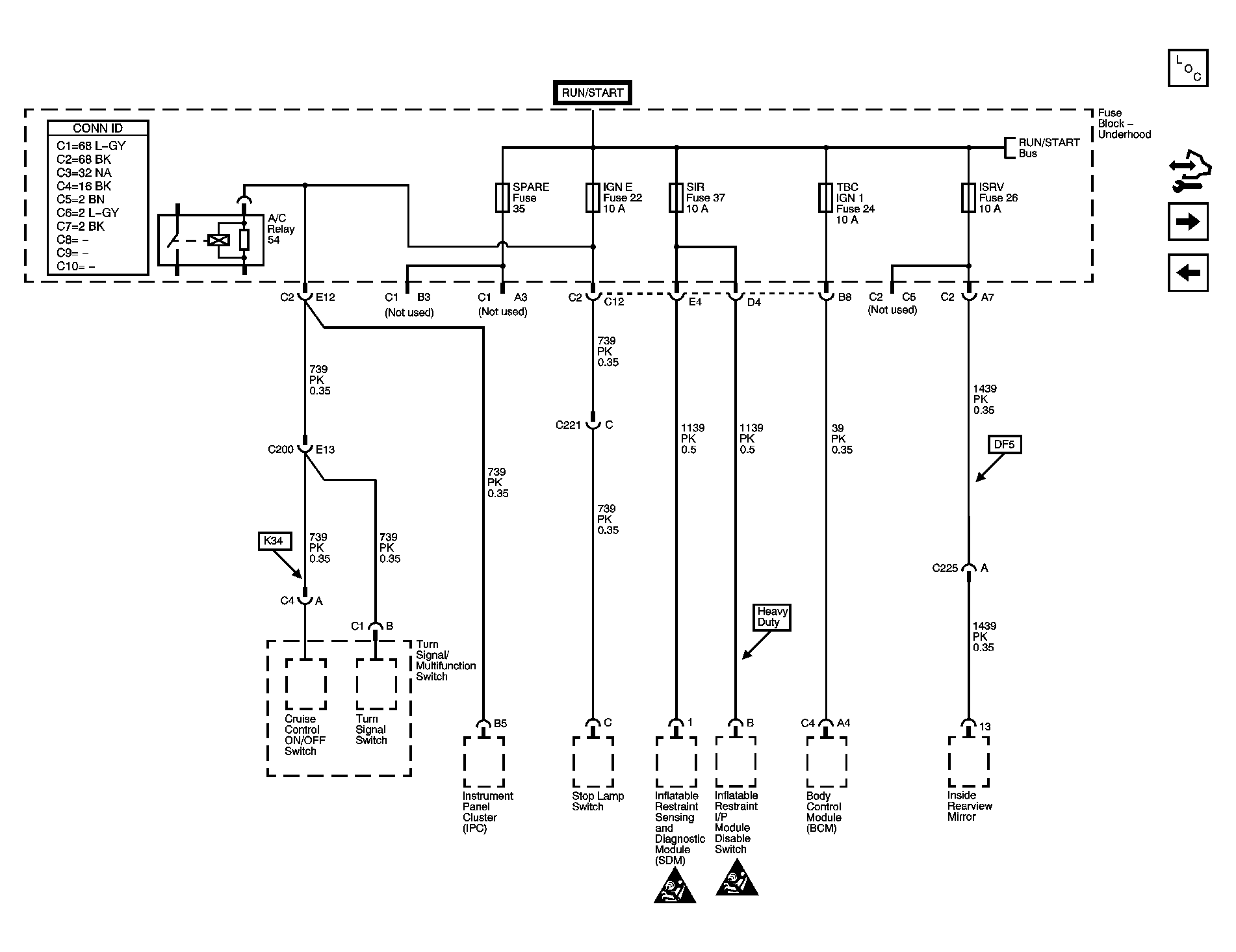

Fig 12: IGN E, ISRV, SIR, SPARE and TBC IGN 1 Fuses Schematics

Courtesy of GENERAL MOTORS CORP.

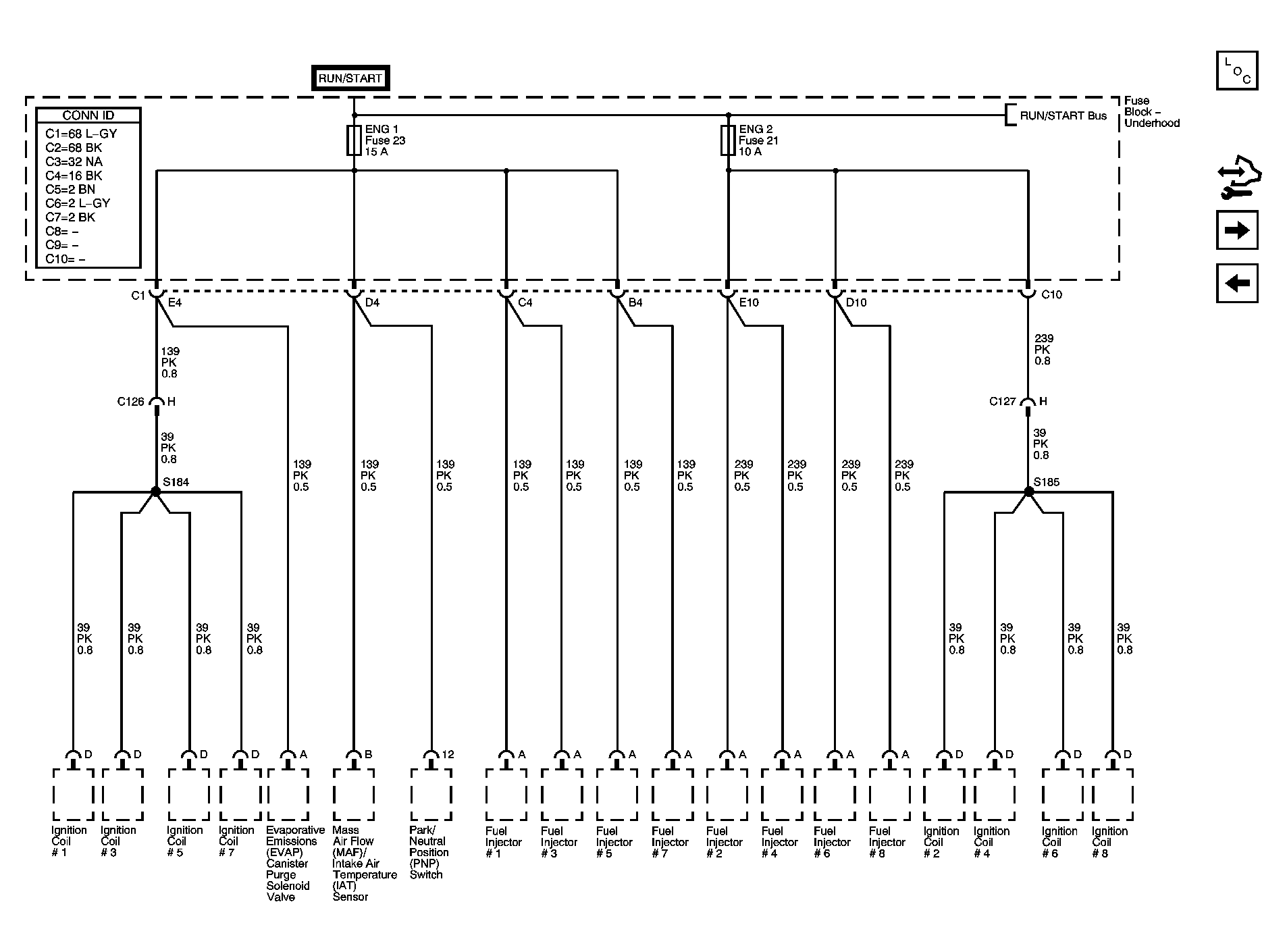

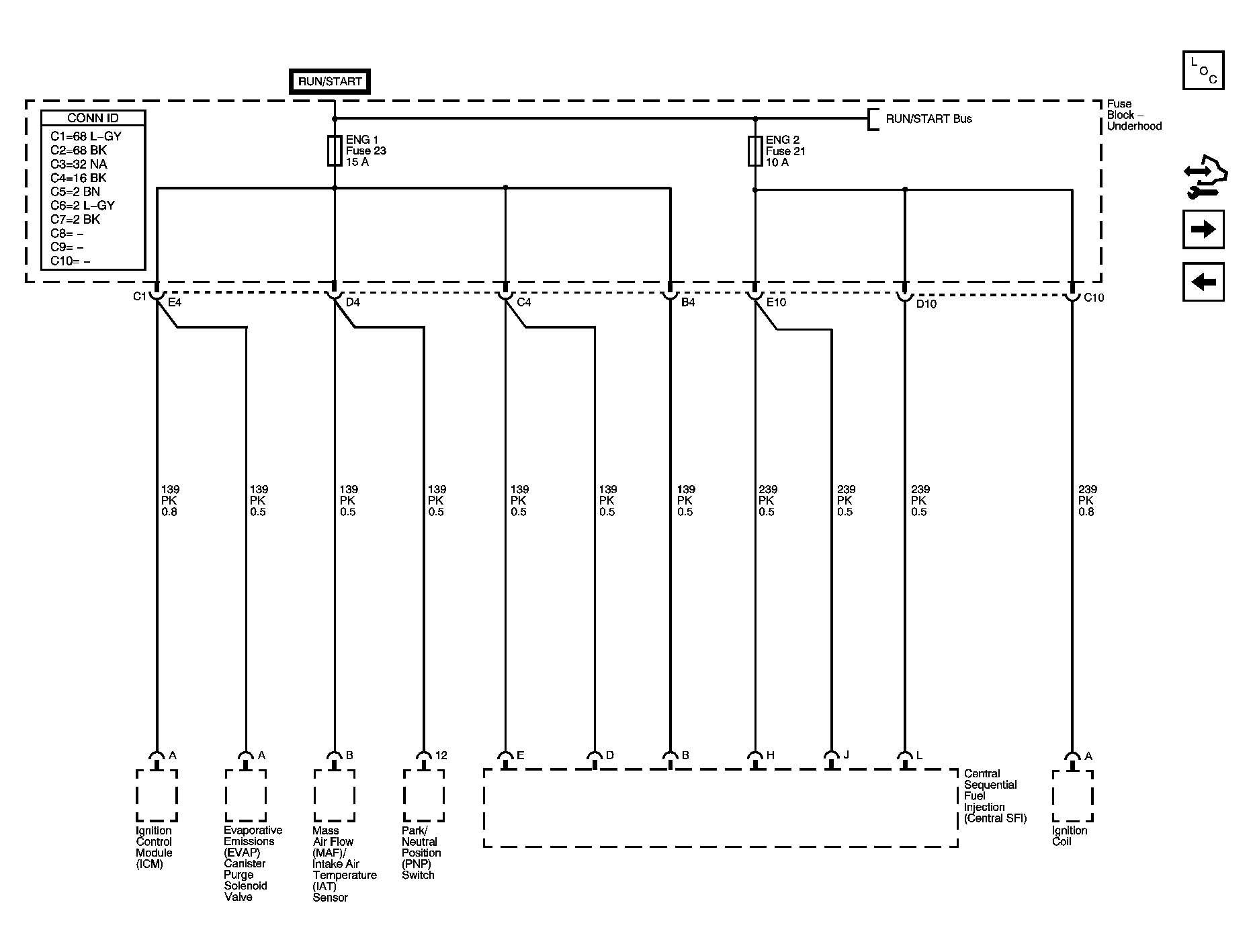

Fig 13: ENG 1 and ENG 2 Fuses Schematics - 4.3L

Courtesy of GENERAL MOTORS CORP.

Fig 14: ENG 1 and ENG 2 Fuses Schematics - 4.8L, 5.3L and 6.0L

Courtesy of GENERAL MOTORS CORP.

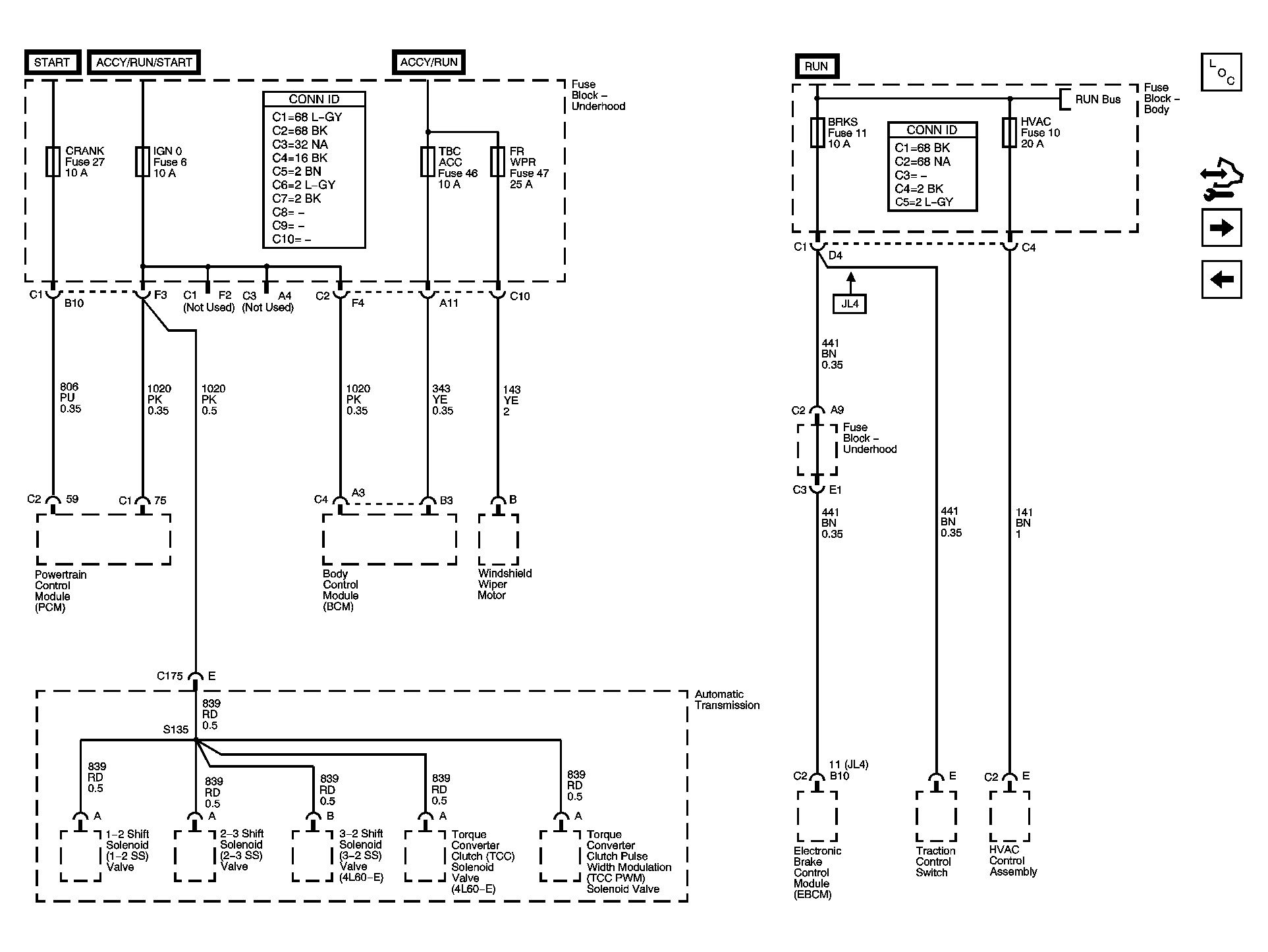

Fig 15: BRKS, CRANK, FR WPR, HVAC, IGN 0 and TBC ACC Fuses Schematics

Courtesy of GENERAL MOTORS CORP.

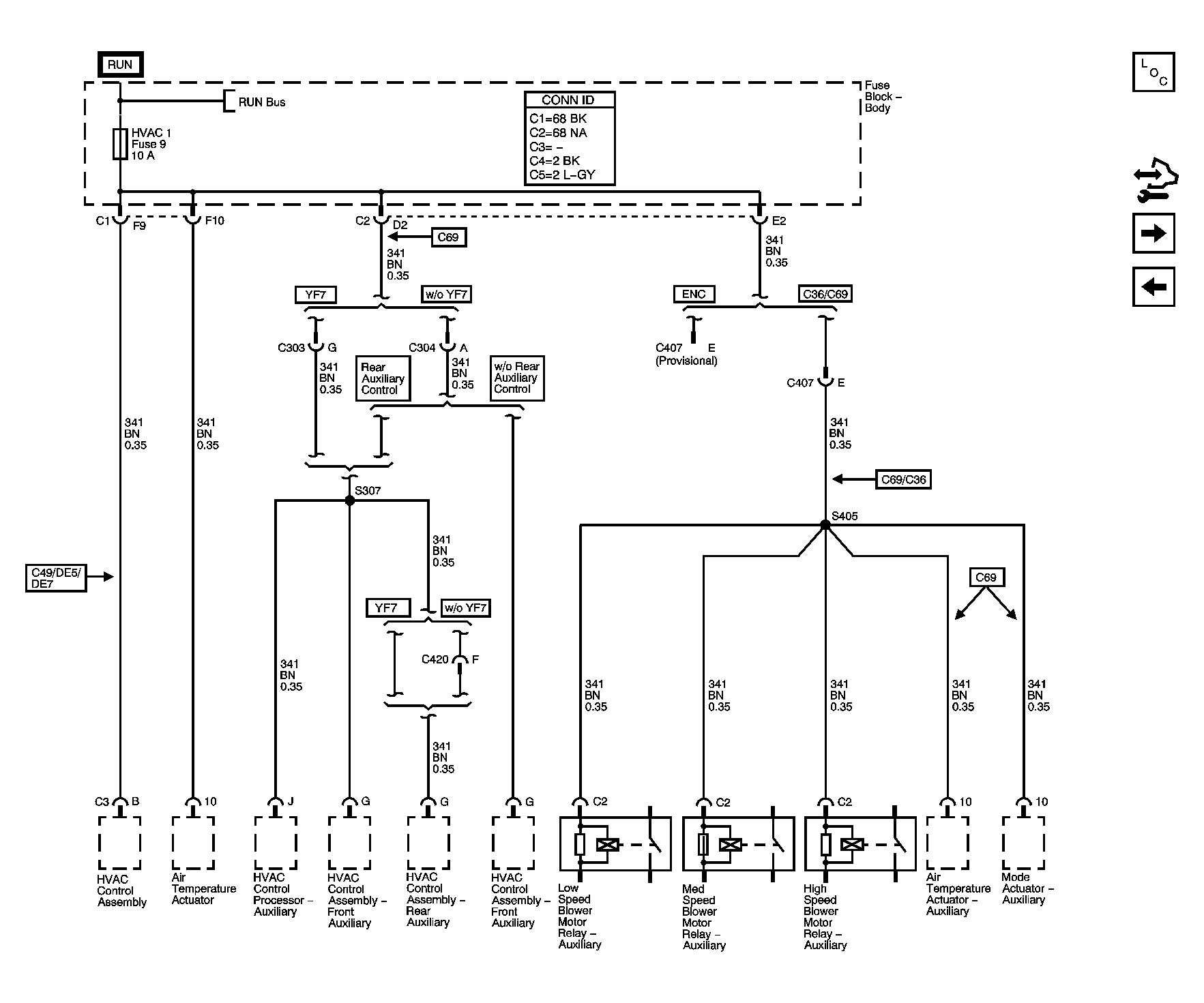

Fig 16: HVAC 1 Fuse Schematics

Courtesy of GENERAL MOTORS CORP.

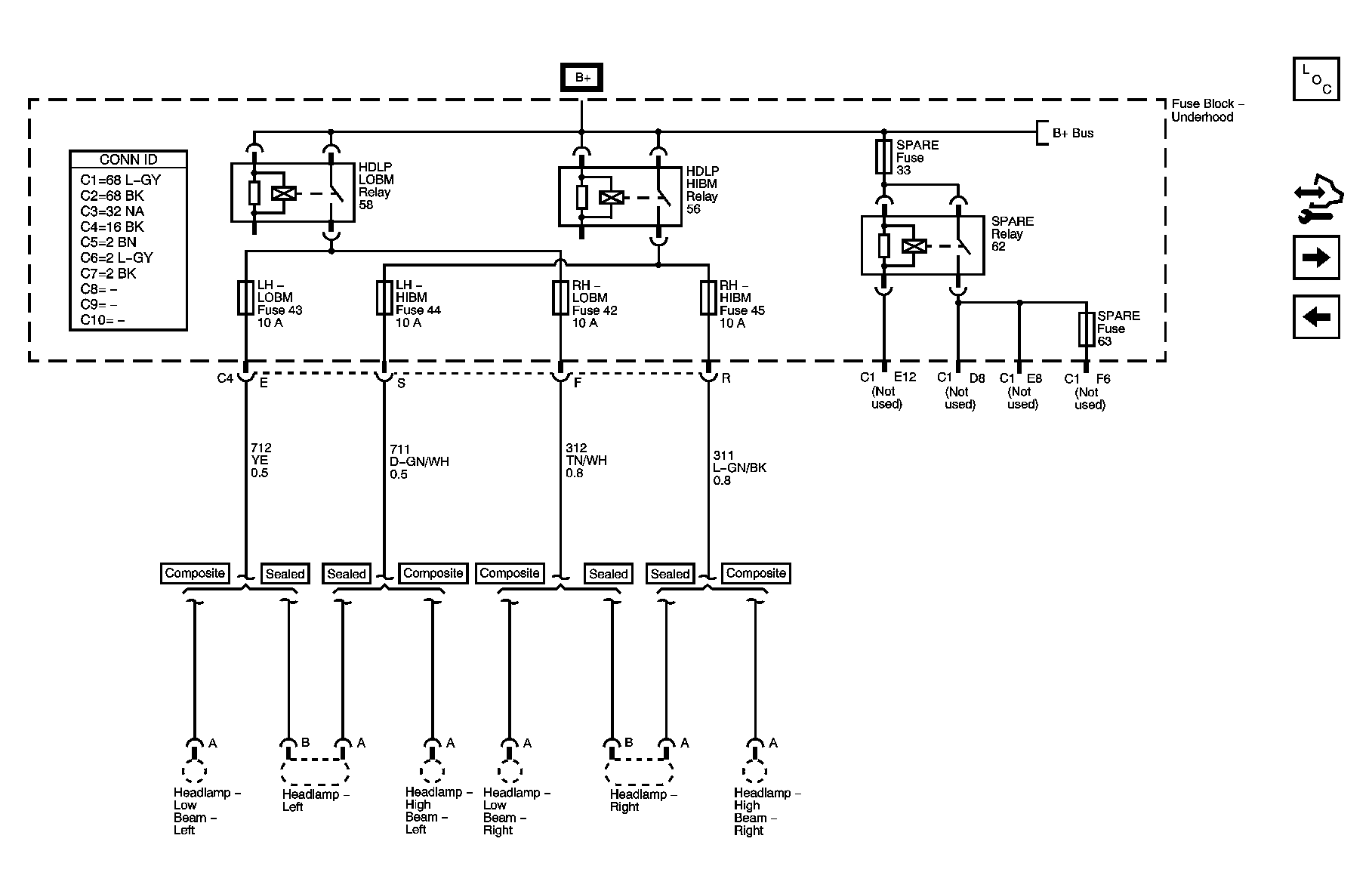

Fig 17: LH - HIBM, LH - LOBM, RH - HIBM, RH - LOBM and SPARE Fuses Schematics

Courtesy of GENERAL MOTORS CORP.

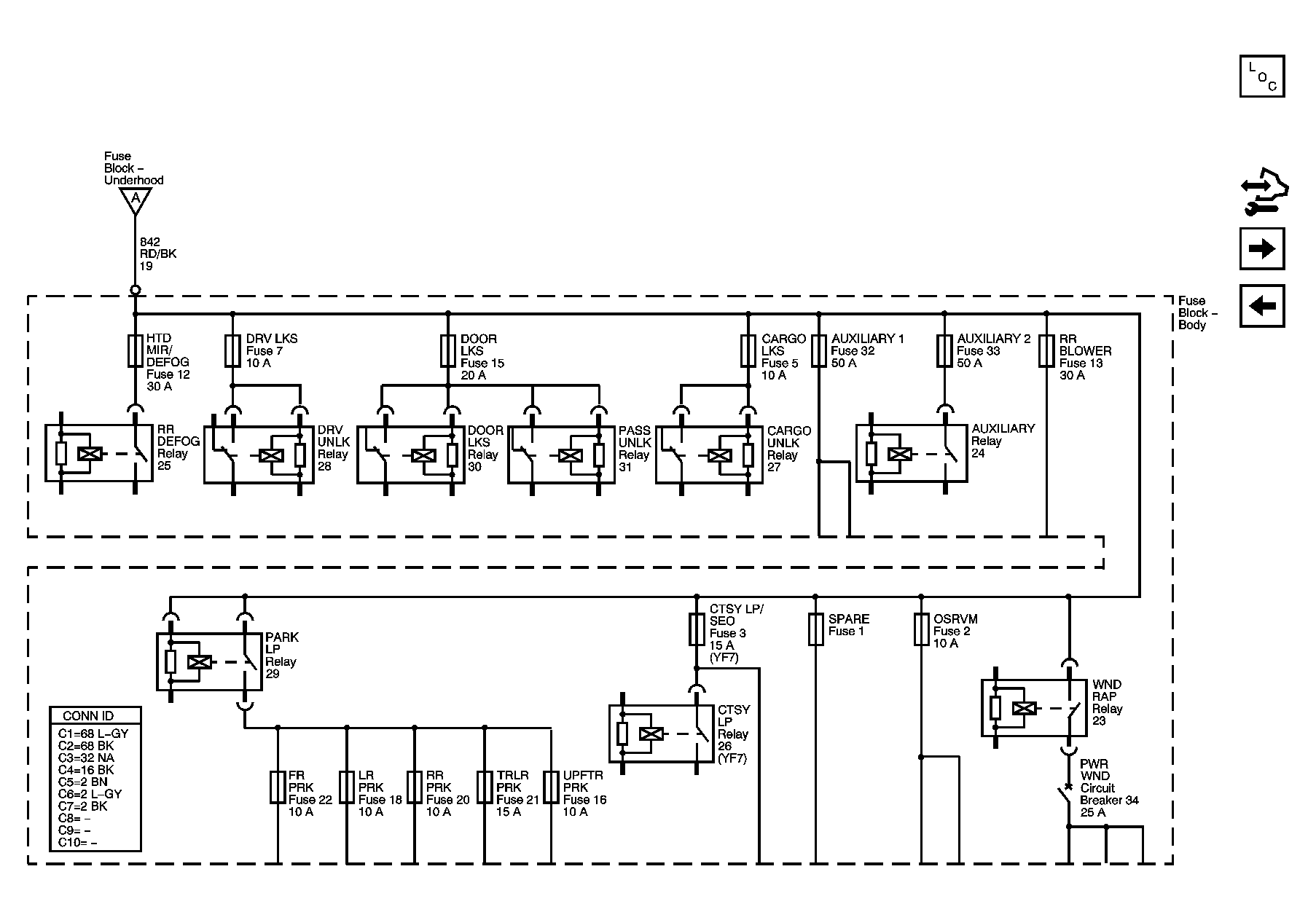

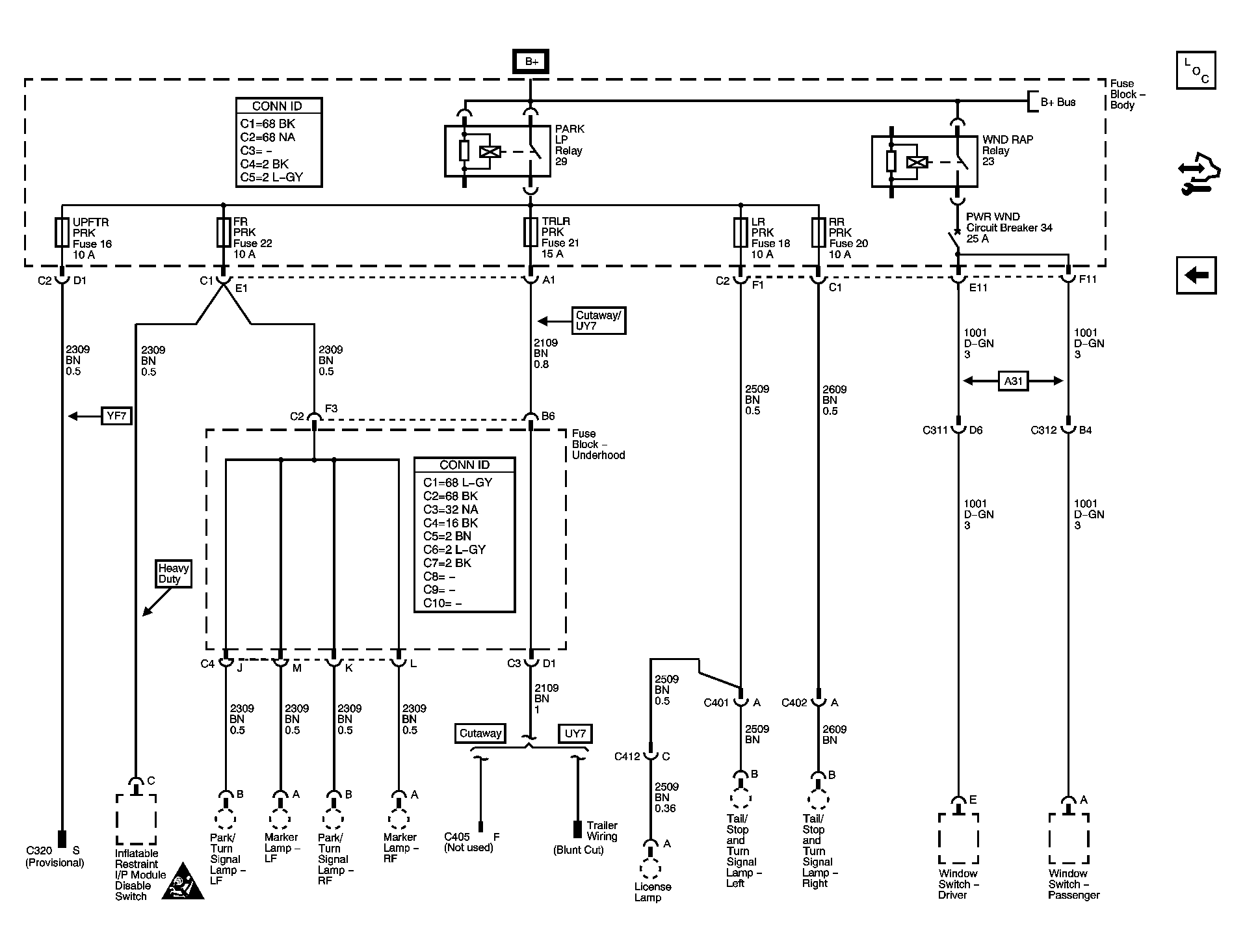

Fig 18: FR PRK, LR PRK, RR PRK, TRLR PRK, UPFTR PRK Fuses and PWR WND Circuit Breaker Schematics

Courtesy of GENERAL MOTORS CORP.
