Ground Distribution Schematics

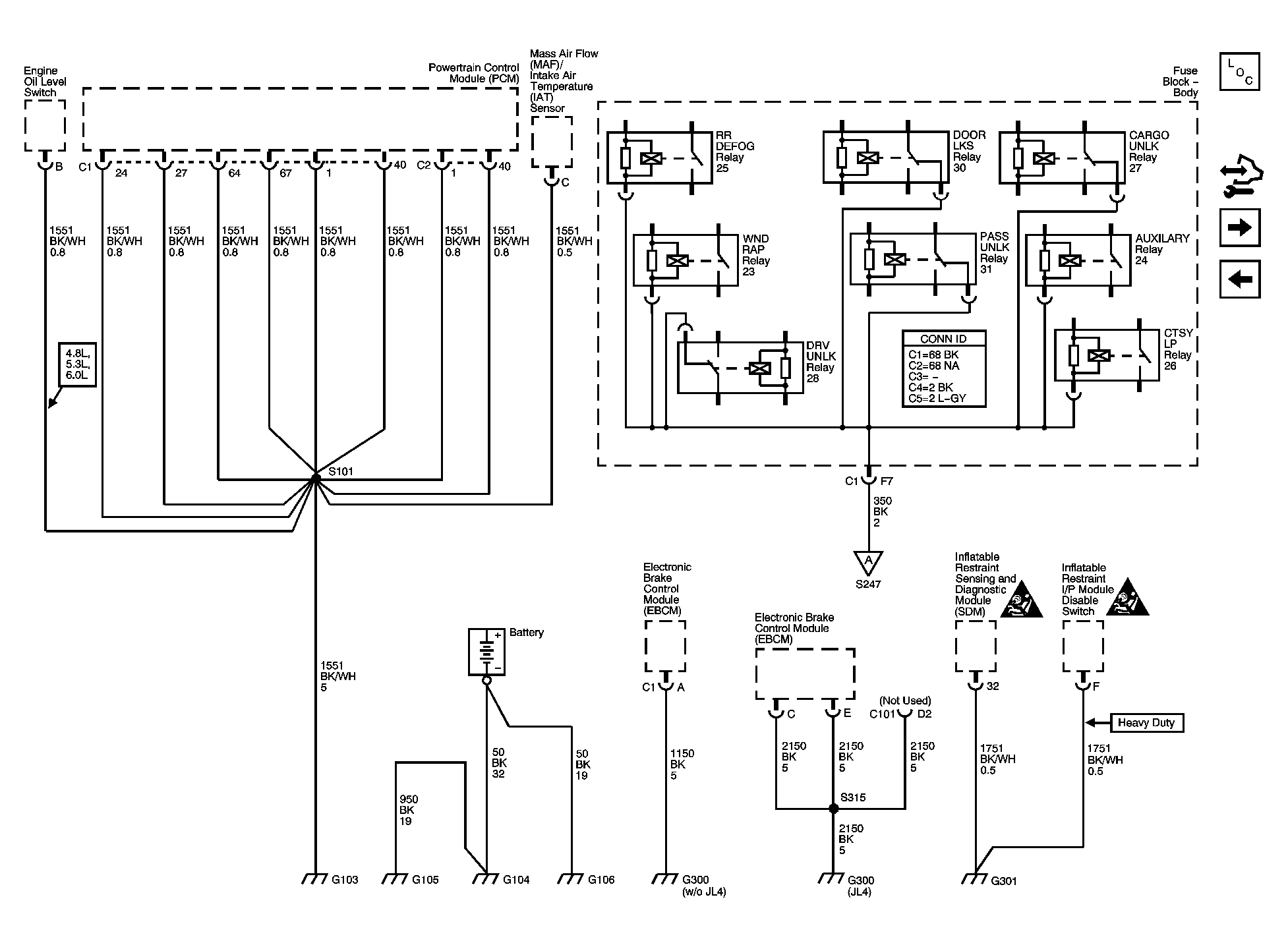

Fig 1: G100 and G101 Schematics

Courtesy of GENERAL MOTORS CORP.

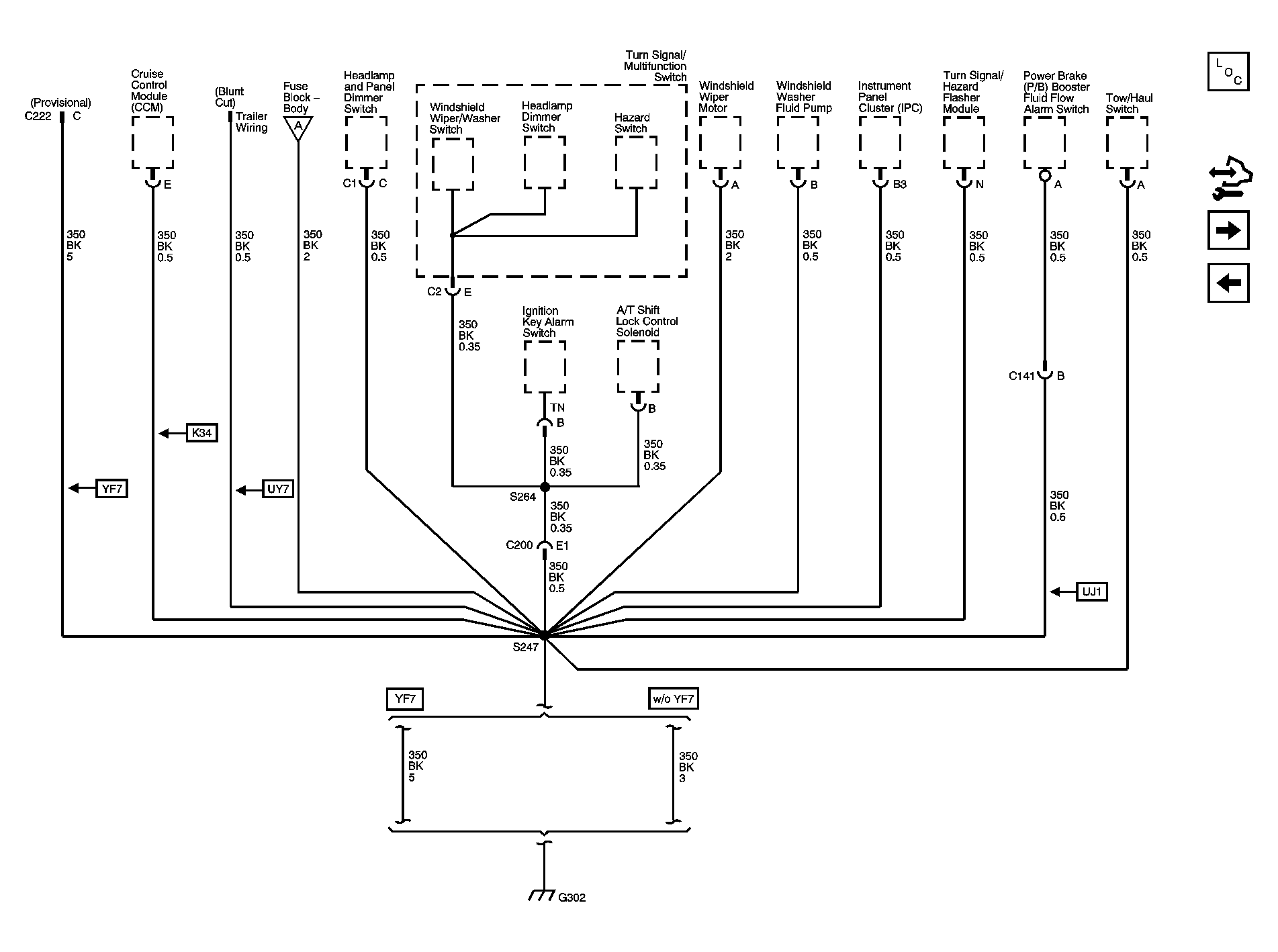

Fig 2: G102 Schematics

Courtesy of GENERAL MOTORS CORP.

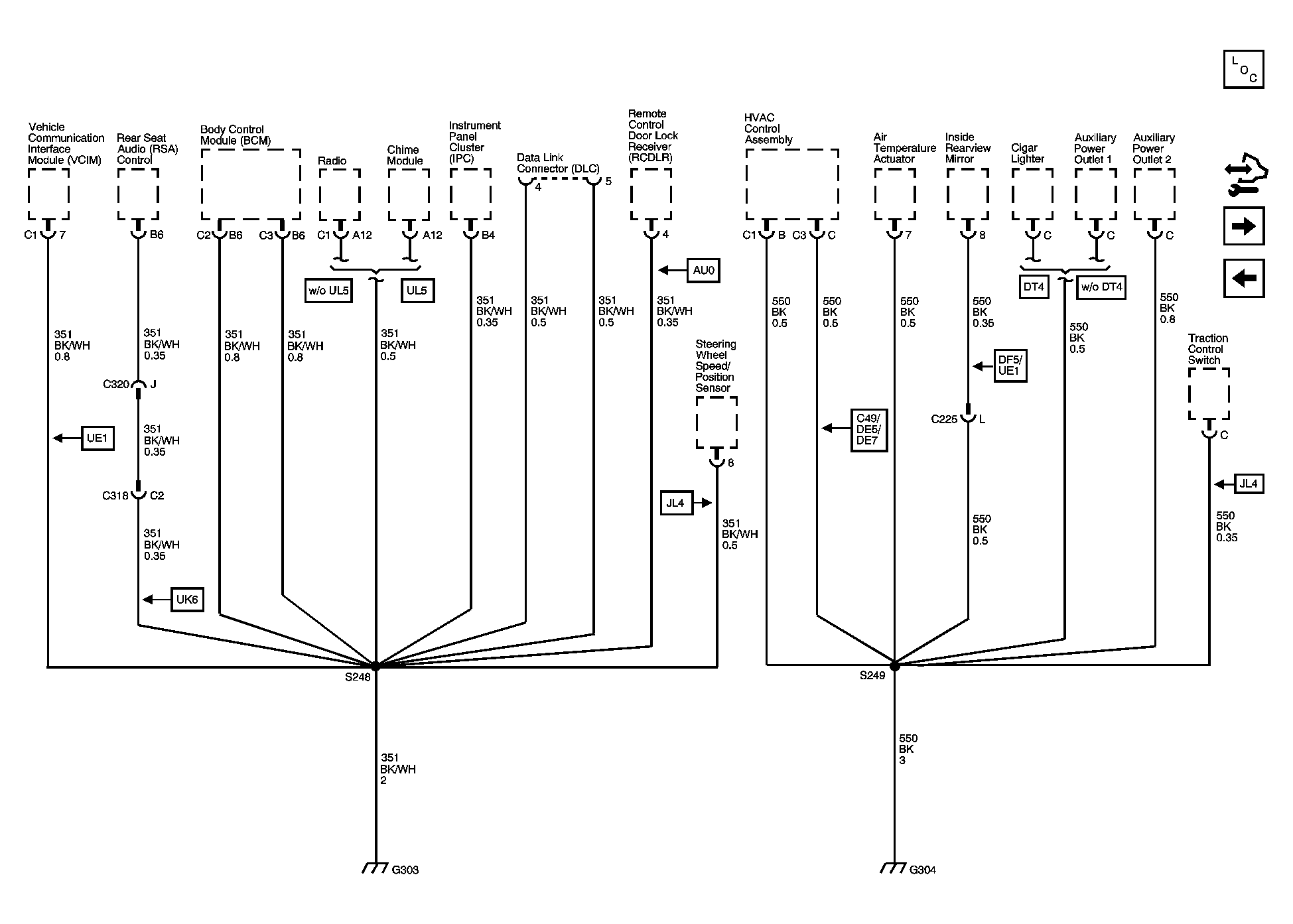

Fig 3: G103, G104, G105, G106, G300 and G301 Schematics

Courtesy of GENERAL MOTORS CORP.

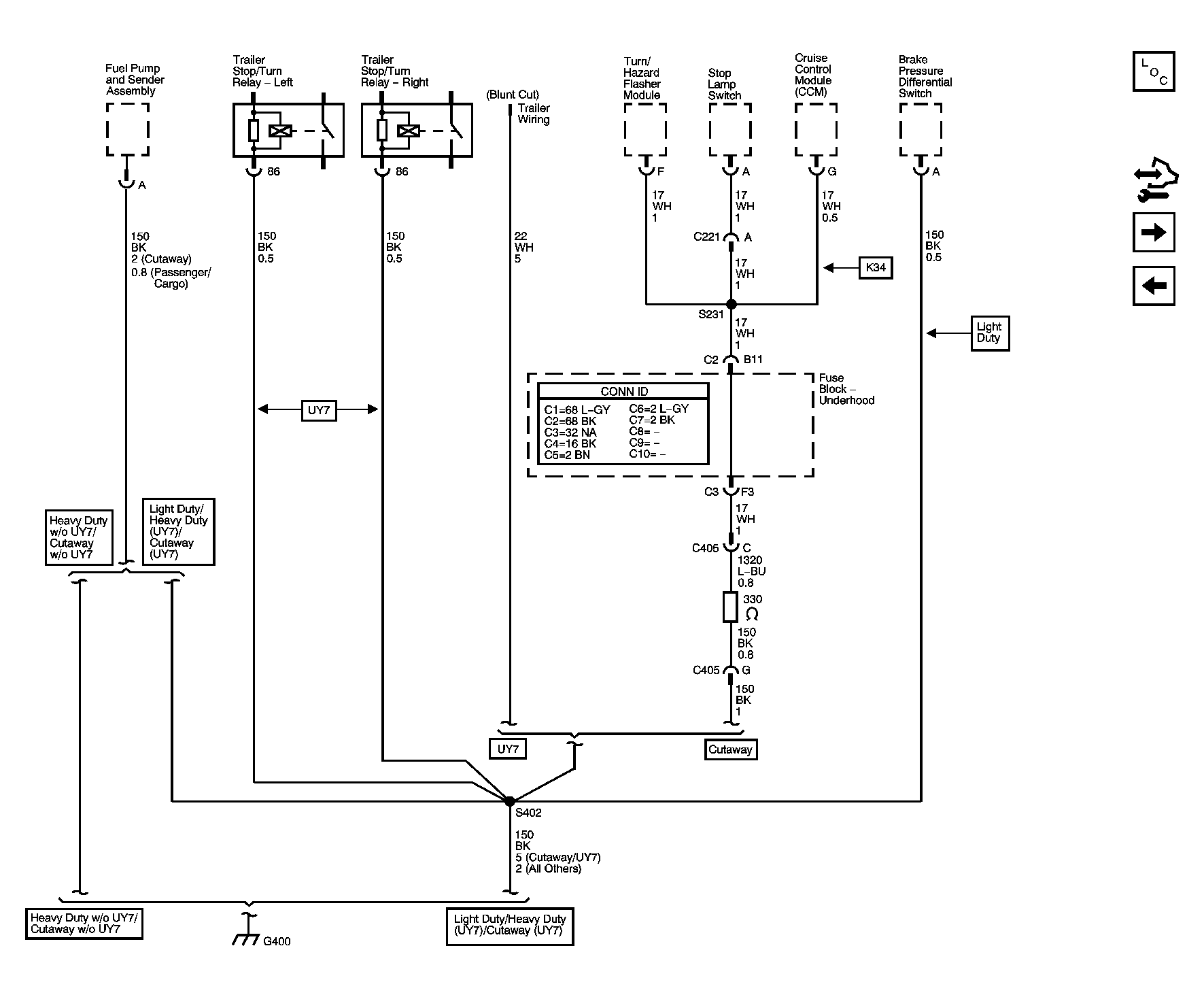

Fig 4: G302 Schematics

Courtesy of GENERAL MOTORS CORP.

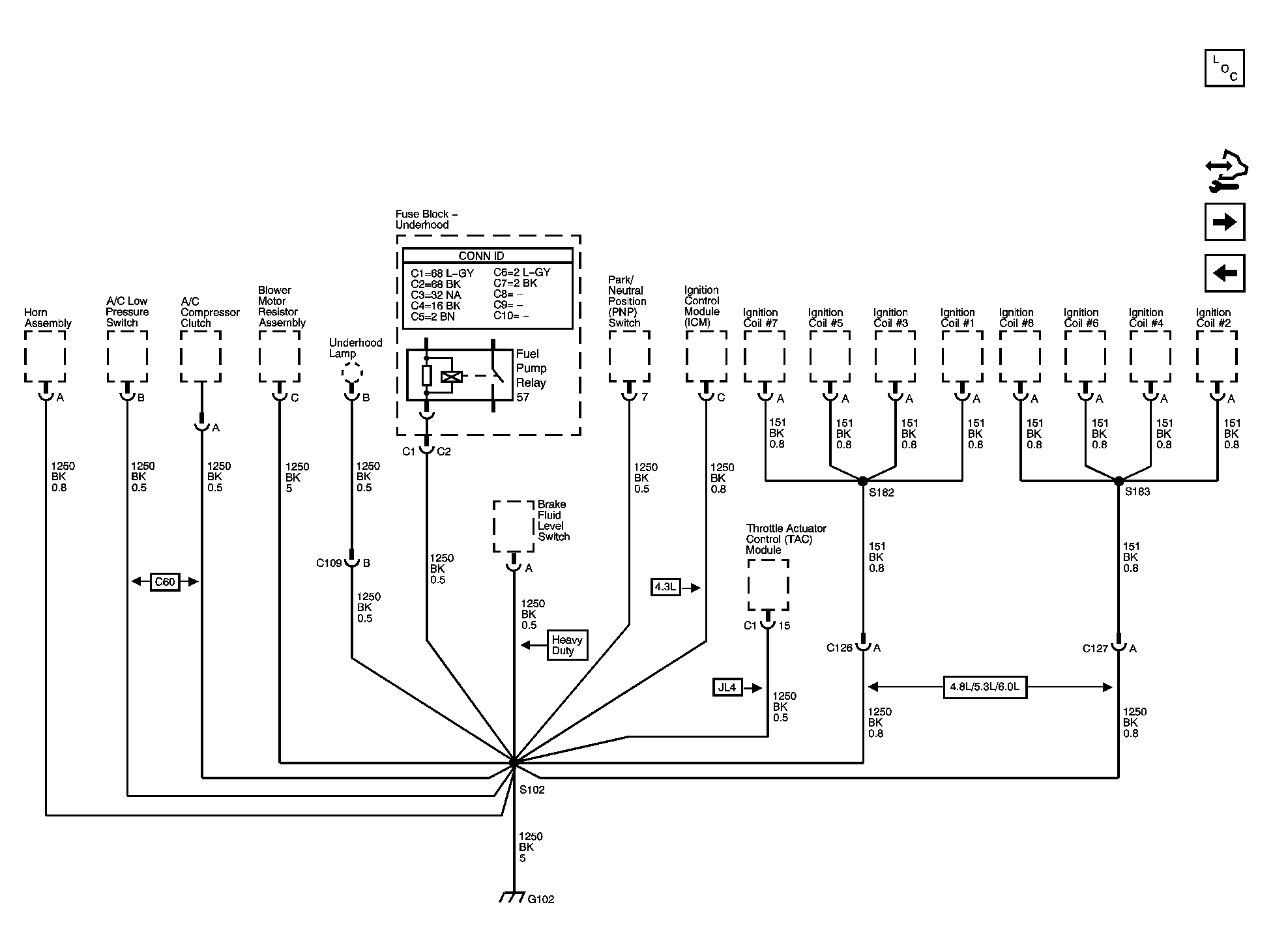

Fig 5: G303 and G304 Schematics

Courtesy of GENERAL MOTORS CORP.

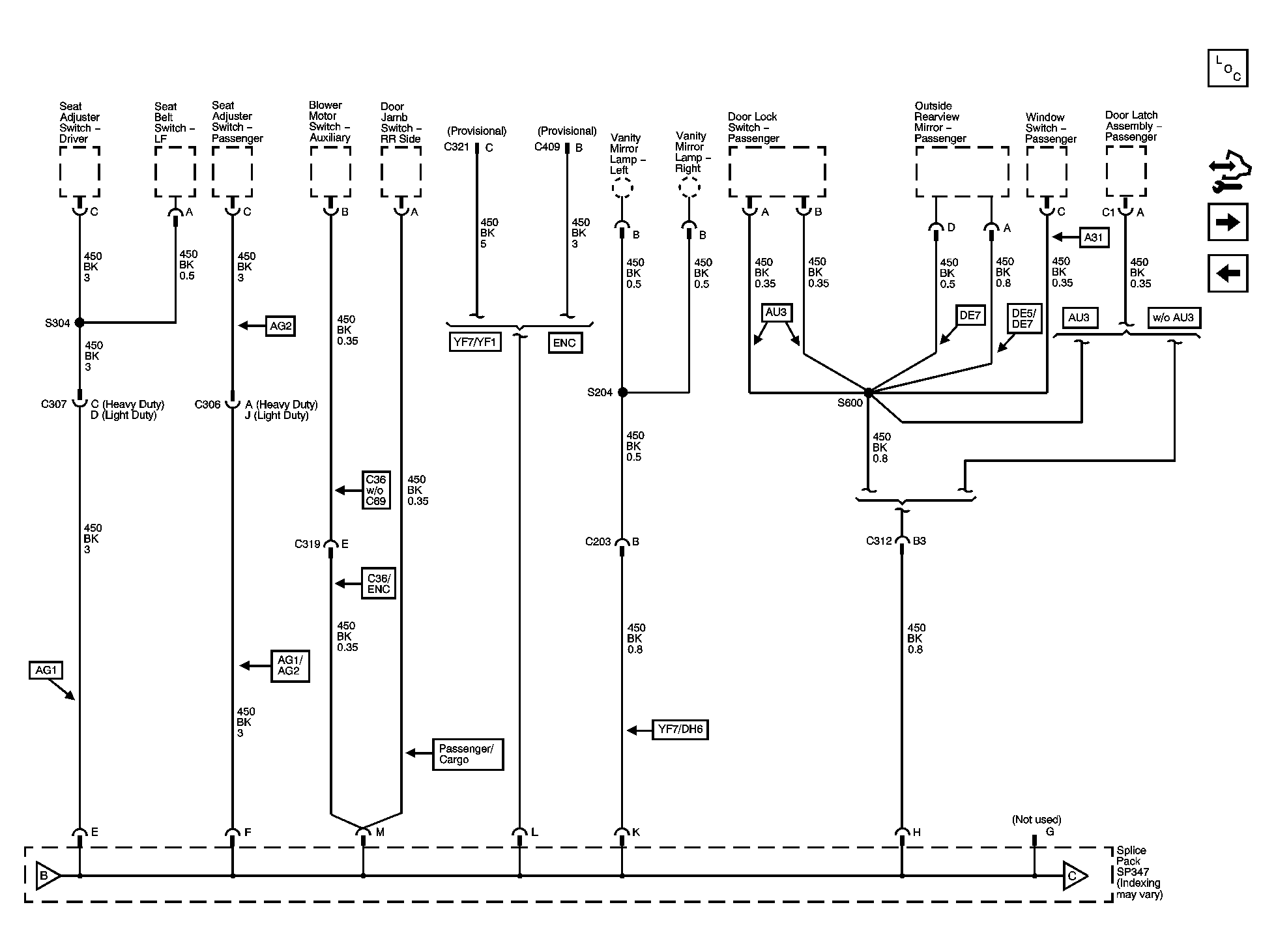

Fig 6: G347 Schematics - 1 of 3

Courtesy of GENERAL MOTORS CORP.

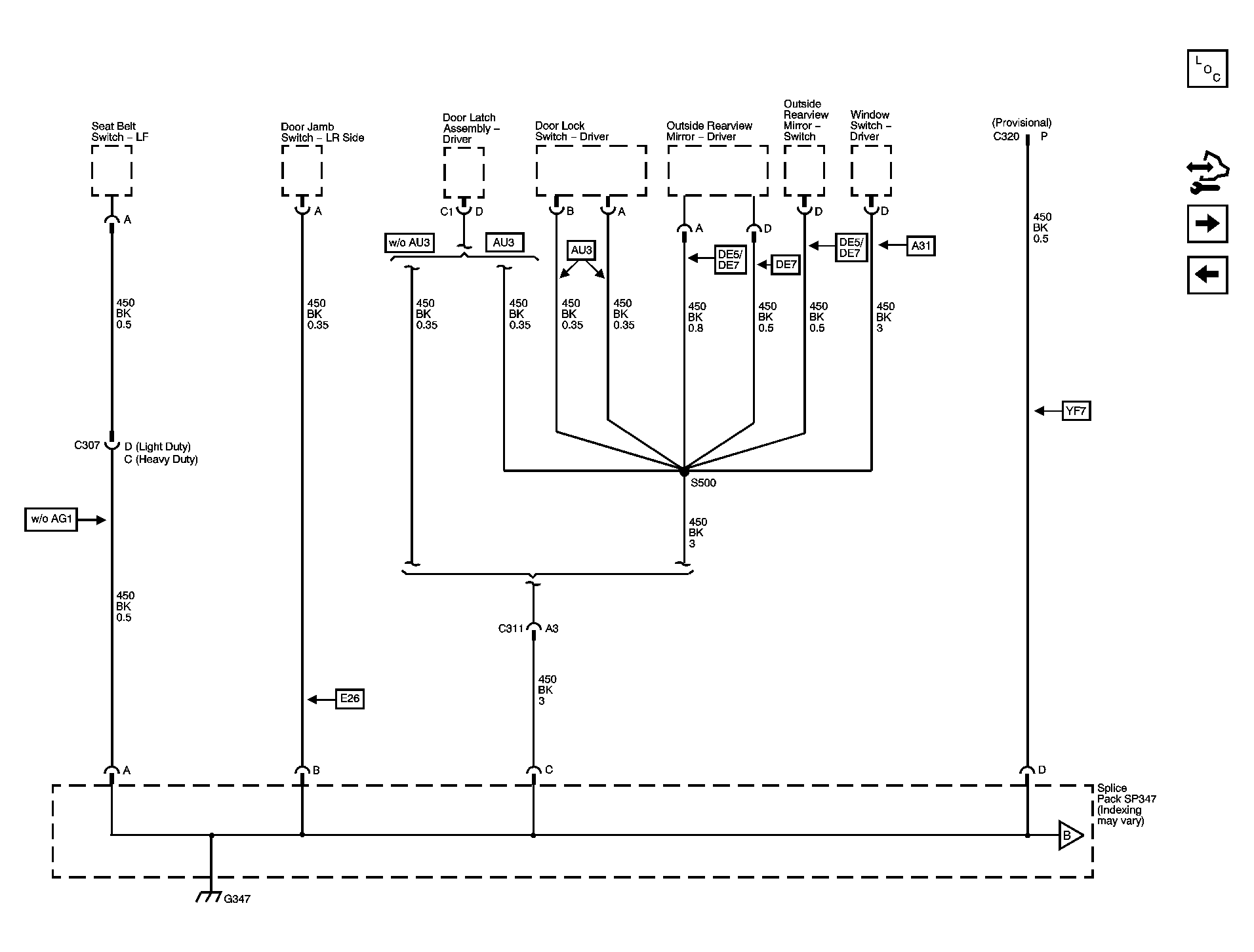

Fig 7: G347 Schematics - 2 of 3

Courtesy of GENERAL MOTORS CORP.

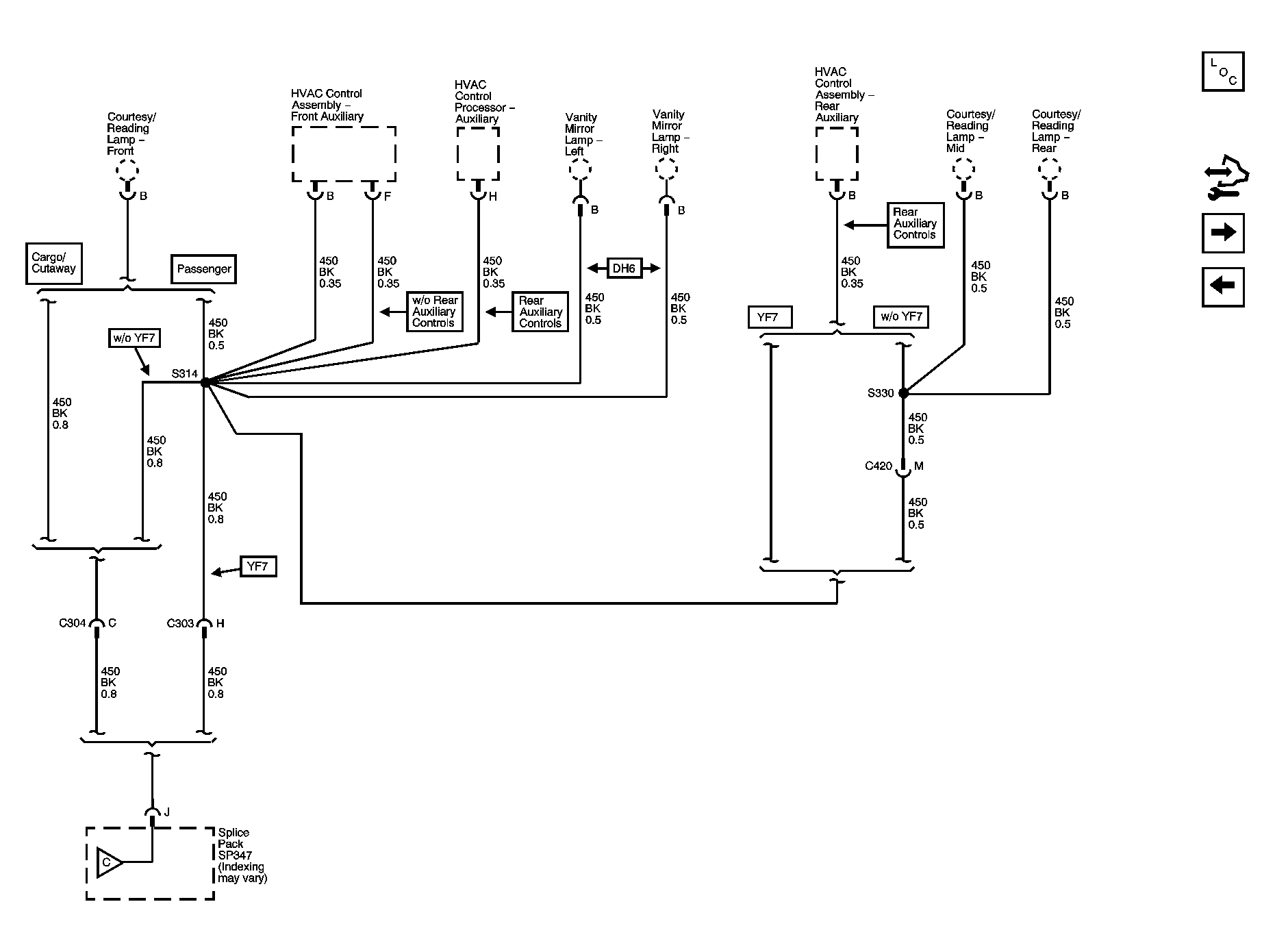

Fig 8: G347 Schematics - 3 of 3

Courtesy of GENERAL MOTORS CORP.

Fig 9: G400 Schematics

Courtesy of GENERAL MOTORS CORP.

Fig 10: G401 - Passenger/Cargo Schematics

Courtesy of GENERAL MOTORS CORP.

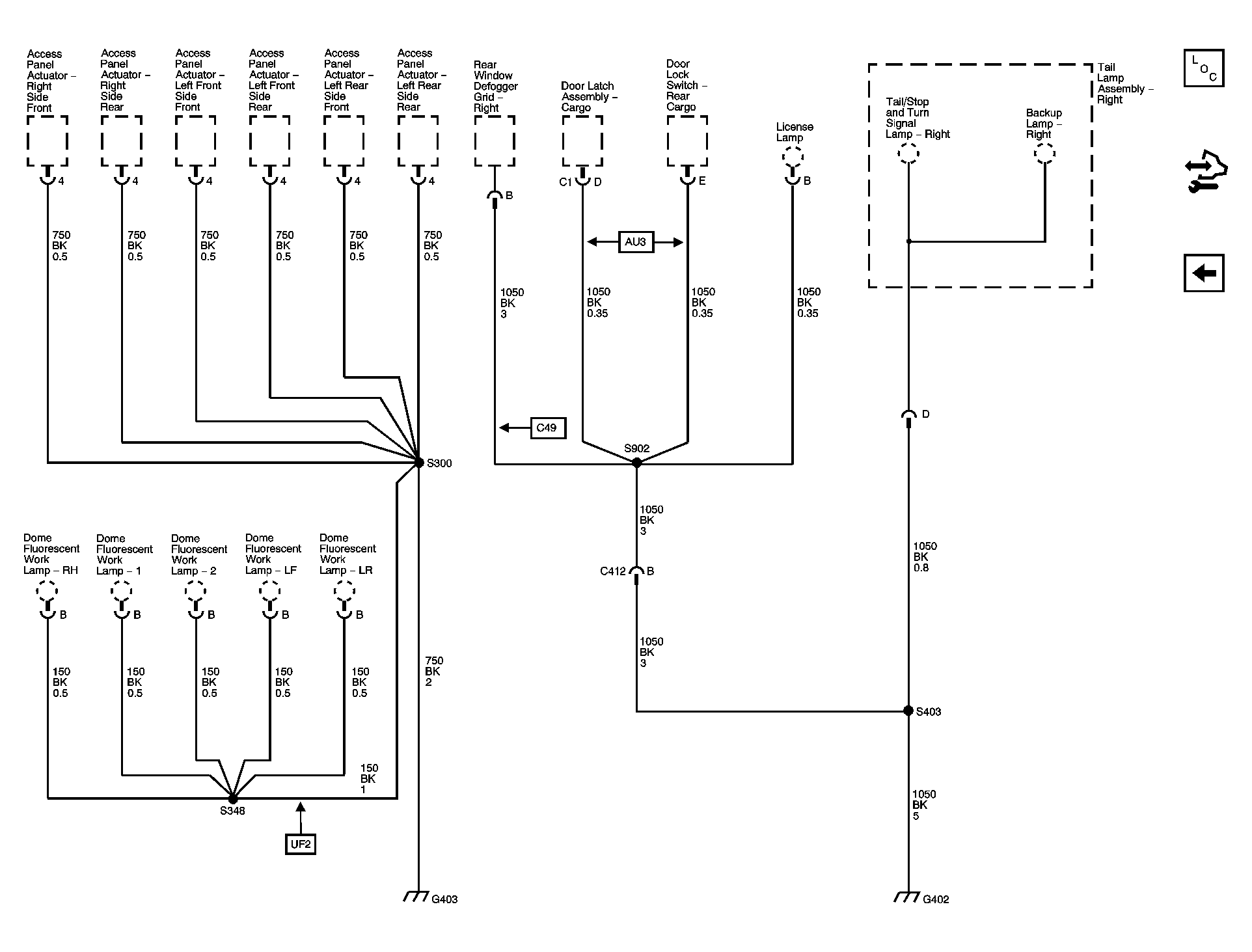

Fig 11: G402 - Passenger/Cargo and G403 - PRP Schematics
