Power and Grounding Component Views

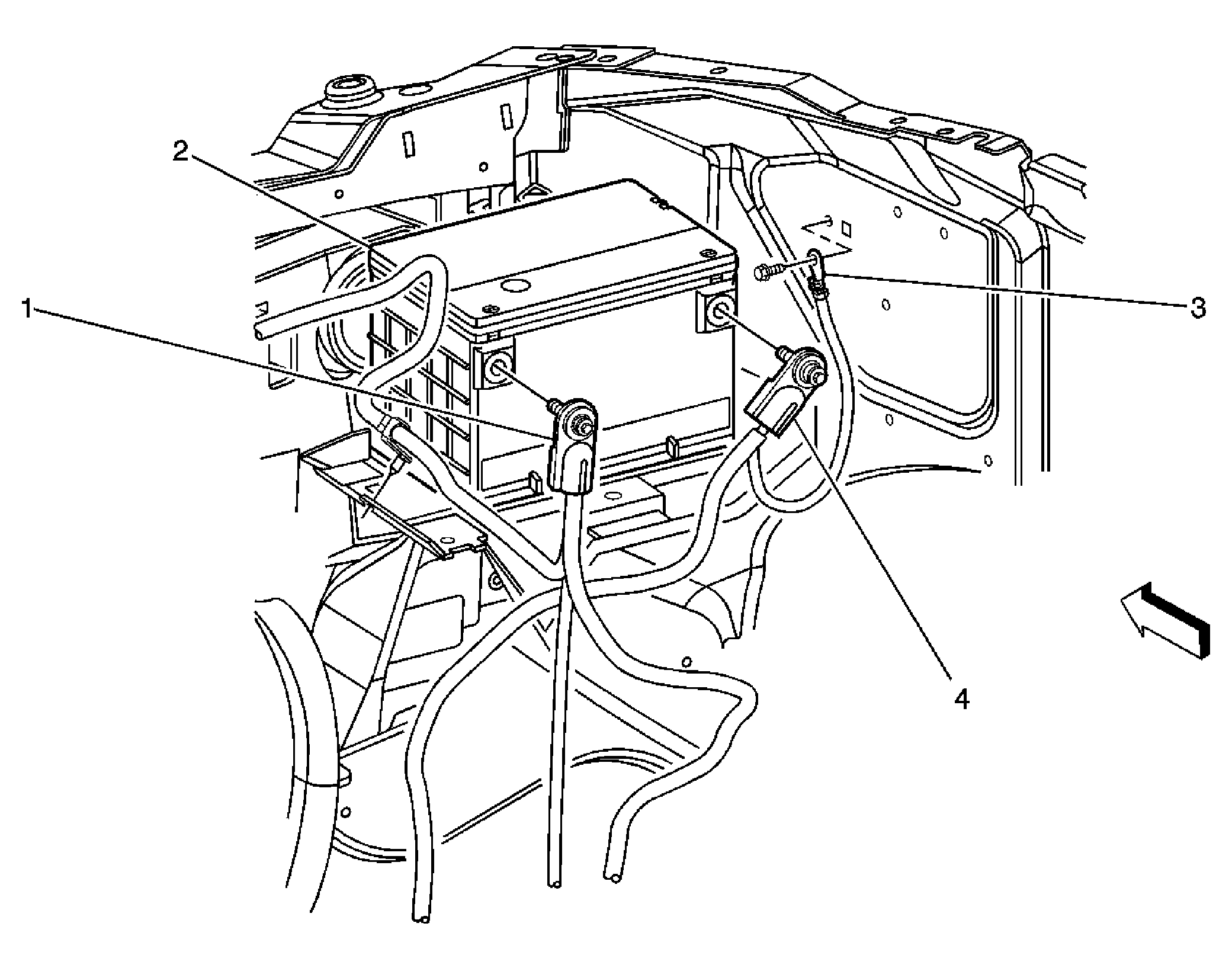

Fig 1: Component View - Battery - G106
GM882408Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Battery Cable (+)
2 Battery
3 G106
4 Battery Cable (-)

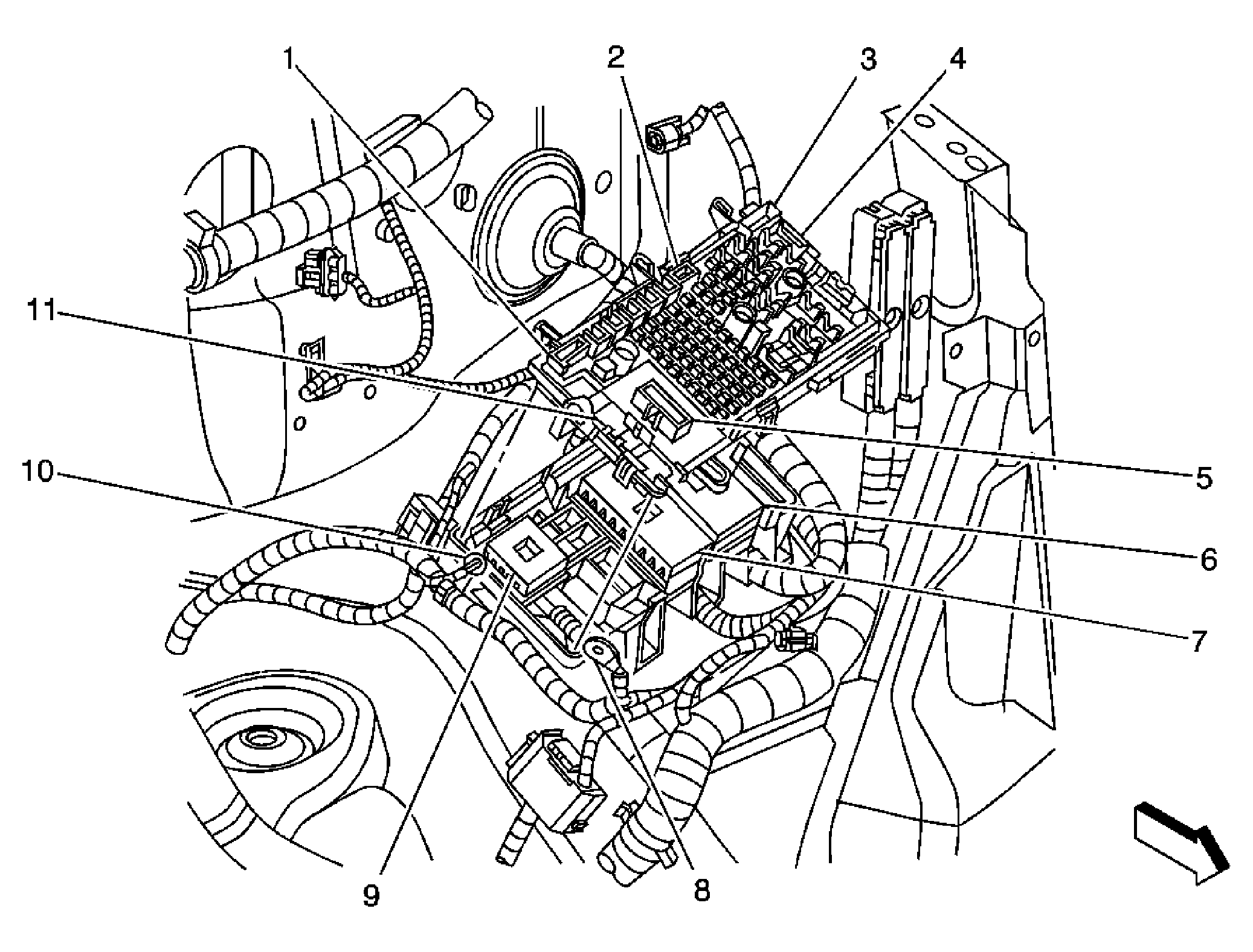

Fig 2: Component View - Fuse Block - Underhood
GM886068Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuse Block Underhood - C7
2 Fuse Block Underhood - C5
3 Fuse Block Underhood - C6
4 Fuse Block - Underhood
5 Fuse Block Underhood - C4
6 Fuse Block Underhood - C1
7 Fuse Block Underhood - C2
8 Fuse Block Underhood - C10
9 Fuse Block Underhood - C3
10 Fuse Block Underhood - C8 (UY7)
11 Fuse Block Underhood - C9

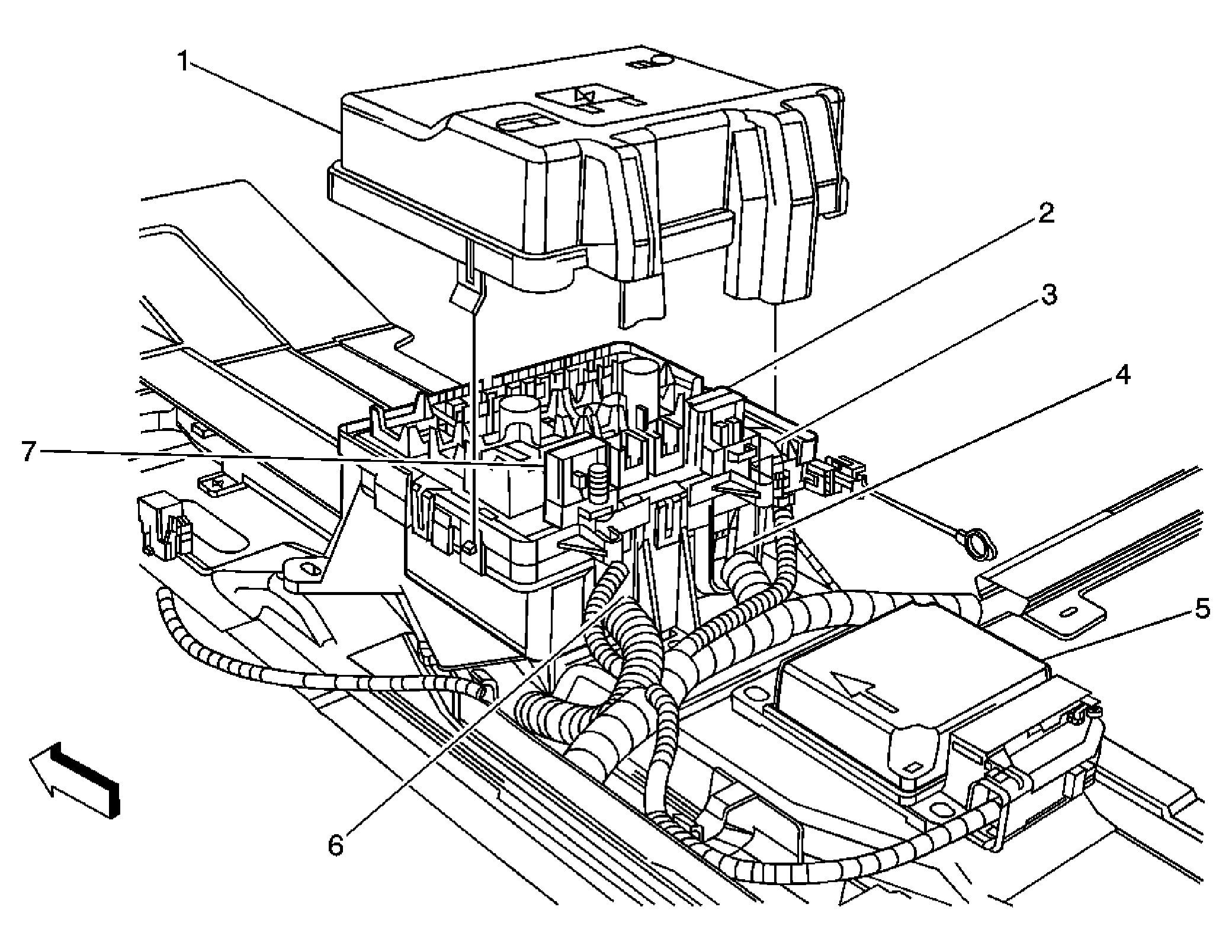

Fig 3: Component View - Fuse Block - Body
GM886070Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuse Block Body - Cover
2 Fuse Block Body - C4 (YF7)
3 Fuse Block Body - C3
4 Fuse Block Body - C1
5 Inflatable Restraint Sensing and Diagnostic Module (SDM)
6 Fuse Block Body - C2
7 Fuse Block Body - C5 (YF7)

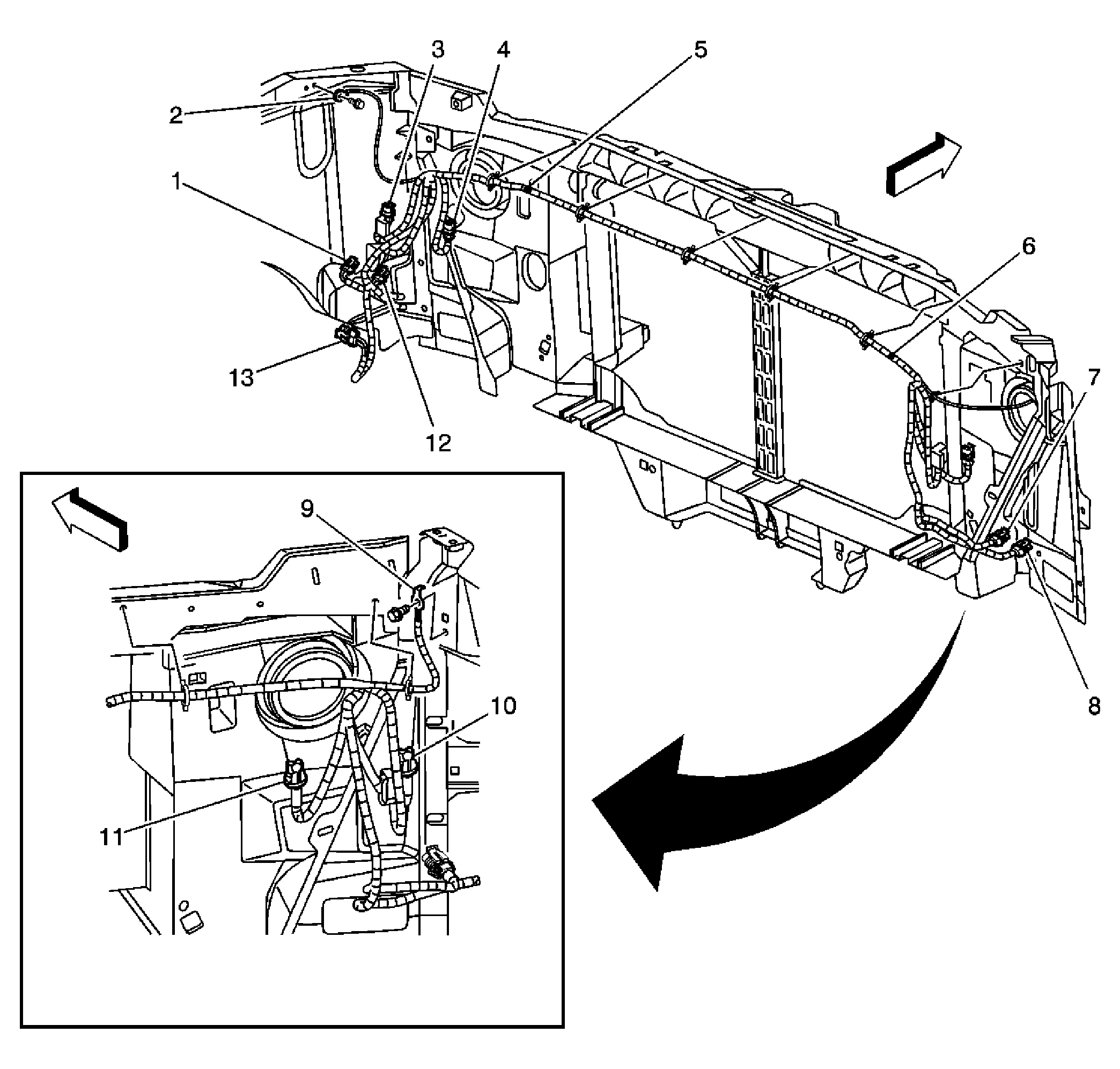

Fig 4: Component View - Forward Lamps Harness Routing
GM882406Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Marker Lamp Connector - LF
2 G100
3 Headlamp - Low Beam Connector - Left (Composite)
4 Headlamp - High Beam Connector - Left (Composite)
5 S110
6 S118
7 Park/Turn Signal Lamp Connector - RF
8 Marker Lamp Connector - RF
9 G101
10 Headlamp - Low Beam Connector - Right (Composite)
11 Headlamp - High Beam Connector - Right (Composite)
12 Park/Turn Signal Lamp Connector - LF
13 Fuse Block Underhood - C4

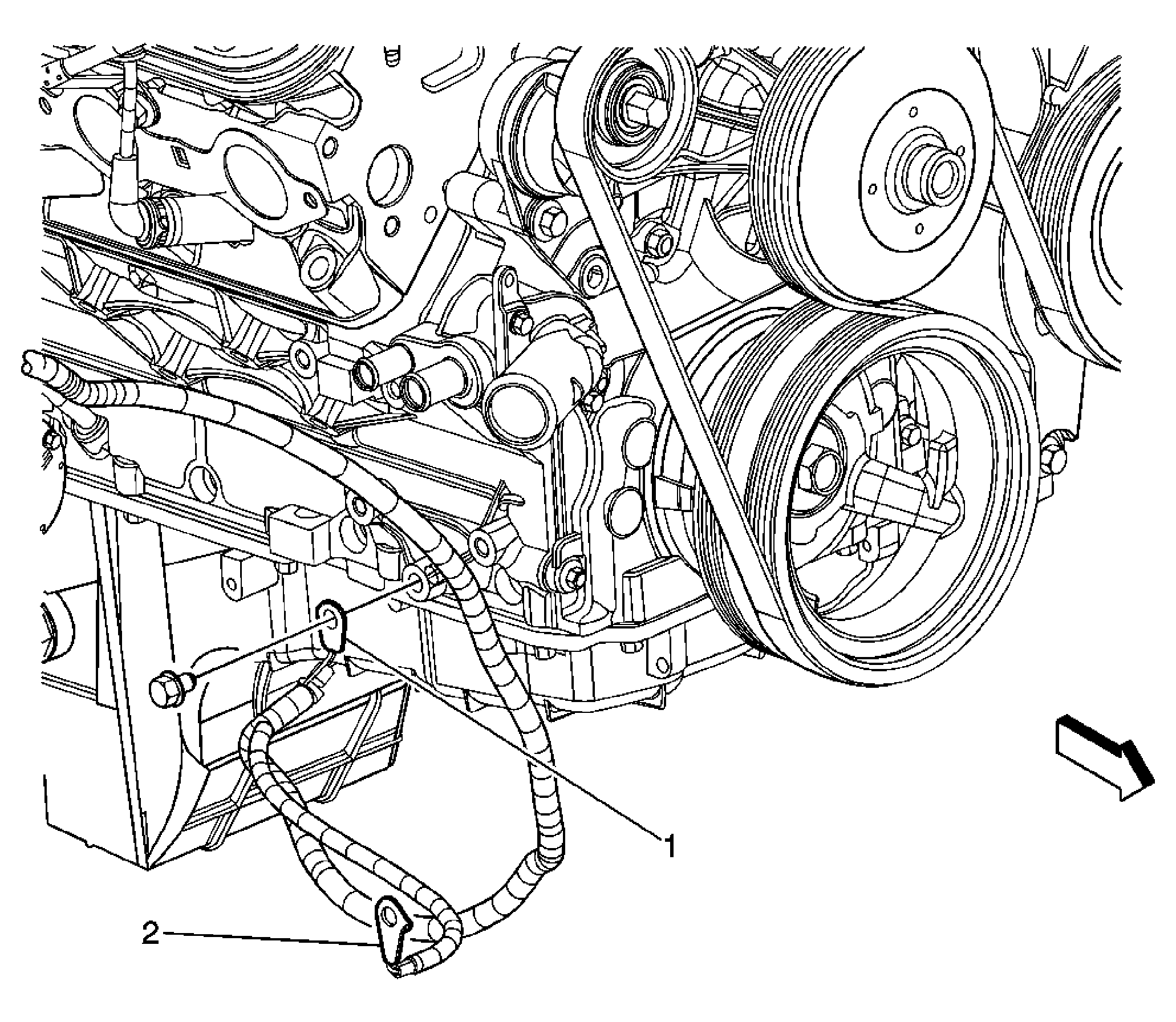

Fig 5: Component View - G104 & G105
GM882410Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G104
2 G105
Fig 6: Component View - Engine Harness - Back Of Engine (4.3L)
GM882677Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G102
2 Camshaft Position (CMP) Sensor Connector
3 G103
4 Engine Oil Pressure (EOP) Sensor Connector
5 Knock Sensor (KS) Connector
6 Heated Oxygen Sensor (HO2S) Bank 1 Sensor 1 Connector
Fig 7: Component View - Engine Harness - Back Of Engine (4.8L/5.3L/6.0L)
GM882710Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G102
2 Engine Oil Pressure (EOP) Sensor Connector
3 G103
4 Camshaft Position (CMP) Sensor Connector

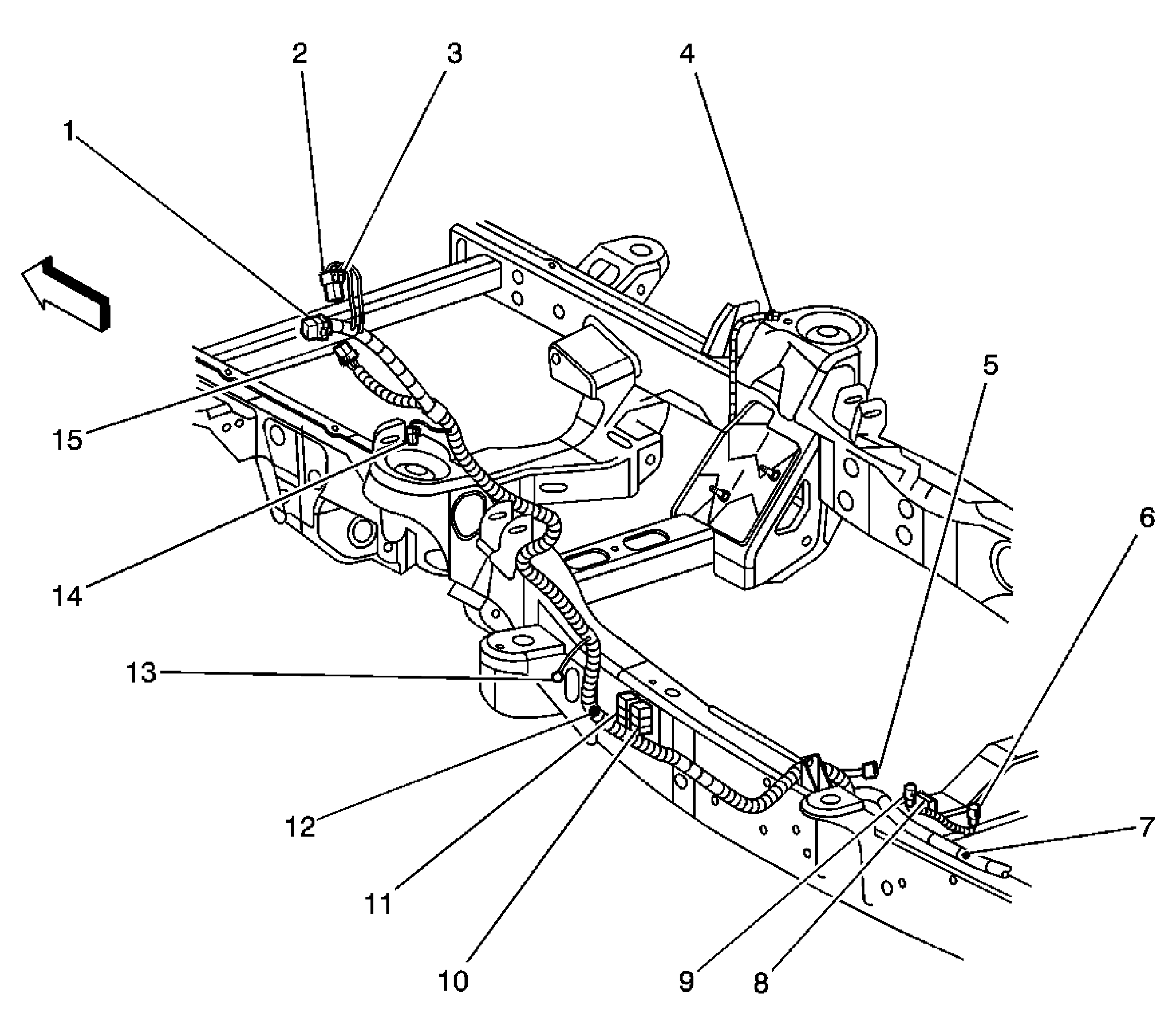

Fig 8: Component View - Chassis Harness Routing (Passenger/Cargo)
GM1371219Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuse Block Underhood - C3
2 Fuse Block Underhood - C7
3 Fuse Block Underhood - C8 (UY7)
4 Wheel Speed Sensor (WSS) Connector - RF
5 Brake Pressure Differential Switch Connector (Light Duty)
6 Evaporative Emission (EVAP) Canister Vent Solenoid Connector (Gas)
7 S301
8 Electronic Brake Control Module (EBCM) Connector (JL4)/Electronic Brake Control Module (EBCM) - C2 (w/o JL4)
9 Electronic Brake Control Module (EBCM) - C1 (w/o JL4)
10 Trailer Right Stop/Turn Relay (UY7)
11 Trailer Left Stop/Turn Relay (UY7)
12 S315 (JL4)
13 G300
14 Wheel Speed Sensor (WSS) Connector - LF
15 C101

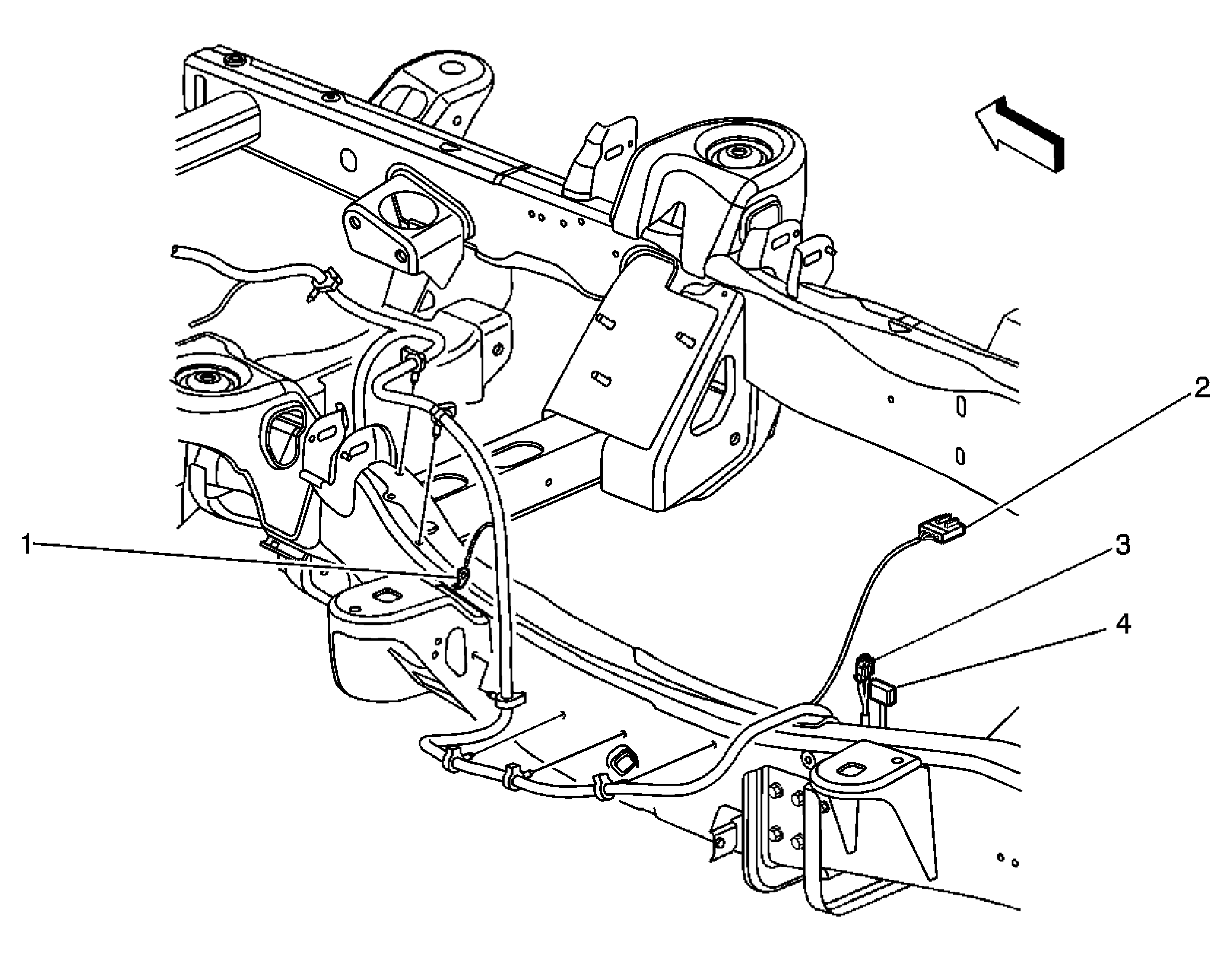

Fig 9: Component View - Outer Center Frame (Cutaway)
GM884972Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G300
2 Evaporative Emission (EVAP) Canister Vent Solenoid Connector (Gas)
3 Electronic Brake Control Module (EBCM) - C1
4 Electronic Brake Control Module (EBCM) - C2

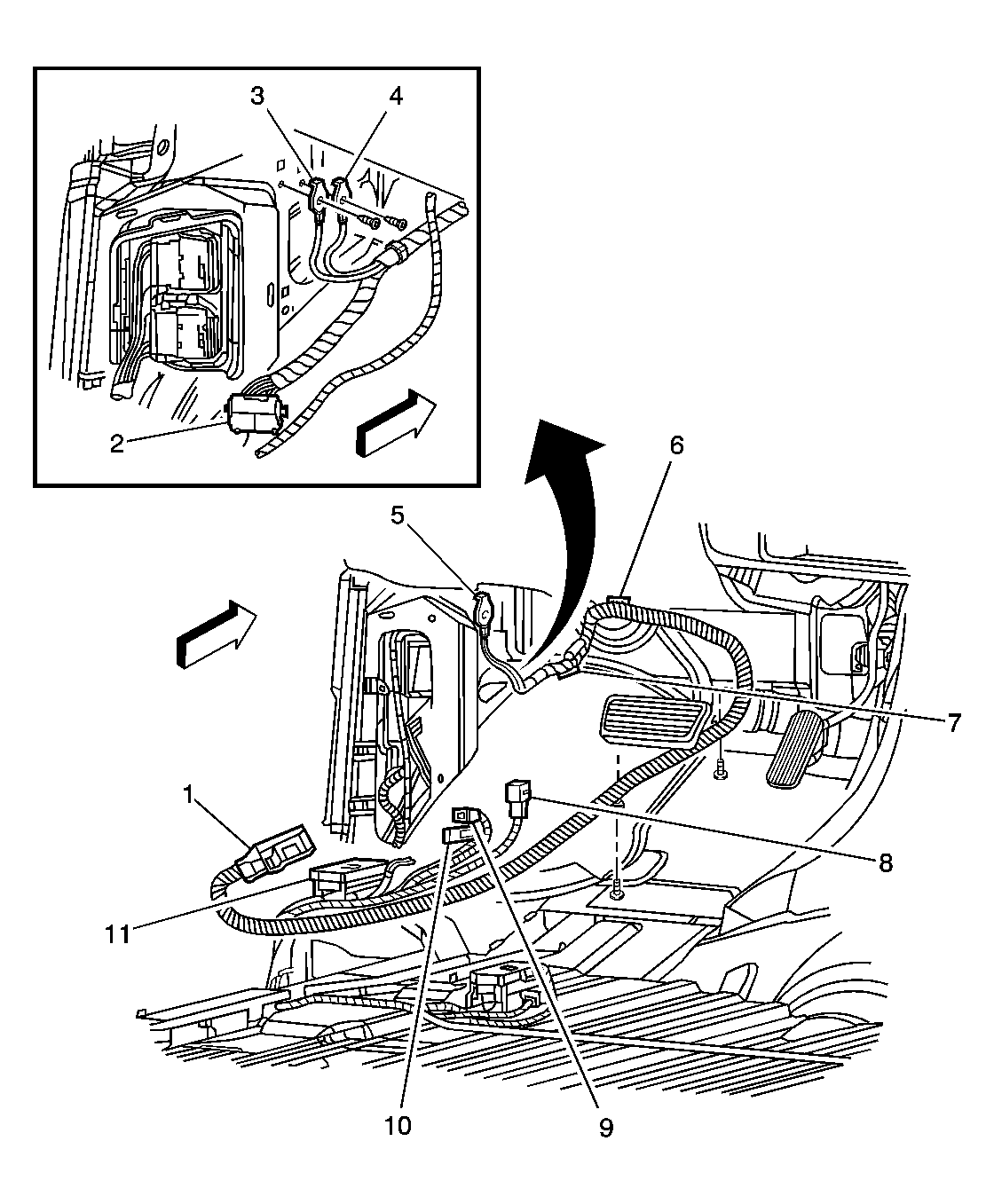

Fig 10: Component View Of I/P Harness Routing - Lower Left Side Of Passenger Compartment
GM883613Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Inflatable Restraint Sensing and Diagnostic Module (SDM) Connector
2 C318
3 G301
4 G302
5 G303
6 SP200
7 C222 (YF7)
8 Seat Belt Pretentioner Connector - LF (Light Duty - Early Production)
9 C300 (Light Duty - Early Production)
10 Fuse Block Body - C5 (YF7)
11 Fuse Block Body - C3
Fig 11: Component Views - Upper Steering Column
GM1195907Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Passlock Sensor
2 Ignition Key Alarm Switch
3 Ignition Lock Cylinder Control Actuator
4 Ignition Switch
5 Ignition Key Cylinder
6 Horn Switch
7 Inflatable Restraint Steering Wheel Module
8 Turn Signal/Multifunction Switch
9 Hazard Switch

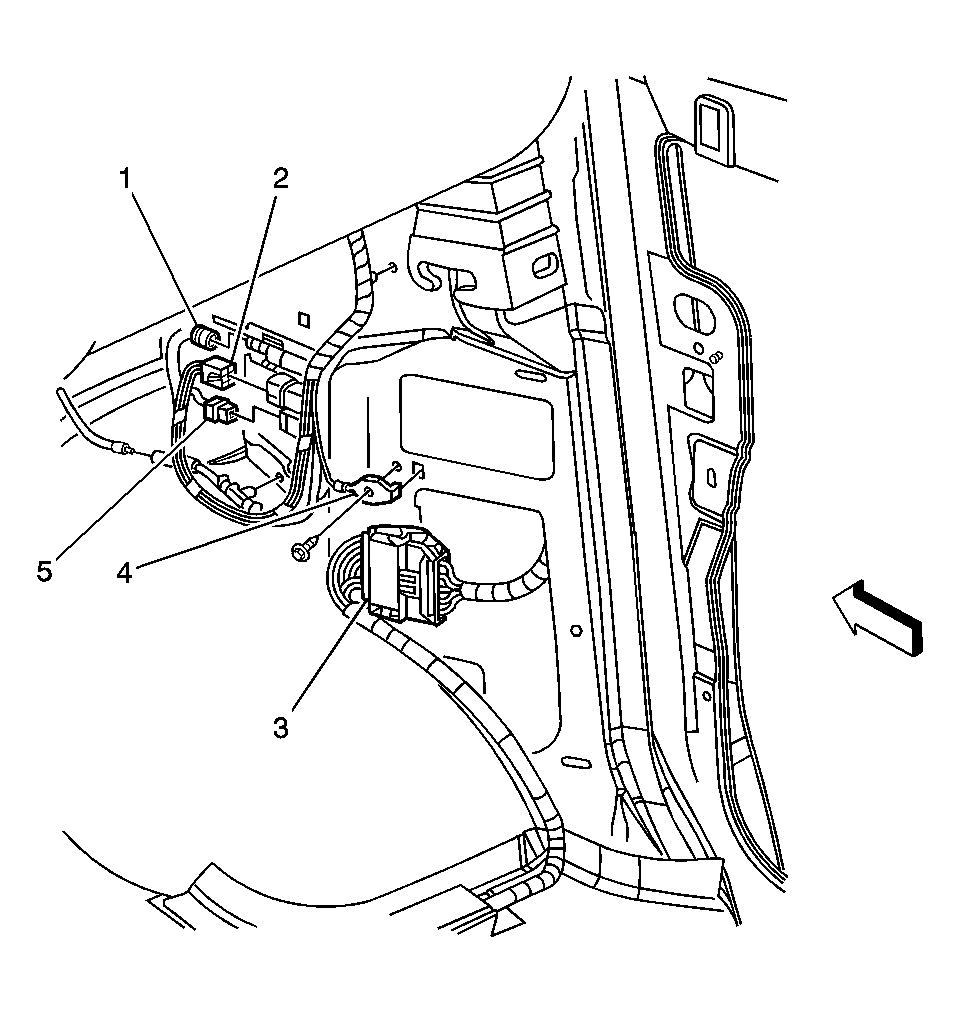

Fig 12: I/P Harness Routing - Right Side Of Passenger Compartment
GM883636Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C201 (UE1)
2 C225 (DF5/UE1)
3 C312
4 G304
5 C202 (UE1)

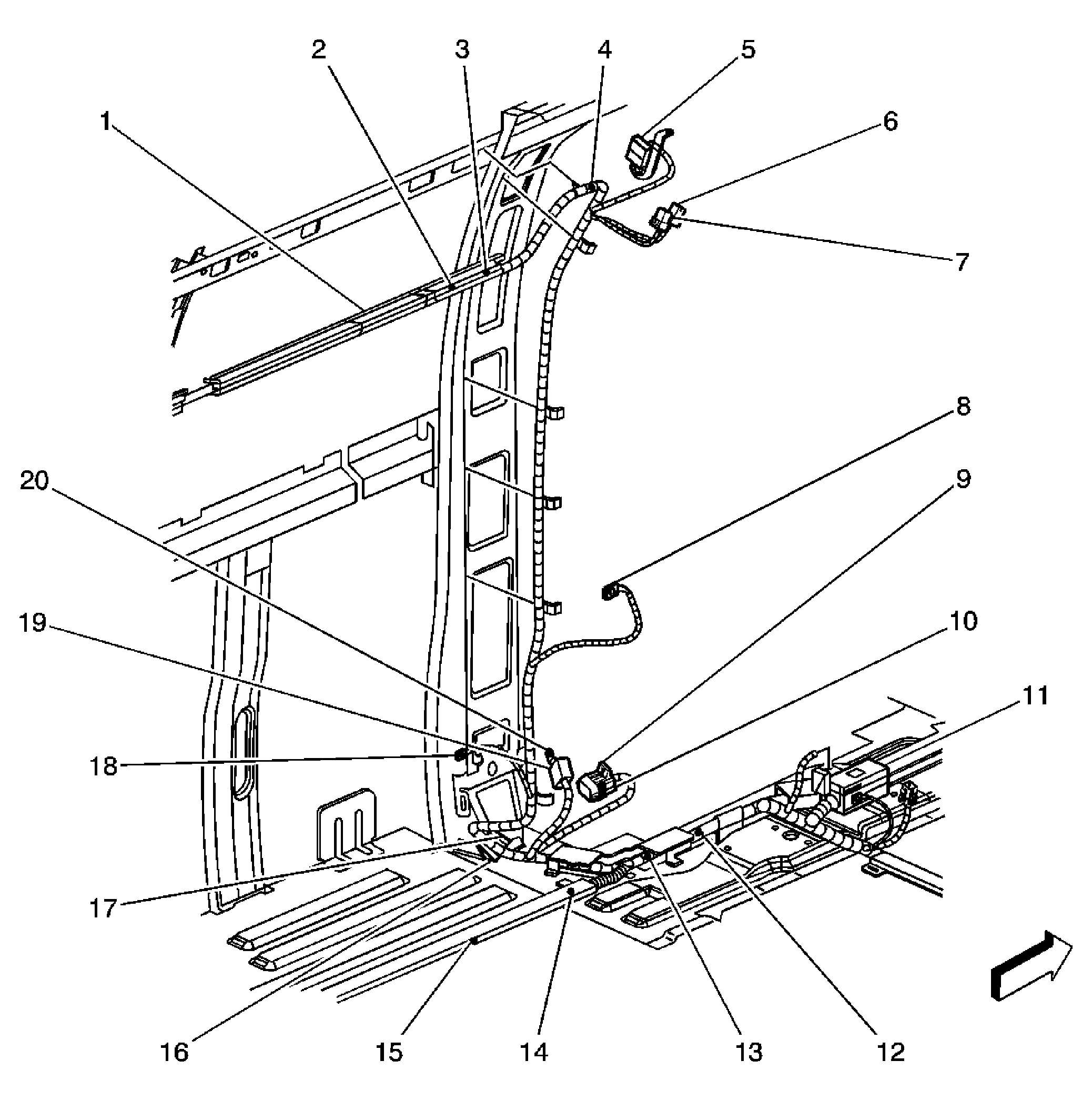

Fig 13: Component View - Body Harness Routing - Left B-Pillar (Passenger/Cargo)
GM885006Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Body Harness Cover
2 S311 (w/o YF7)
3 S310 (w/o YF7)
4 S308 (w/o YF7)
5 C304 (w/o YF7)
6 C203 (YF7/DH6)
7 C303 (YF7/C69 w/Rear Auxiliary Controls)
8 Door Contact Plate Connector - Left Side (E26/AU3)
9 C407 (ENC)
10 C409 (ENC)
11 Fuse Block Body - C2
12 S310 (YF7)
13 S308 (YF7)
14 S311 (YF7)
15 Body Harness
16 Body Harness
17 Lower B-Pillar
18 Door Jamb Switch Connector - LR Side (E26)
19 SP347
20 G347

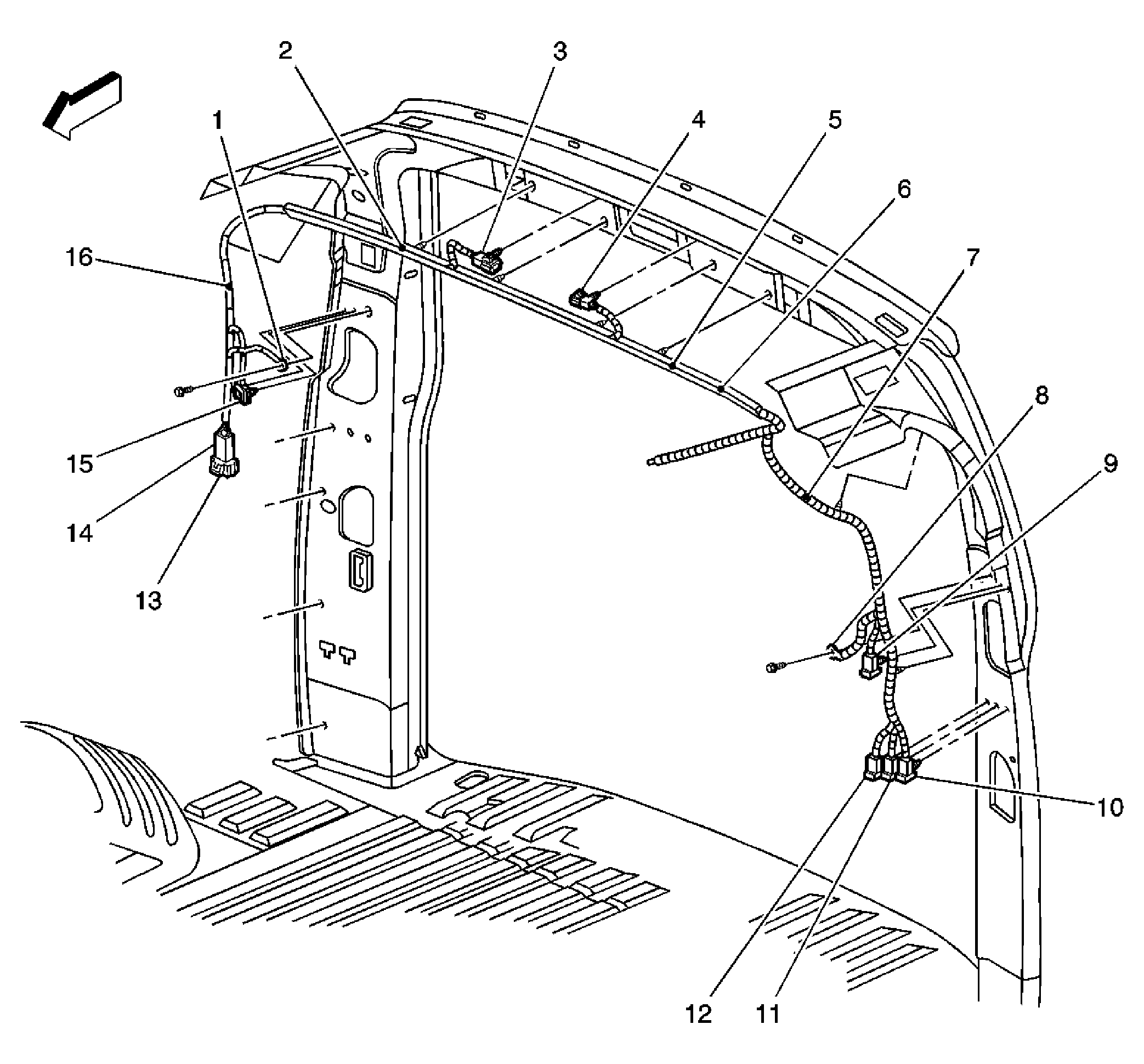

Fig 14: Body Harness Routing - Rear Of Passenger Compartment (Passenger/Cargo)
GM885009Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G401
2 S451
3 C415
4 C419
5 S450
6 S401
7 S404
8 G402
9 C401
10 C411
11 C407 - 135 Wheel Base (C36/C69)
12 C409 - 135 Wheel Base (C36/C69)
13 C400
14 C412
15 C402
16 S403 (w/o YF7)

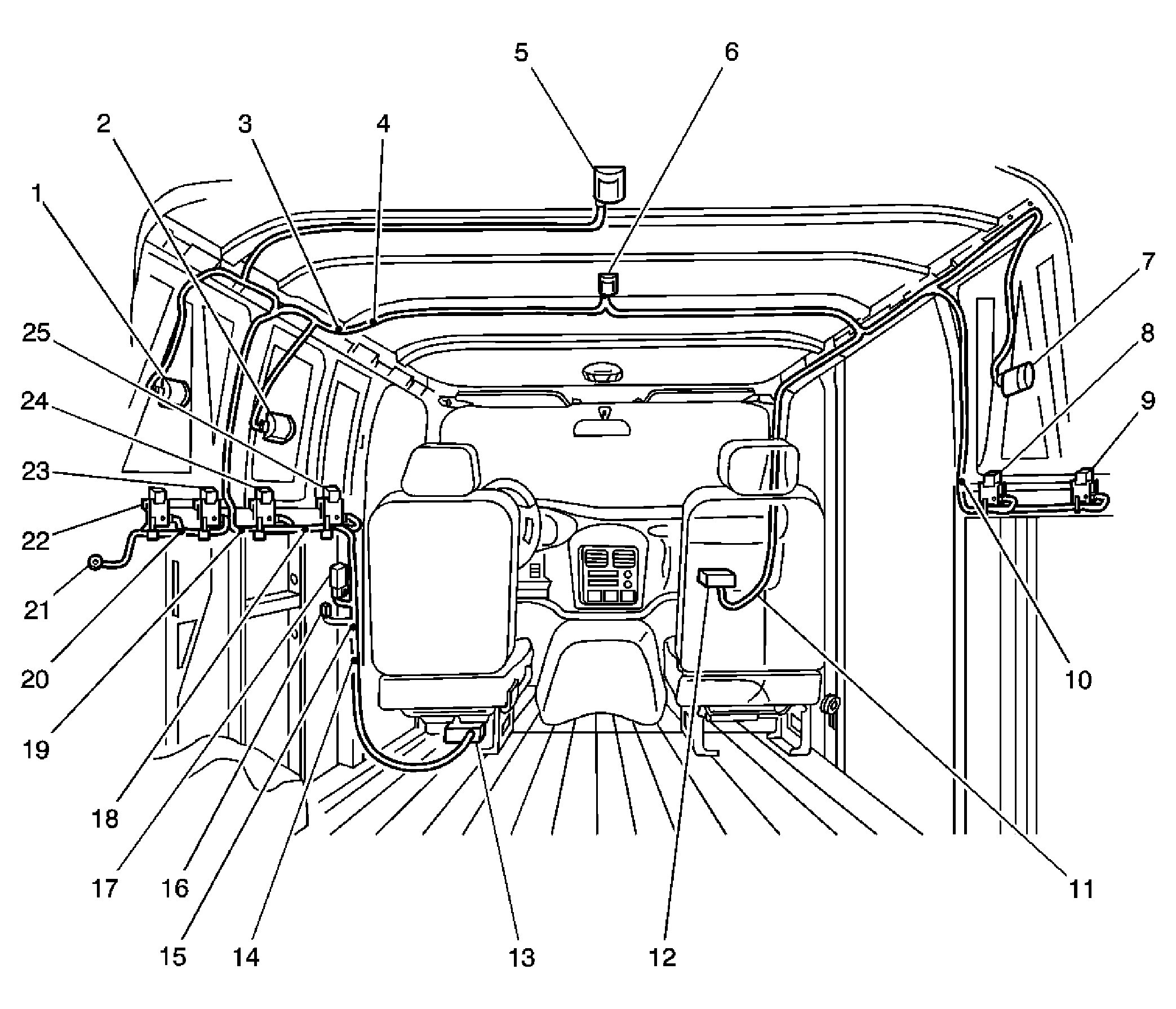

Fig 15: Component View - Pro Harness & Components (PRP)
GM1226742Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Dome Fluorescent Work Lamp - LR (UF2)
2 Dome Fluorescent Work Lamp - LF (UF2)
3 S350 (UF2)
4 S348 (UF2)
5 Dome Fluorescent Work Lamp - 2 (UF2)
6 Dome Fluorescent Work Lamp - 1 (UF2)
7 Dome Fluorescent Work Lamp - RH (UF2)
8 Access Panel Actuator - Right Side Front
9 Access Panel Actuator - Right Side Rear
10 S409
11 Pro Wiring Harness
12 Body Control Module (BCM)
13 Fuse Block - Body
14 S302 (UF2)
15 S303
16 Dome Fluorescent Work Lamps Relay (UF2)
17 Fuse Block - Rear
18 S309
19 S300
20 S408
21 G403
22 Access Panel Actuator - Left Rear Side Rear
23 Access Panel Actuator - Left Rear Side Front
24 Access Panel Actuator - Left Front Side Rear
25 Access Panel Actuator - Left Front Side Front

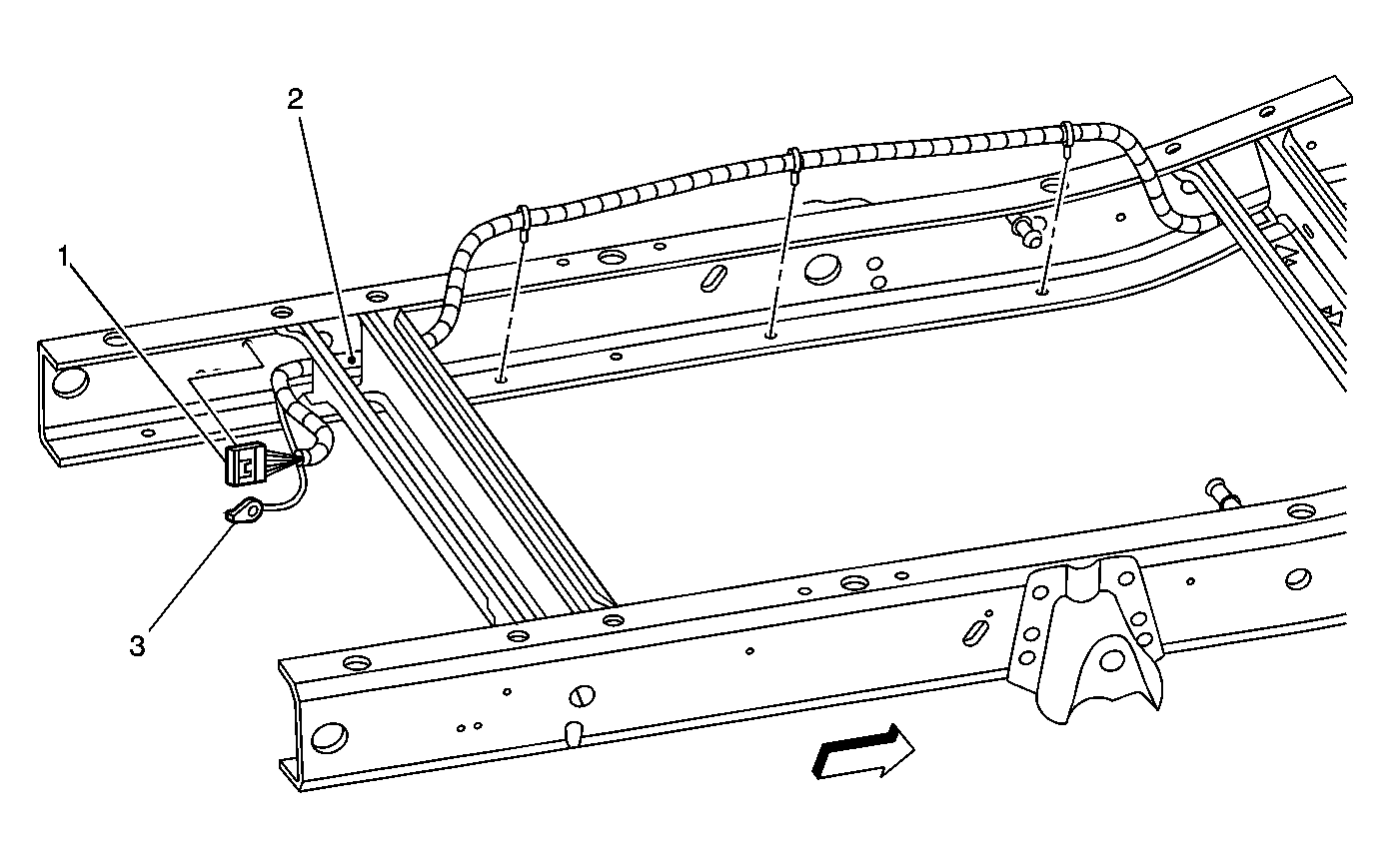

Fig 16: Rear Frame Routing
GM884973Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C405 (Cutaway)
2 S402
3 G400
