Instrument Cluster Schematics

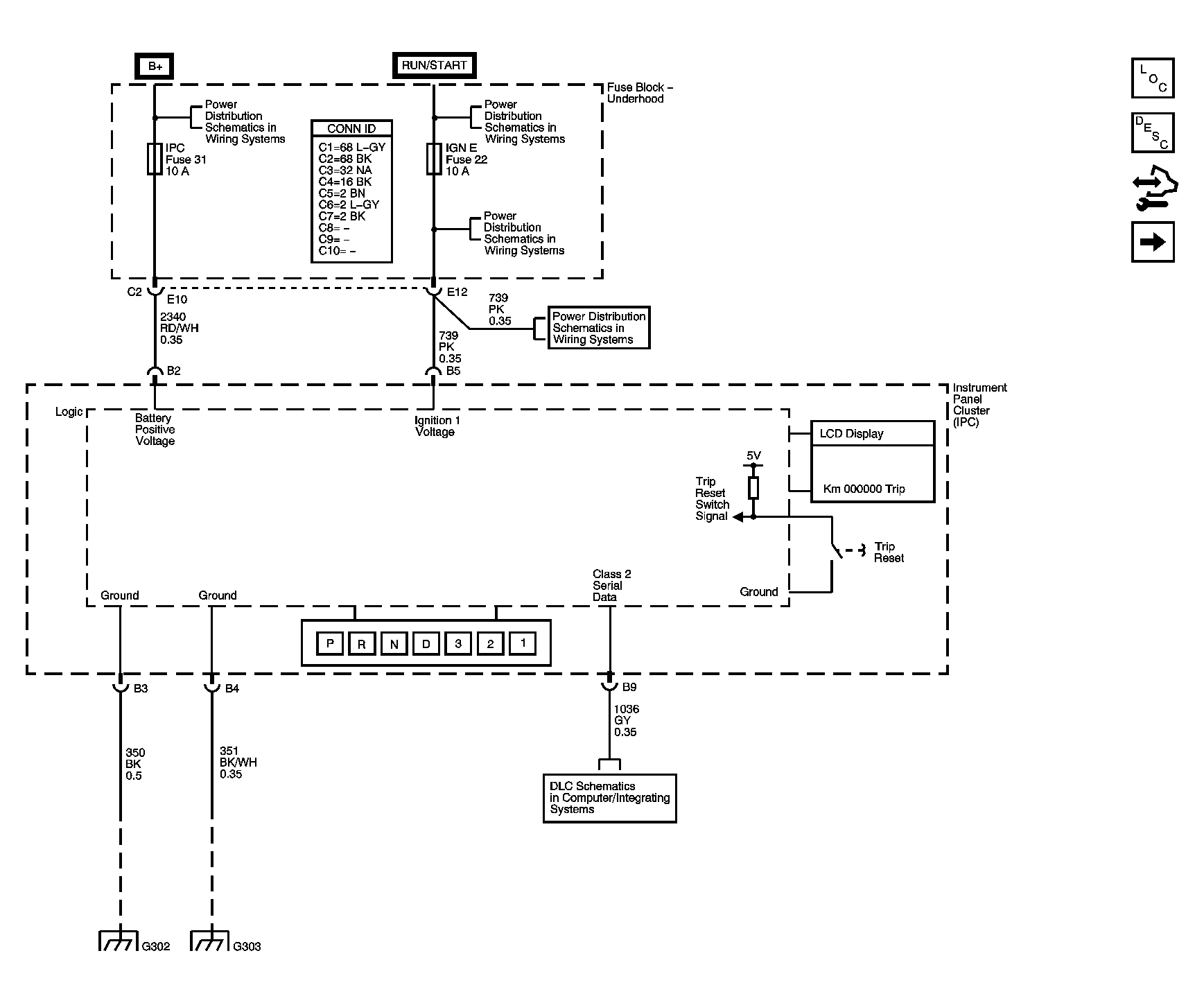

Fig 1: Power, Ground and Serial Data Schematics
GM1407290Courtesy of GENERAL MOTORS CORP.

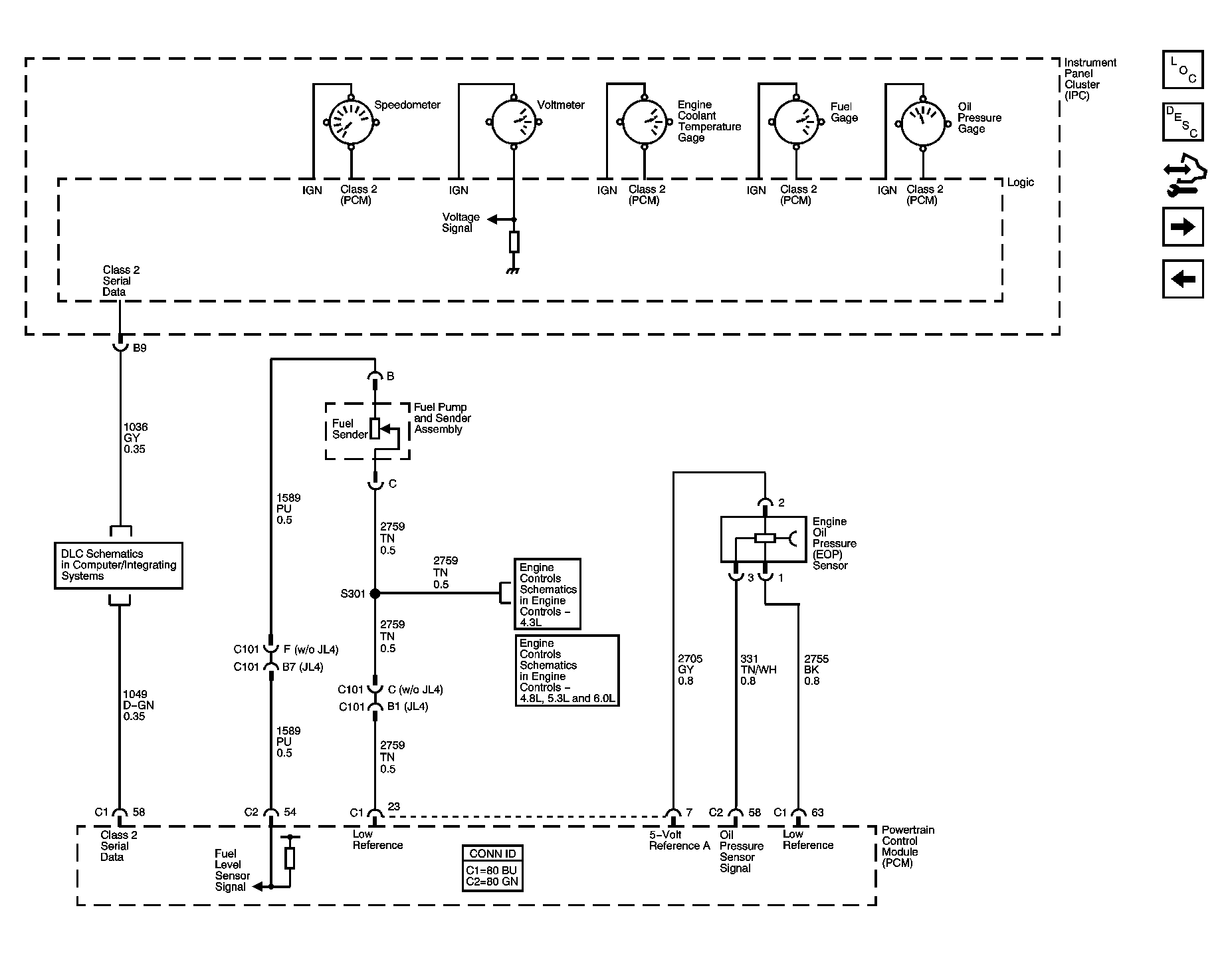

Fig 2: Gages Schematics
GM1407293Courtesy of GENERAL MOTORS CORP.

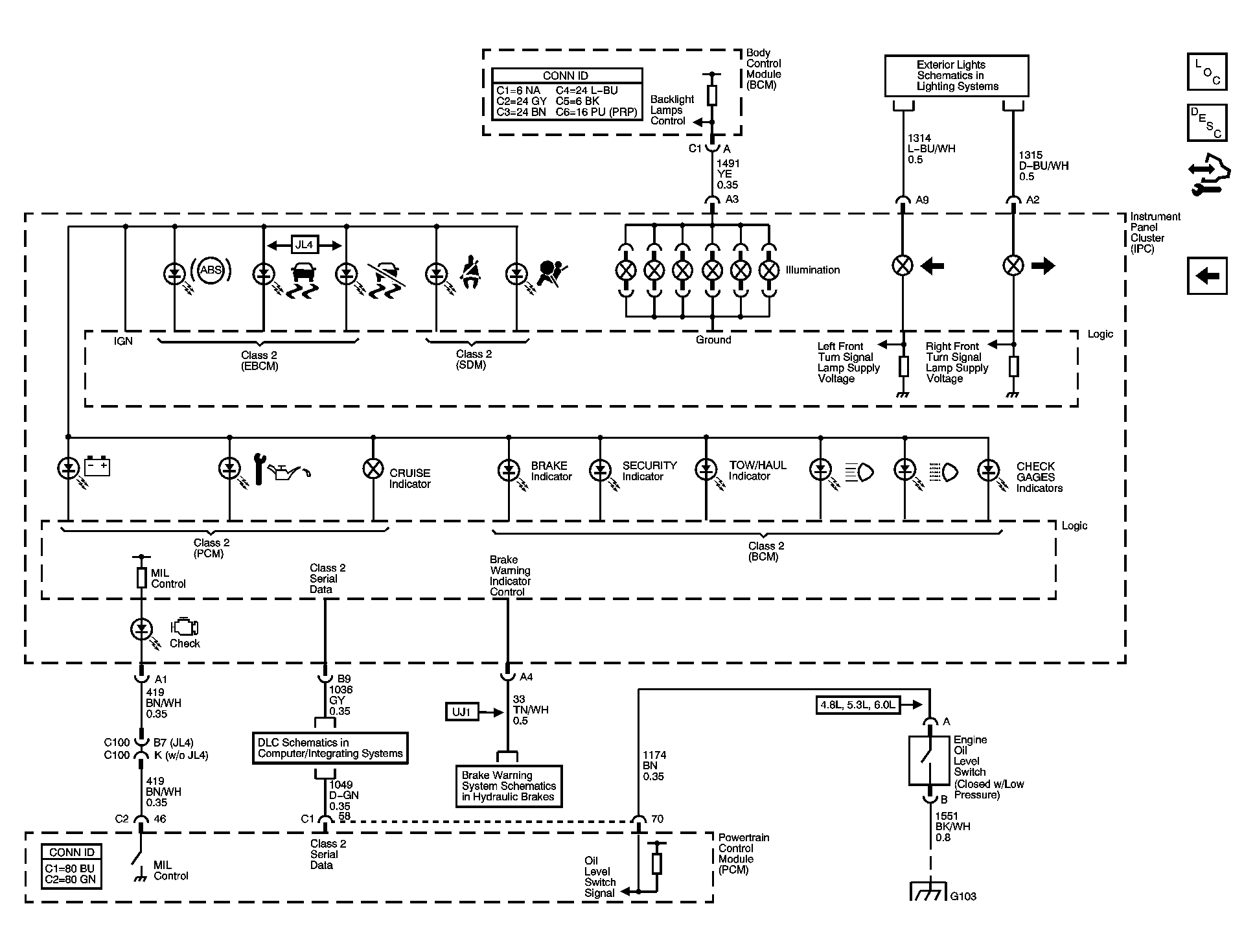

Fig 3: Indicators Schematics
GM1407295Courtesy of GENERAL MOTORS CORP.
