Audible Warnings Schematics
Audible Warnings Schematics

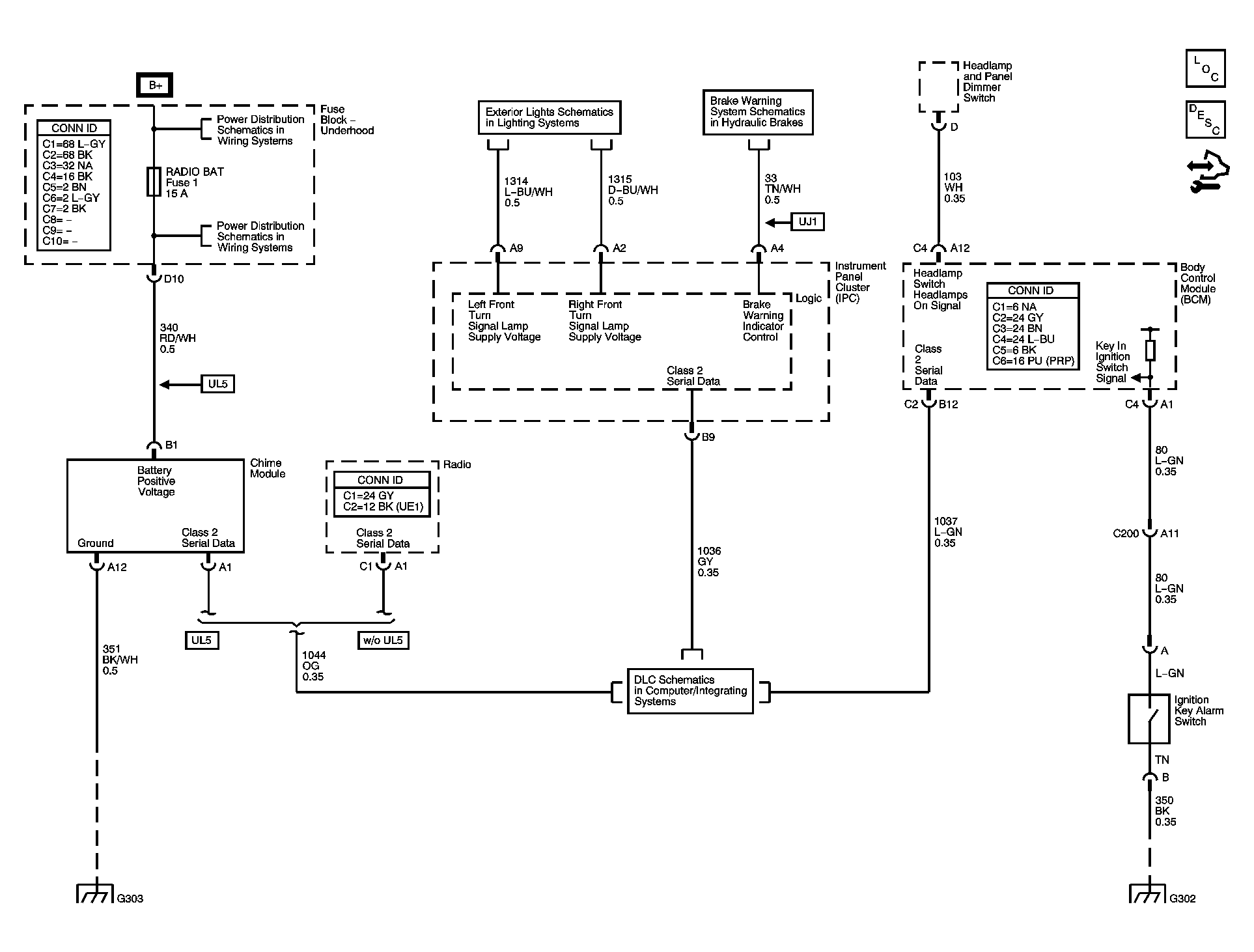

Fig 1: Audible Warnings Schematics
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
