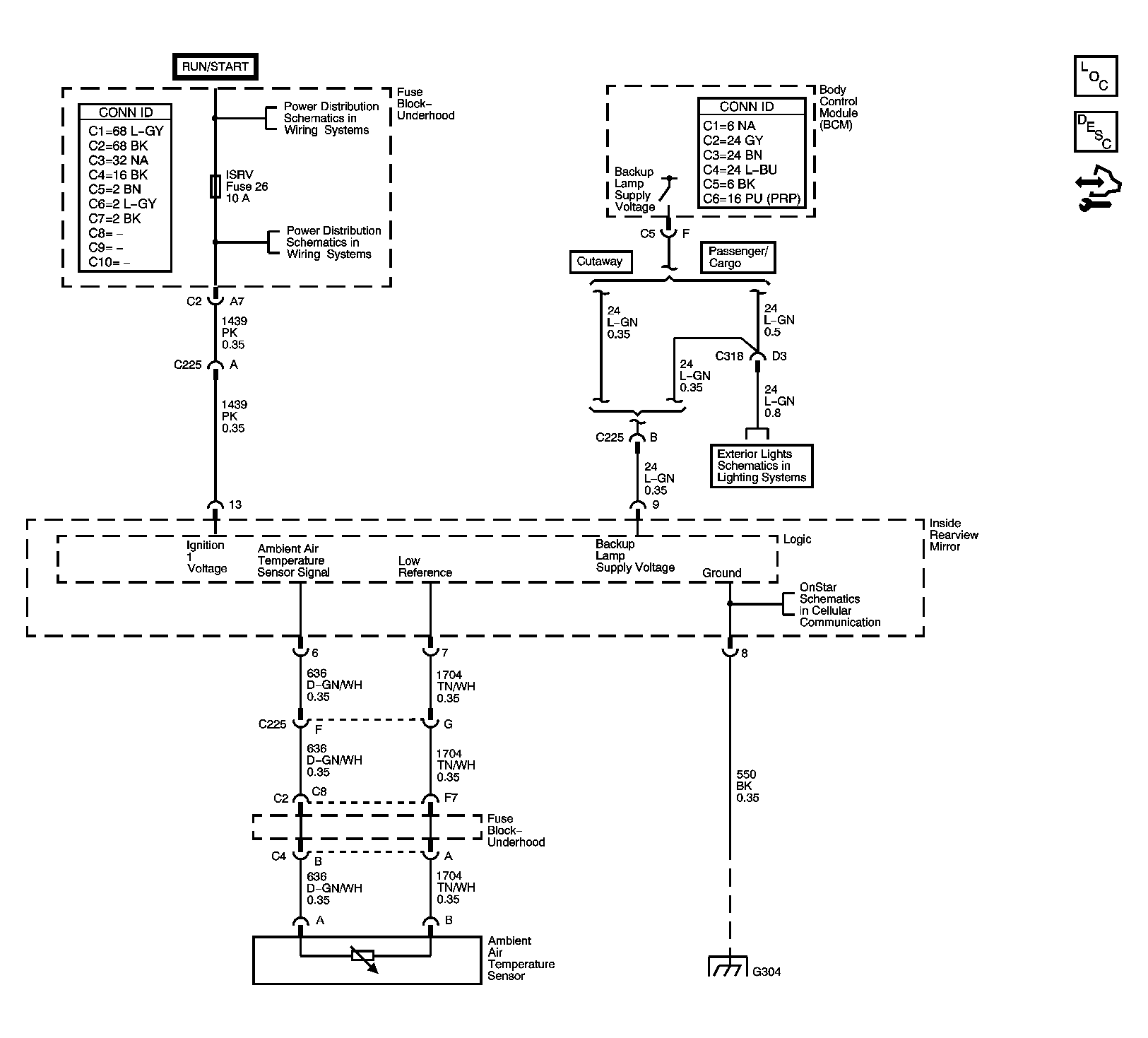

Home >> Chevrolet >> 2005 >> Chevy Express H1500, Van Passenger >> Repair and Diagnosis >> Body & Frame >> Windows >> Stationary Window System >> Schematic and Routing Diagrams >> Inside Rearview Mirror Schematics
