Interior Lights Schematics

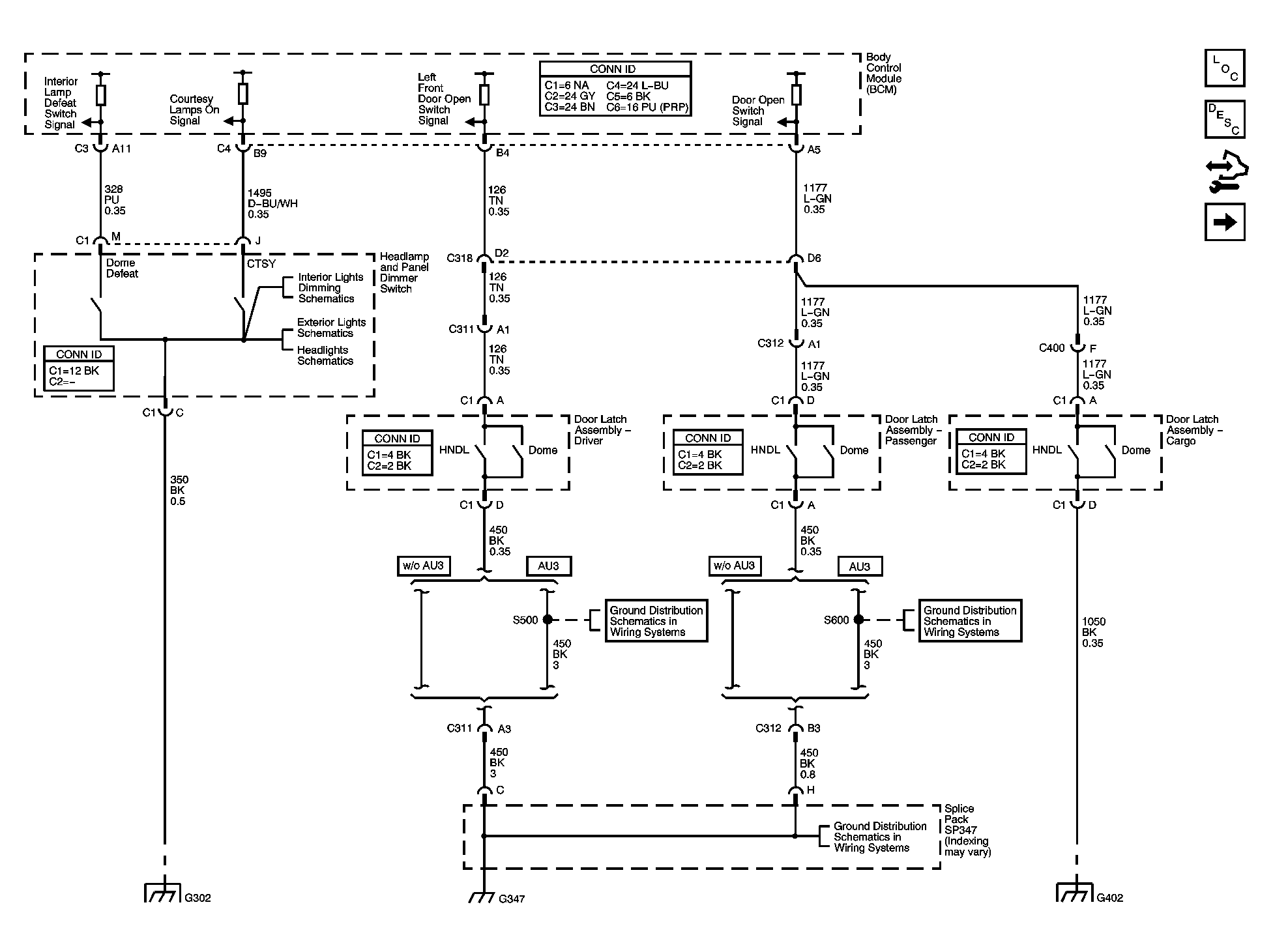

Fig 1: Dome and Courtesy Lamp Switch Signals and Door Latch Assemblies Schematics

Courtesy of GENERAL MOTORS CORP.

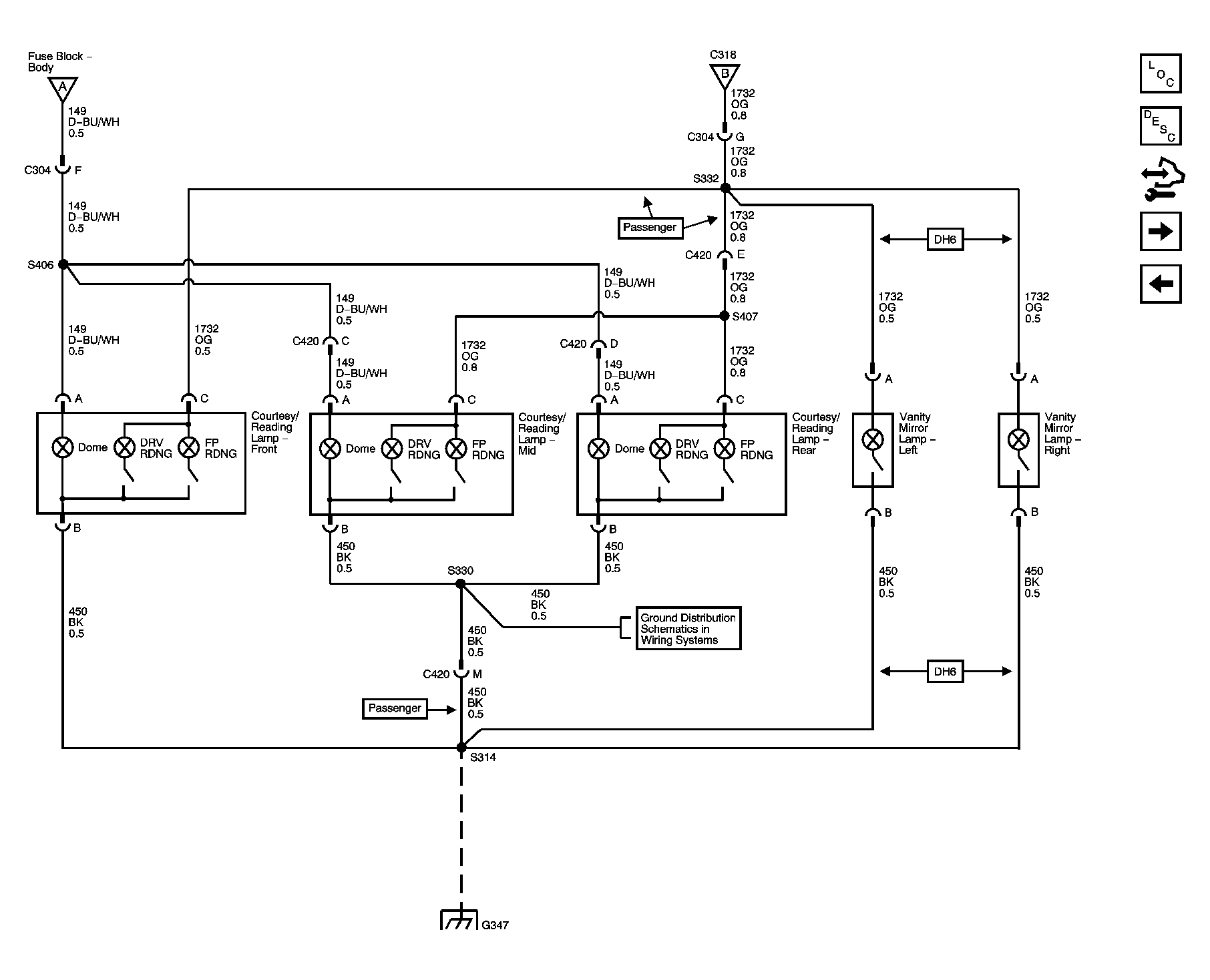

Fig 2: Courtesy Lamps Schematics (YF7)

Courtesy of GENERAL MOTORS CORP.

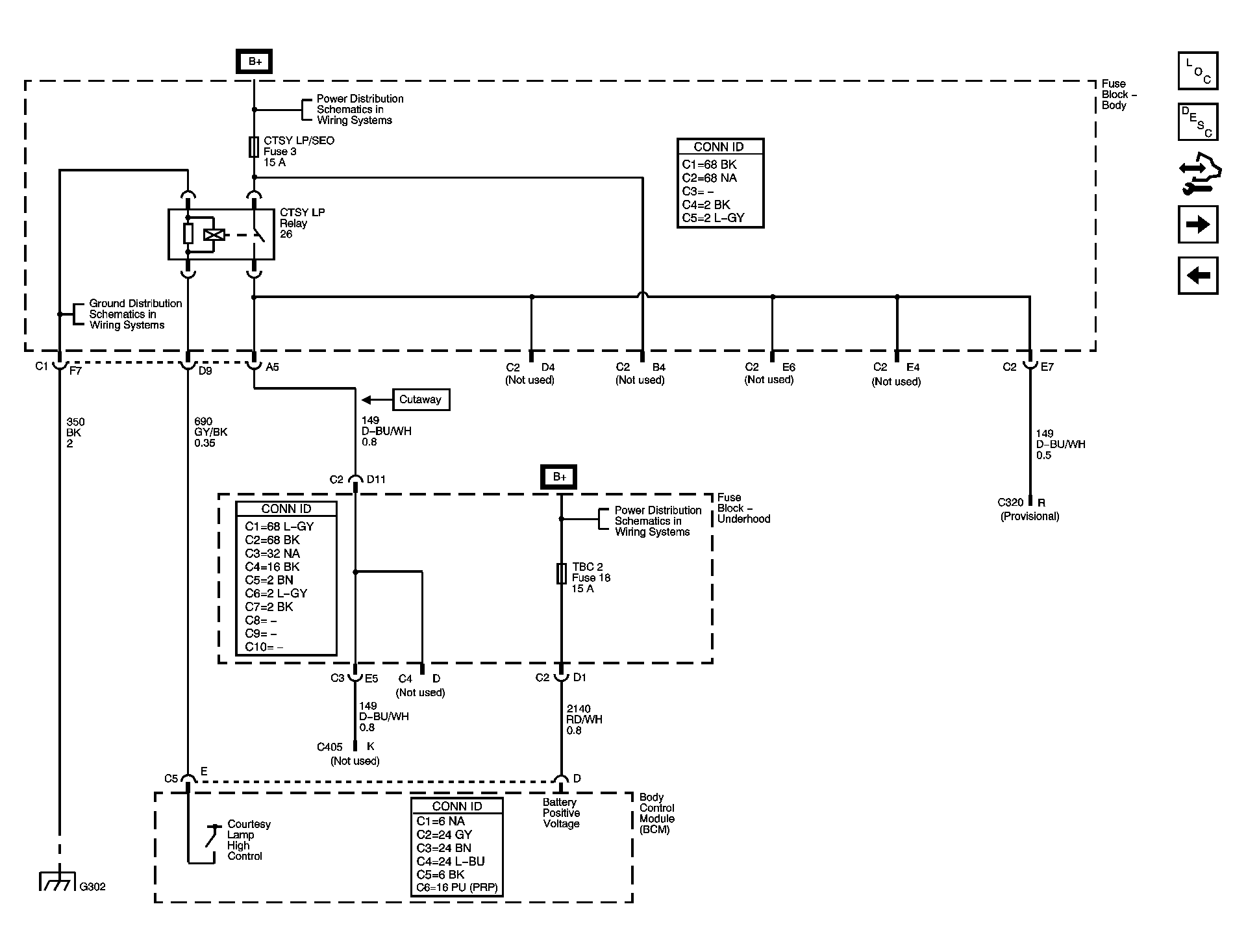

Fig 3: Courtesy Lamps Schematics (w/o YF7) - 1 of 2

Courtesy of GENERAL MOTORS CORP.

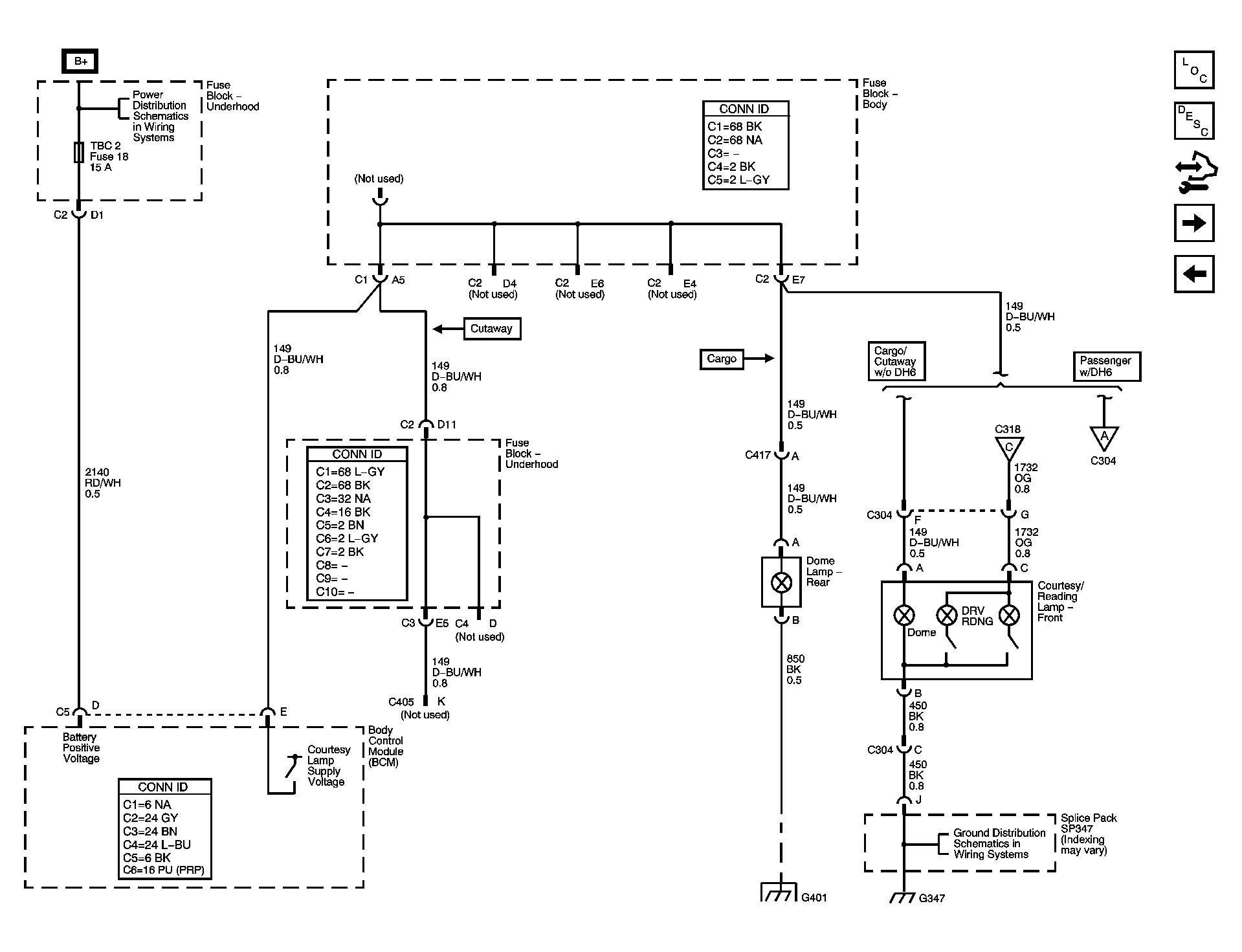

Fig 4: Courtesy Lamps Schematics (w/o YF7) - 2 of 2

Courtesy of GENERAL MOTORS CORP.

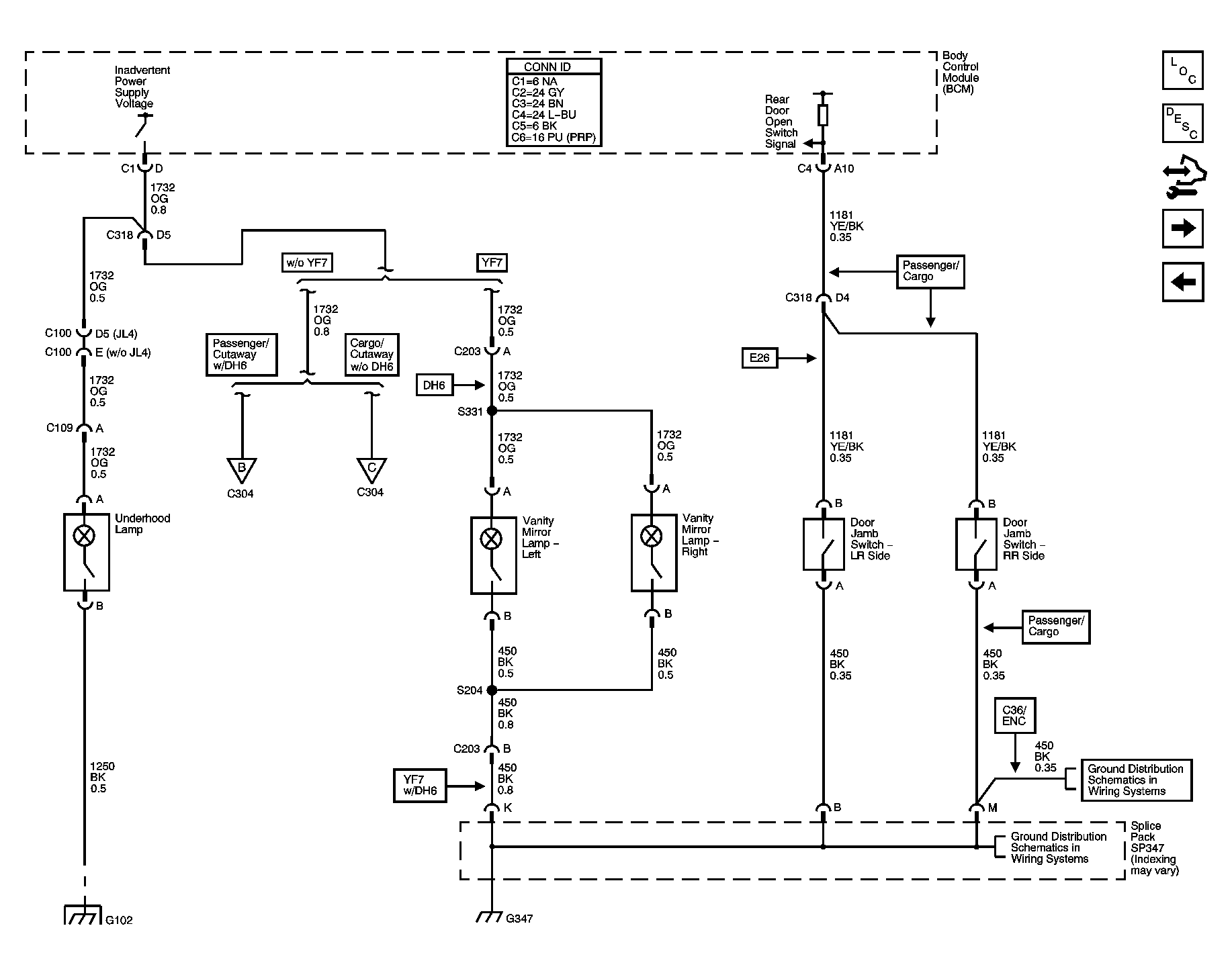

Fig 5: Underhood/Vanity Lamps and Door Jamb Switches Schematics

Courtesy of GENERAL MOTORS CORP.

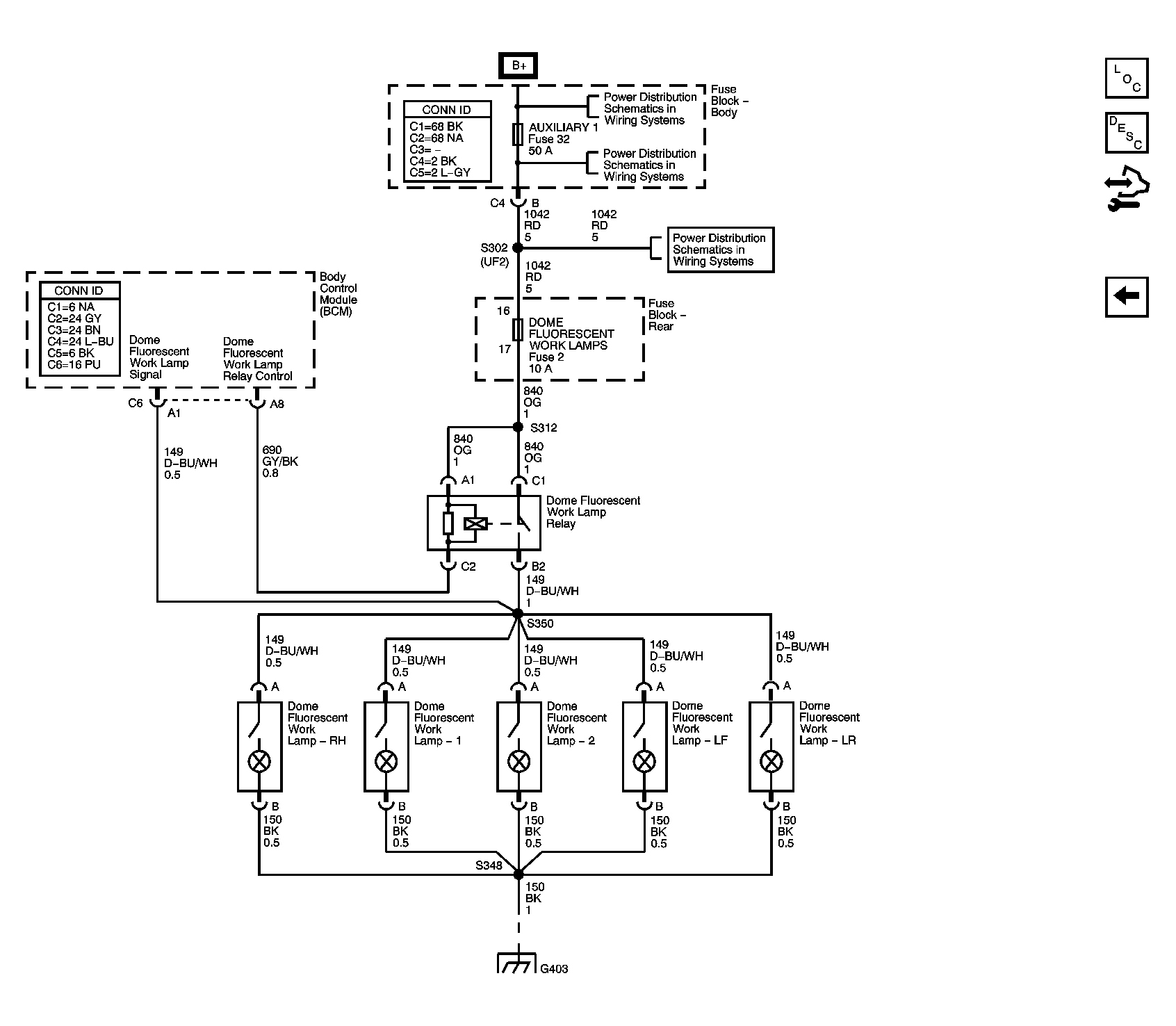

Fig 6: Dome Fluorescent Work Lamps Schematics - PRP (w/UF2)

Courtesy of GENERAL MOTORS CORP.
