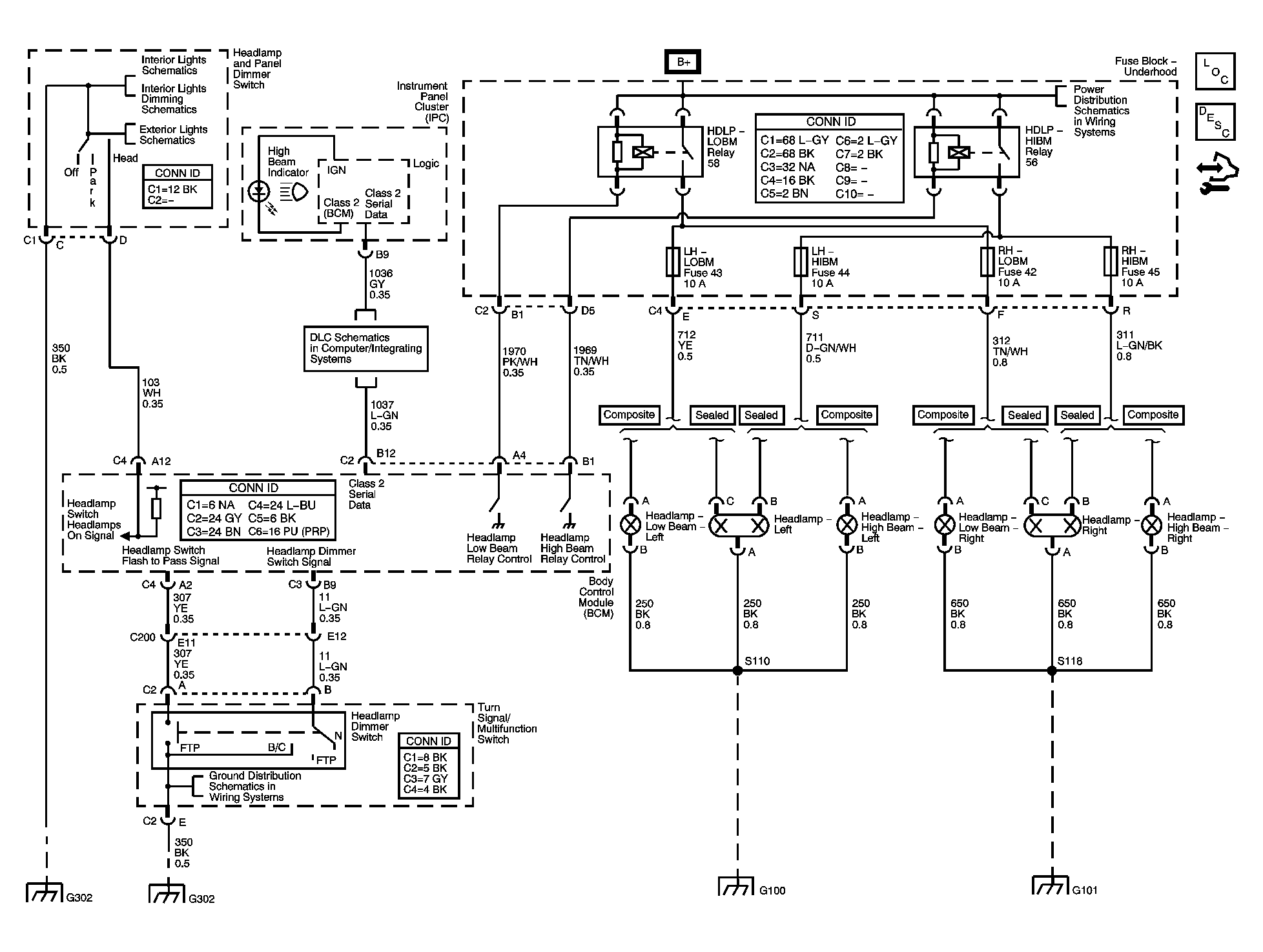

Home >> Chevrolet >> 2005 >> Chevy Express H1500, Van Passenger >> Repair and Diagnosis >> Accessories & Equipment >> Interior/Illumination Lights >> Lighting Systems >> Schematic and Routing Diagrams >> Headlights Schematics
