Exterior Lights Schematics

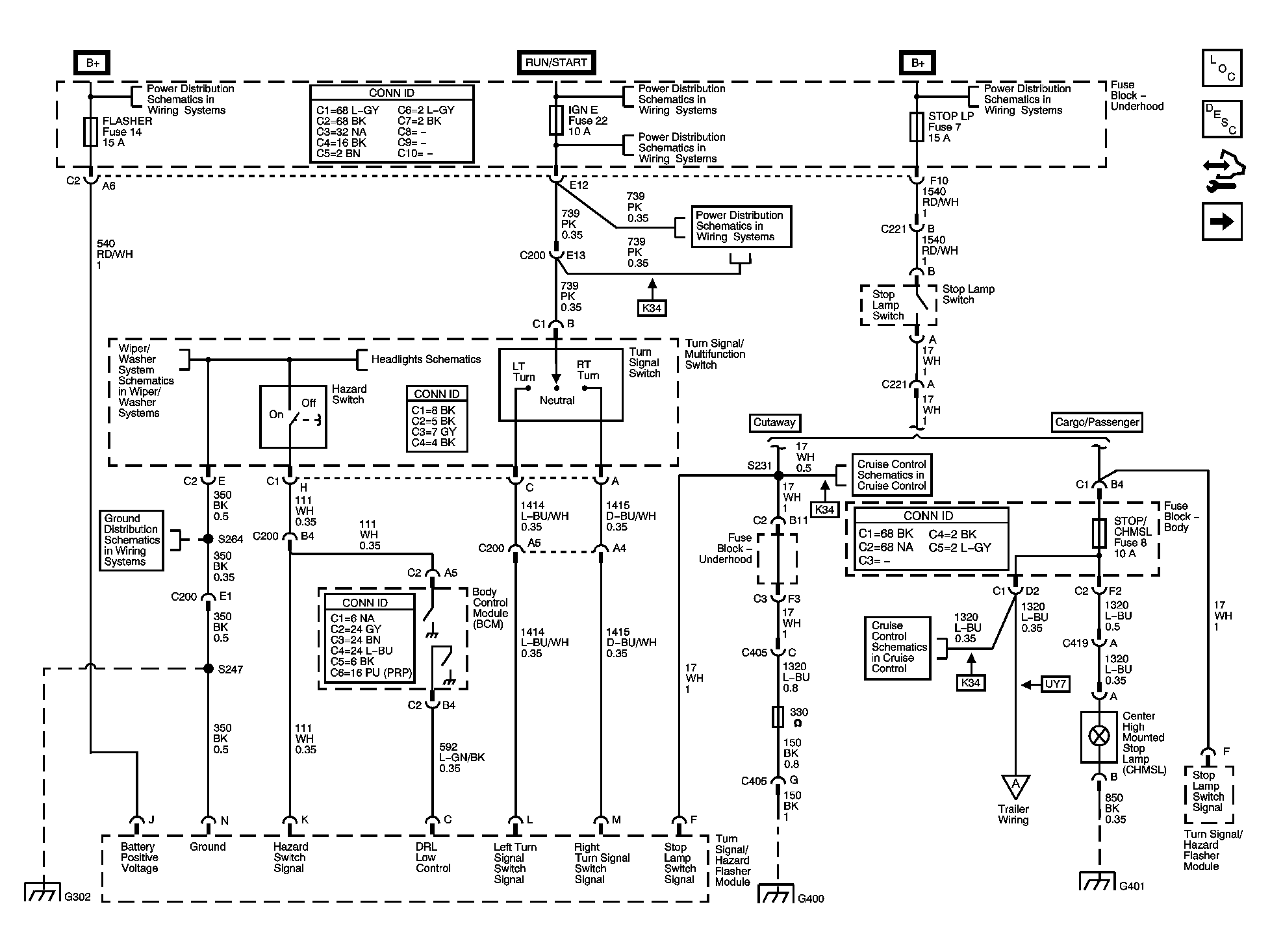

Fig 1: Hazard, Turn and Stop Lamp Signals Schematics

Courtesy of GENERAL MOTORS CORP.

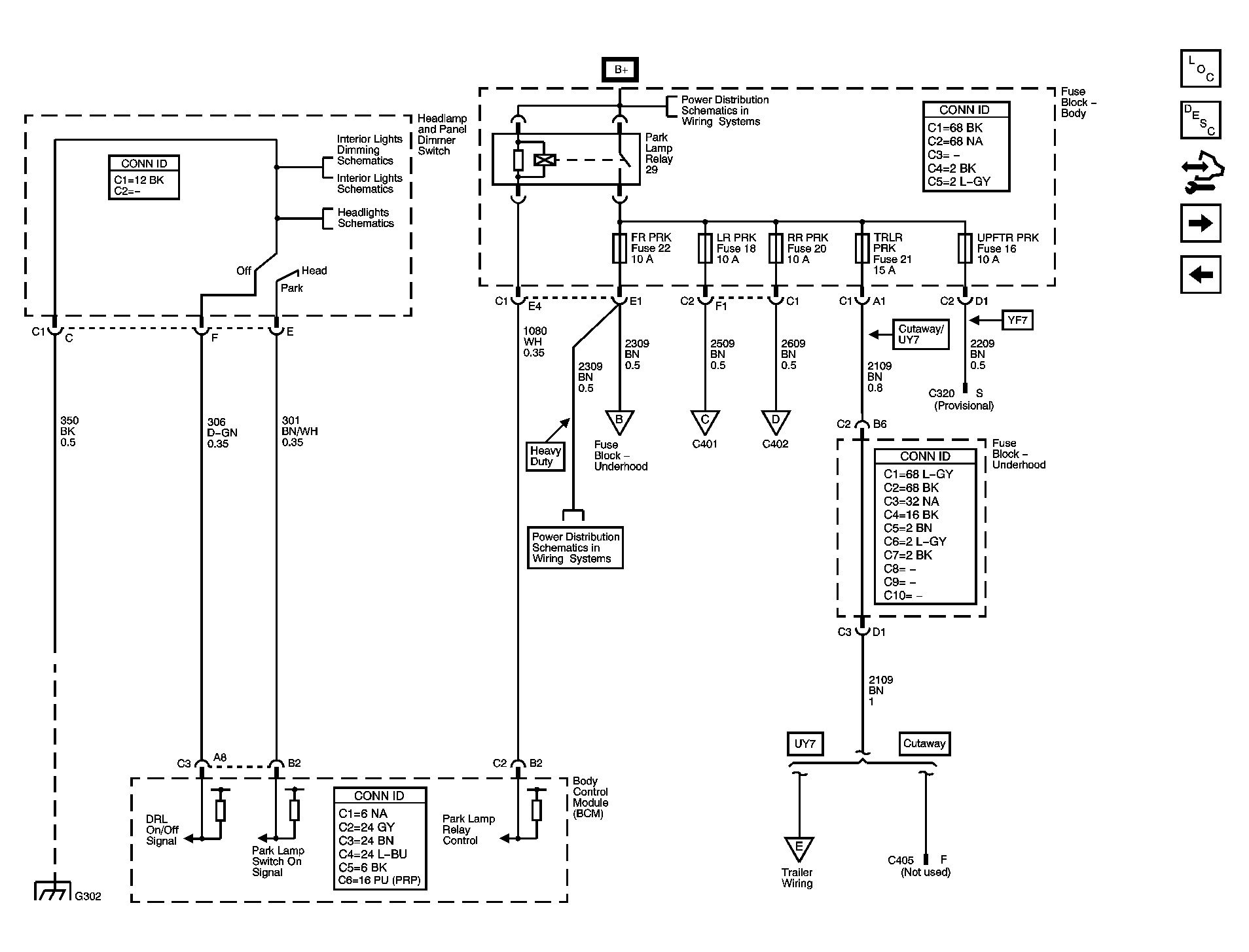

Fig 2: Headlamp and Panel Dimmer Switch Signals and Park Lamp Relay Control Schematics

Courtesy of GENERAL MOTORS CORP.

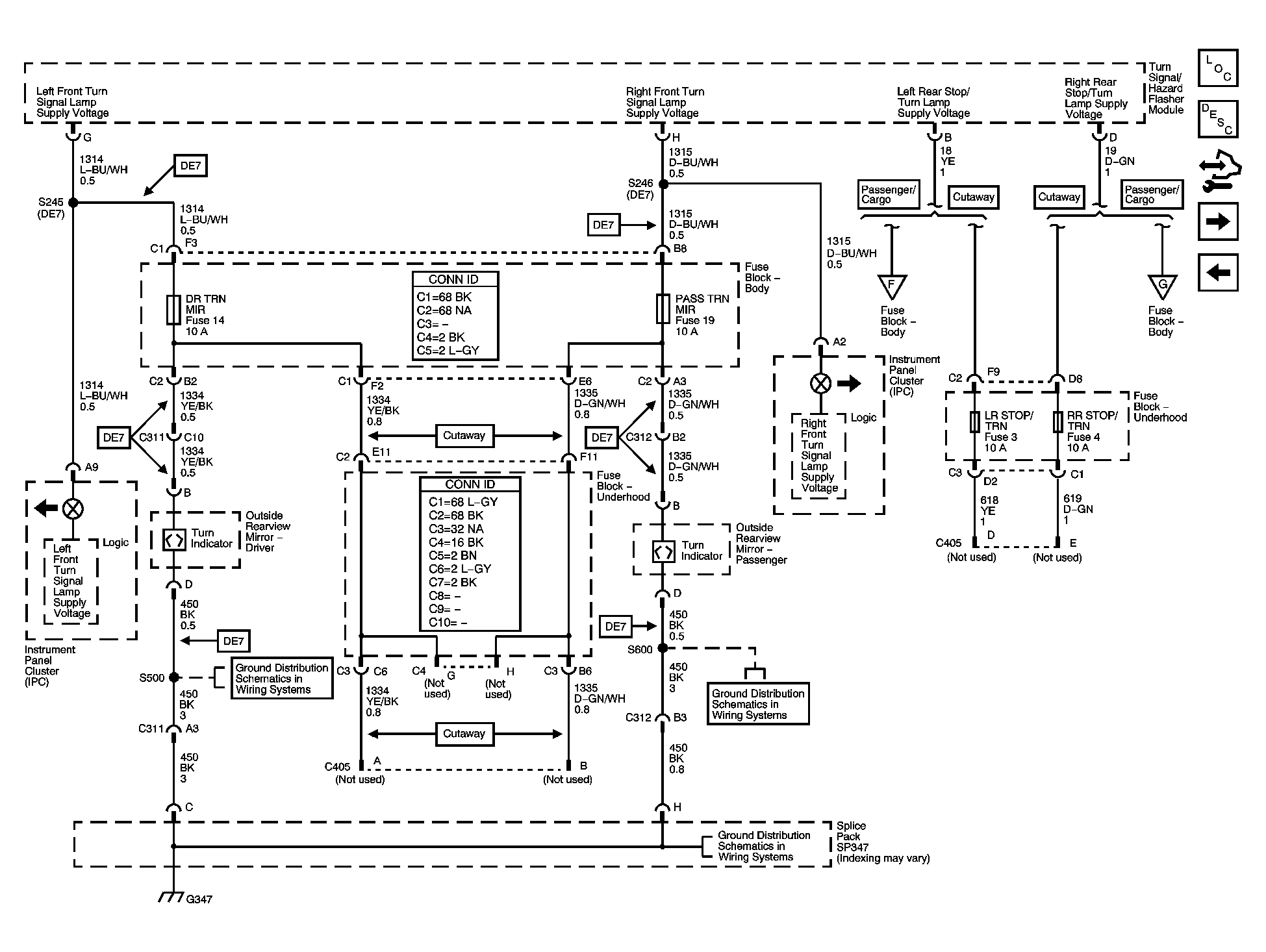

Fig 3: Turn Signals Schematics

Courtesy of GENERAL MOTORS CORP.

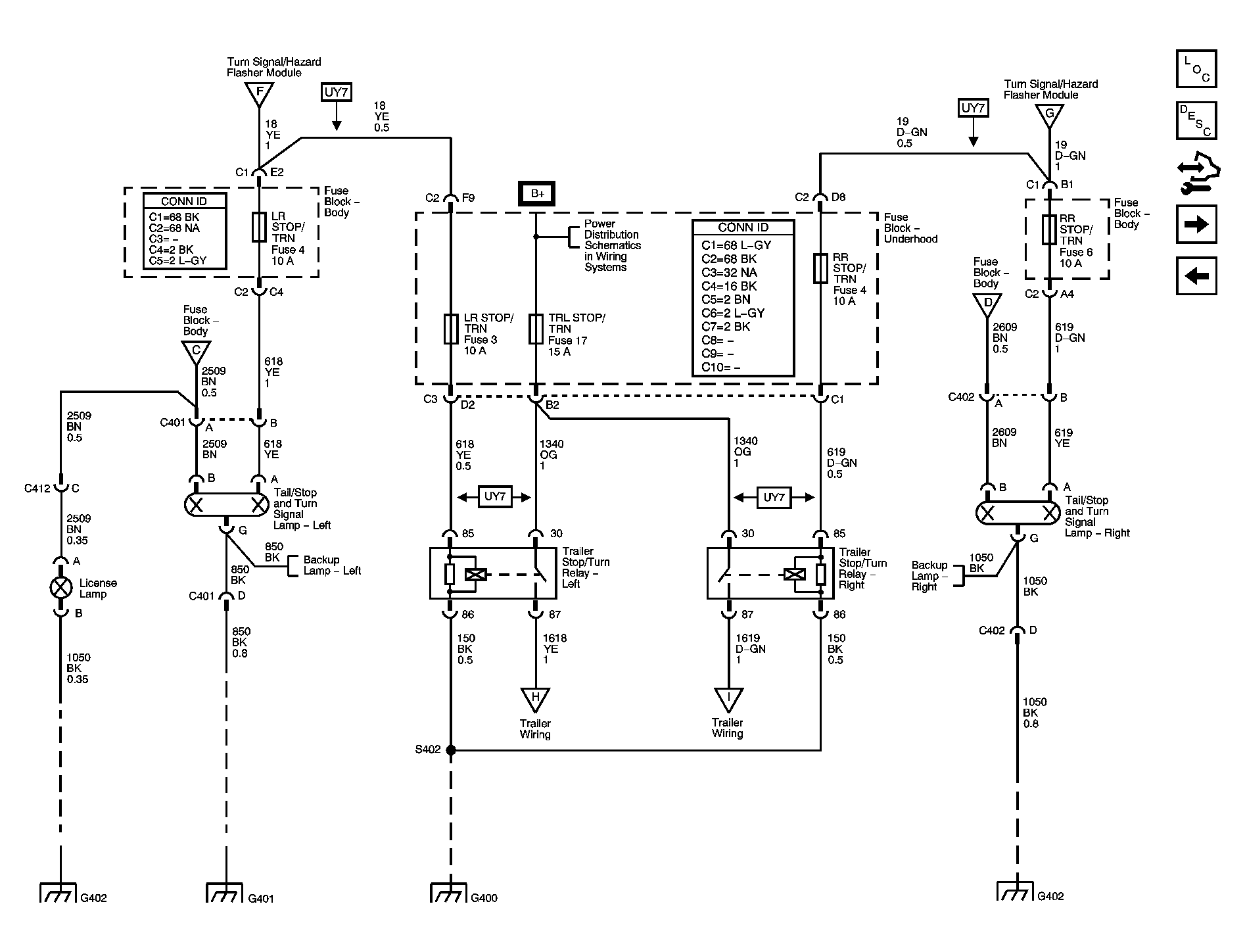

Fig 4: Stop and License Lamps Schematics

Courtesy of GENERAL MOTORS CORP.

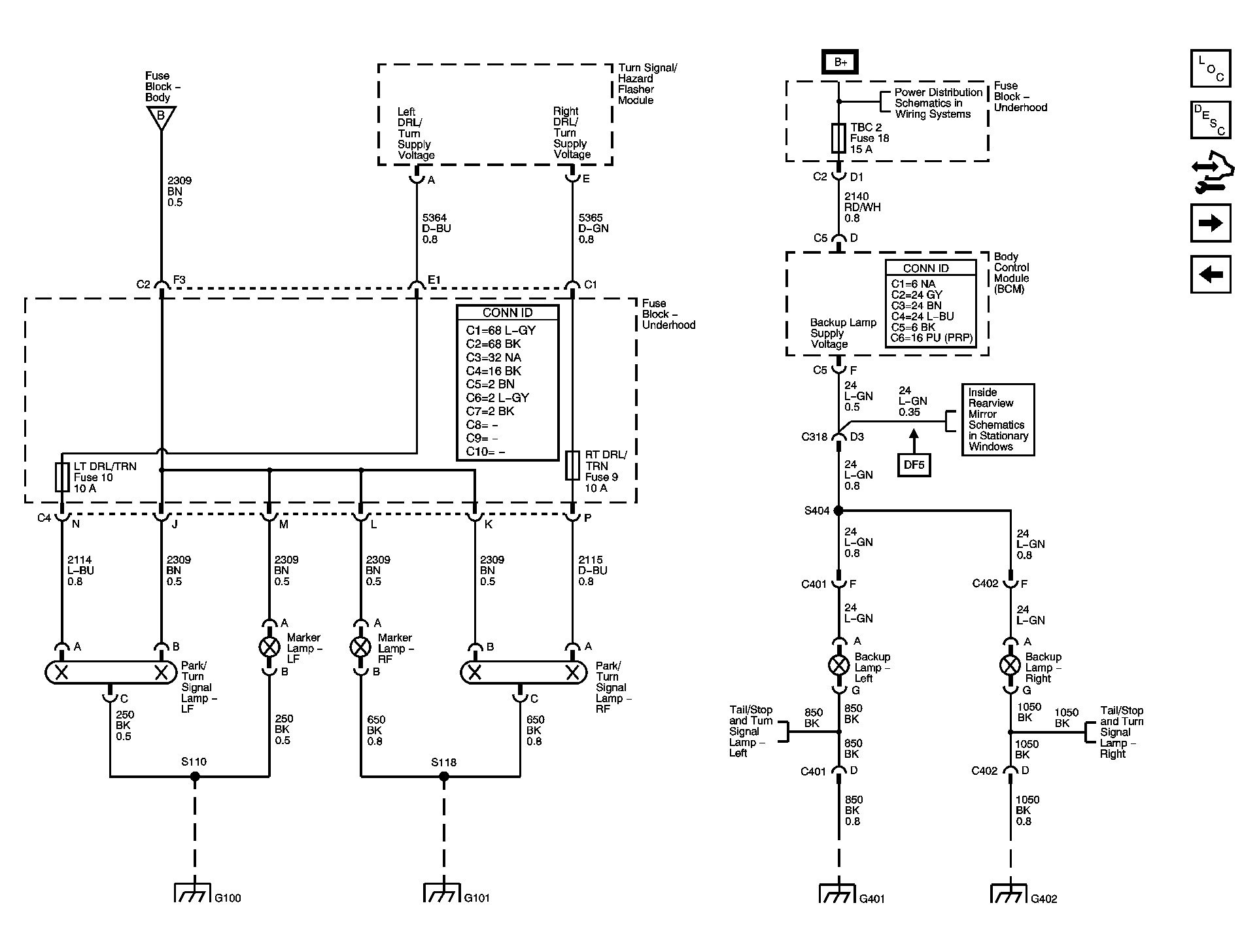

Fig 5: Park/Turn, Marker, Tail/Stop and Backup Lamps - Except Cutaway Schematics

Courtesy of GENERAL MOTORS CORP.

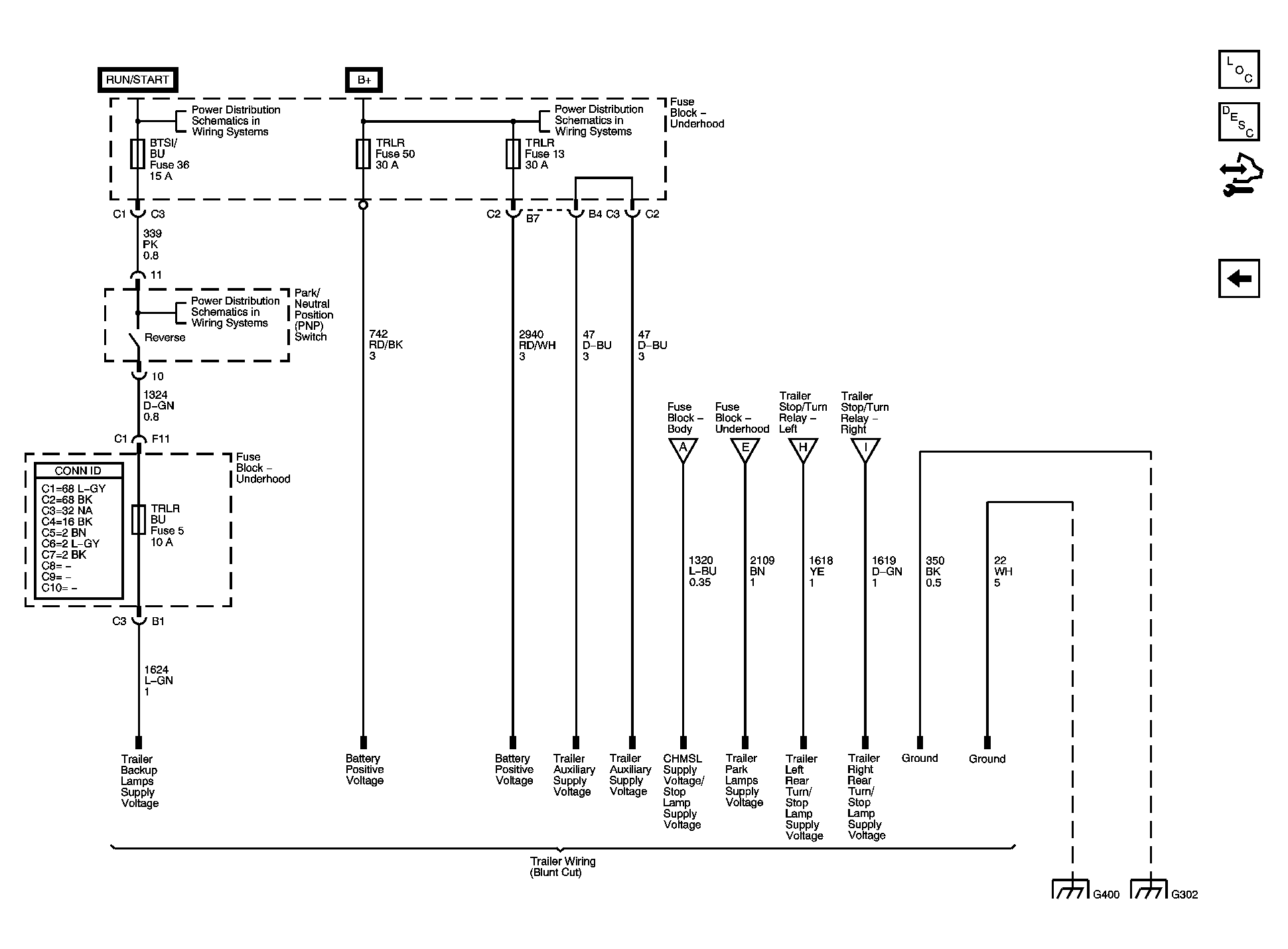

Fig 6: Trailer Wiring Schematics

Courtesy of GENERAL MOTORS CORP.
