Lighting Systems Connectors

Backup Lamp - Left (Passenger/Cargo)

GM82372Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12160393
  • 2-Way Lamp Socket Wedge Base W3 Right Angle (L-GY)
Pin Wire Color Circuit No. Function
A L-GN 24 Backup Lamp Supply Voltage
G BK 850 Ground
Backup Lamp - Right (Passenger/Cargo)

GM82372Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12160393
  • 2-Way Lamp Socket Wedge Base W3 Right Angle (L-GY)
Pin Wire Color Circuit No. Function
A L-GN 24 Backup Lamp Supply Voltage
G BK 1050 Ground
Center High Mounted Stop Lamp (CHMSL) (Passenger/Cargo)

GM35441Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047663
  • 2-Way M Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A L-BU 1320 CHMSL Supply Voltage
B BK 850 Ground
Courtesy/Reading Lamp - Front

GM333035Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047781
  • 3-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A D-BU/WH 149 Courtesy Lamp Supply Voltage
B BK 450 Ground
C OG 1732 Inadvertent Power Supply Voltage
Courtesy/Reading Lamp - Mid (Passenger/Cargo)

GM333035Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047781
  • 3-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A D-BU/WH 149 Courtesy Lamp Supply Voltage
B BK 450 Ground
C OG 1732 Inadvertent Power Supply Voltage
Courtesy/Reading Lamp - Rear (Passenger/Cargo)

GM333035Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047781
  • 3-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A D-BU/WH 149 Courtesy Lamp Supply Voltage
B BK 450 Ground
C OG 1732 Inadvertent Power Supply Voltage
Dome Fluorescent Work Lamps (PNP w/UF2)

GM280768Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052832
  • 2-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A OG 840 Battery Positive Voltage
B BK 150 Ground

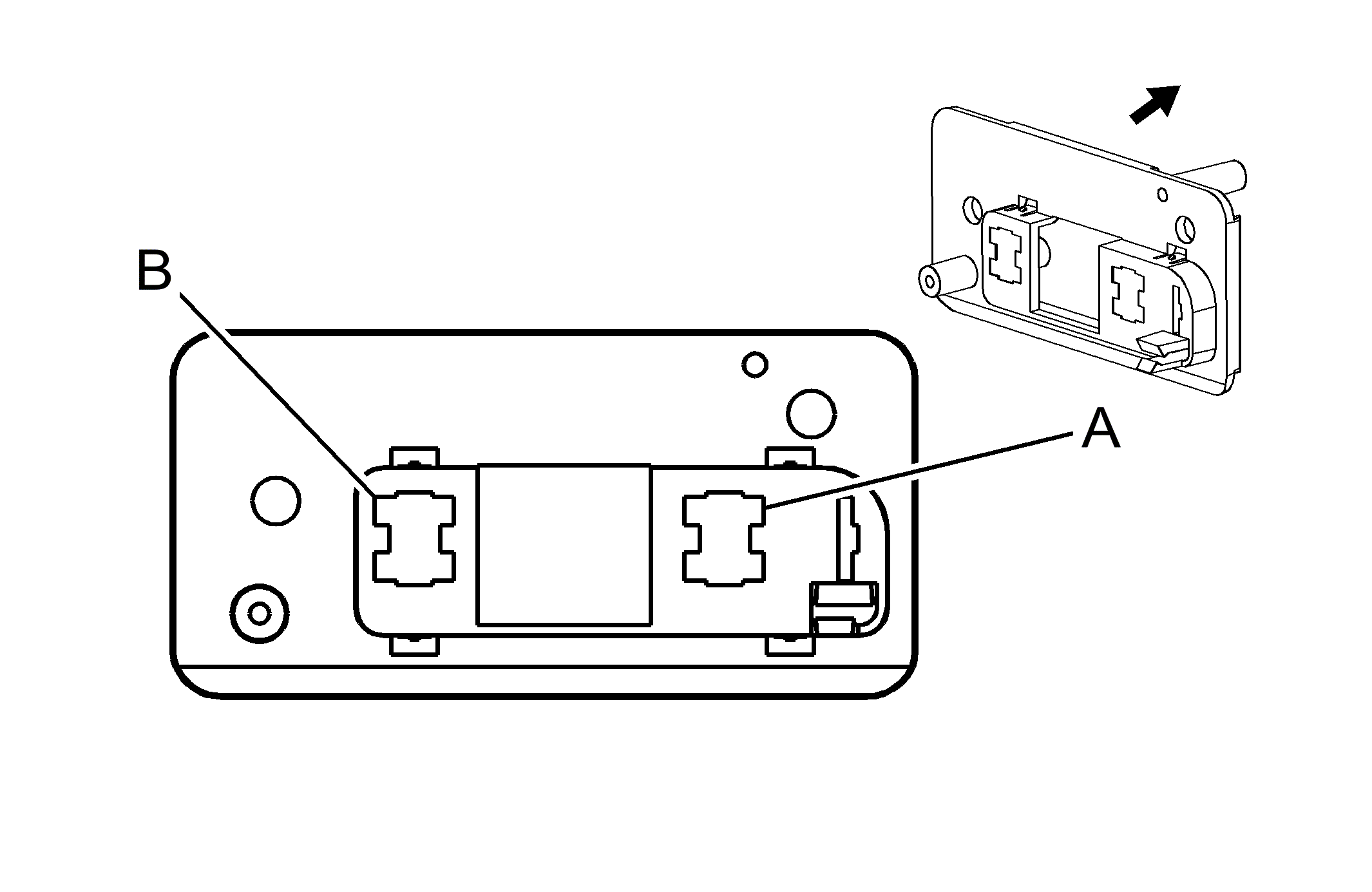

Dome Lamp - Rear (Cargo)

GM68722Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15528758
  • 2-Way F Dome Lamp Base (NA)
Pin Wire Color Circuit No. Function
A D-BU/WH 149 Courtesy Lamp Supply Voltage
B BK 850 Ground
Door Jamb Switch - LR Side (E26)

GM35451Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12059251
  • 2-Way F Metri-Pack 150 Series (RD)
Pin Wire Color Circuit No. Function
A BK 450 Ground
B YE/BK 1181 Rear Door Open Switch Signal
Door Jamb Switch - RR Side (Passenger/Cargo)

GM35451Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12059251
  • 2-Way F Metri-Pack 150 Series (RD)
Pin Wire Color Circuit No. Function
A BK 450 Ground
B YE/BK 1181 Rear Door Open Switch Signal
Door Latch Assembly - Cargo - C1

GM684948Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15354716
  • 4-Way F GT 150 Series, Sealed 3.2 X 4.0 (BK)
Pin Wire Color Circuit No. Function
A L-GN 1177 Door Open Switch Signal
B-C - - Not Used
D BK 1050 Ground
Door Latch Assembly - Driver - C1

GM684948Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15354716
  • 4-Way F GT 150 Series, Sealed 3.2 X 4.0 (BK)
Pin Wire Color Circuit No. Function
A TN 126 Left Front Door Open Switch Signal
B-C - - Not Used
D BK 450 Ground
Door Latch Assembly - Passenger - C1

GM684948Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15354716
  • 4-Way F GT 150 Series, Sealed 3.2 X 4.0 (BK)
Pin Wire Color Circuit No. Function
A BK 450 Ground
B-C - - Not Used
D L-GN 1177 Door Open Switch Signal
Headlamp - High Beam - Left (Composite)

GM684797Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12059183
  • 2-Way F Metri-Pack 280 Series, Sealed (BK)
Pin Wire Color Circuit No. Function
A D-GN/WH 711 Left Headlamp High Beam Supply Voltage
B BK 250 Ground
Headlamp - High Beam - Right (Composite)

GM684797Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12059183
  • 2-Way F Metri-Pack 280 Series, Sealed (BK)
Pin Wire Color Circuit No. Function
A L-GN/BK 311 Right Headlamp High Beam Supply Voltage
B BK 650 Ground
Headlamp - Left (Sealed)

GM306269Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12034372
  • 3-Way F Metri-Pack 800 Series (BK)
Pin Wire Color Circuit No. Function
A BK 250 Ground
B D-GN/WH 711 Left Headlamp High Beam Supply Voltage
C YE 712 Left Headlamp Low Beam Supply Voltage
Headlamp - Low Beam - Left (Composite)

GM684796Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12059181
  • 2-Way F Metri-Pack 280 Series, Sealed (GY)
Pin Wire Color Circuit No. Function
A YE 712 Left Headlamp Low Beam Supply Voltage
B BK 250 Ground
Headlamp - Low Beam - Right (Composite)

GM684796Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12059181
  • 2-Way F Metri-Pack 280 Series, Sealed (GY)
Pin Wire Color Circuit No. Function
A TN/WH 312 Right Headlamp Low Beam Supply Voltage
B BK 650 Ground
Headlamp - Right (Sealed)

GM306269Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12034372
  • 3-Way F Metri-Pack 800 Series (BK)
Pin Wire Color Circuit No. Function
A BK 650 Ground
B L-GN/BK 311 Right Headlamp High Beam Supply Voltage
C TN/WH 312 Right Headlamp Low Beam Supply Voltage
Headlamp and Panel Dimmer Switch - C1

GM647976Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15332161
  • 12-Way F GT 150 Series (BK)
Pin Wire Color Circuit No. Function
A GY 705 5-Volt Reference
B BN/WH 230 Instrument Panel Lamps Dimming Control
C BK 350 Ground
D WH 103 Headlamp Switch Headlamps On Signal
E BN/WH 301 Park Lamp Switch On Signal
F D-GN 306 DRL On/Off Signal
G OG/BK 2090 Dimming Input
H GY/BK 2226 Dimming Return
J D-BU/WH 1495 Courtesy Lamps On Signal
K PU/WH 1382 LED Dimming Signal
L PK 1348 Headlamp On Indicator Supply Voltage
M PU 328 Interior Lamp Defeat Switch Signal
License Lamp (Passenger/Cargo)

GM744036Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12110053
  • 2-Way F Wedge Base Type W-2 Sealed (GY)
Pin Wire Color Circuit No. Function
A BN 2509 Left Rear Park Lamps Supply Voltage
B BK 1050 Ground
Marker Lamp - LF

GM68721Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15300027
  • 2-Way F Metri-Pack 280 Series, Sealed (BK)
Pin Wire Color Circuit No. Function
A BN 2309 Front Park Lamps Supply Voltage
B BK 250 Ground
Marker Lamp - RF

GM68721Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15300027
  • 2-Way F Metri-Pack 280 Series, Sealed (BK)
Pin Wire Color Circuit No. Function
A BN 2309 Front Park Lamps Supply Voltage
B BK 650 Ground
Park/Turn Signal Lamp - LF

GM847206Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12040977
  • 3-Way F M/P 280 Series, Sealed (BK)
Pin Wire Color Circuit No. Function
A L-BU 2114 Left Front Turn Signal Lamps Supply Voltage
B BN 2309 Front Park Lamps Supply Voltage
C BK 250 Ground
Park/Turn Signal Lamp - RF

GM847206Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12040977
  • 3-Way F M/P 280 Series, Sealed (BK)
Pin Wire Color Circuit No. Function
A D-BU 2115 Right Front Turn Signal Lamps Supply Voltage
B BN 2309 Front Park Lamps Supply Voltage
C BK 650 Ground
Stop Lamp Switch

GM62424Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12040551
  • 6-Way F Metri-Pack 480 Series (BK)
Pin Wire Color Circuit No. Function
A WH 17 Stop Lamp Switch Signal
B RD/WH 1540 Battery Positive Voltage
C PK 739 Ignition 1 Voltage
D PU 420 TCC Brake Switch/Cruise Control Release Signal
E L-GN/BK 584 A/T Shift Lock Control Switch Supply Voltage
F D-GN/WH 1135 A/T Shift Lock Control Solenoid Supply Voltage
Tail/Stop and Turn Signal Lamp - Left (Passenger/Cargo)

GM38605Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12160394
  • 3-Way Lamp Socket Wedge Base W3 Right Angle (WH)
Pin Wire Color Circuit No. Function
A YE 618 Left Rear Turn Signal Lamp Supply Voltage
B BN 2509 Left Rear Park Lamps Supply Voltage
G BK 850 Ground
BK 850 Ground
Tail/Stop and Turn Signal Lamp - Right (Passenger/Cargo)

GM38605Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12160394
  • 3-Way Lamp Socket Wedge Base W3 Right Angle (WH)
Pin Wire Color Circuit No. Function
A YE 619 Right Rear Turn Signal Lamp Supply Voltage
B BN 2609 Right Rear Park Lamps Supply Voltage
G BK 1050 Ground
BK 1050 Ground
Trailer Stop/Turn Relay - Left (UY7)

GM535912Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12129716
  • 4-Way F Metri-Pack 280 Series Flexlock (GY)
Pin Wire Color Circuit No. Function
30 OG 1340 Battery Positive Voltage
85 YE 618 Left Rear Turn Signal Lamp Supply Voltage
86 BK 150 Ground
87 YE 1618 Trailer Left Rear Turn/Stop Lamp Supply Voltage
Trailer Stop/Turn Relay - Right (UY7)

GM535912Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12129716
  • 4-Way F Metri-Pack 280 Series Flexlock (GY)
Pin Wire Color Circuit No. Function
30 OG 1340 Battery Positive Voltage
85 D-GN 619 Right Rear Turn Signal Lamp Supply Voltage
86 BK 150 Ground
87 D-GN 1619 Trailer Right Rear Turn/Stop Lamp Supply Voltage
Turn Signal/Hazard Flasher Module

GM800518Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15332177
  • 16-Way F GT 150 Series (BK)
Pin Wire Color Circuit No. Function
A D-BU 5364 Left DRL/Turn Supply Voltage
B YE 18 Left Rear Stop/Turn Lamp Supply Voltage
C L-GN/BK 592 DRL Low Control
D D-GN 19 Right Rear Stop/Turn Lamp Supply Voltage
E D-GN 5365 Right DRL/Turn Supply Voltage
F WH 17 Stop Lamp Switch Signal
G L-BU/WH 1314 Left Front Turn Signal Lamp Supply Voltage
H D-BU/WH 1315 Right Front Turn Signal Lamp Supply Voltage
J RD/WH 540 Battery Positive Voltage
K WH 111 Hazard Switch Signal
L L-BU/WH 1414 Left Turn Signal Switch Signal
M D-BU/WH 1415 Right Turn Signal Switch Signal
N BK 350 Ground
P-S - - Not Used
Turn Signal/Multi-Function Switch - C1

GM39746Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064862
  • 8-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A D-BU/WH 1415 Right Turn Signal Switch Signal
B PK 739 Ignition 1 Voltage
C L-BU/WH 1414 Left Turn Signal Switch Signal
D-F - - Not Used
G TN 28 Horn Relay Control
H WH 111 Hazard Switch Signal
Turn Signal/Multi-Function Switch - C2

GM130718Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12059800
  • 5-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A YE 307 Headlamp Switch Flash to Pass Signal
B L-GN 11 Headlamp Dimmer Switch Signal
C-D - - Not Used
E BK 350 Ground
Turn Signal/Multi-Function Switch - C3

GM811190Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15339058
  • 7-Way F Metri-Pack/150 Series (GY)
Pin Wire Color Circuit No. Function
G - - Not Used
H PK 94 Windshield Washer Switch Signal
J GY 478 Windshield Wiper Switch Signal 2
K D-BU 477 Windshield Wiper Switch Signal 1
L-N - - Not Used
Turn Signal/Multi-Function Switch - C4 (K34)

GM39661Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047786
  • 4-Way M Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A PK 739 Ignition 1 Voltage
B GY 397 Cruise Control On Switch Signal
C GY/BK 87 Cruise Control Resume/Accel Switch Signal
D D-BU 84 Cruise Control Set/Coast Switch Signal
Underhood Lamp

GM537107Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052644
  • 2-Way F Metri-Pack 150 Series, Sealed (GY)
Pin Wire Color Circuit No. Function
A OG 1732 Inadvertent Power Supply Voltage
B BK 1250 Ground
Vanity Mirror Lamp - Left (DH6)

GM35441Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047663
  • 2-Way M Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A OG 1732 Inadvertent Power Supply Voltage
B BK 450 Ground
Vanity Mirror Lamp - Right (DH6)

GM35441Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047663
  • 2-Way M Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A OG 1732 Inadvertent Power Supply Voltage
B BK 450 Ground
scientia non olet · About LEMON Manuals
