Radio/Audio System Schematics

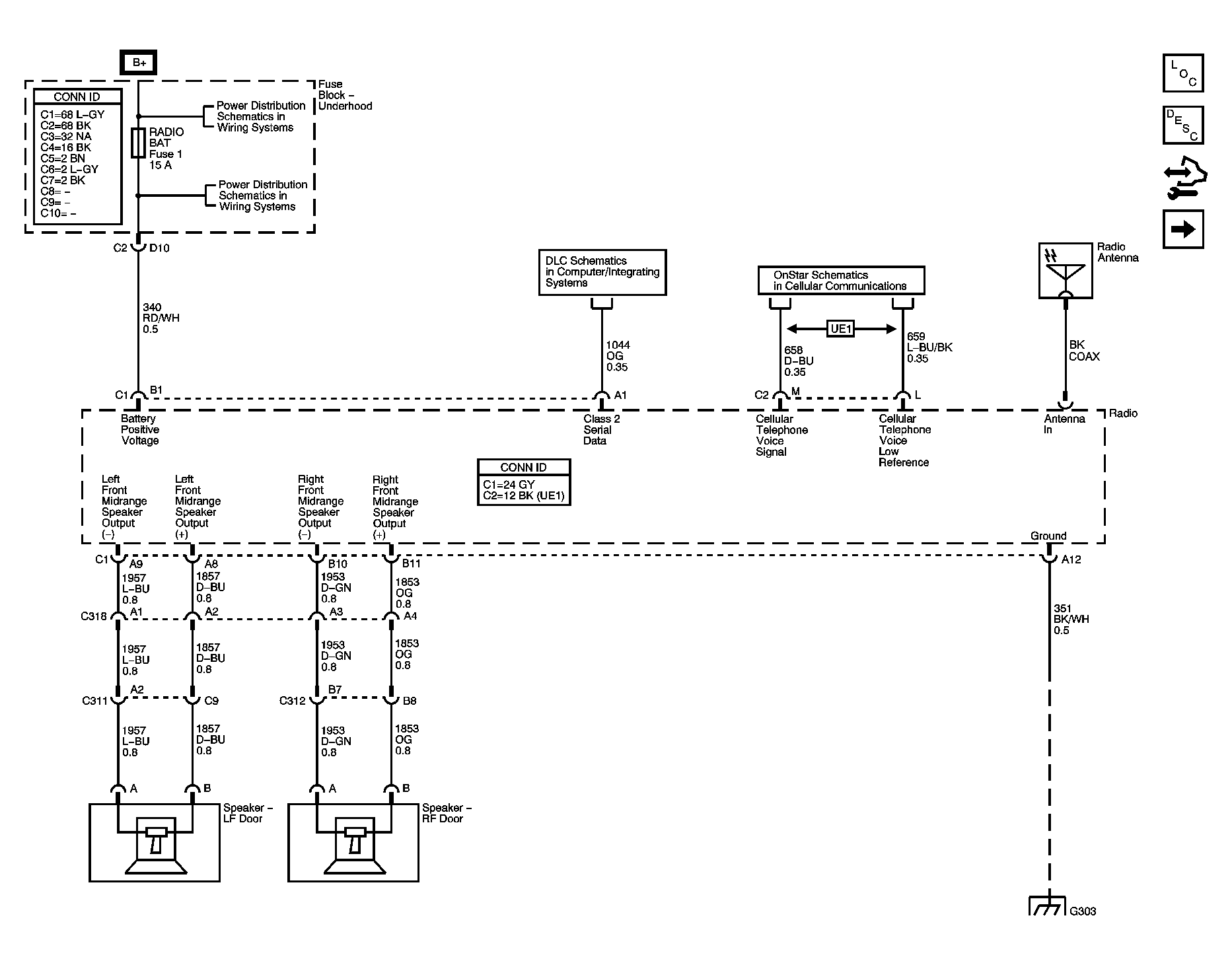

Fig 1: Power, Ground, Serial Data, Antenna and Front Speaker Outputs Schematics
GM1406773Courtesy of GENERAL MOTORS CORP.

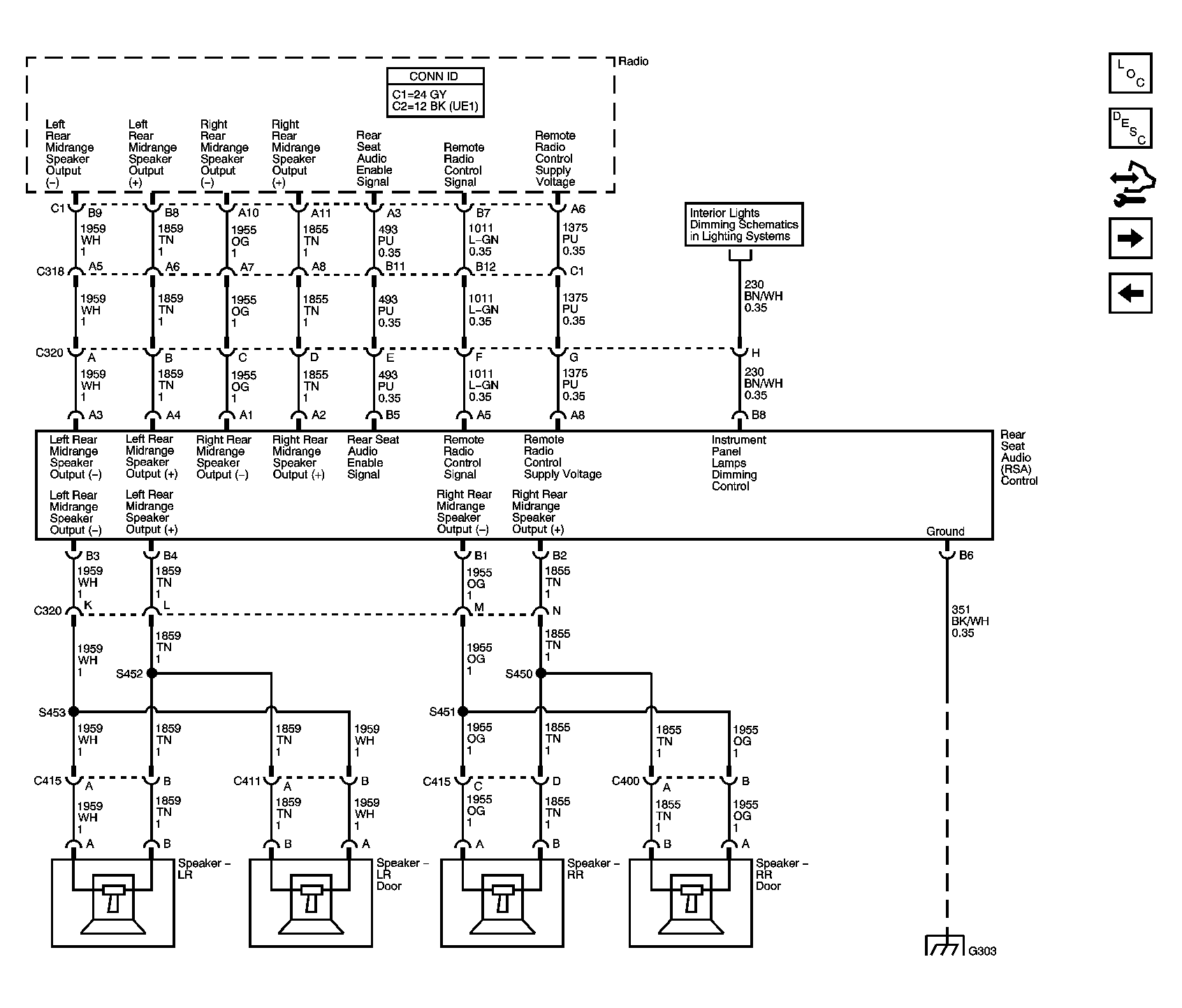

Fig 2: Rear Speaker Outputs Schematics (UK6)
GM1406777Courtesy of GENERAL MOTORS CORP.

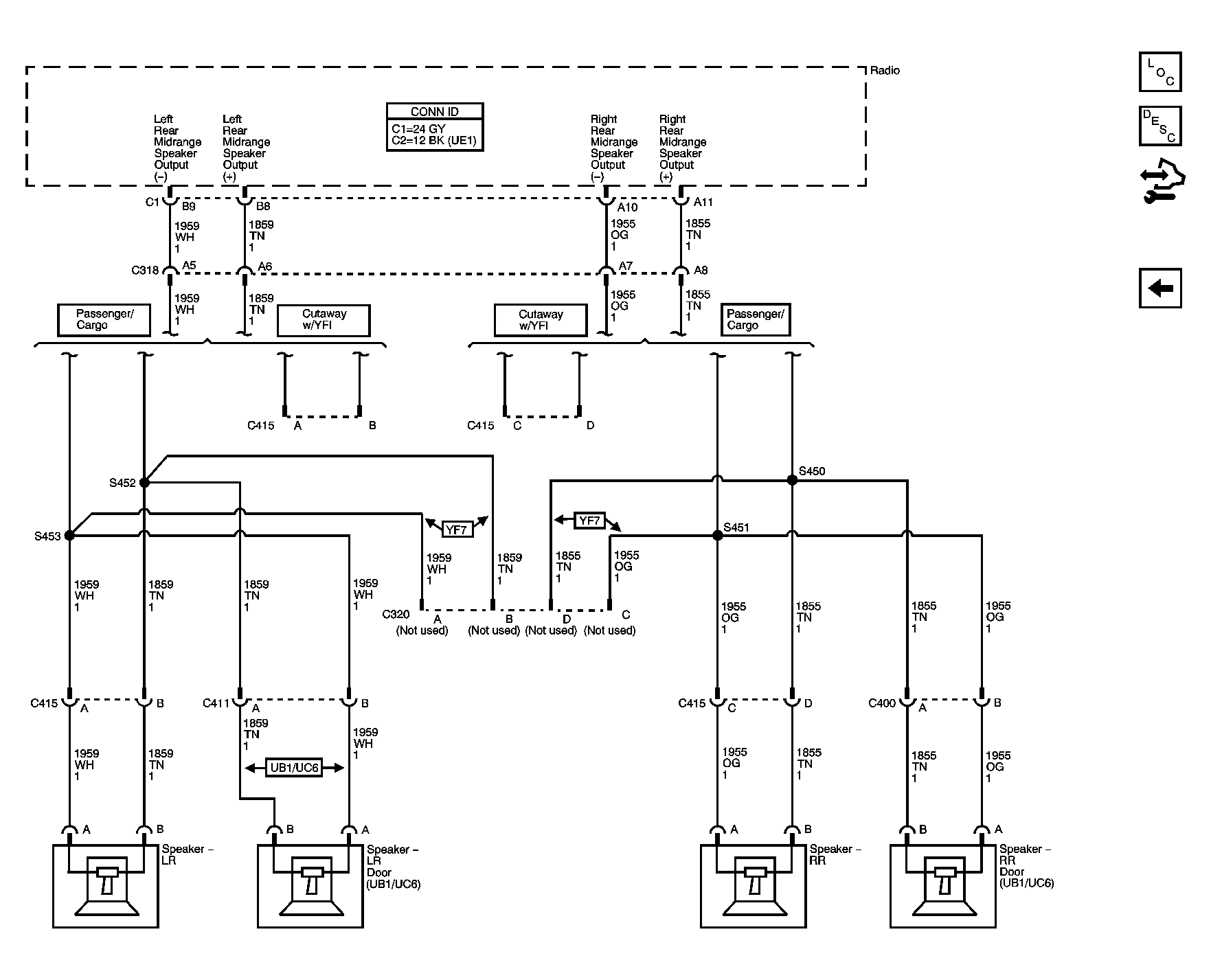

Fig 3: Rear Speaker Outputs Schematics (w/o UK6)
GM1406781Courtesy of GENERAL MOTORS CORP.
