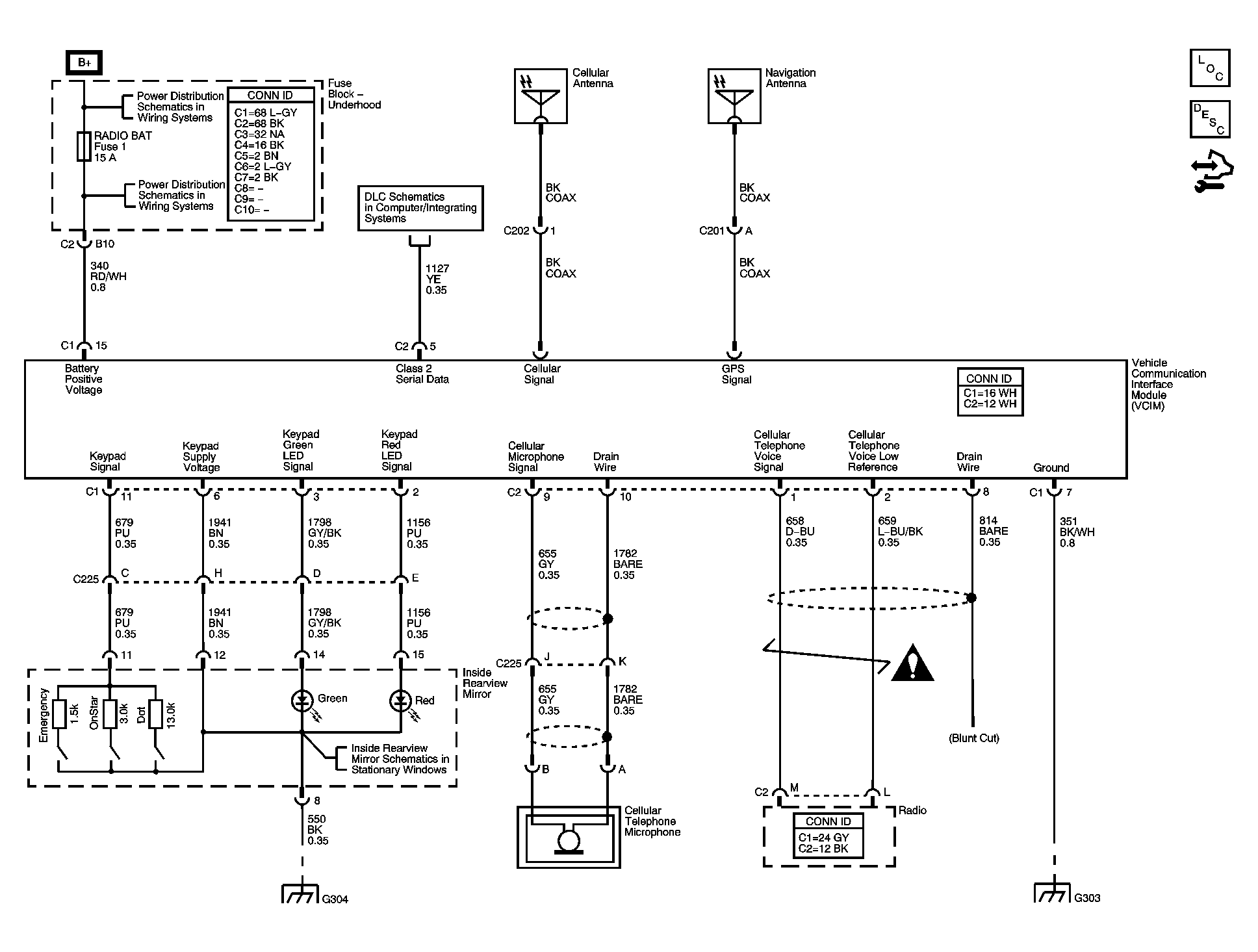

Home >> Chevrolet >> 2005 >> Chevy Express H1500, Van Passenger >> Repair and Diagnosis >> Accessories & Equipment >> Infotainment >> Cellular Communication System >> Schematic and Routing Diagrams >> OnStar Schematics
