Installation Procedure

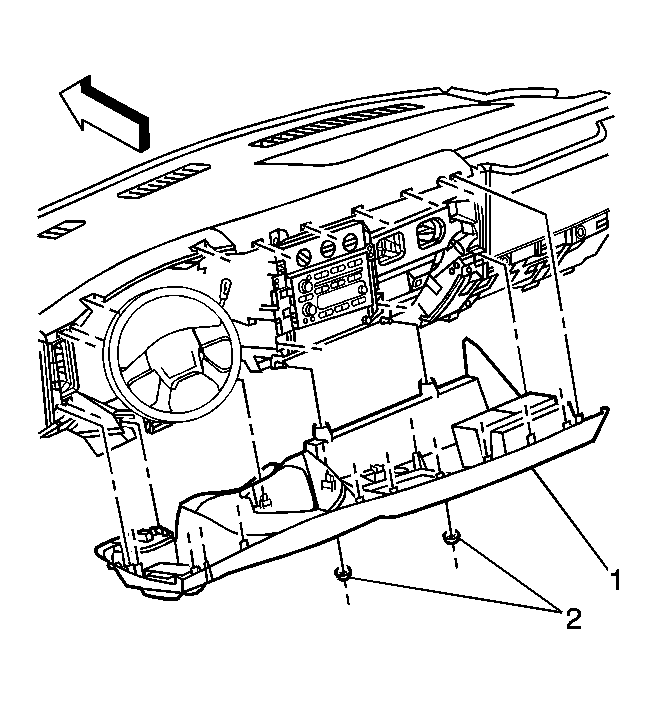

    Fig 1: Instrument Cluster Trim Bezel Nuts
    GM859491Courtesy of GENERAL MOTORS CORP.
  1. Align the trim plate bezel to the instrument panel (I/P) (1).
  2. Connect the electrical connectors to the switches and power ports mounted to the IPC trim plate bezel (1).
  3. Install the steering column. Refer to Steering Column Replacement in Steering Wheel and Column.
  4. Install the driver knee bolster bracket. Refer to Knee Bolster Bracket Replacement - Left .
  5. Press the IPC trim plate bezel (1) towards the I/P in order to engage the retainers.
    6. NOTE: Refer to Fastener Notice in Cautions and Notices.
  6. Install the IPC trim plate bezel nuts (2).

    Tighten:  Tighten the nuts (2) to 6 N.m (53 lb in).

  7. Remove the blocks from the wheels.
  8. Release the parking brake.
