Installation Procedure

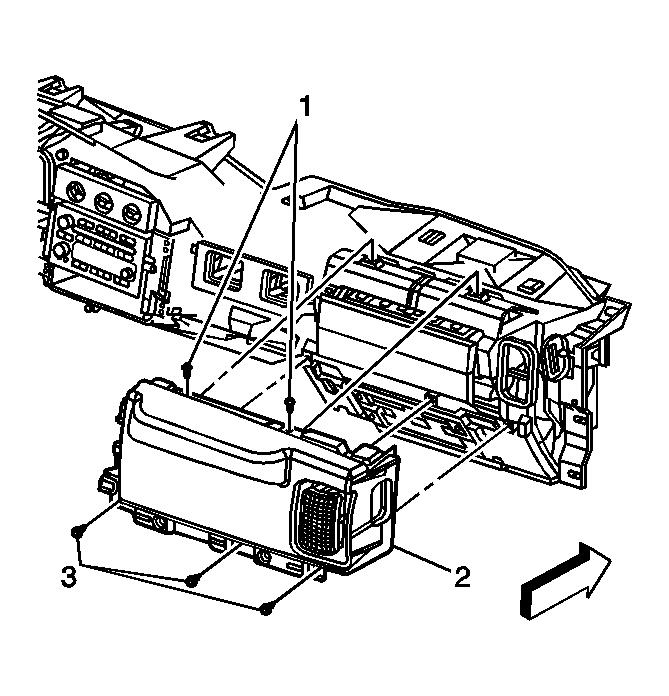

    Fig 1: I/P Trim Pad & Screws
    GM859482Courtesy of GENERAL MOTORS CORP.
  1. Install the I/P trim pad (2) to the I/P.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the screws (1, 3).

    Tighten:  Tighten the screws (1, 3) to 3 N.m (26 lb in).

  3. Install the I/P upper trim pad. Refer to Trim Pad Replacement - Instrument Panel (I/P) Upper .
  4. Install the knee bolster trim panel. Refer to Knee Bolster Replacement - Right .
  5. Enable the SIR. Refer to SIR Disabling and Enabling Zone 5 in SIR.
