Installation Procedure

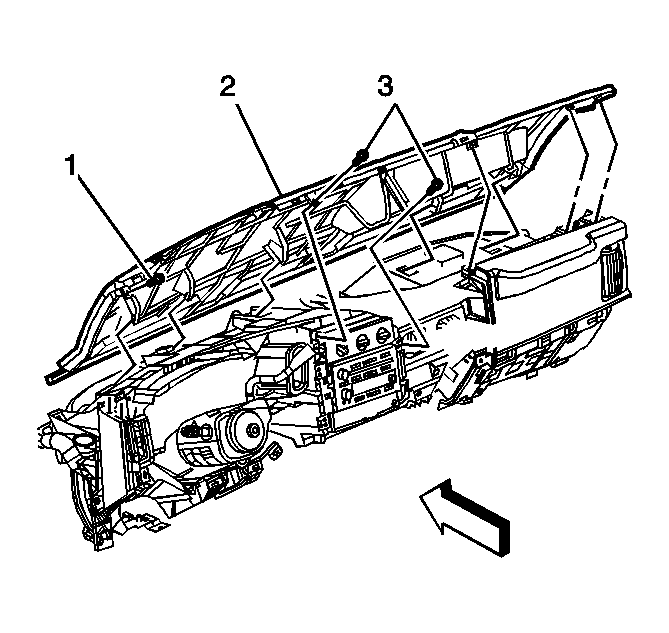

    Fig 1: I/P Upper Trim Pad & Screws
    GM859480Courtesy of GENERAL MOTORS CORP.
  1. Slide the I/P upper trim pad (2) forward in order to engage the front hooks of the I/P upper trim pad (2) to the I/P carrier.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the I/P upper trim pad screws (1, 3).

    Tighten:  Tighten the I/P upper trim pad screws to 3 N.m (18 lb in).

  3. Install the cluster trim plate bezel. Refer to Trim Plate Bezel Replacement - Instrument Panel (I/P) Cluster .
  4. Install the left and right windshield garnish moldings. Refer to Windshield Garnish Molding Replacement in Interior Trim.
